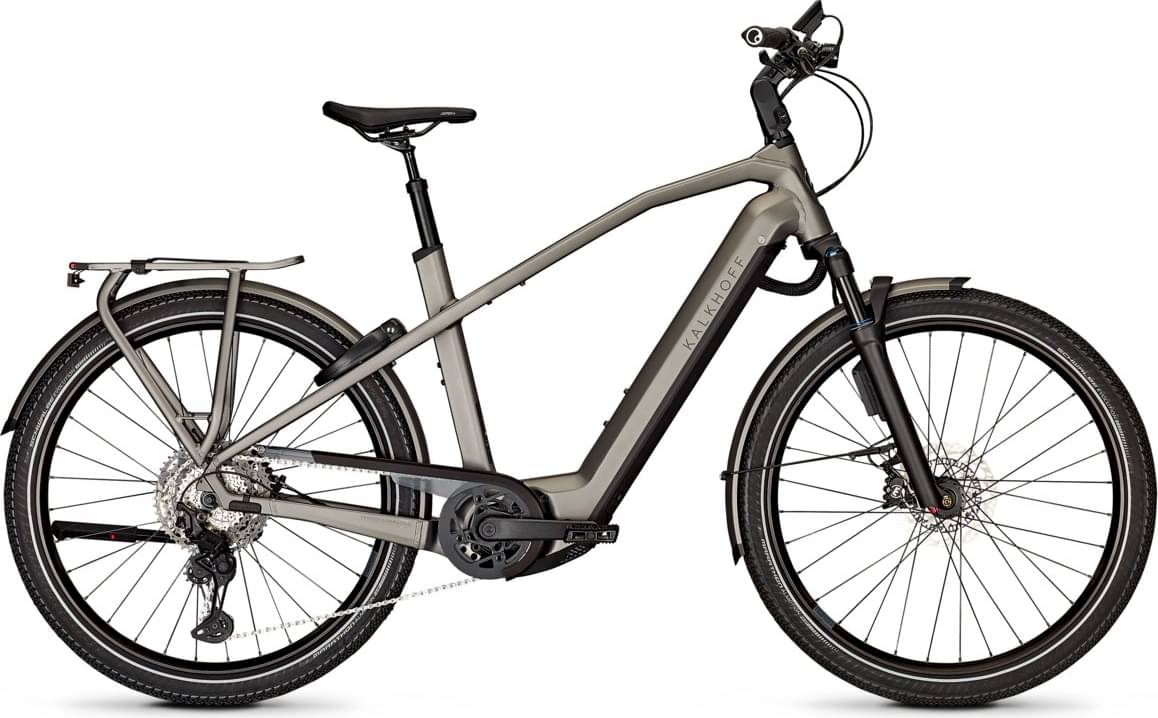

kalkhoff ENDEAVOUR 7.B ADVANCE+ ABS Wave 2023
2023 E-bike
Estimate price |
6,958$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 1.6, Aluminium
Suspension Fork
Suntour Mobie34, 100x15 mm Steckachse, ABS
Rear Shock
No
Drivetrain
Rear Derailleur
Shimano Deore XT M8130
Shift Levers
Shimano Deore XT
Crank
aluminium
Bottom Bracket
No
Chain
Shimano CN-LG500
Pedals
Aluminium with anti slip protectionand reflector
Wheels
Front Hub
Thru axle, 15x100 mm
Rear Hub
Shimano GRX RS470, 12x142 mm thru axle
Rims
Rodi TRYP35, with double eyelets
Tires
Schwalbe Marathon Almotion 55-584
Brakes
Brakes
disc brake
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Riser,Concept EX Ergo Riser
Seat
Saddle
Fizik Terra Aidon
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.296 mm | 1.296 mm | 1.299 mm | 1.302 mm |
| Front Center | 764 mm | 764 mm | 772 mm | 780 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 635 mm | 635 mm | 642.9 mm | 650.9 mm |
| Reach | 490 mm | 490 mm | 495 mm | 500 mm |
| Top Tube Length | 624.6 mm | 624.6 mm | 631.4 mm | 638.3 mm |
| Seat Tube Angle | 78 ° | 78.03 ° | 78 ° | 78.01 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 160 mm | 168.5 mm | 168.5 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1224 mm | 1224 mm | 1232 mm | 1240 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
ENDEAVOUR 7.B ADVANCE+ ABS Wave is part of the Kalkhoff E Endeavour model. There are 46 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Kalkhoff ENDEAVOUR 1.B MOVE Wave 2023 is the most economical model, with a starting price of 3526$. Kalkhoff ENDEAVOUR 7.B ADVANCE+ ABS Diamond 2023 on the other hand costs 6324$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 6324$. Comparing this to the average Commuter e-bike price, we see that the price is 146.17% more expensive.
ENDEAVOUR 7.B ADVANCE+ ABS Wave components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on ENDEAVOUR 7.B ADVANCE+ ABS Wave are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Kalkhoff ENDEAVOUR 7.B ADVANCE+ ABS Wave has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
