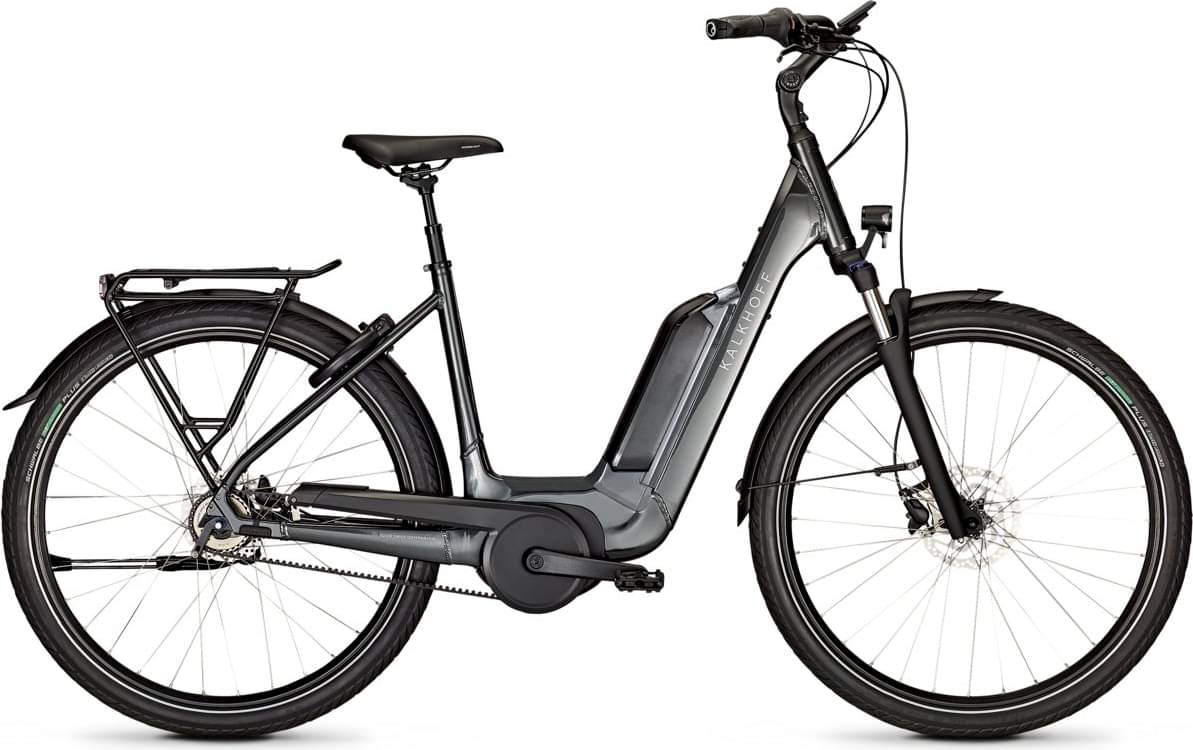

kalkhoff IMAGE 1.B EXCITE 2023
2023 E-bike
Estimate price |
4,415$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NVX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack Li-Ion 36 V -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Comfort, aluminium
Suspension Fork
SR Suntour NVX30
Rear Shock
No
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
Integrated in Drive Unit
Chain
Gates Carbondrive CDX
Pedals
Comfort, aluminium
Wheels
Front Hub
Shimano TX505, QR
Rear Hub
Shimano Nexus, 5-Gang,Shimano Nexus, 5 speed
Rims
Schürmann CRAFT 21
Tires
Schwalbe Energizer Plus Performance, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerPack Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.566 mm | 1.568 mm | 1.592 mm |
| Front Center | 722 mm | 726 mm | 731 mm | 741 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 85 mm | 78 mm | 75 mm | 83 mm |
| Stack | 677.8 mm | 682.9 mm | 694.8 mm | 718.2 mm |
| Reach | 421 mm | 436 mm | 443 mm | 451 mm |
| Top Tube Length | 615.4 mm | 631.8 mm | 642.2 mm | 651.6 mm |
| Seat Tube Angle | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° |
| Head Tube Angle | 68 ° | 69 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 185 mm | 185 mm | 195 mm | 200 mm |
| Chainstay Length | 527 mm | 527 mm | 527 mm | 527 mm |
| Wheelbase | 1242 mm | 1246 mm | 1251 mm | 1261 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
IMAGE 1.B EXCITE belongs to the Kalkhoff E Image model. 59 e-bikes variations carry this model name so far. Take a sneak peek at all Kalkhoff E Image e-bikes models from 2023, by clicking here.
Model range prices
Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 is the most affordable e-bike of this model and has a price of 2918$. On the other hand, Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023, is the most expensive and costs 6081$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 4013$. Comparing the average cost of a Commuter e-bike to this one, you will see that IMAGE 1.B EXCITE price is 56.21% higher.
IMAGE 1.B EXCITE components
Fork
This e-bike has the Suntour NVX fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The IMAGE 1.B EXCITE 2023 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The IMAGE 1.B EXCITE comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
