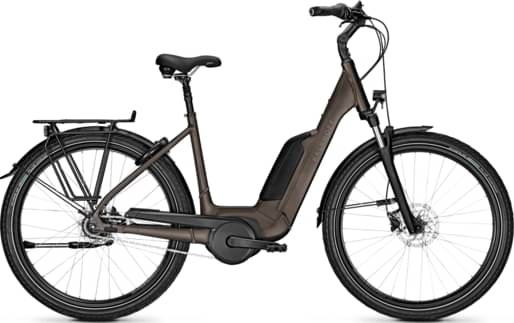

kalkhoff IMAGE 1.B XXL 2022
2022 E-bike
Estimate price |
3,669$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 75mm -
Fork Suntour
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerPack Li-Ion 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch V2, aluminium
Suspension Fork
Suntour NVX30, XXL Spring
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
Bosch, press-fit
Chain
KMC Z1 EPT, anti-rust coating
Pedals
Aluminium with anti slip protectionand reflector
Wheels
Rims
Road Airline Plus, with eyelets
Brakes
Brakes
Shimano MT200, 2-piston, hydraulic disc brake
Disk Rotors
180
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Giara
Seatpost
Patent XXL, suspension
Motor & Battery
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Battery
Bosch PowerPack Li-Ion 36 V
Remote
Bosch Intuvia LCD, with control panel and walk assist
Charger
Bosch, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.566 mm | 1.568 mm | 1.592 mm | 1.568 mm |
| Front Center | 722 mm | 726 mm | 731 mm | 741 mm | 755 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 85 mm | 78 mm | 75 mm | 83 mm | 75 mm |
| Stack | 677.8 mm | 682.9 mm | 694.8 mm | 718.2 mm | 718.2 mm |
| Reach | 421 mm | 436 mm | 443 mm | 451 mm | 458 mm |
| Top Tube Length | 615.4 mm | 631.8 mm | 642.2 mm | 651.6 mm | 663.9 mm |
| Seat Tube Angle | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° |
| Head Tube Angle | 68 ° | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 185 mm | 185 mm | 195 mm | 200 mm | 220 mm |
| Chainstay Length | 527 mm | 527 mm | 527 mm | 527 mm | 527 mm |
| Wheelbase | 1242 mm | 1246 mm | 1251 mm | 1261 mm | 1275 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
IMAGE 1.B XXL is part of the Kalkhoff E Image model. 59 e-bikes variations carry this model name so far. You can easily view all of the Kalkhoff E Image e-bikes models from 2022, here.
Model range prices
Kalkhoff IMAGE 1.B MOVE 2022 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, Kalkhoff IMAGE 7.B EXCITE+ Diamond 2022, is the most expensive and costs 5945$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3397$. In conclusion, this e-bike price is 32.23% more expensive than the price of the average Commuter e-bike.
IMAGE 1.B XXL components
Fork
The IMAGE 1.B XXL comes factory-installed with the Suntour fork. This has a travel range of 75mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Kalkhoff IMAGE 1.B XXL 2022, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The IMAGE 1.B XXL comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
IMAGE 1.B XXL comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
