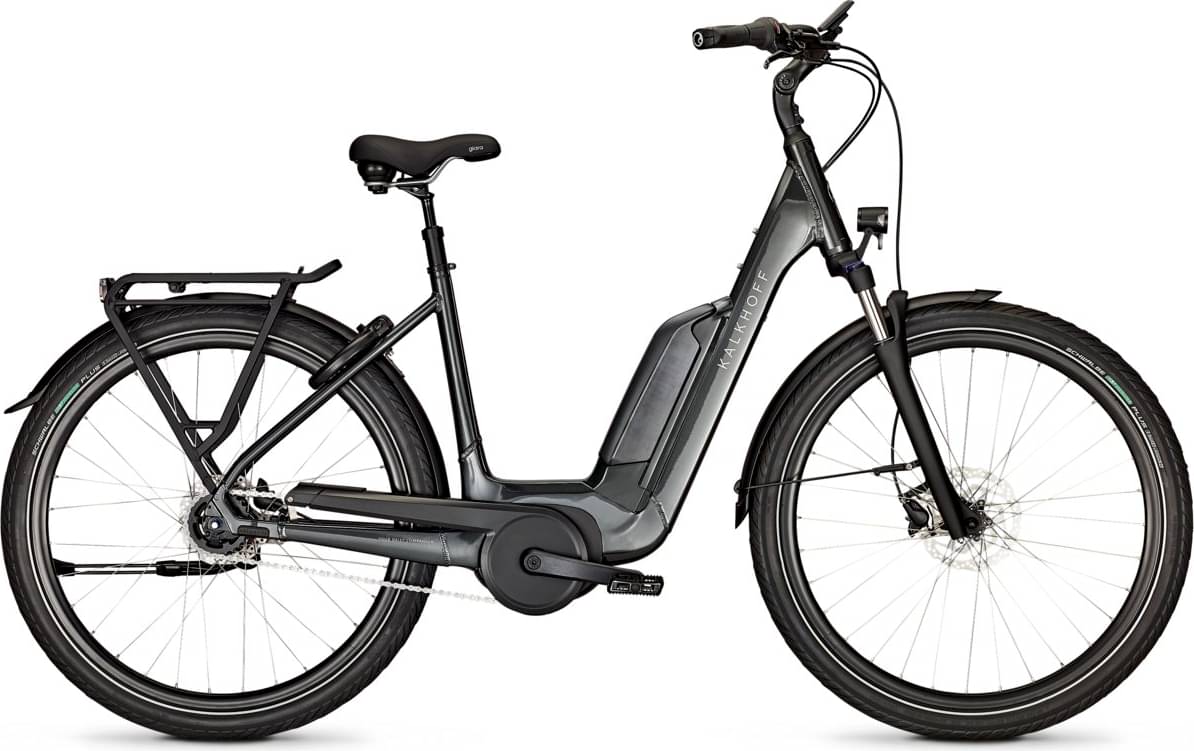

kalkhoff IMAGE 1.B XXL 2023
2023 E-bike
Estimate price |
4,281$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NVX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack Li-Ion 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Comfort, aluminium
Suspension Fork
Suntour NVX30, XXL Spring
Rear Shock
No
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
Integrated in Drive Unit
Chain
KMC Z1 EPT, anti-rust coating
Pedals
Comfort, XXL, Aluminium
Wheels
Front Hub
Shimano TX505, QR
Rear Hub
Shimano Nexus, 5 speed
Rims
Rodi Cyclone with eyelets
Tires
Schwalbe Energizer Plus Performance, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Giara
Seatpost
Patent XXL, suspension
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerPack Li-Ion 36 V
Charger
Bosch, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.566 mm | 1.568 mm | 1.592 mm | 1.568 mm |
| Front Center | 722 mm | 726 mm | 731 mm | 741 mm | 755 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 85 mm | 78 mm | 75 mm | 83 mm | 75 mm |
| Stack | 677.8 mm | 682.9 mm | 694.8 mm | 718.2 mm | 718.2 mm |
| Reach | 421 mm | 436 mm | 443 mm | 451 mm | 458 mm |
| Top Tube Length | 615.4 mm | 631.8 mm | 642.2 mm | 651.6 mm | 663.9 mm |
| Seat Tube Angle | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° |
| Head Tube Angle | 68 ° | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 185 mm | 185 mm | 195 mm | 200 mm | 220 mm |
| Chainstay Length | 527 mm | 527 mm | 527 mm | 527 mm | 527 mm |
| Wheelbase | 1242 mm | 1246 mm | 1251 mm | 1261 mm | 1275 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
IMAGE 1.B XXL belongs to the Kalkhoff E Image model. Kalkhoff launched 59 e-bikes of this model so far. Take a sneak peek at all Kalkhoff E Image e-bikes models from 2023, by clicking here.
Model range prices
Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 is the cheapest e-bike model and costs 2918$. Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023 is the most expensive one and costs 6081$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Kalkhoff IMAGE 1.B XXL price was 3891$. In conclusion, this e-bike price is 51.46% higher than the price of the average Commuter e-bike.
Overview of components
Fork
The Suntour NVX is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on IMAGE 1.B XXL are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
IMAGE 1.B XXL comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
