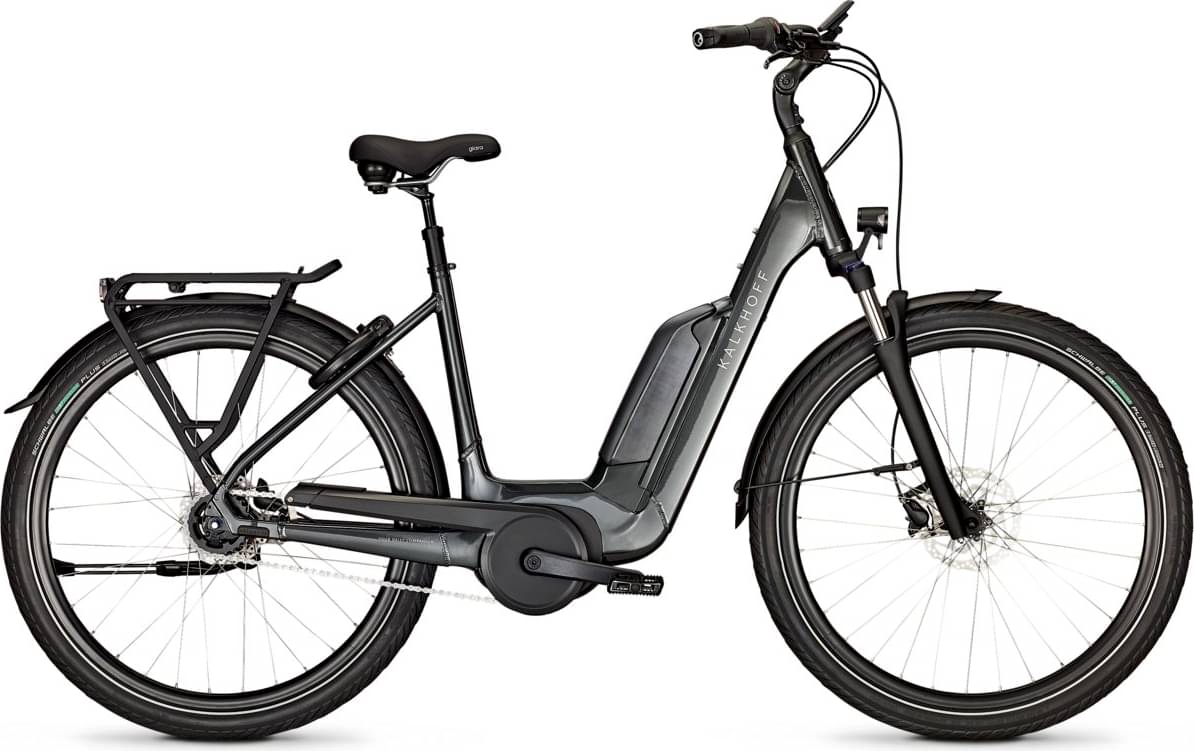

kalkhoff IMAGE 1 XXL 2023
2023 E-bike
Estimate price |
4,281$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NVX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack Li-Ion 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Comfort, aluminium
Suspension Fork
Suntour NVX30, XXL Spring
Rear Shock
No
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
Integrated in Drive Unit
Chain
KMC Z1 EPT, anti-rust coating
Pedals
Comfort, XXL, Aluminium
Wheels
Front Hub
Shimano TX505, QR
Rear Hub
Shimano Nexus, 5 speed,Shimano Nexus, 5-Gang
Rims
Rodi Cyclone with eyelets
Tires
Schwalbe Energizer Plus Performance, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Giara
Seatpost
Patent XXL, suspension
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerPack Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.566 mm | 1.568 mm | 1.592 mm | 1.568 mm |
| Front Center | 722 mm | 726 mm | 731 mm | 741 mm | 755 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 85 mm | 78 mm | 75 mm | 83 mm | 75 mm |
| Stack | 677.8 mm | 682.9 mm | 694.8 mm | 718.2 mm | 718.2 mm |
| Reach | 421 mm | 436 mm | 443 mm | 451 mm | 458 mm |
| Top Tube Length | 615.4 mm | 631.8 mm | 642.2 mm | 651.6 mm | 663.9 mm |
| Seat Tube Angle | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° |
| Head Tube Angle | 68 ° | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 185 mm | 185 mm | 195 mm | 200 mm | 220 mm |
| Chainstay Length | 527 mm | 527 mm | 527 mm | 527 mm | 527 mm |
| Wheelbase | 1242 mm | 1246 mm | 1251 mm | 1261 mm | 1275 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
IMAGE 1 XXL completes the Kalkhoff E Image model. There are 59 e-bikes that carry this model name. Take a sneak peek at all Kalkhoff E Image e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 has a starting price of 2918$. Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023 on the other hand is the most expensive at 6081$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 3891$. Doing a quick comparison, we notice that IMAGE 1 XXL price is 51.46% more expensive than the average cost of a Commuter e-bike.
IMAGE 1 XXL components
Fork
The Suntour NVX is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the IMAGE 1 XXL e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Kalkhoff IMAGE 1 XXL has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
