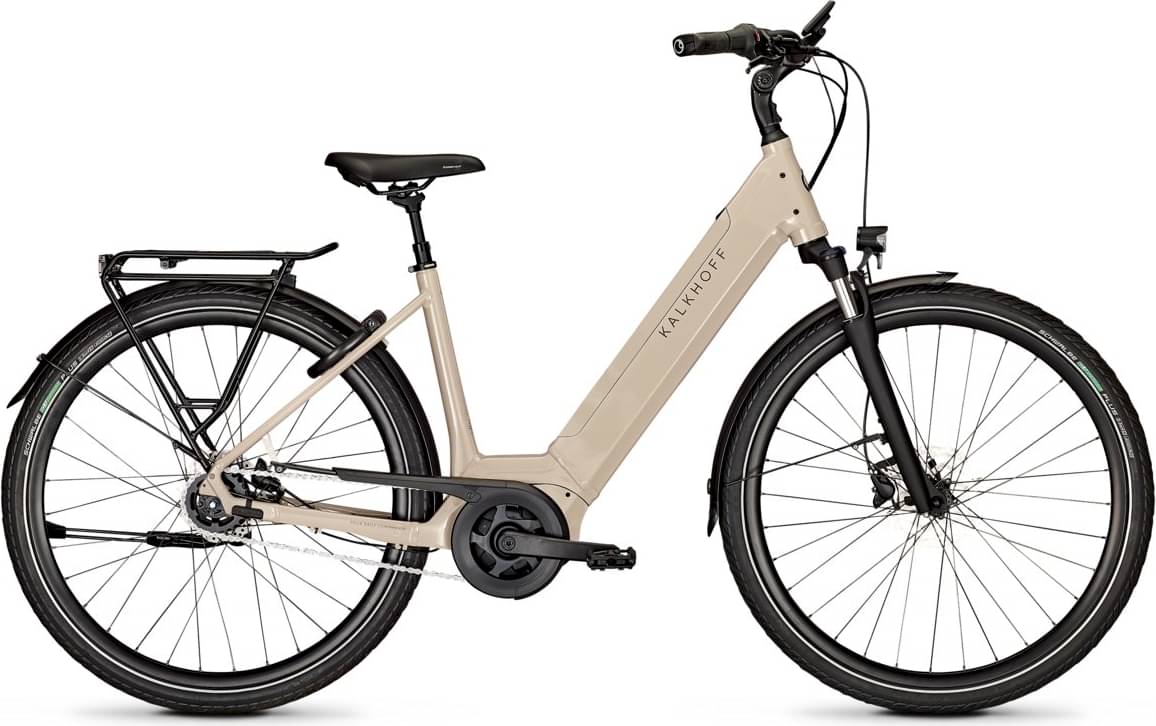

kalkhoff IMAGE 3 ADVANCE Wave 2023
2023 E-bike
Estimate price |
4,415$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 3|23
Suspension Fork
SR Suntour NEX E25 HLO, lockout
Rear Shock
No
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
Integrated in Drive Unit
Chain
KMC Z1 EPT, anti-rust coating
Pedals
Comfort, aluminium
Wheels
Front Hub
Shimano TX505, QR
Rear Hub
Shimano Nexus, 5 speed
Rims
Aluminium, hollow section, eyelets
Tires
Schwalbe Energizer Plus Performance, 50-622
Brakes
Brakes
disc brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | XL | SM | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.484 mm | 1.655 mm | 1.673 mm |
| Front Center | 659 mm | 672 mm | 714 mm | 727 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 130 mm | 10 mm | 19 mm |
| Stack | 666.8 mm | 685.7 mm | 653.7 mm | 672.5 mm |
| Reach | 450 mm | 462 mm | 395 mm | 402 mm |
| Top Tube Length | 599.9 mm | 618.3 mm | 649.9 mm | 661.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70 ° |
| Head Tube Length | 175 mm | 195 mm | 165 mm | 180 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1145 mm | 1158 mm | 1200 mm | 1213 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 |
Model Overview
IMAGE 3 ADVANCE Wave is part of the Kalkhoff E Image model. There are 59 e-bikes that carry this model name. Take a sneak peek at all Kalkhoff E Image e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 has a starting price of 2918$. Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023 on the other hand is the most expensive at 6081$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 4013$. Comparing this to the average Commuter e-bike price, we see that the price is 56.21% higher.
Overview of components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on IMAGE 3 ADVANCE Wave are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Kalkhoff IMAGE 3 ADVANCE Wave has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
