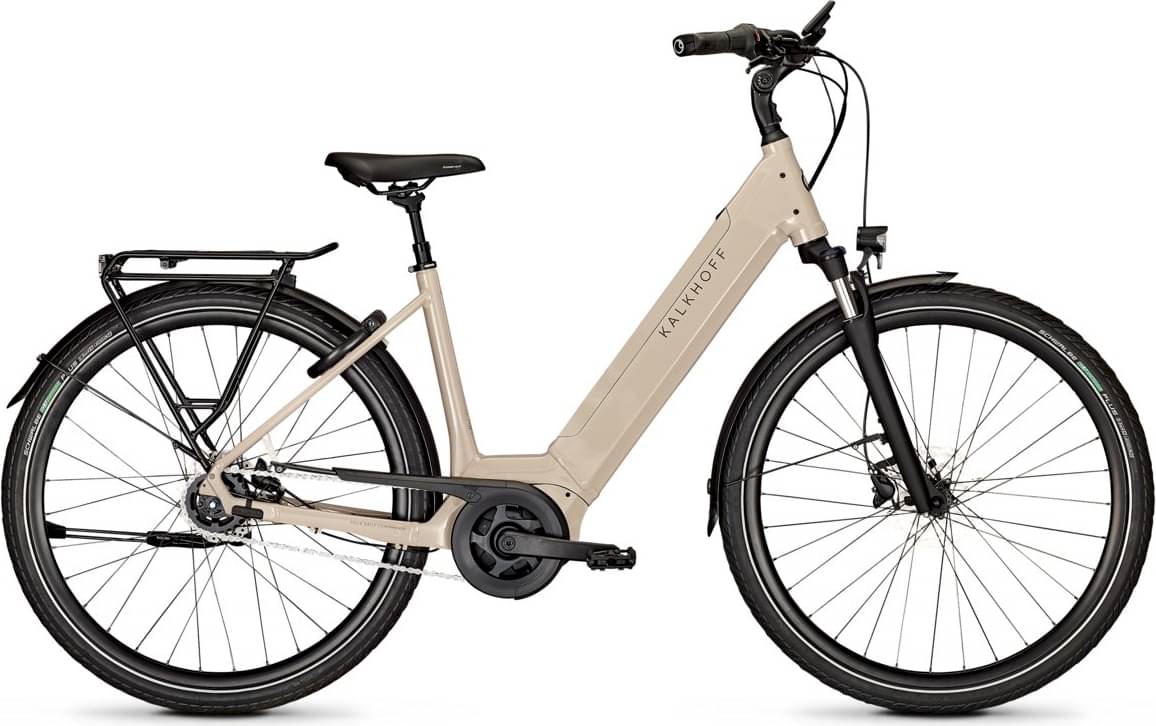

kalkhoff IMAGE 3.B ADVANCE Wave 2023
2023 E-bike
Estimate price |
4,415$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 3|23
Suspension Fork
SR Suntour NEX E25 HLO, lockout
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
Integrated in Drive Unit
Chain
KMC Z1 EPT, anti-rust coating
Pedals
Comfort, aluminium
Wheels
Front Hub
Shimano TX505, QR
Rear Hub
Shimano Nexus, 5 speed
Rims
Aluminium, hollow section, eyelets
Tires
Schwalbe Energizer Plus Performance, 50-622
Brakes
Brakes
disc brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | XL | SM | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.484 mm | 1.655 mm | 1.673 mm |
| Front Center | 659 mm | 672 mm | 714 mm | 727 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 130 mm | 10 mm | 19 mm |
| Stack | 666.8 mm | 685.7 mm | 653.7 mm | 672.5 mm |
| Reach | 450 mm | 462 mm | 395 mm | 402 mm |
| Top Tube Length | 599.9 mm | 618.3 mm | 649.9 mm | 661.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70 ° |
| Head Tube Length | 175 mm | 195 mm | 165 mm | 180 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1145 mm | 1158 mm | 1200 mm | 1213 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 |
About this model
IMAGE 3.B ADVANCE Wave completes the Kalkhoff E Image model. 59 e-bikes variations carry this model name so far. You can easily view all of the Kalkhoff E Image e-bikes models from 2023, here.
Model range prices
Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 is the most affordable e-bike of this model and has a price of 2918$. On the other hand, Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023, is the most expensive and costs 6081$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Kalkhoff released this model in 2023, its price was 4013$. Doing a quick comparison, we notice that IMAGE 3.B ADVANCE Wave price is 56.21% higher than the average cost of a Commuter e-bike.
IMAGE 3.B ADVANCE Wave components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the IMAGE 3.B ADVANCE Wave model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The IMAGE 3.B ADVANCE Wave has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
