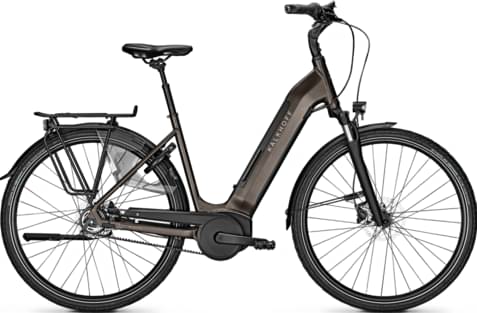

kalkhoff IMAGE 3.B EXCITE BLX Wave 2022
2022 E-bike
Estimate price |
4,300$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.1, aluminium
Suspension Fork
SR Suntour NEX E25 HLO, lockout
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Chain
Gates Carbondrive CDX
Pedals
Comfort, aluminium
Wheels
Rims
Schürmann CRAFT 21
Brakes
Brakes
Shimano MT200, 2-piston, hydraulic disc brake
Disk Rotors
180
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Nuvola Unitec
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Remote
Bosch Intuvia LCD, with control panel and walk assist
Charger
Bosch, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XL | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.652 mm | 1.778 mm | 1.773 mm | 1.772 mm |
| Front Center | 656 mm | 626 mm | 635 mm | 644 mm |
| Rake | 44 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 60 mm | 60 mm | 60 mm |
| Stack | 674 mm | 672 mm | 681 mm | 691 mm |
| Reach | 408 mm | 378 mm | 384 mm | 390 mm |
| Top Tube Length | 408 mm | 609 mm | 619 mm | 628 mm |
| Seat Tube Angle | 73 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 190 mm | 185 mm | 195 mm | 205 mm |
| Chainstay Length | 480 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1128 mm | 1108 mm | 1117 mm | 1126 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 |
About this model
IMAGE 3.B EXCITE BLX Wave is a Kalkhoff E Image model. There are 59 e-bikes that carry this model name. You can easily view all of the Kalkhoff E Image e-bikes models from 2022, here.
Model range prices
Kalkhoff IMAGE 1.B MOVE 2022 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, Kalkhoff IMAGE 7.B EXCITE+ Diamond 2022, is the most expensive and costs 5945$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Kalkhoff released this model in 2022, its price was 3981$. If we compare this with the average Commuter e-bike cost we notice that the price is 54.96% more expensive.
Overview of components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the IMAGE 3.B EXCITE BLX Wave e-bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The IMAGE 3.B EXCITE BLX Wave has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
