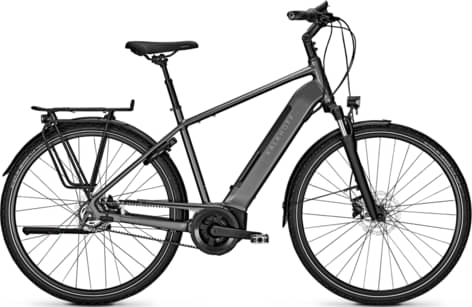

kalkhoff IMAGE 3.B EXCITE Diamond 2021
2021 E-bike
Estimate price |
4,185$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.1, aluminium
Suspension Fork
SR Suntour NEX E25 HLO, lockout
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
Integrated in Drive Unit
Chain
Gates Carbondrive CDX
Pedals
Comfort, aluminium
Brakes
Brakes
Shimano MT200, 2-piston, hydraulic disc brake
Disk Rotors
180
Cockpit
Stem
alloy, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Remote
Bosch Intuvia LCD, with control panel and walk assist
Charger
Bosch, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XL | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.652 mm | 1.654 mm | 1.654 mm | 1.652 mm |
| Front Center | 656 mm | 628 mm | 638 mm | 647 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 61 mm | 61 mm | 61 mm | 60 mm |
| Stack | 674 mm | 645 mm | 655 mm | 664 mm |
| Reach | 408 mm | 390 mm | 396 mm | 402 mm |
| Top Tube Length | 408 mm | 587 mm | 596 mm | 605 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 190 mm | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1128 mm | 1100 mm | 1110 mm | 1119 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 |
Model Overview
IMAGE 3.B EXCITE Diamond completes the Kalkhoff E Image model. Kalkhoff released 59 e-bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Kalkhoff IMAGE 3.B EXCITE Wave 2021 is the cheapest e-bike model and costs 3874$. Kalkhoff IMAGE 3.B ADVANCE Trapez 2021 is the most expensive one and costs 3891$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3874$. If we compare this with the average Commuter e-bike cost we notice that the price is 50.8% higher.
IMAGE 3.B EXCITE Diamond components
Fork
The Suntour NEX is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Kalkhoff IMAGE 3.B EXCITE Diamond 2021, has a model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kalkhoff IMAGE 3.B EXCITE Diamond is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
