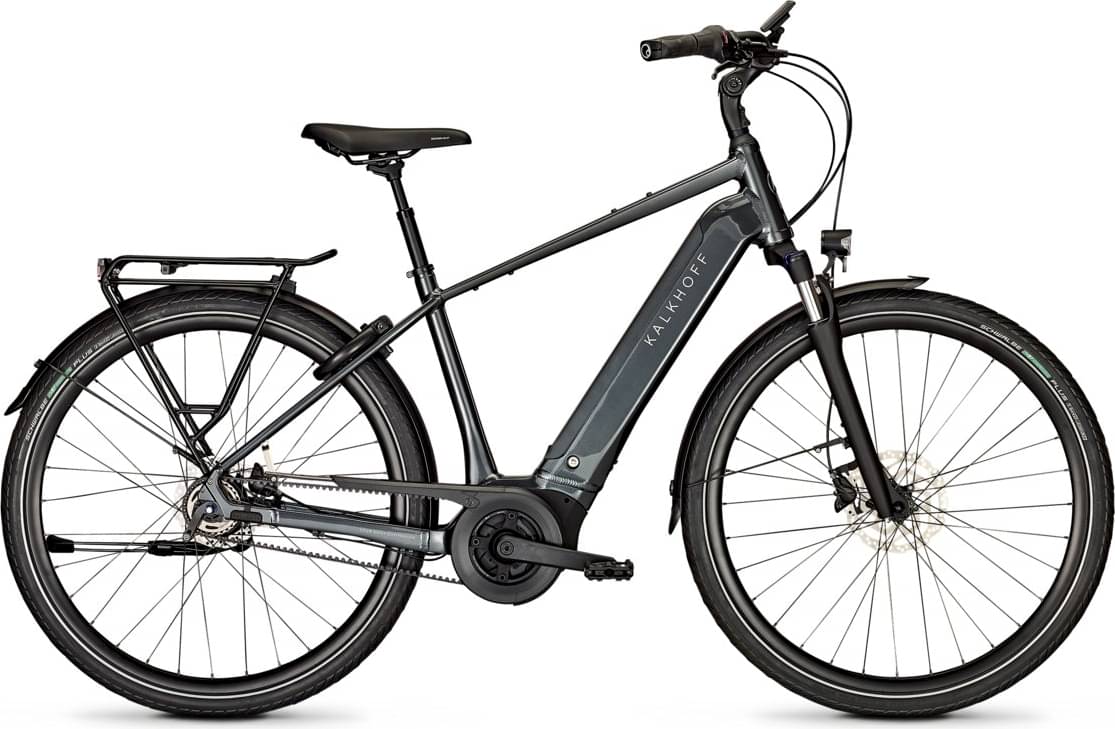

kalkhoff IMAGE 3.B EXCITE Diamond 2023
2023 E-bike
Estimate price |
4,950$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 3|23
Suspension Fork
SR Suntour NEX E25 HLO, lockout
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
Integrated in Drive Unit
Chain
Gates Carbondrive CDX
Pedals
Comfort, aluminium
Wheels
Front Hub
Shimano TX505, QR
Rear Hub
Shimano Nexus, 5 speed,Shimano Nexus, 5-Gang
Rims
Aluminium, hollow section, eyelets
Tires
Schwalbe Energizer Plus Performance, 50-622
Brakes
Brakes
disc brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XL | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.484 mm | 1.655 mm | 1.674 mm | 1.673 mm |
| Front Center | 672 mm | 714 mm | 717 mm | 727 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 10 mm | 19 mm | 19 mm |
| Stack | 685.7 mm | 653.7 mm | 663.1 mm | 672.5 mm |
| Reach | 462 mm | 395 mm | 396 mm | 402 mm |
| Top Tube Length | 618.3 mm | 649.9 mm | 652.7 mm | 661.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 70 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70 ° | 70 ° |
| Head Tube Length | 195 mm | 165 mm | 175 mm | 180 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1158 mm | 1200 mm | 1204 mm | 1213 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 |
Model Overview
IMAGE 3.B EXCITE Diamond is a Kalkhoff E Image model. Kalkhoff released 59 e-bikes variations of this model so far. Take a sneak peek at all Kalkhoff E Image e-bikes models from 2023, by clicking here.
Model range prices
Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 is the most economical model, with a starting price of 2918$. Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023 on the other hand costs 6081$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2023 and its price was 4499$. Doing a quick comparison, we notice that IMAGE 3.B EXCITE Diamond price is 75.13% higher than the average cost of a Commuter e-bike.
Overview of components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on IMAGE 3.B EXCITE Diamond are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kalkhoff IMAGE 3.B EXCITE Diamond is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
