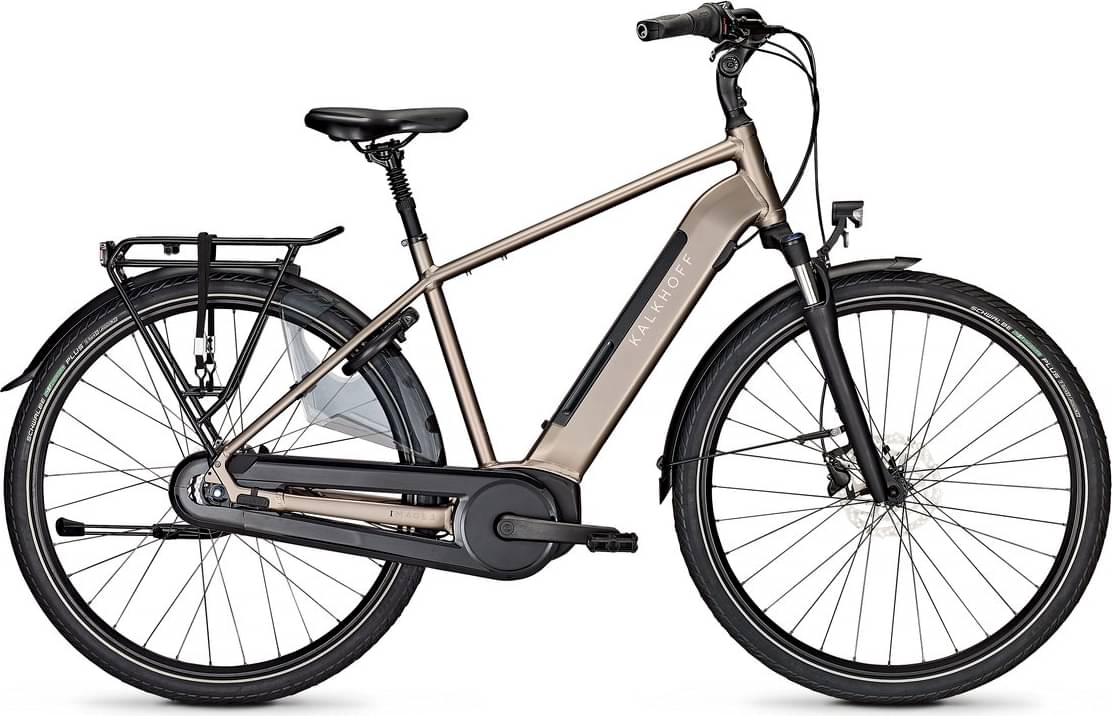

kalkhoff IMAGE 3.B MOVE BLX Wave 2023
2023 E-bike
Estimate price |
4,147$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 3|23
Suspension Fork
SR Suntour NEX E25 HLO, lockout
Rear Shock
No
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
No
Chain
KMC Z1 EPT, anti-rust coating
Pedals
Aluminium, with anti slip protection and reflector
Wheels
Front Hub
Shimano TX505, QR
Rear Hub
Shimano Nexus, 7-Speed
Rims
Schürmann CRAFT 21
Tires
Schwalbe Energizer Plus Performance, 50-622
Brakes
Brakes
disc brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Nuvola Unitec
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Active Line Plus, 36 V / 250 W / 50 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XL | LG | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.652 mm | 1.652 mm | 1.778 mm | 1.773 mm |
| Front Center | 656 mm | 647 mm | 626 mm | 635 mm |
| Rake | 44 mm | 44 mm | 45 mm | 45 mm |
| Trail | 61 mm | 60 mm | 60 mm | 60 mm |
| Stack | 674 mm | 664 mm | 672 mm | 681 mm |
| Reach | 408 mm | 402 mm | 378 mm | 384 mm |
| Top Tube Length | 408 mm | 605 mm | 609 mm | 619 mm |
| Seat Tube Angle | 73 ° | 73 ° | 75 ° | 75 ° |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 190 mm | 180 mm | 185 mm | 195 mm |
| Chainstay Length | 480 mm | 480 mm | 490 mm | 490 mm |
| Wheelbase | 1128 mm | 1119 mm | 1108 mm | 1117 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 |
About this model
IMAGE 3.B MOVE BLX Wave is part of the Kalkhoff E Image model. There are 59 e-bikes that carry this model name. Take a sneak peek at all Kalkhoff E Image e-bikes models from 2023, by clicking here.
Model range prices
Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 is the most economical model, with a starting price of 2918$. Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023 on the other hand costs 6081$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Kalkhoff IMAGE 3.B MOVE BLX Wave price was 3770$. If we compare this with the average Commuter e-bike cost we notice that the price is 46.75% higher.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Kalkhoff IMAGE 3.B MOVE BLX Wave 2023, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The IMAGE 3.B MOVE BLX Wave has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
