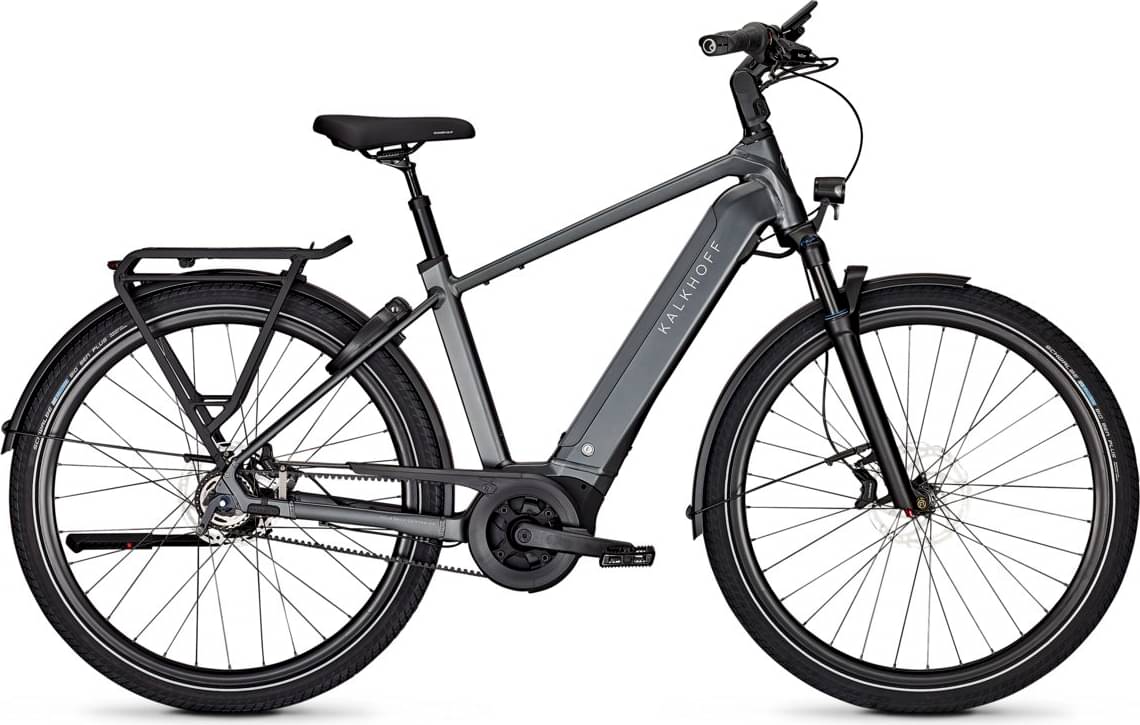

kalkhoff IMAGE 5 ADVANCE+ Wave 2023
2023 E-bike
Estimate price |
5,753$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6, Aluminium
Suspension Fork
Suntour Mobie34 Air, 15 mm thru axle
Rear Shock
No
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
No
Chain
Gates Carbondrive CDX
Pedals
Comfort, with anti slip protection and reflector
Wheels
Front Hub
Shimano Alivio MT400, 15x100 mm with QR
Rear Hub
Shimano Nexus, 5 speed
Rims
Rodi Cyclone with eyelets
Tires
Schwalbe Big Ben Plus, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX City Riser,Concept EX Ergo Riser
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.689 mm | 1.689 mm | 1.681 mm | 1.679 mm |
| Front Center | 650 | 654 mm | 662 mm | 677 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 67 mm | 68 mm | 70 mm | 70 mm |
| Stack | 660 mm | 669 mm | 679 mm | 686 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 601 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1140 mm | 1149 mm | 1164 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
IMAGE 5 ADVANCE+ Wave belongs to the Kalkhoff E Image model. Kalkhoff released 59 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 is the most economical model, with a starting price of 2918$. Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023 on the other hand costs 6081$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 5229$. In conclusion, this e-bike price is 103.54% higher than the price of the average Commuter e-bike.
Overview of components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the IMAGE 5 ADVANCE+ Wave model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Kalkhoff IMAGE 5 ADVANCE+ Wave has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
