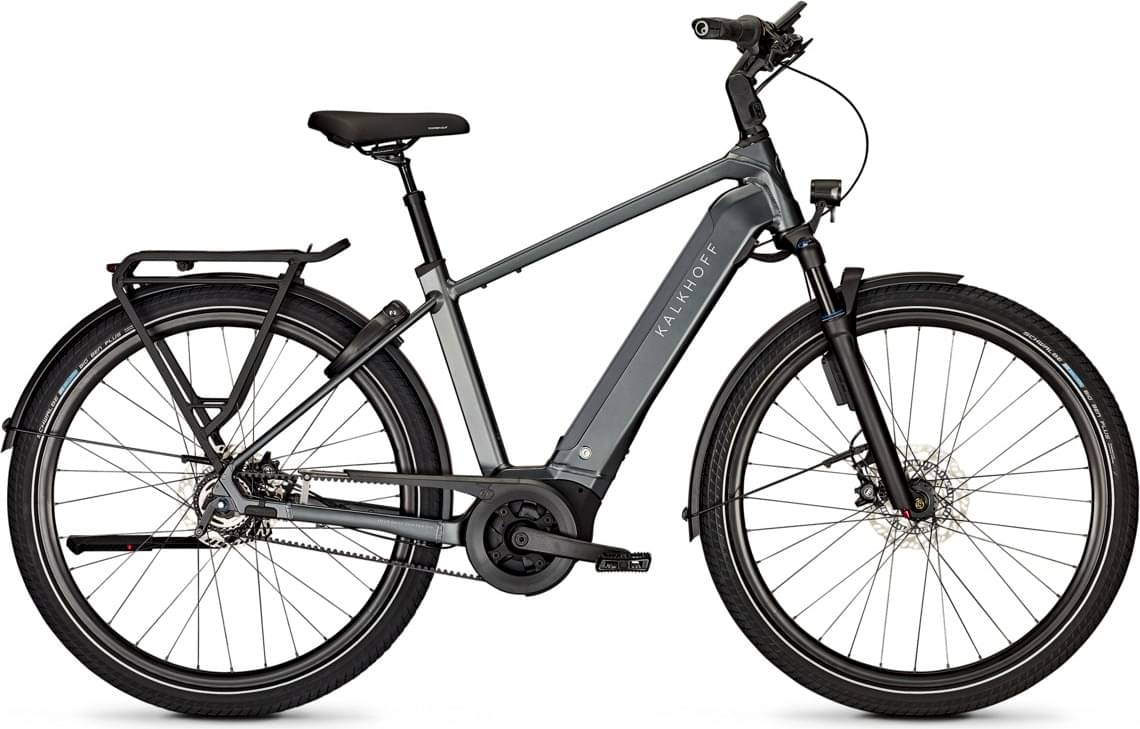

kalkhoff IMAGE 5.B ADVANCE+ ABS Wave 2023
2023 E-bike
Estimate price |
6,288$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6, Aluminium
Suspension Fork
Suntour Mobie34, 100x15 mm Steckachse, ABS
Rear Shock
No
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
No
Chain
Gates Carbondrive CDX
Pedals
Comfort, with anti slip protection and reflector
Wheels
Front Hub
Thru axle, 15x100 mm
Rear Hub
Shimano Nexus, 5 speed
Rims
Rodi Cyclone with eyelets
Tires
Schwalbe Big Ben Plus, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Ergo Riser,Concept EX City Riser
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.684 mm | 1.689 mm | 1.681 mm | 1.679 mm |
| Front Center | 650 | 659 mm | 662 mm | 677 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 71 mm | 68 mm | 70 mm | 70 mm |
| Stack | 660 mm | 667 mm | 679 mm | 686 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 600 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 70.5 ° | 71 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1145 mm | 1149 mm | 1164 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
IMAGE 5.B ADVANCE+ ABS Wave is a Kalkhoff E Image model. Kalkhoff released 59 e-bikes variations of this model so far. You can easily view all of the Kalkhoff E Image e-bikes models from 2023, here.
Model range prices
The most economical model, the Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 has a starting price of 2918$. Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023 on the other hand is the most expensive at 6081$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Kalkhoff IMAGE 5.B ADVANCE+ ABS Wave price was 5716$. If we compare this with the average Commuter e-bike cost we notice that the price is 122.5% higher.
Overview of components
Fork
Kalkhoff IMAGE 5.B ADVANCE+ ABS Wave 2023 e-bike is equipped with the Suntour MOBIE fork, and has mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on IMAGE 5.B ADVANCE+ ABS Wave are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kalkhoff IMAGE 5.B ADVANCE+ ABS Wave is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
