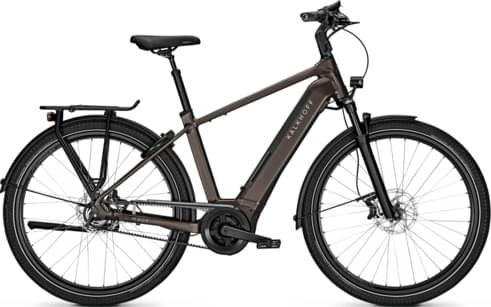

kalkhoff IMAGE 5.B ADVANCE+ Diamond 2022
2022 E-bike
Estimate price |
5,160$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6, Aluminium
Suspension Fork
Suntour Mobie25 Air, lockout, 15 mm thru axle
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Chain
Gates Carbondrive CDX
Pedals
Comfort aluminium with anti slip protectionand reflector
Wheels
Rims
Road Airline Plus, with eyelets
Brakes
Brakes
Tektro M535, 4-Piston, hydraulic disc brake
Disk Rotors
180
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX City Riser,Concept EX Ergo Riser
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent XXL, suspension
Motor & Battery
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Remote
Bosch Intuvia LCD, with control panel and walk assist
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.684 mm | 1.689 mm | 1.681 mm | 1.679 mm |
| Front Center | 650 | 659 mm | 662 mm | 677 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 71 mm | 68 mm | 70 mm | 70 mm |
| Stack | 660 mm | 667 mm | 679 mm | 686 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 600 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 70.5 ° | 71 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1145 mm | 1149 mm | 1164 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
IMAGE 5.B ADVANCE+ Diamond belongs to the Kalkhoff E Image model. 59 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Kalkhoff IMAGE 1.B MOVE 2022 is the cheapest e-bike model and costs 2653$. Kalkhoff IMAGE 7.B EXCITE+ Diamond 2022 is the most expensive one and costs 5945$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4777$. Comparing the average cost of a Commuter e-bike to this one, you will see that IMAGE 5.B ADVANCE+ Diamond price is 85.95% higher.
IMAGE 5.B ADVANCE+ Diamond components
Fork
The IMAGE 5.B ADVANCE+ Diamond comes factory-installed with the Suntour MOBIE fork. This has a travel range of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The IMAGE 5.B ADVANCE+ Diamond 2022 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The IMAGE 5.B ADVANCE+ Diamond comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
