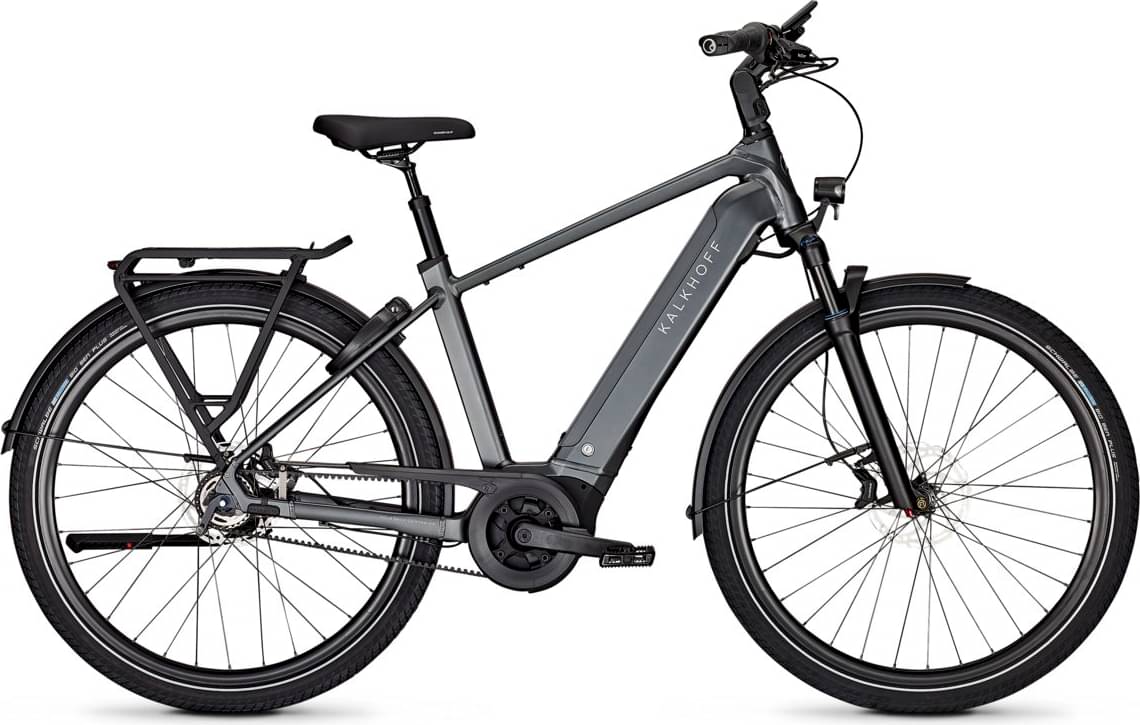

kalkhoff IMAGE 5.B ADVANCE+ Diamond 2023
2023 E-bike
Estimate price |
5,753$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6, Aluminium
Suspension Fork
Suntour Mobie34 Air, 15 mm thru axle
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Chain
Gates Carbondrive CDX
Pedals
Comfort, with anti slip protection and reflector
Wheels
Front Hub
Shimano Alivio MT400, 15x100 mm with QR
Rear Hub
Shimano Nexus, 5 speed
Rims
Rodi Cyclone with eyelets
Tires
Schwalbe Big Ben Plus, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX City Riser,Concept EX Ergo Riser
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.689 mm | 1.689 mm | 1.681 mm | 1.679 mm |
| Front Center | 650 | 654 mm | 662 mm | 677 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 67 mm | 68 mm | 70 mm | 70 mm |
| Stack | 660 mm | 669 mm | 679 mm | 686 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 601 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1140 mm | 1149 mm | 1164 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
IMAGE 5.B ADVANCE+ Diamond is part of the Kalkhoff E Image model. There are 59 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 is the most affordable e-bike of this model and has a price of 2918$. On the other hand, Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023, is the most expensive and costs 6081$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Kalkhoff released this model in 2023, its price was 5229$. Comparing this to the average Commuter e-bike price, we see that the price is 103.54% more expensive.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on IMAGE 5.B ADVANCE+ Diamond are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The IMAGE 5.B ADVANCE+ Diamond comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
