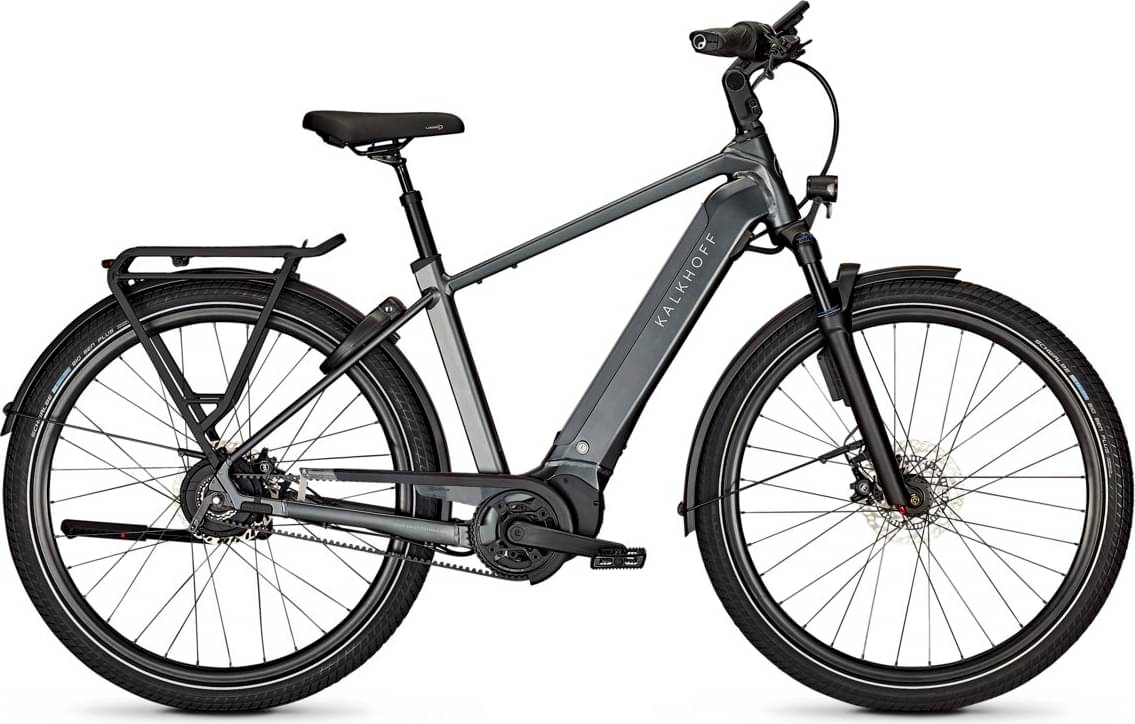

kalkhoff IMAGE 5.B EXCITE+ ABS Wave 2023
2023 E-bike
Estimate price |
6,690$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6 CX, Aluminium
Suspension Fork
Suntour Mobie34, 100x15 mm Steckachse, ABS
Drivetrain
Shift Levers
Enviolo Trekking
Crank
aluminium
Chain
Gates Carbondrive CDX
Pedals
Comfort, with anti slip protection and reflector
Wheels
Front Hub
Thru axle, 15x100 mm
Rear Hub
Enviolo Trekking
Rims
Rodi Cyclone with eyelets
Tires
Schwalbe Big Ben Plus, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX City Riser,Concept EX Ergo Riser
Seat
Saddle
Selle Royal Lookin Plus
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.684 mm | 1.689 mm | 1.681 mm | 1.679 mm |
| Front Center | 650 | 659 mm | 662 mm | 677 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 71 mm | 68 mm | 70 mm | 70 mm |
| Stack | 660 mm | 667 mm | 679 mm | 686 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 600 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 70.5 ° | 71 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1145 mm | 1149 mm | 1164 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
IMAGE 5.B EXCITE+ ABS Wave belongs to the Kalkhoff E Image model. There are 59 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 has a starting price of 2918$. Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023 on the other hand is the most expensive at 6081$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Kalkhoff released this model in 2023, its price was 6081$. Comparing the average cost of a Commuter e-bike to this one, you will see that IMAGE 5.B EXCITE+ ABS Wave price is 136.71% more expensive.
IMAGE 5.B EXCITE+ ABS Wave components
Fork
Kalkhoff IMAGE 5.B EXCITE+ ABS Wave 2023 e-bike is equipped with the Suntour MOBIE fork, and has mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the IMAGE 5.B EXCITE+ ABS Wave model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The IMAGE 5.B EXCITE+ ABS Wave comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
