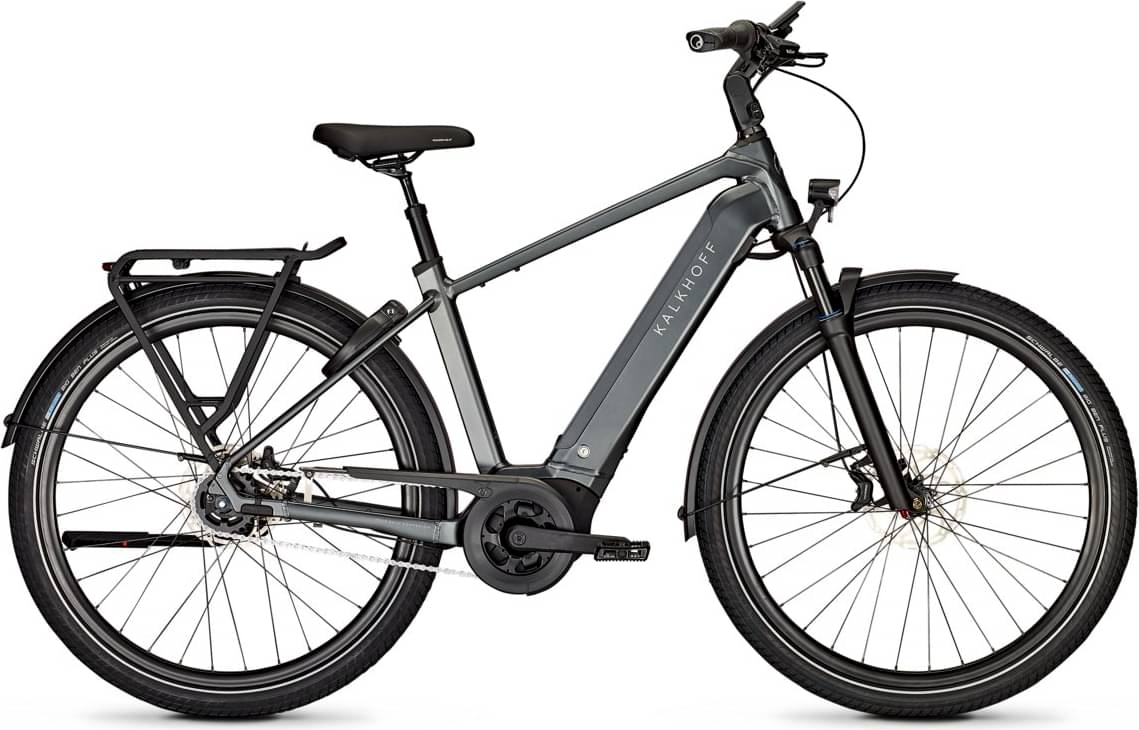

kalkhoff IMAGE 5 MOVE+ Diamond 2023
2023 E-bike
Estimate price |
5,084$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6, Aluminium
Suspension Fork
Suntour Mobie34 Air, 15 mm thru axle
Rear Shock
No
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
No
Chain
KMC Z1 EPT, anti-rust coating
Pedals
Comfort, with anti slip protection and reflector
Wheels
Front Hub
Shimano Alivio MT400, 15x100 mm with QR
Rear Hub
Shimano Nexus, 5 speed,Shimano Nexus, 5-Gang
Rims
Rodi Cyclone with eyelets
Tires
Schwalbe Big Ben Plus, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX City Riser,Concept EX Ergo Riser
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.689 mm | 1.682 mm | 1.681 mm | 1.679 mm |
| Front Center | 650 | 654 mm | 668 mm | 677 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 67 mm | 70 mm | 70 mm | 70 mm |
| Stack | 660 mm | 669 mm | 676 mm | 686 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 601 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 71 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1140 mm | 1155 mm | 1164 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
IMAGE 5 MOVE+ Diamond is part of the Kalkhoff E Image model. 59 e-bikes variations carry this model name so far. Take a sneak peek at all Kalkhoff E Image e-bikes models from 2023, by clicking here.
Model range prices
Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 is the most affordable e-bike of this model and has a price of 2918$. On the other hand, Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023, is the most expensive and costs 6081$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 4621$. Comparing the average cost of a Commuter e-bike to this one, you will see that IMAGE 5 MOVE+ Diamond price is 79.88% more expensive.
IMAGE 5 MOVE+ Diamond components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on IMAGE 5 MOVE+ Diamond are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The IMAGE 5 MOVE+ Diamond has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
