Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trekking 0.5 V2, aluminium
Suspension Fork
Aluminium, rigid
Drivetrain
Shift Levers
Shimano Nexus
Crank
Prowheel
Chain
KMC Z1 EPT, anti-rust coating
Pedals
Comfort, with anti slip protection and reflector
Wheels
Rims
Schürmann ZXS, with eyelets
Brakes
Brakes
Shimano Alivio, V-Brake
Cockpit
Stem
alloy, adjustable
Handlebar
Aluminium, Comfort Riser
Seat
Saddle
Selle Royal Nuvola Unitec
Seatpost
Magix, Aluminium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | SM | XL | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.622 mm | 1.582 mm | 1.599 mm |
| Front Center | 644 mm | 655 mm | 654 mm | 670 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 64 mm | 69 mm | 63 mm | 69 mm |
| Stack | 606 mm | 644 mm | 644 mm | 654 mm |
| Reach | 410 mm | 397 mm | 407 mm | 409 mm |
| Top Tube Length | 595 mm | 600 mm | 610 mm | 615 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 71.5 ° | 70.5 ° | 71.5 ° | 70.5 ° |
| Head Tube Length | 180 mm | 220 mm | 220 mm | 230 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1103 mm | 1113 mm | 1113 mm | 1128 mm |
| Bottom Bracket Drop | 55 mm | 60 mm | 55 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
About this model

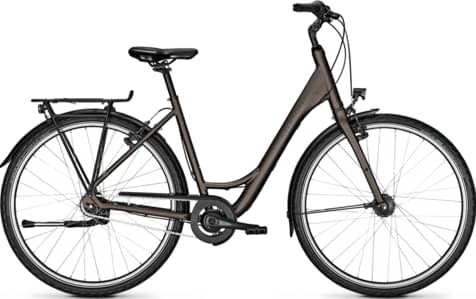

IMAGE LITE Wave is part of the Kalkhoff Image model. There are 6 bikes that carry this model name. You can easily view all of the Kalkhoff Image bikes models from 2022, here.
Model range prices
Kalkhoff IMAGE LITE Diamond 2022 is the most affordable bike of this model and has a price of 955$. On the other hand, Kalkhoff IMAGE XXL Wave 2022, is the most expensive and costs 1146$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter bikes
According to our math, the average price for a trustworthy Commuter bike is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 955$. Comparing the average cost of a Commuter bike to this one, you will see that IMAGE LITE Wave price is 25.33% more expensive.
IMAGE LITE Wave components
Fork material
IMAGE LITE Wave has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on IMAGE LITE Wave are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The IMAGE LITE Wave comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
