Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trekking 1.0 XXL, aluminium
Suspension Fork
SR Suntour NEX, adjustable
Drivetrain
Shift Levers
Shimano Nexus
Crank
Prowheel
Chain
KMC Z1 EPT, anti-rust coating
Pedals
Comfort, with anti slip protection and reflector
Wheels
Rims
Road Airline Plus, with eyelets
Brakes
Brakes
Magura HS11, hydraulic rim brake
Cockpit
Stem
alloy, adjustable
Handlebar
Aluminium, Comfort Riser
Seat
Saddle
Selle Royal Giara
Seatpost
Patent XXL, suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | SM | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.646 mm | 1.708 mm | 1.792 mm | 1.736 mm |
| Front Center | 634 mm | 645 mm | 650 | 654 mm | 675 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 64 mm | 74 mm | 65 mm | 54 mm |
| Stack | 624 mm | 652 mm | 666 mm | 699 mm | 729 mm |
| Reach | 395 mm | 396 mm | 390 mm | 390 mm | 420 mm |
| Top Tube Length | 580 mm | 595 mm | 600 mm | 610 mm | 657 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° | 72 ° |
| Head Tube Angle | 71.5 ° | 71.5 ° | 70.5 ° | 71.5 ° | 73 ° |
| Head Tube Length | 135 mm | 170 mm | 185 mm | 220 mm | 240 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1092 mm | 1104 mm | 1108 mm | 1113 mm | 1133 mm |
| Bottom Bracket Drop | 60 mm | 55 mm | 60 mm | 55 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model

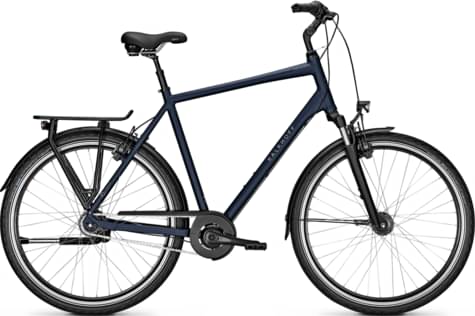

IMAGE XXL Diamond is a Kalkhoff Image model. There are 6 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Kalkhoff IMAGE LITE Diamond 2022 is the most affordable bike of this model and has a price of 955$. On the other hand, Kalkhoff IMAGE XXL Wave 2022, is the most expensive and costs 1146$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter bikes
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 1146$. If we compare this with the average Commuter bike cost we notice that the price is 50.39% more expensive.
Overview of components
Fork
This bike has the Suntour NEX fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Kalkhoff IMAGE XXL Diamond 2022, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Rim brakes. They are a bit expensive, and don’t deliver such a great performance. In short, you can look for a bike with disk or hydraulic disk brakes.
