Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio, Tourney -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Tour Profile - internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR NEX DX, 63 mm, coil spring (threaded steerer)
Drivetrain
Rear Derailleur
SHIMANO Alivio M4000 (direct mount)
Front Derailleur
SHIMANO TY710 (34.9 mm)
Shift Levers
SHIMANO Altus SL-M2010-9 Rapidfire Plus
Cassette
SHIMANO CS-HG200-9 (11-34T)
Crank
SR SUNTOUR XCM (48x36x26T) - length 170 mm (S), 175 mm (M - XL)
Bottom Bracket
cartridge (113 mm)
Chain
KMC X9 (114 links)
Pedals
alloy
Wheels
Front Hub
SHIMANO Dynamo 3D37 / SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO Dynamo 3D37 / SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes / eyelets)
Spokes
steel
Tires
MICHELIN Protek BR 42-622 (700x40C) ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KALLOY adjustable - diam 25.4 mm / bar bore 25.4 mm / length 90 mm (S), 100 mm (M - XL)
Handlebar
steel RiseBar - diam 25.4 mm / rise 35 mm / width 630 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Essenza Moderate
Seatpost
KALLOY suspension - diam 30.9 mm / length 300 mm (S), 350 mm (M - XL)
Fit data

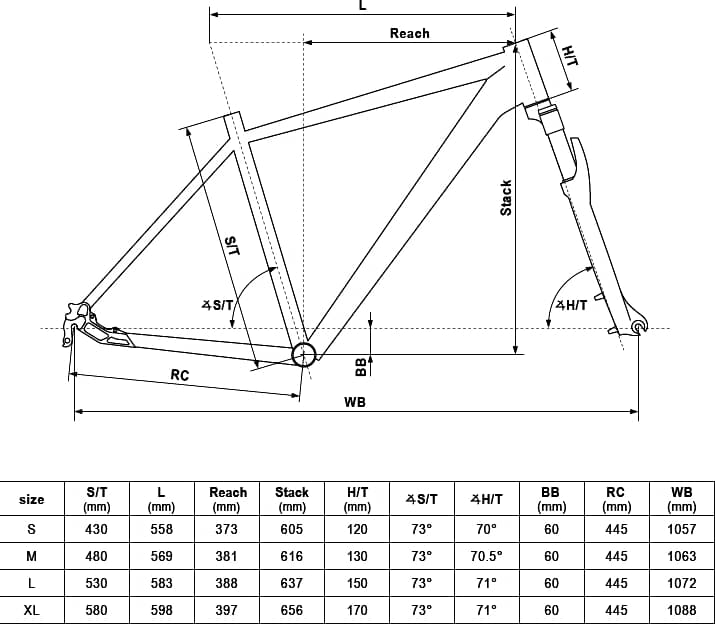

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
CARSON 70 completes the Kellys Carson model. Kellys launched 18 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Kellys CARSON 10 2023 is the most economical model, with a starting price of 700$. Kellys CARSON 90 2023 on the other hand costs 1379$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter bikes average price
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Kellys released this model in 2023, its price was 955$. If we compare this with the average Commuter bike cost we notice that the price is 25.33% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Suntour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Kellys CARSON 70 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CARSON 70 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
