Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork Suntour NVX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO BT-E8010, 504Wh / capacity 14Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS E-CRISTY R-series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT / Made in EU
Suspension Fork
SR SUNTOUR NVX30 NLO (29), 100mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO Altus M2000 (direct mount)
Shift Levers
SHIMANO Altus SL-M2000 Rapidfire Plus
Cassette
SHIMANO CS-HG201-9 (11-36T)
Crank
SHIMANO E5000 (38T) - length 170mm
Chain
KMC e9S (118 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
MICHELIN Protec BR 47-622 (28x1.75) ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6mm / bar bore 31.8mm / length 85mm (S), 105mm (M - L)
Handlebar
KALLOY RiseBar - diam 31.8mm / width 640mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 30.9mm / length 350mm
Motor & Battery
Motor
SHIMANO STEPS E5000, 36V
Battery
SHIMANO BT-E8010, 504Wh / capacity 14Ah
Fit data

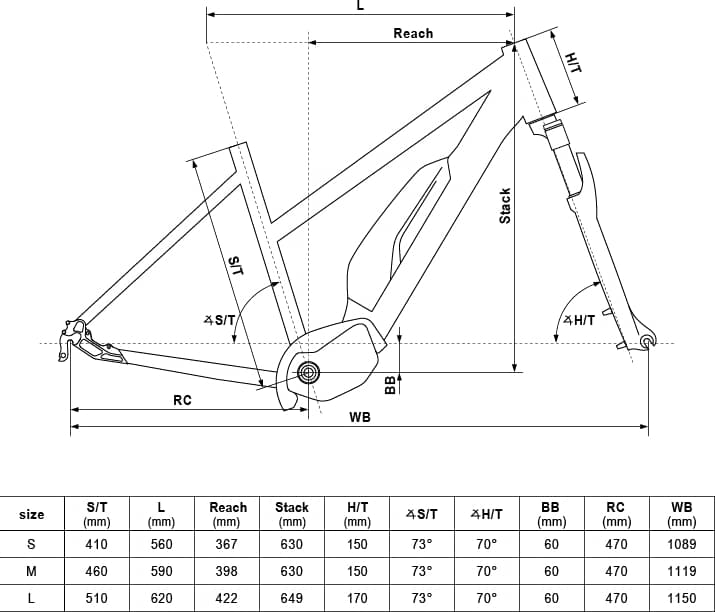

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

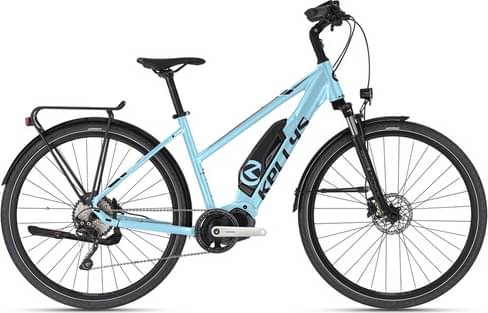

E-CRISTY 10 504Wh is a Kellys E E Cristy model. Kellys released 16 e-bikes variations of this model so far. Take a sneak peek at all Kellys E E Cristy e-bikes models from 2022, by clicking here.
Model range prices
Kellys E-CRISTY 10 SH 504Wh 2022 is the most economical model, with a starting price of 2760$. Kellys E-CRISTY 90 P ATB 725Wh 2022 on the other hand costs 4246$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The E-CRISTY 10 504Wh comes factory-installed with the Suntour NVX fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The E-CRISTY 10 504Wh 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-CRISTY 10 504Wh comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Kellys E-CRISTY 10 504Wh e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
