Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Gravel Concept Carbon Disc / tapered HT, flat mount, internal routing / 12 mm thru axle
Suspension Fork
KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / 12 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO GRX RX812 (direct mount)
Shift Levers
SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
Cassette
SUNRACE CSMS7 (11-42T)
Crank
SHIMANO GRX RX600-1 (40T) - length 172.5 mm (S - M), 175 mm (L)
Bottom Bracket
SHIMANO Press-Fit BB-RS500-PB
Chain
KMC X11 EL (112 links)
Wheels
Front Hub
NOVATEC Disc (32 holes)
Rear Hub
NOVATEC Disc (32 holes)
Rims
DT SWISS G 540 Disc 700Cx24 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE G-One Allround 40-622 (700x38C) RaceGuard, folding
Brakes
Brakes
SHIMANO GRX RX400 Hydraulic Disc
Brake Levers
SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
Cockpit
Stem
KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 70 mm (S), 90 mm (M), 110 mm (L)
Handlebar
GravelBar - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
Grips
KLS bar tape
Seat
Saddle
WTB Volt
Seatpost
KLS Active Road - diam 27.2 mm / length 350 mm (S), 400 mm (M - L)
Fit data

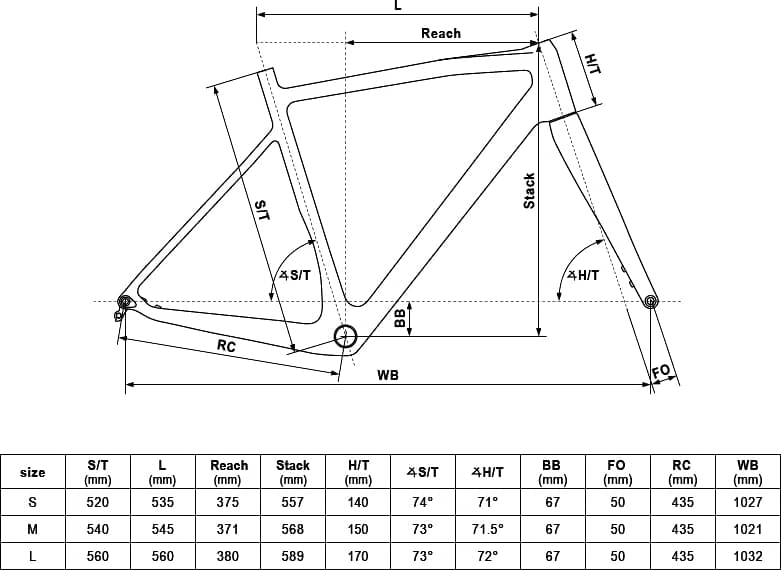

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
SOOT 90 is a Kellys Soot model. Kellys launched 16 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Kellys SOOT 20 2023 is the most affordable bike of this model and has a price of 1273$. On the other hand, Kellys SOOT 90 2023, is the most expensive and costs 2760$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 2760$. Comparing this to the average Gravel bike price, we see that the price is 12.1% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
SOOT 90 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on SOOT 90 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SOOT 90 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
SOOT 90 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
