Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor 90Nm hub-drive -
Battery KELLYS Re-Charge Li-ion internal 630Wh / capacity 17.5Ah -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS e-FRAME, Uni-Body Integrated Design, Drive Core, tapered HT, internal routing, 12x148mm Boost thru axle
Suspension Fork
SR SUNTOUR XCM32 (29) Boost, 120mm, coil spring / 15mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Altus M2000 (direct mount)
Shift Levers
SHIMANO Altus SL-M2000 Rapidfire Plus
Cassette
SHIMANO CS-HG400-9 (11-36T)
Crank
SAMOX (34) - length 170mm
Chain
KMC e9S (118 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rear Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
MICHELIN Country Race´r 54-622 (29x2.10)
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Disk Rotors
180mm front / 180mm rear
Cockpit
Stem
KLS Alm/En 50 - diam 28.6mm / bar bore 31.8mm / length 60mm
Handlebar
KLS Active RiseBar - diam 31.8mm / rise 18mm / width 720mm
Grips
KLS Poison OneLockon
Seat
Saddle
KLS Sentinel 2
Seatpost
KLS Active - diam 30.9mm / length 350mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 90Nm, 36V
Battery
KELLYS Re-Charge Li-ion internal 630Wh / capacity 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

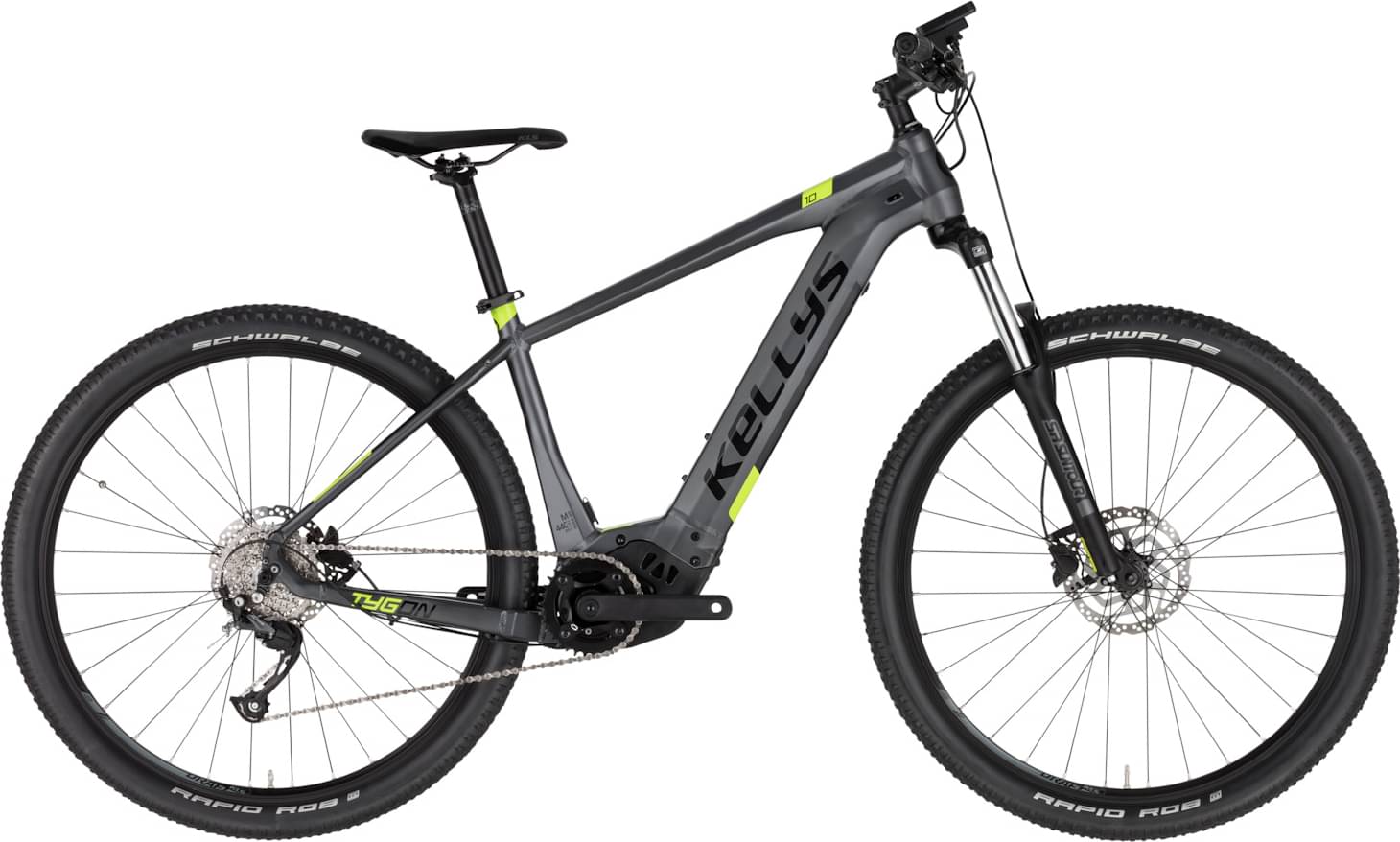

TYGON 10 29″ 630Wh is a Kellys E Tygon model. 15 e-bikes variations carry this model name so far. You can easily view all of the Kellys E Tygon e-bikes models from 2022, here.
Model range prices
The most economical model, the Kellys TYGON R10 P 29″ 725Wh 2022 has a starting price of 3184$. Kellys TYGON R90 P 29″ 725Wh 2022 on the other hand is the most expensive at 4246$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
TYGON 10 29″ 630Wh components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on TYGON 10 29″ 630Wh are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The TYGON 10 29″ 630Wh has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
TYGON 10 29″ 630Wh comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
