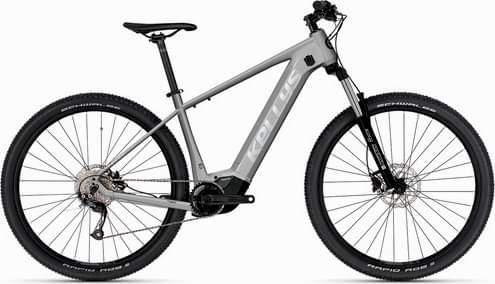

Kellys TYGON R10 P 29″ 725Wh 2023

2023 E-bike
Estimate price | 3,440$
E-bike
Open compare Use advisor
  • Kellys TYGON R10 P 29″ 725Wh 2023 - kellys-tygon-r10-p-29-725wh-2023.jpeg
  • Kellys TYGON R10 P 29″ 725Wh 2023 - kellys-tygon-r10-p-29-725wh-2023-1.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 29"
  • Travel Front 120mm
  • Fork Suntour XCM
  • Groupset Altus
  • Suspension Hardtail
  • Motor Panasonic 95Nm mid-drive
  • Battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ
  • Drivetrain 1 × 9
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • MD

    165cm - 177cm

  • LG

    175cm - 188cm

  • XL

    185cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

KELLYS TYGON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5" tapered HT, 12x148 mm Boost thru axle

Suspension Fork

SR SUNTOUR XCM 32 DS (29") Boost, 120 mm, coil spring / 15 mm thru axle

Drivetrain

Rear Derailleur

SHIMANO Altus M2000 (direct mount)

Shift Levers

SHIMANO Altus SL-M2000 Rapidfire Plus

Cassette

SHIMANO CS-HG400-9 (11-36T)

Crank

MIRANDA Delta (36T) - length 170 mm

Chain

KMC e9S (118 links)

Pedals

plastic

Wheels

Front Hub

SHIMANO MT400-B Disc Center Lock (32 holes)

Rear Hub

SHIMANO MT400-B Disc Center Lock (32 holes)

Rims

KLS Draft Disc 622x21 (32 holes)

Spokes

stainless steel black

Tires

SCHWALBE Rapid Rob 57-622 (29"x2.25) K-Guard

Brakes

Brakes

SHIMANO MT200 Hydraulic Disc

Brake Levers

SHIMANO BL-MT200

Cockpit

Stem

KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm

Handlebar

KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 720 mm

Grips

KLS Poison OneLockon

Seat

Saddle

SELLE ROYAL Vivo

Seatpost

KLS Active - diam 30.9 mm / length 350 mm

Motor & Battery

Motor

PANASONIC GX Ultimate, 95 Nm, 36 V

Battery

KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ

Fit data

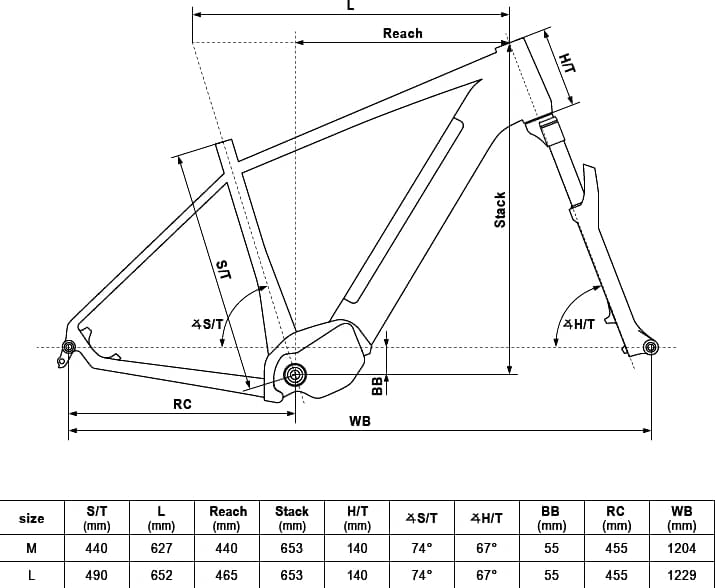

Geometry

Numbers for sizing and ride feel.

SizeMDLGXL
Wheels29"29"29"
Rider Min Height165 cm175 cm185 cm
Rider Max Height177 cm188 cm198 cm

About this model

TYGON R10 P 29″ 725Wh completes the Kellys E Tygon model. Kellys released 15 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.

Model range prices

Kellys TYGON R10 P MAGIC 29″ 725Wh 2023 is the most affordable e-bike of this model and has a price of 3184$. On the other hand, Kellys TYGON R90 P 29″ 725Wh 2023, is the most expensive and costs 4246$.

Safety

Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.

Average price for Trail e-bikes

Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.

At the moment of the release date, Kellys TYGON R10 P 29″ 725Wh price was 3184$. Comparing the average cost of a Trail e-bike to this one, you will see that TYGON R10 P 29″ 725Wh price is 5.68% lower.

Overview of components

Fork

This e-bike has the Suntour XCM fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.

Wheels size

The TYGON R10 P 29″ 725Wh 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.

Brakes

We ride faster and faster, so a good braking system is essential on a bike nowadays. The TYGON R10 P 29″ 725Wh comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.

Sizes

Kellys TYGON R10 P 29″ 725Wh e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
