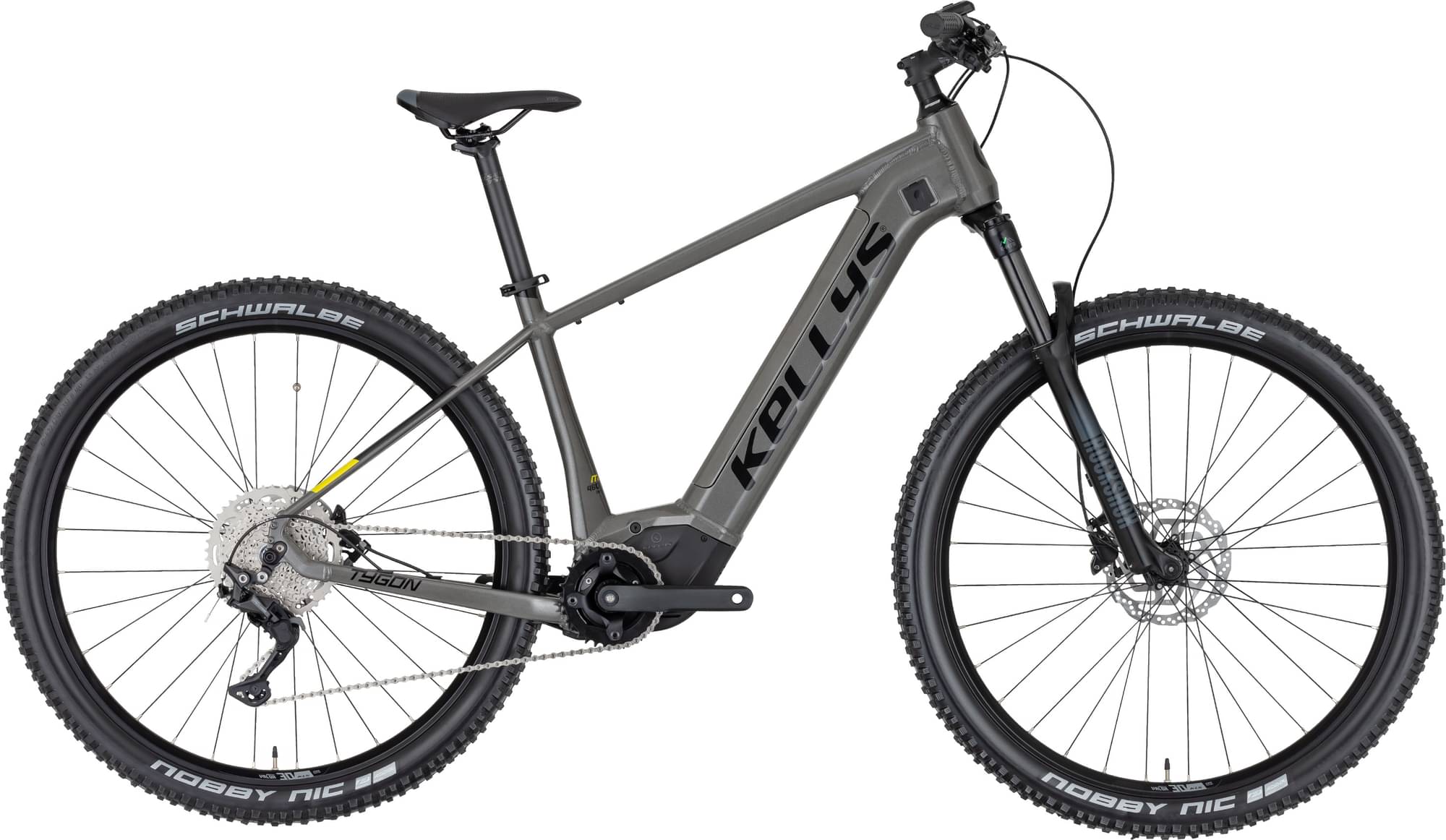

Kellys TYGON R50 P 29″ 725Wh 2022

2022 E-bike
Estimate price | 3,954$
E-bike
Open compare Use advisor
  • Kellys TYGON R50 P 29″ 725Wh 2022 - kellys-tygon-r50-p-29-725wh-2022.jpeg
  • Kellys TYGON R50 P 29″ 725Wh 2022 - kellys-tygon-r50-p-29-725wh-2022-1.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 29"
  • Travel Front 120mm
  • Fork RockShox 35 Silver
  • Groupset Deore
  • Suspension Hardtail
  • Motor Panasonic 90Nm mid-drive
  • Battery KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ
  • Drivetrain 1 × 10
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • MD

    165cm - 177cm

  • LG

    175cm - 188cm

  • XL

    185cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

KELLYS TYGON R-series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT, 12x148mm Boost thru axle / Made in EU

Suspension Fork

ROCK SHOX 35 Silver TK (29) Boost, 120mm, Solo Air / TurnKey / Maxle Stealth 15mm thru axle

Drivetrain

Rear Derailleur

SHIMANO Deore M5120 (direct mount)

Shift Levers

SHIMANO Deore SL-M4100-R Rapidfire Plus (I-Spec EV)

Cassette

SHIMANO CS-M4100-10 (11-46T)

Crank

SAMOX (34T) - length 170mm

Chain

KMC e10T (116 links)

Pedals

plastic

Wheels

Front Hub

SHIMANO MT400-B Disc Center Lock or KT Disc (32 holes)

Rear Hub

SHIMANO MT400-B Disc Center Lock or KT Disc (32 holes)

Rims

KLS Valor 3 Disc 622x30 (32 holes)

Spokes

stainless steel black

Tires

SCHWALBE Nobby Nic Performance 60-622 (29x2.35) ADDIX

Brakes

Brakes

SHIMANO MT200 Hydraulic Disc

Brake Levers

SHIMANO BL-MT200

Cockpit

Stem

KLS Active - diam 28.6mm / bar bore 31.8mm / 6° / length 80mm

Handlebar

KLS Active RiseBar - diam 31.8mm / rise 18mm / width 720mm

Grips

KLS Poison OneLockon

Seat

Saddle

SELLE ROYAL Vivo

Seatpost

KLS Active - diam 30.9mm / length 350mm

Motor & Battery

Motor

PANASONIC GX Ultimate, 90Nm, 36V

Battery

KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ

Fit data

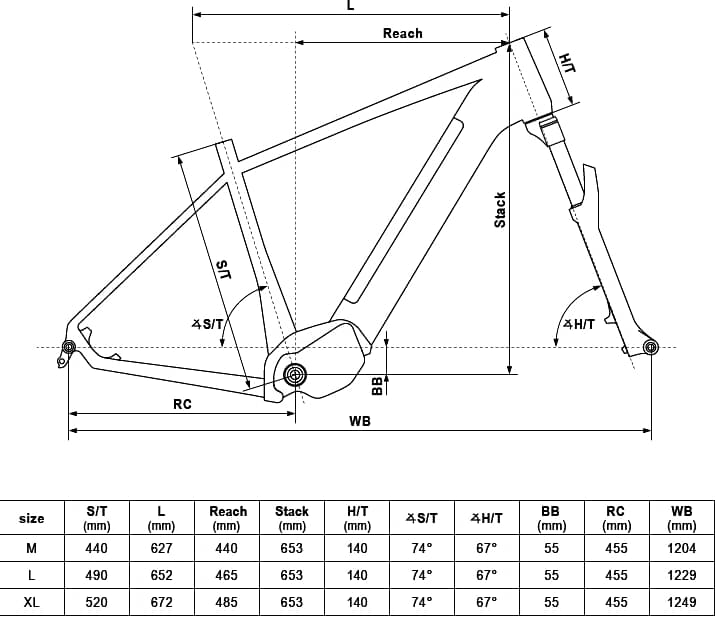

Geometry

Numbers for sizing and ride feel.

SizeMDLGXL
Wheels29"29"29"
Rider Min Height165 cm175 cm185 cm
Rider Max Height177 cm188 cm198 cm

About this model

TYGON R50 P 29″ 725Wh is a Kellys E Tygon model. There are 15 e-bikes that carry this model name. You can easily view all of the Kellys E Tygon e-bikes models from 2022, here.

Model range prices

Kellys TYGON R10 P 29″ 725Wh 2022 is the most economical model, with a starting price of 3184$. Kellys TYGON R90 P 29″ 725Wh 2022 on the other hand costs 4246$, and is the most expensive model.

Safety

Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.

Trail e-bikes average price

According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.

This e-bike was released in 2022 and its price was 3609$. Doing a quick comparison, we notice that TYGON R50 P 29″ 725Wh price is 7.25% higher than the average cost of a Trail e-bike.

Overview of components

Fork

The fork installed on this bike is the RockShox 35 Silver model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

Wheels

When leaving the production line, the TYGON R50 P 29″ 725Wh model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.

Brakes

Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.

Sizes

This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
