Kellys TYGON R50 P 29″ 725Wh 2023
2023 E-bike
Estimate price |
3,898$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour RAIDON
-
Groupset Deore -
Suspension Hardtail -
Motor Panasonic 95Nm mid-drive -
Battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS TYGON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5" tapered HT, 12x148 mm Boost thru axle
Suspension Fork
SR SUNTOUR Raidon 34 LOR DS (29") Boost, 120 mm, air / 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore M5120 (direct mount)
Shift Levers
SHIMANO Deore SL-M4100-R Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M4100-10 (11-46T)
Crank
SAMOX (34T) - length 170 mm
Chain
KMC e10T (116 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Valor 3 Disc 622x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Nobby Nic Performance 60-622 (29"x2.35) ADDIX, folding
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 6° / length 80 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 720 mm
Grips
KLS Poison OneLockon
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 30.9 mm / length 350 mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 95 Nm, 36 V
Battery
KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ
Fit data

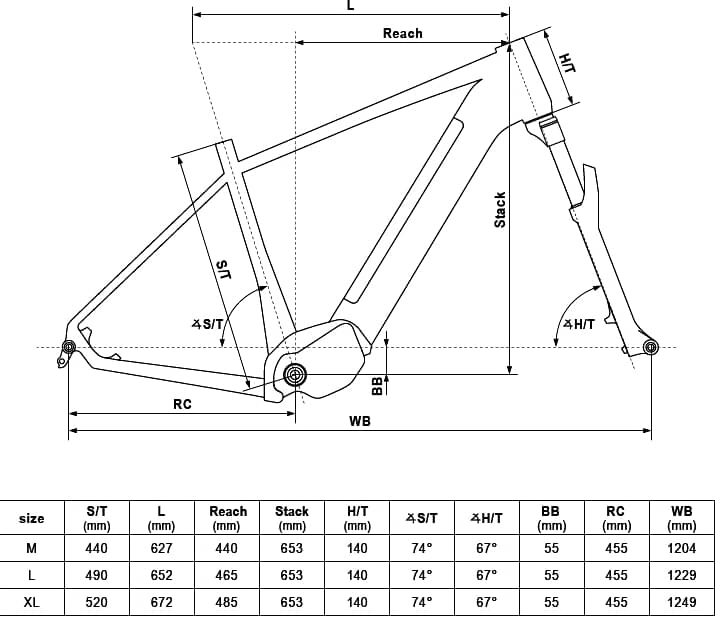

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
TYGON R50 P 29″ 725Wh is a Kellys E Tygon model. Kellys launched 15 e-bikes of this model so far. You can easily view all of the Kellys E Tygon e-bikes models from 2023, here.
Model range prices
Kellys TYGON R10 P MAGIC 29″ 725Wh 2023 is the most affordable e-bike of this model and has a price of 3184$. On the other hand, Kellys TYGON R90 P 29″ 725Wh 2023, is the most expensive and costs 4246$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Kellys TYGON R50 P 29″ 725Wh price was 3609$. In conclusion, this e-bike price is 7.25% higher than the price of the average Trail e-bike.
TYGON R50 P 29″ 725Wh components
Fork
The TYGON R50 P 29″ 725Wh comes factory-installed with the Suntour RAIDON fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Kellys TYGON R50 P 29″ 725Wh 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
