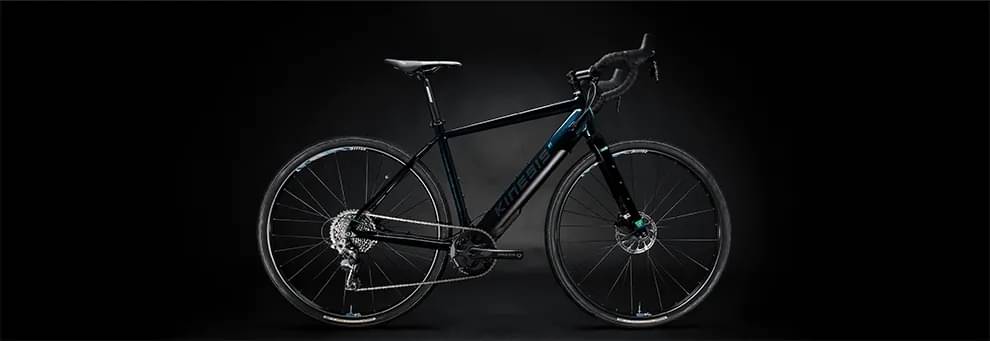

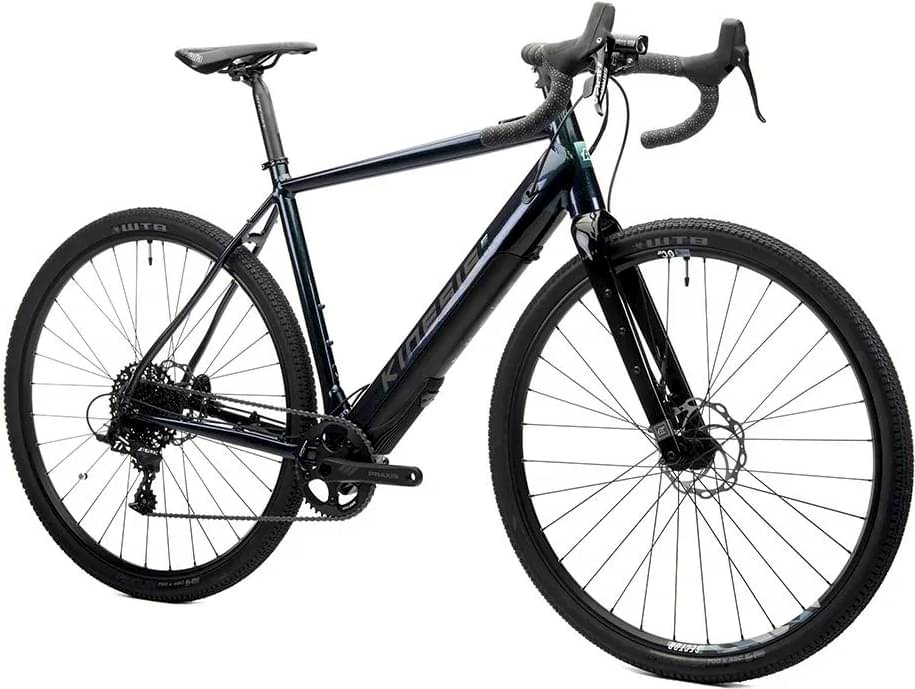

Kinesis RANGE RIDE 50 2023
2023 E-bike
Estimate price |
5,284$
Weight | 15 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Rival, Apex -
Suspension Rigid -
Motor Fazua 350W mid-drive -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KinesisUK RANGE lightweight 6061 Hydroformed Aluminium Frame
Suspension Fork
Kinesis RANGE Carbon Fork
Drivetrain

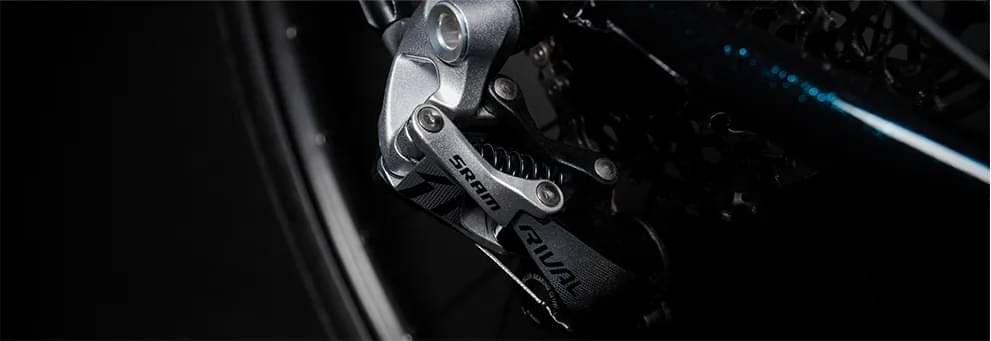

Rear Derailleur
SRAM Rival
Shift Levers
SRAM Apex 1 x 11spd
Cassette
SRAM PG1130 11-42

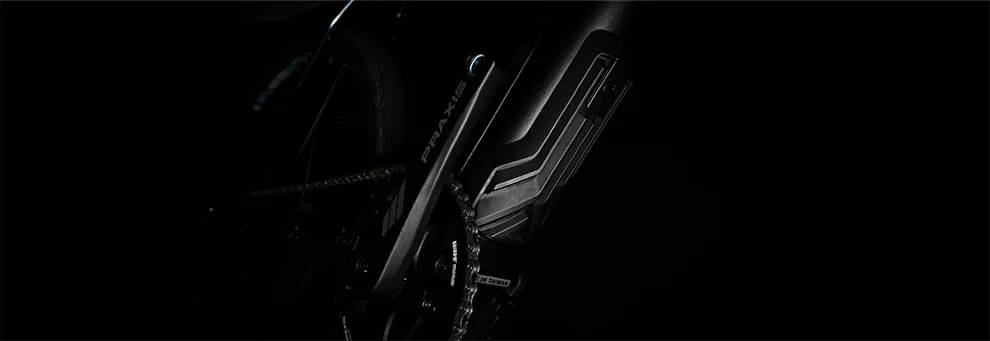

Crank
Praxis Alloy E-Crank 42t Ring: S-M 165mm, L-XL 170mm
Wheels
Front Hub
Sector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub
Rear Hub
Sector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub

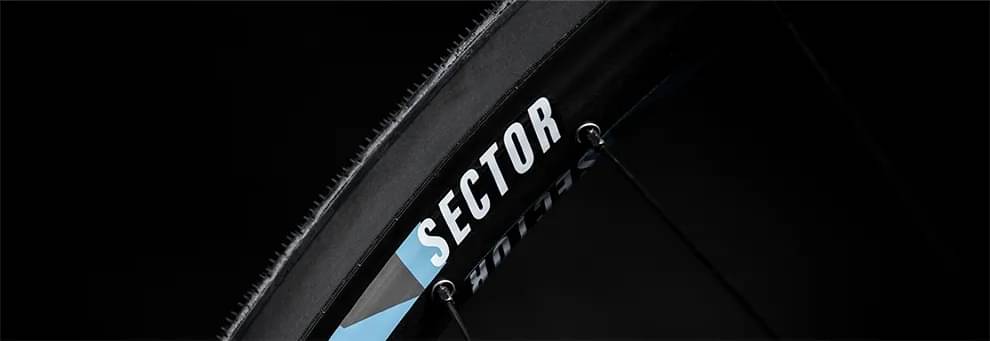

Rims
Sector GCe E-Specific Tubeless Ready Aluminium Rim. Eyeletted and Pinned
Spokes
14g Black
Tires
Panaracer GravelKing SS 700x43c TLC
Brakes
Brakes
SRAM Apex Hydraulic 160mm Rotors Front and Rear
Cockpit
Stem
Kinesis 3D Forged 6061; S-M 80mm, L-XL 90mm

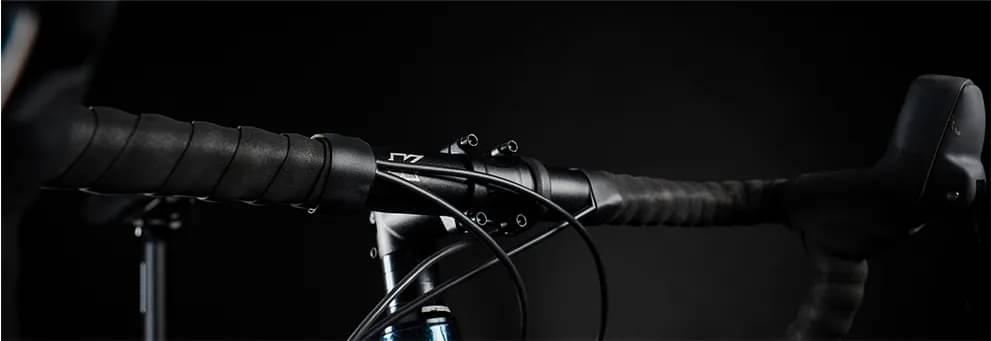

Handlebar
Kinesis Double Butted Gravel Bar; SM – 42cm, MD/LG – 44cm, XL - 46cm
Headset
FSA no.42 Cartridge Bearing
Seat
Saddle
Selle Italia X3
Seatpost
Ritchey 2-Bolt 350mm x 31.6 diameter / 25mm offset
Motor & Battery
Motor
Fazua motor 350W
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.52 mm | 1.57 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 277 mm | 279 mm |
| Front Center | 602.7 mm | 621 mm | 635 mm | 657.9 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm | 67 mm | 67 mm |
| Stack | 561 mm | 586 mm | 611 mm | 646 mm |
| Reach | 381 mm | 391 mm | 401 mm | 411 mm |
| Top Tube Length | 540 mm | 557 mm | 580 mm | 601 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 490 mm | 540 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 131 mm | 157 mm | 185 mm | 224 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1038 mm | 1056 mm | 1071 mm | 1095 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 72 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
RANGE RIDE 50 is part of the Kinesis E Range model. 13 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Kinesis RANGE Flat Bar EVATION 2023 is the cheapest e-bike model and costs 4197$. Kinesis RANGE Adventure E-Bike 2023 is the most expensive one and costs 4744$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel e-bikes
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Kinesis released this model in 2023, its price was 4744$. Doing a quick comparison, we notice that RANGE RIDE 50 price is 30.26% higher than the average cost of a Gravel e-bike.
Average weight for Gravel e-bikes
If we make a quick analysis of the average weight of a Gravel e-bike, we get 14.21 kg (31.33 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 15 kg (33.07 lbs), Kinesis e-bike is a bit heavier than average. In other words, this model is 5.56% heavier than the average Gravel e-bike.
RANGE RIDE 50 components
Fork material
The fork on this e-bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Kinesis RANGE RIDE 50 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RANGE RIDE 50 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
