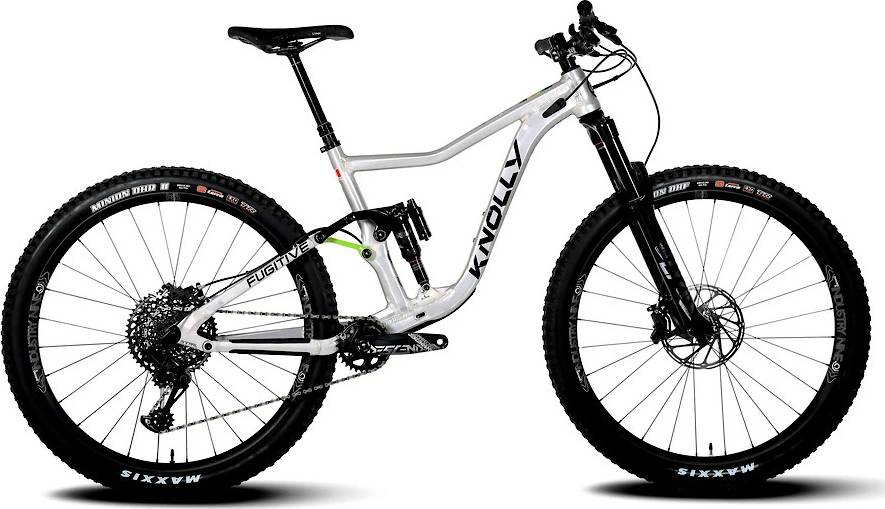

Knolly Fugitive LT Dawn Patrol 2020
2020 Mountain
Estimate price |
4,730$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 135mm -
Fork RockShox Lyrik Ultimate
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Lyrik Ultimate RC2, 42mm offset
Rear Shock
Trunnion mount, 185mm x 55mm, Options: RockShox Super Deluxe Ultimate RCT, FOX FLOAT X2 Factory
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-50 tooth
Crank
Truvativ Descendant 7k DUB, 170mm length
Bottom Bracket
SRAM DUB SB+, 73mm BSA threaded
Chain
SRAM GX Eagle, 12-speed
Pedals
N/A
Wheels
Front Hub
Spank Oozy Trail 345 wheelset, j-bend, 32-hole, 6-bolt rotor mounts, 110x15mm Boost front, 157x12mm SuperBoost rear, Options: Industry Nine 1/1, j-bend, 28 hole, 6-bolt rotor mounts; Industry Nine Hydra, straight-pull, 28 hole, 6-bolt rotor mounts
Rear Hub
Spank Oozy Trail 345 wheelset, j-bend, 32-hole, 6-bolt rotor mounts, 110x15mm Boost front, 157x12mm SuperBoost rear, Options: Industry Nine 1/1, j-bend, 28 hole, 6-bolt rotor mounts; Industry Nine Hydra, straight-pull, 28 hole, 6-bolt rotor mounts
Rims
Spank Oozy Trail 345 wheelset, 32 hole, Option: Industry Nine Enduro-S, 28 hole
Spokes
Spank Oozy Trail 345 wheelset, j-bend, Options: Industry Nine Enduro-S wheelset, j-bend (1/1 hubs) or straight-pull (Hydra hubs)
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, 29" x 2.3", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, 29" x 2.3"
Brakes
Brakes
SRAM Code R, 4-piston, SRAM CenterLine 6-bolt rotors (200mm front, 180mm rear)
Brake Levers
SRAM Code R
Cockpit
Stem
Chromag Hi-Fi, 35mm bar clamp, 50mm length
Handlebar
Chromag OSX, 35mm clamp diameter, 800mm width, 20mm rise
Grips
Chromag Basis, black
Headset
Cane Creek 40 Series, ZS44 upper, ZS56 lower
Seat
Saddle
Chromag Lynx DT
Seatpost
RockShox Reverb Stealth dropper, 175mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.36 mm | 1.29 mm | 1.24 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Stack | 618 mm | 618 mm | 622.5 mm | 629 mm |
| Reach | 427 mm | 456 mm | 483 mm | 506 mm |
| Top Tube Length | 583 mm | 612 mm | 640 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 355 mm | 400 mm | 456 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 98 mm | 98 mm | 103 mm | 110 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1166 mm | 1194 mm | 1224 mm | 1249 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Fugitive LT Dawn Patrol is part of the Knolly Fugitive model. Knolly launched 21 bikes of this model so far. You can easily view all of the Knolly Fugitive bikes models from 2020, here.
Model range prices
Knolly Fugitive Dawn Patrol 2020 is the most economical model, with a starting price of 4580$. Knolly Fugitive LT Extra Credit 2020 on the other hand costs 5400$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Knolly Fugitive LT Dawn Patrol price was 4730$. Doing a quick comparison, we notice that Fugitive LT Dawn Patrol price is 71.25% higher than the average cost of a Trail bike.
Overview of components
Fork
The RockShox Lyrik Ultimate is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Trunnion mount, with a travel distance of 135mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Fugitive LT Dawn Patrol are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Knolly Fugitive LT Dawn Patrol is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Knolly Fugitive LT Dawn Patrol bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Knolly Fugitive LT Dawn Patrol includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
