Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio, Acera -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

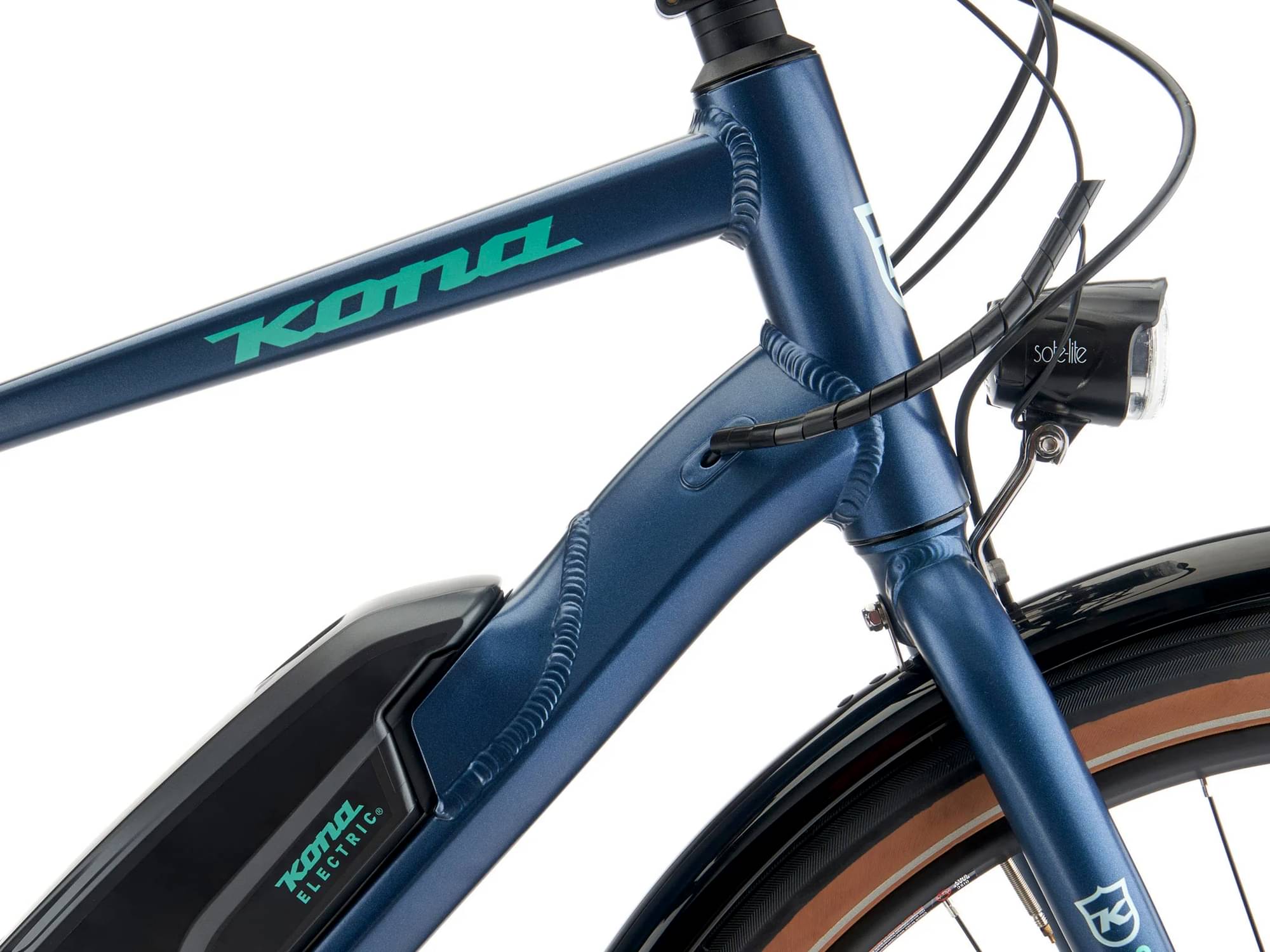

Frame

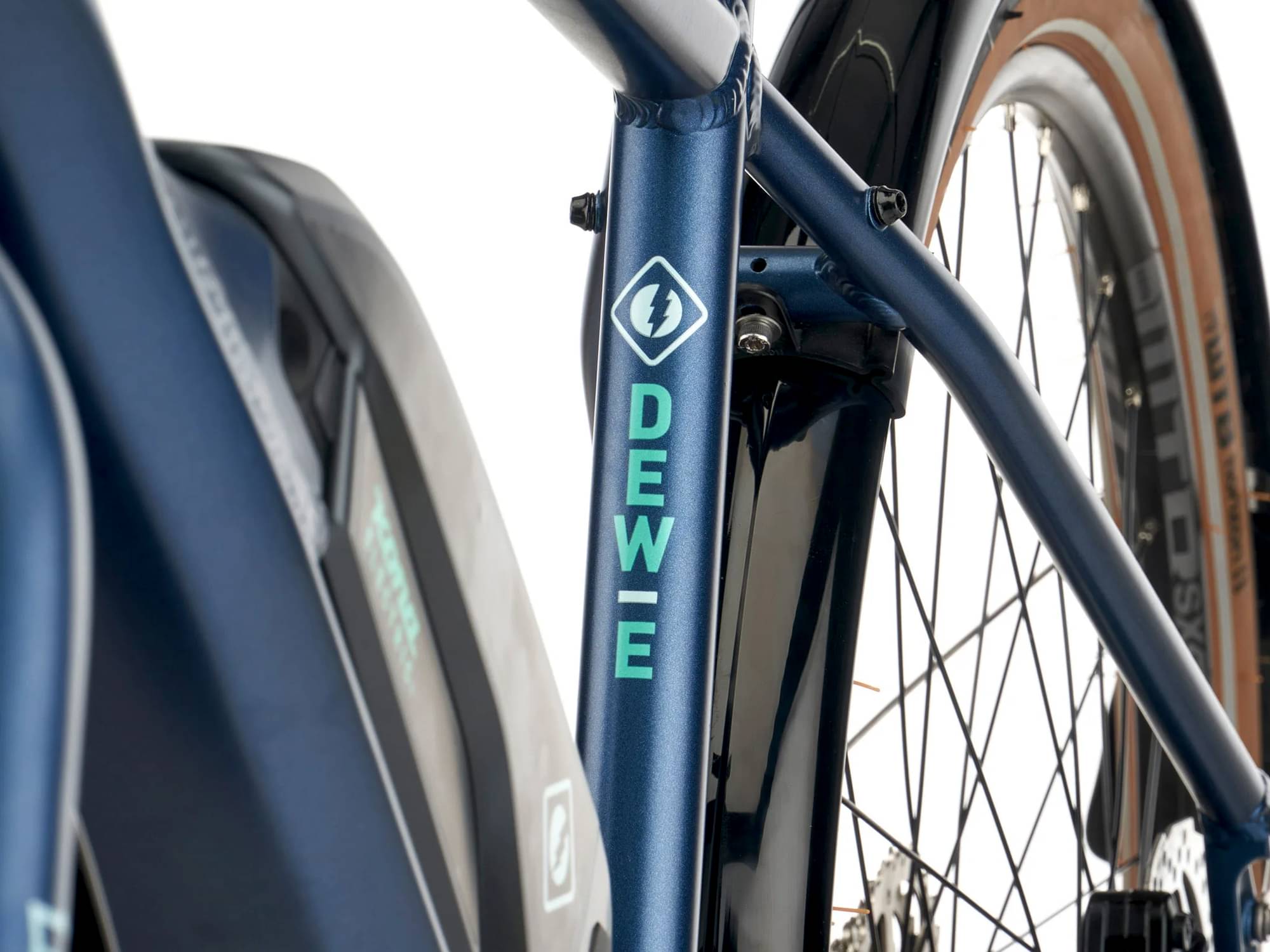

Frame
Kona 6061 Aluminum Butted
Suspension Fork
Kona Project Two Aluminum Disc
Rear Shock
n/a
Drivetrain

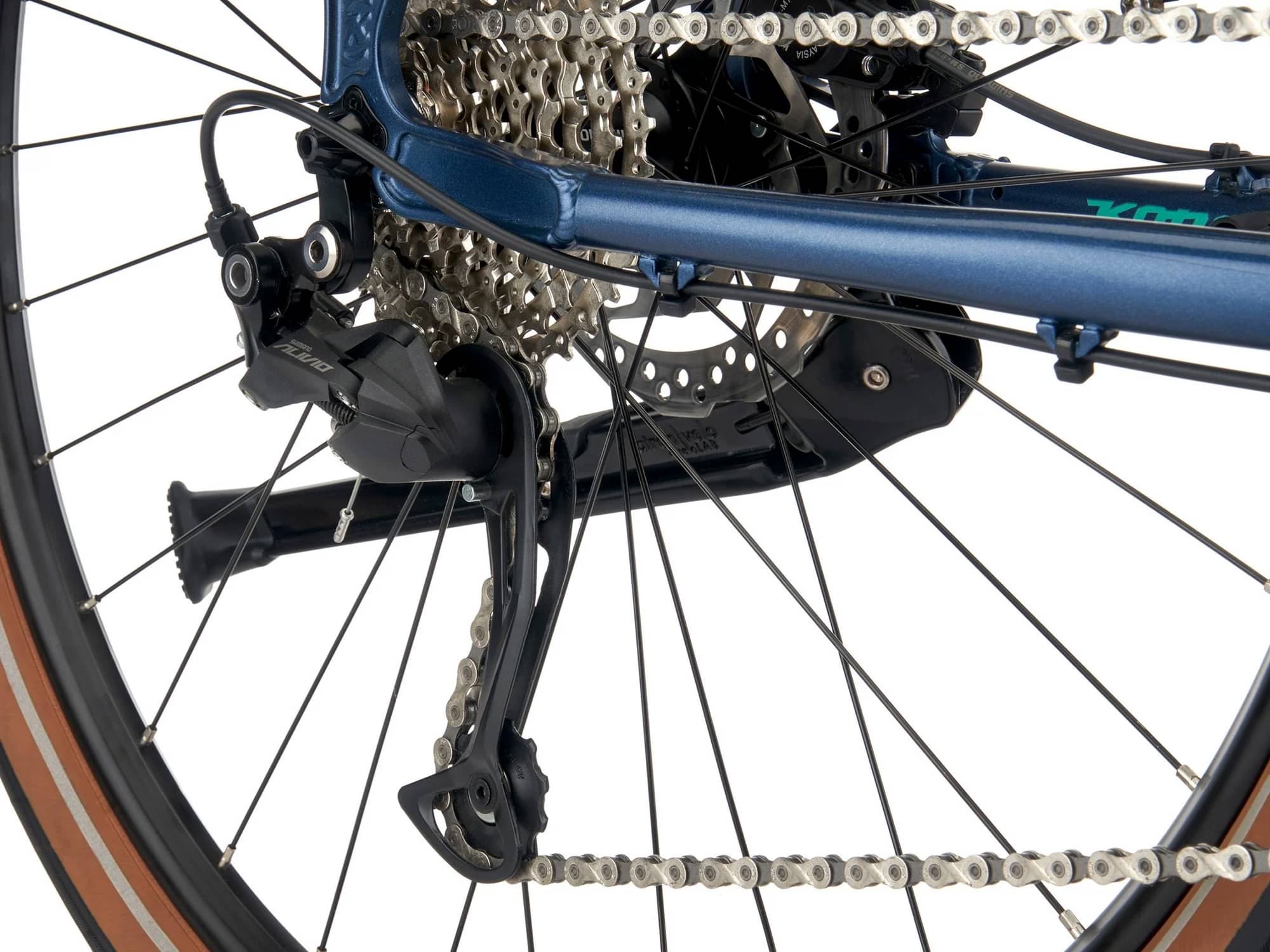

Rear Derailleur
Shimano Alivio
Front Derailleur
n/a
Shift Levers
Shimano Acera
Cassette
Shimano Alivio 11-34t 9spd
Crank
Shimano E6100, 38t
Bottom Bracket
n/a
Chain
KMC X9
Chain Guide
Shimano E-Bike chain Guard

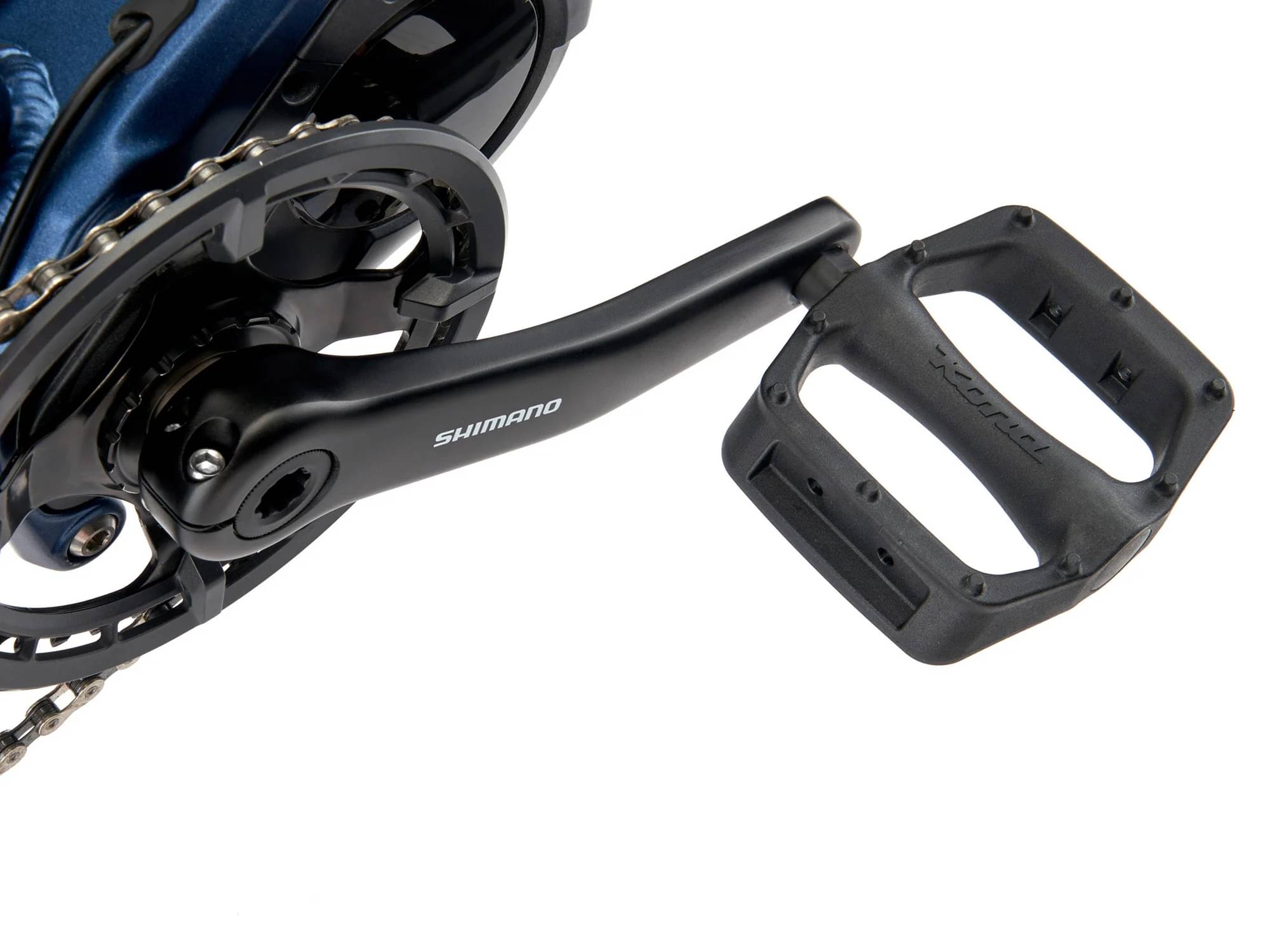

Pedals
Kona JS2
Wheels
Front Hub
Shimano Alivio 100x9mm
Rear Hub
Shimano Alivio 135x10mm
Rims
WTB SX19
Spokes
Stainless 14g
Tires

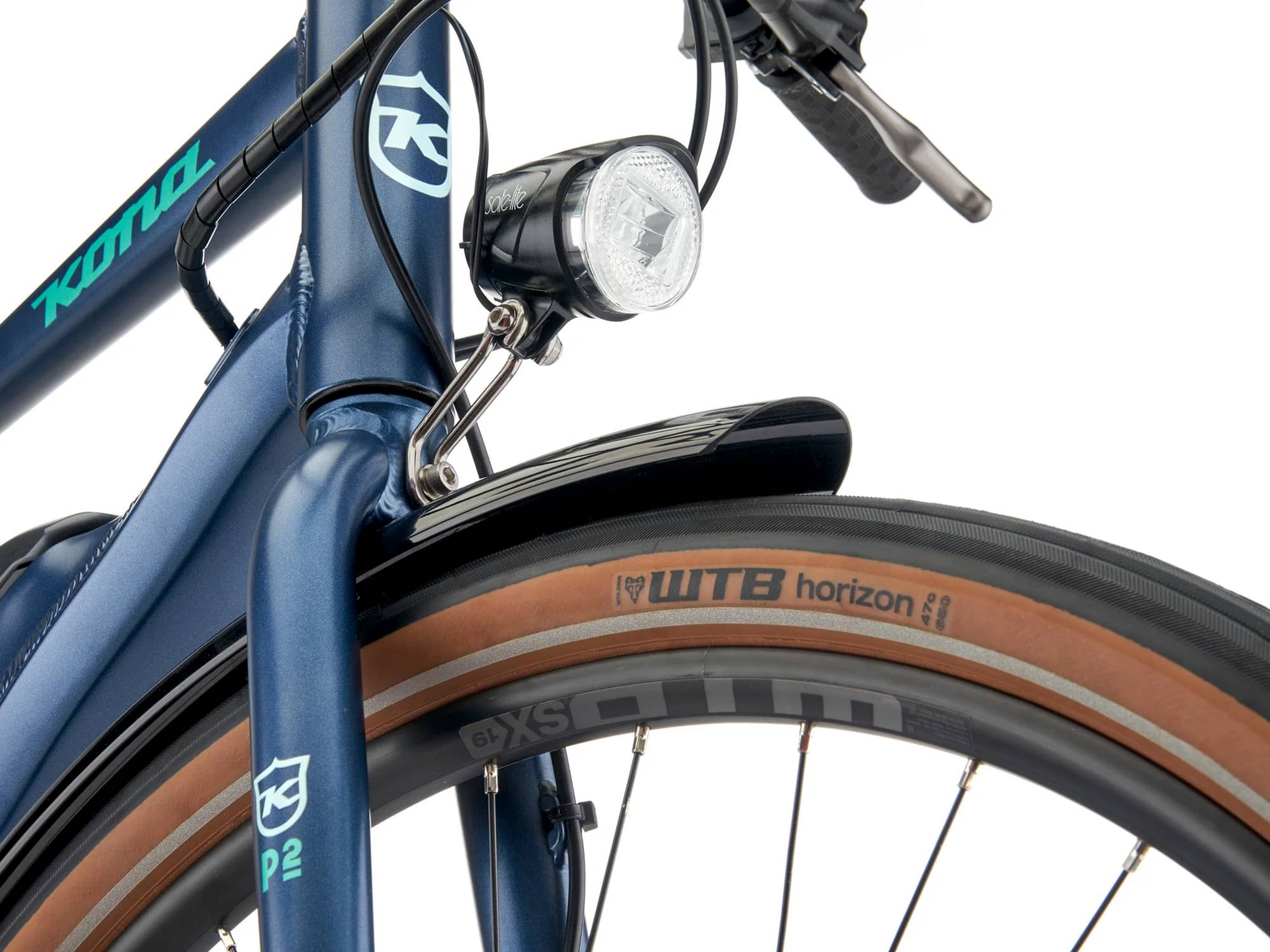

Front: WTB Horizon Comp Puncture Protect 650x47c, Rear: WTB Horizon Comp Puncture Protect 650x47c
Brakes
Brakes
Shimano Deore

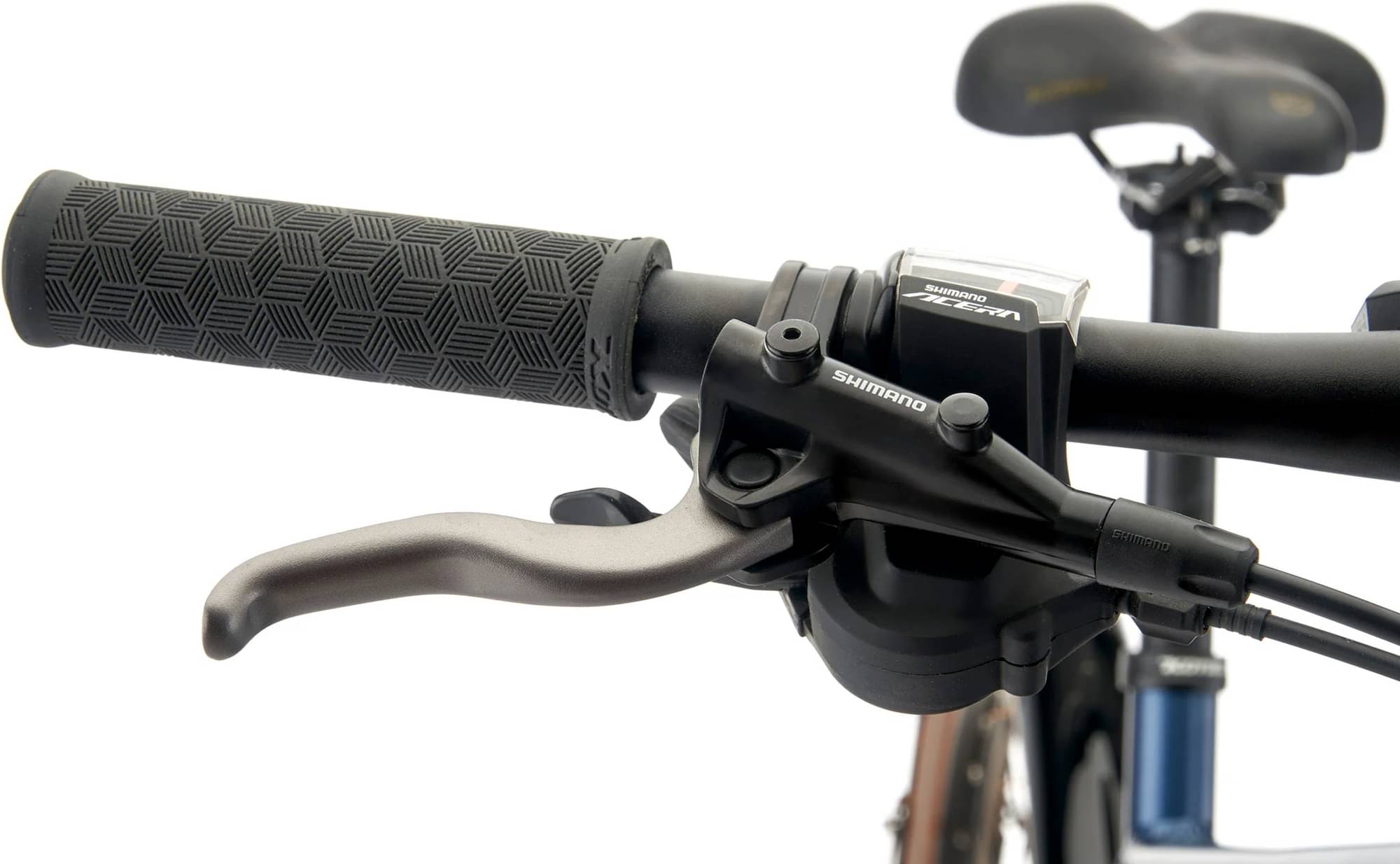

Brake Levers
Shimano Deore

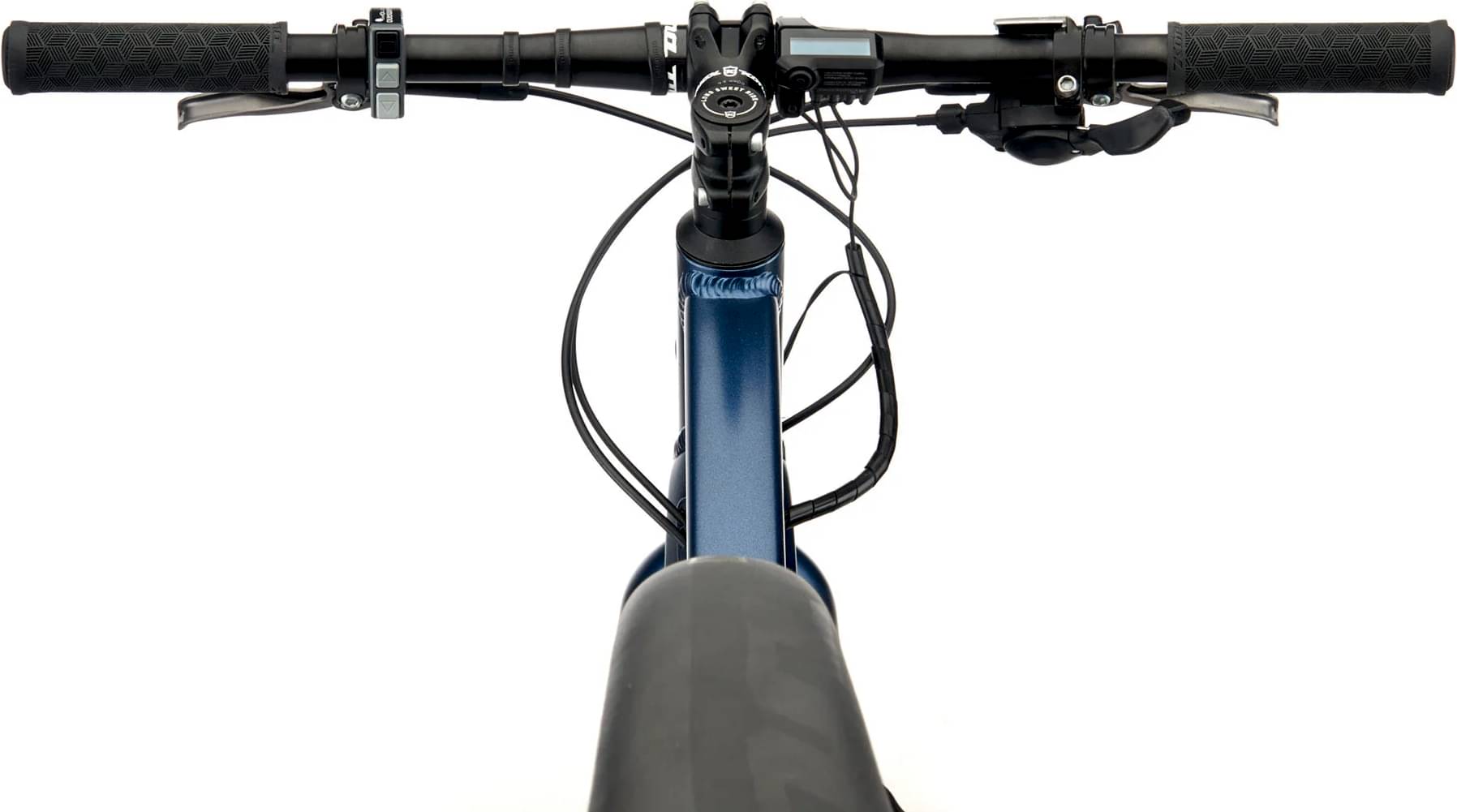

Cockpit
Stem
Kona Control

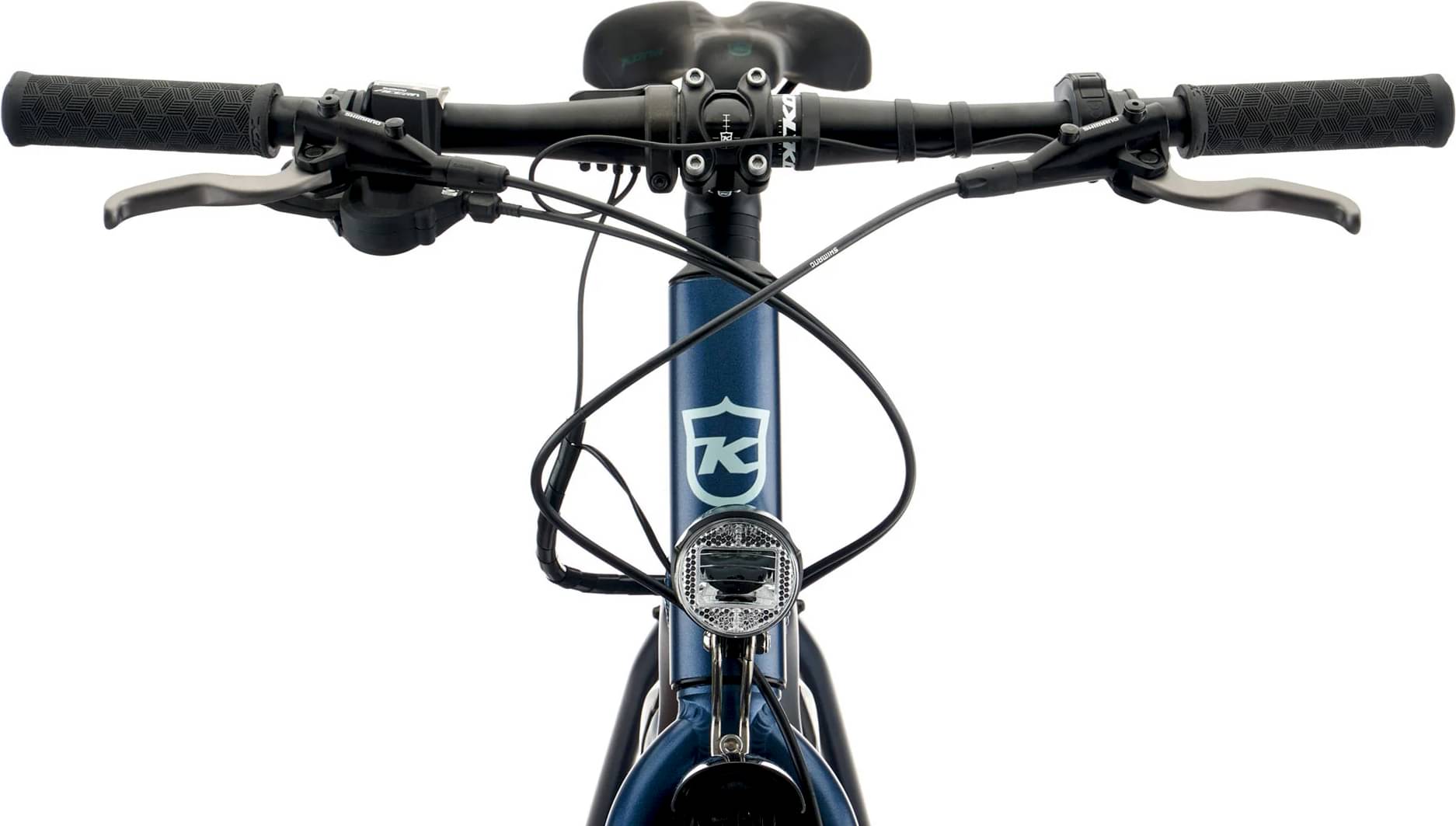

Handlebar
Kona Aluminum Flat
Grips
Kona Key Grip Slip on
Headset
FSA No.57BP
Seat
Saddle
Kona Comfort
Seatpost
Kona Commuter 31.6mm
Motor & Battery

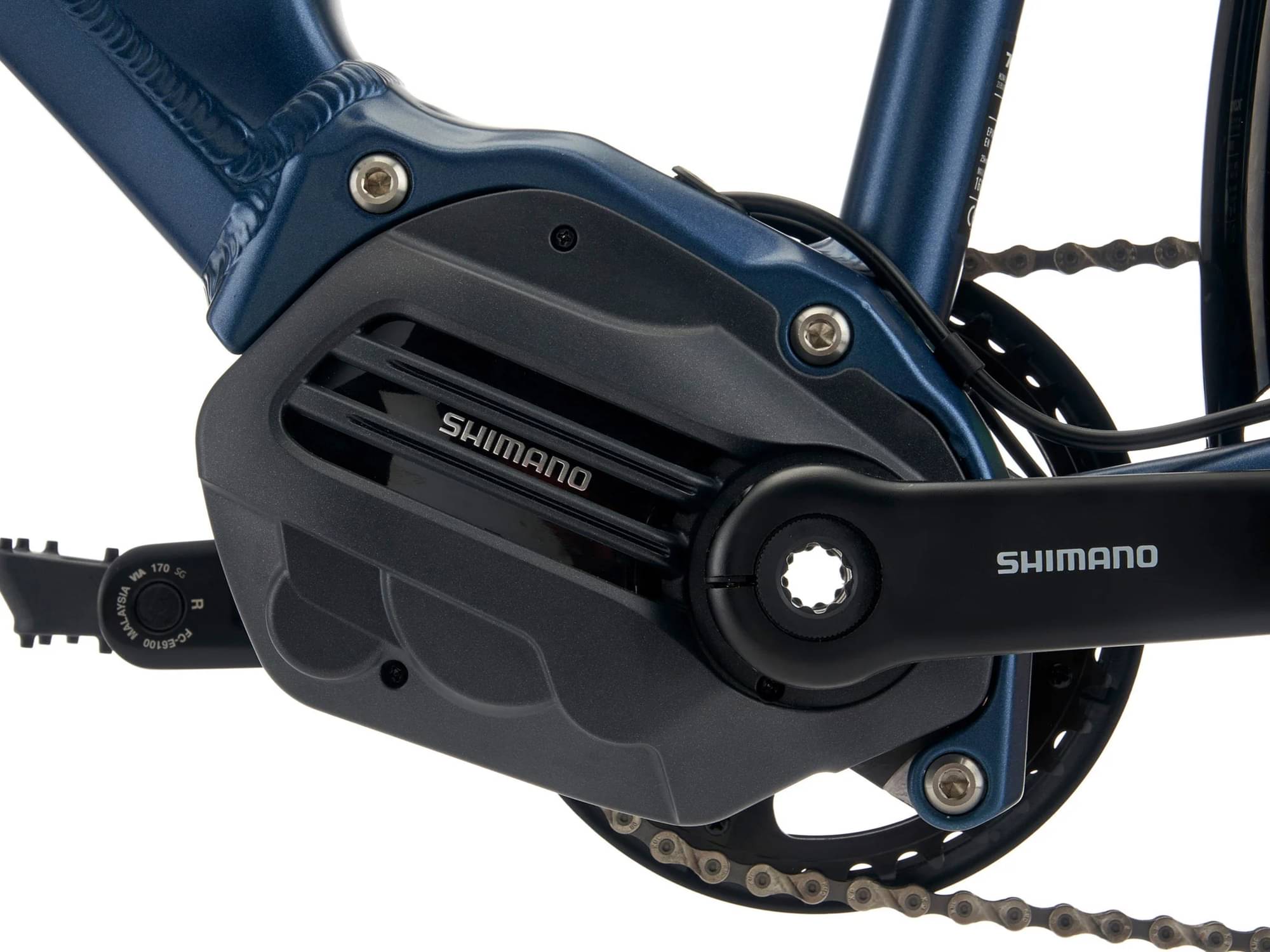

Motor
Shimano E6100 20MPH

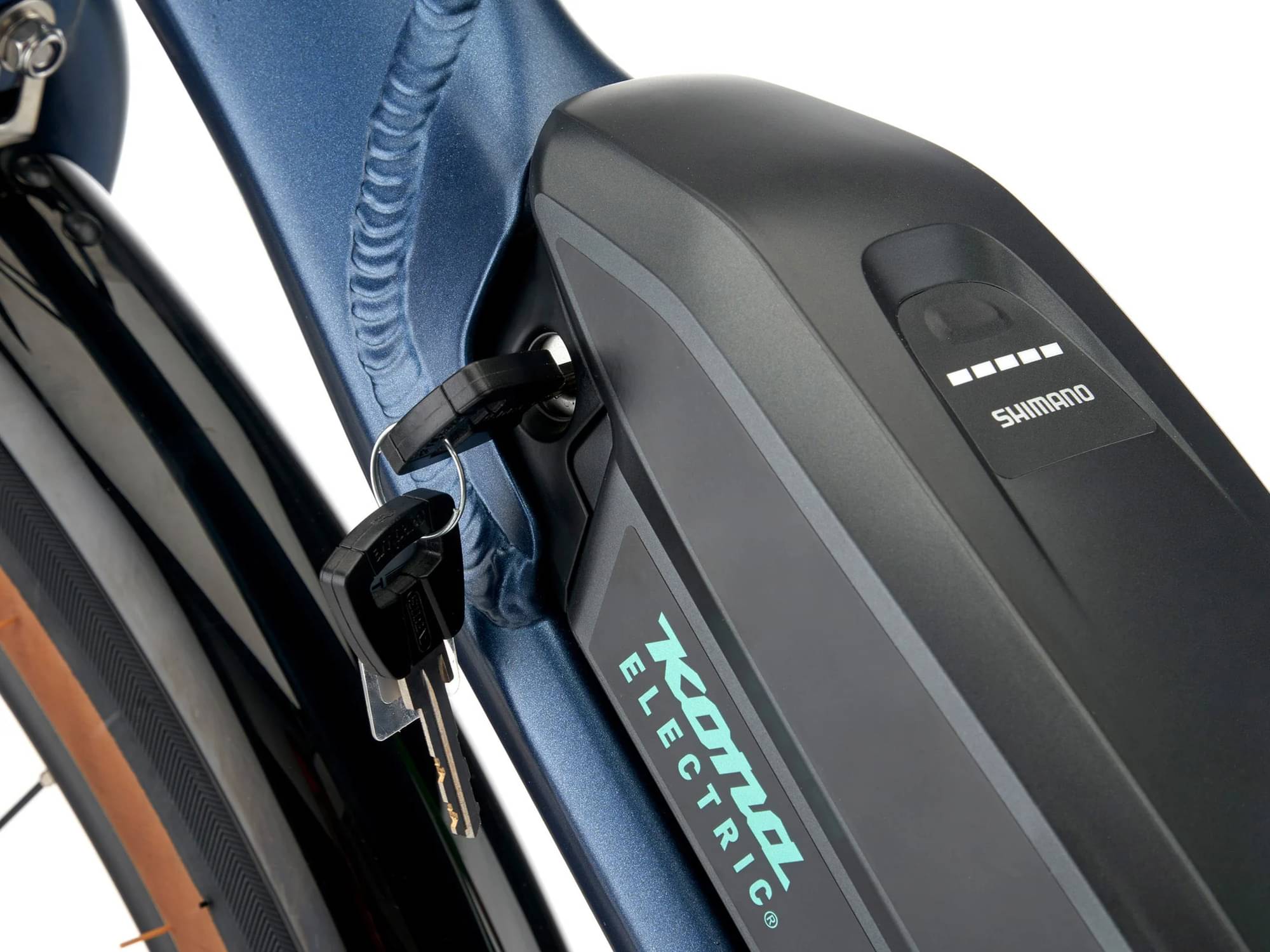

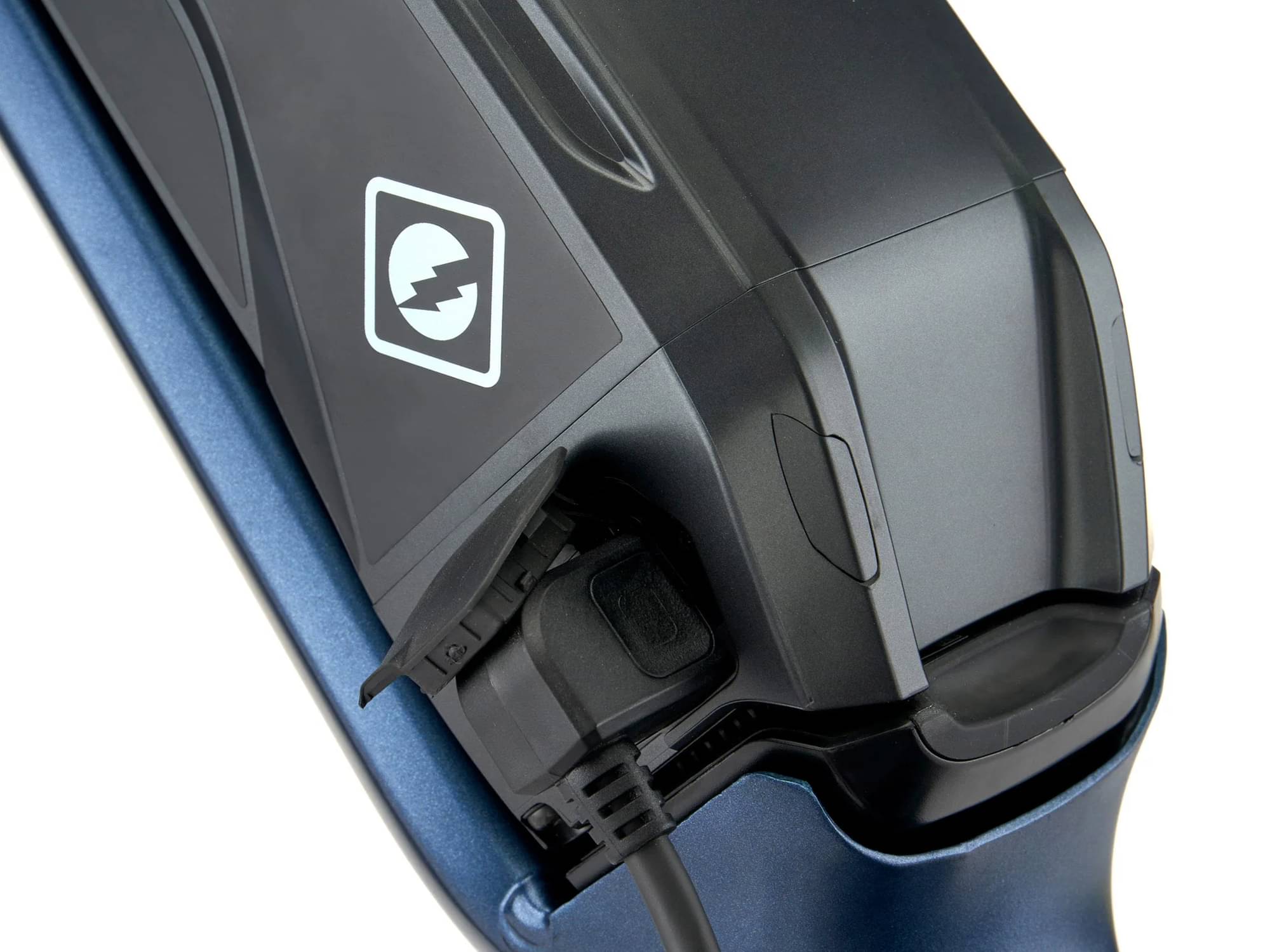

Battery
Shimano 504Wh
Charger
Shimano STEPS 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.41 mm | 1.44 mm | 1.44 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 635 mm | 674 mm | 704 mm | 743 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 561 mm | 599 mm | 637 mm | 674 mm |
| Reach | 401 mm | 426 mm | 442 mm | 468 mm |
| Top Tube Length | 551 mm | 597 mm | 636 mm | 686 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 72 ° |
| Seat Tube Length | 420 mm | 470 mm | 520 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 175 mm | 215 mm | 255 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1092 mm | 1130 mm | 1160 mm | 1200 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 695 mm | 739 mm | 785 mm | 835 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Dew-E is part of the Kona E Dew model. There are 10 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Kona Dew HD 2023 is the most economical model, with a starting price of 1999$. Kona Dew-E DL 2023 on the other hand costs 3999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 2999$. If we compare this with the average Commuter e-bike cost we notice that the price is 16.74% more expensive.
Dew-E components
Fork material
Dew-E has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the Dew-E model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.

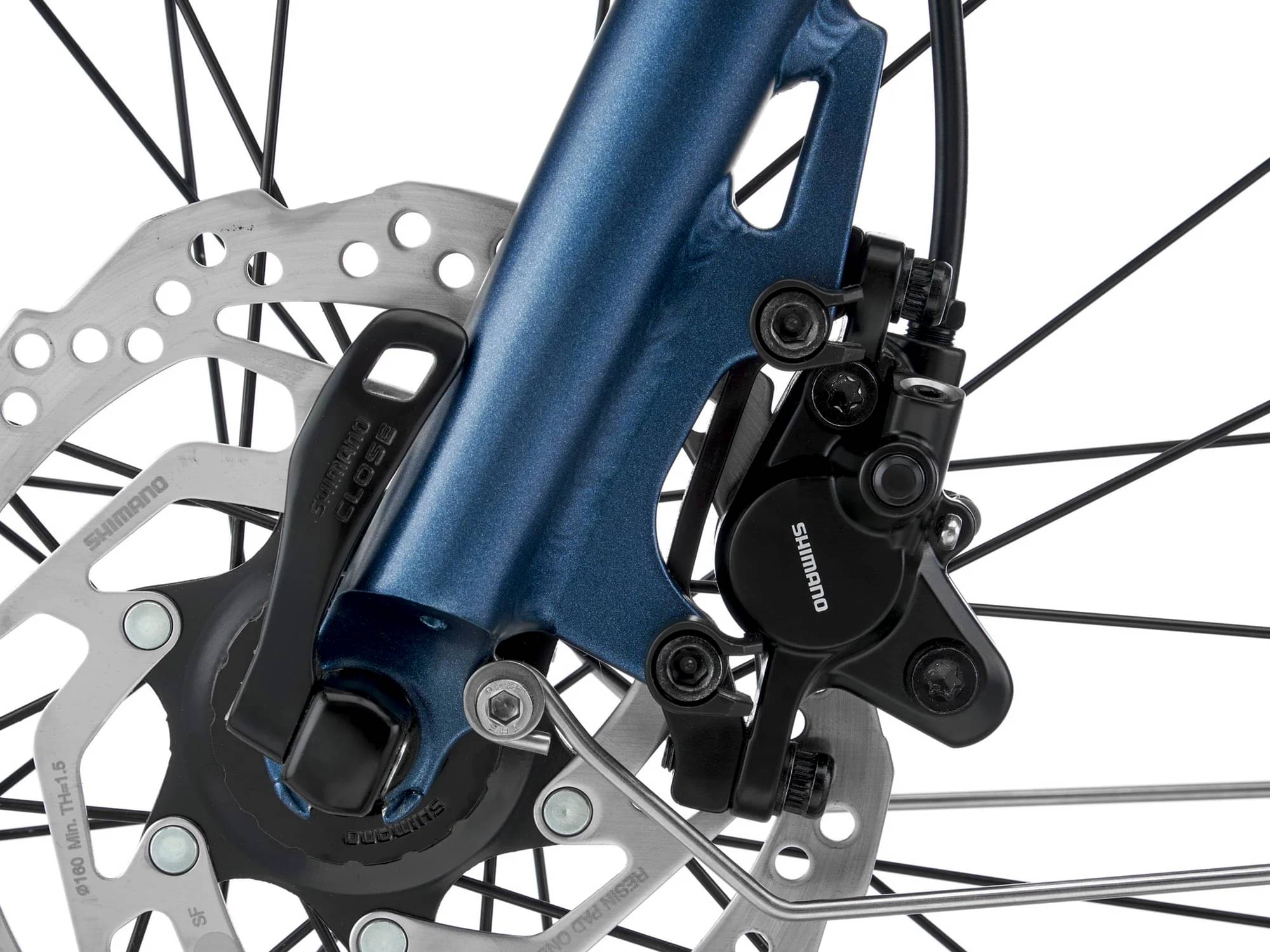

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Dew-E comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
