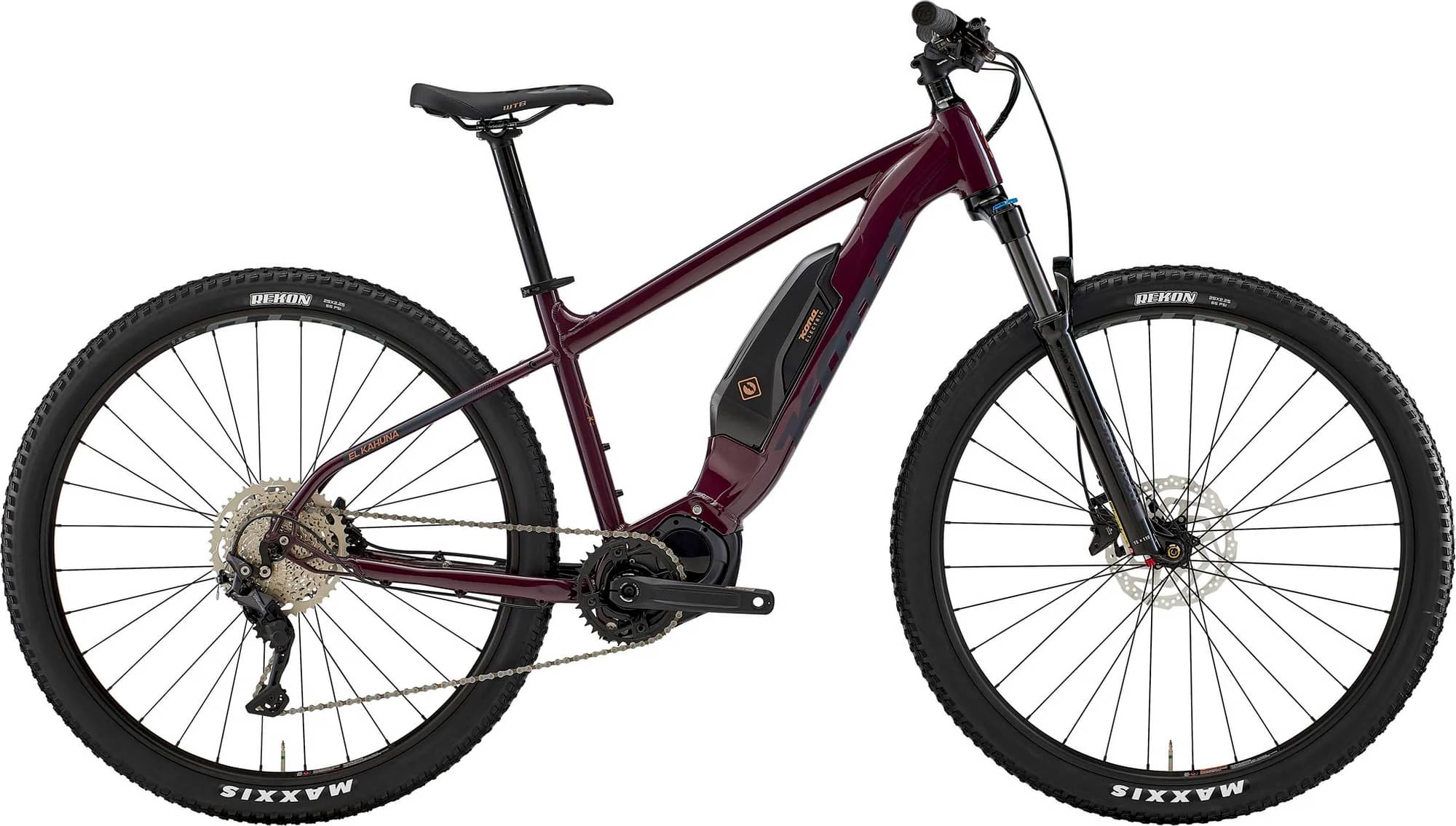

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -

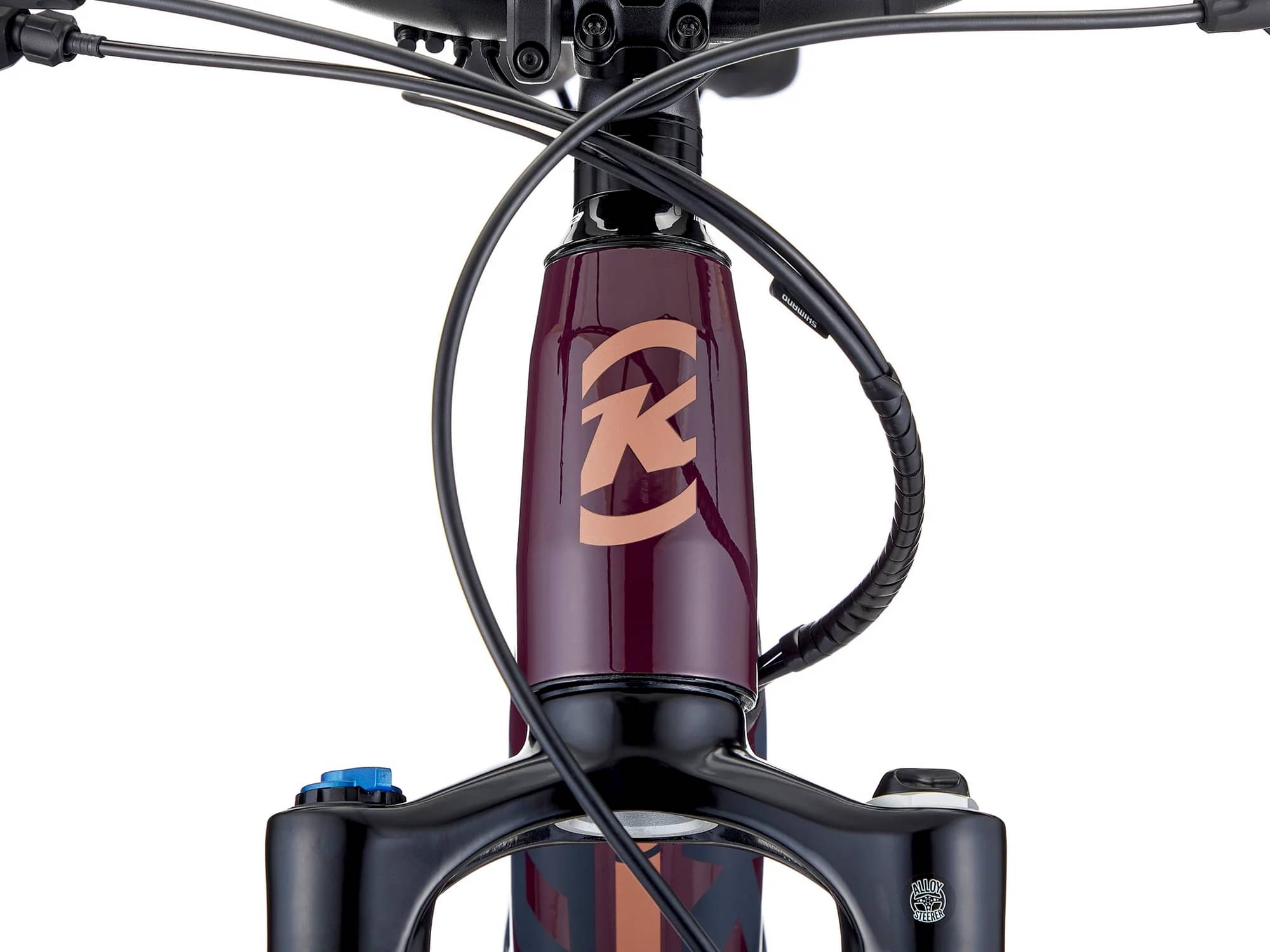

Fork Suntour XCR Air
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

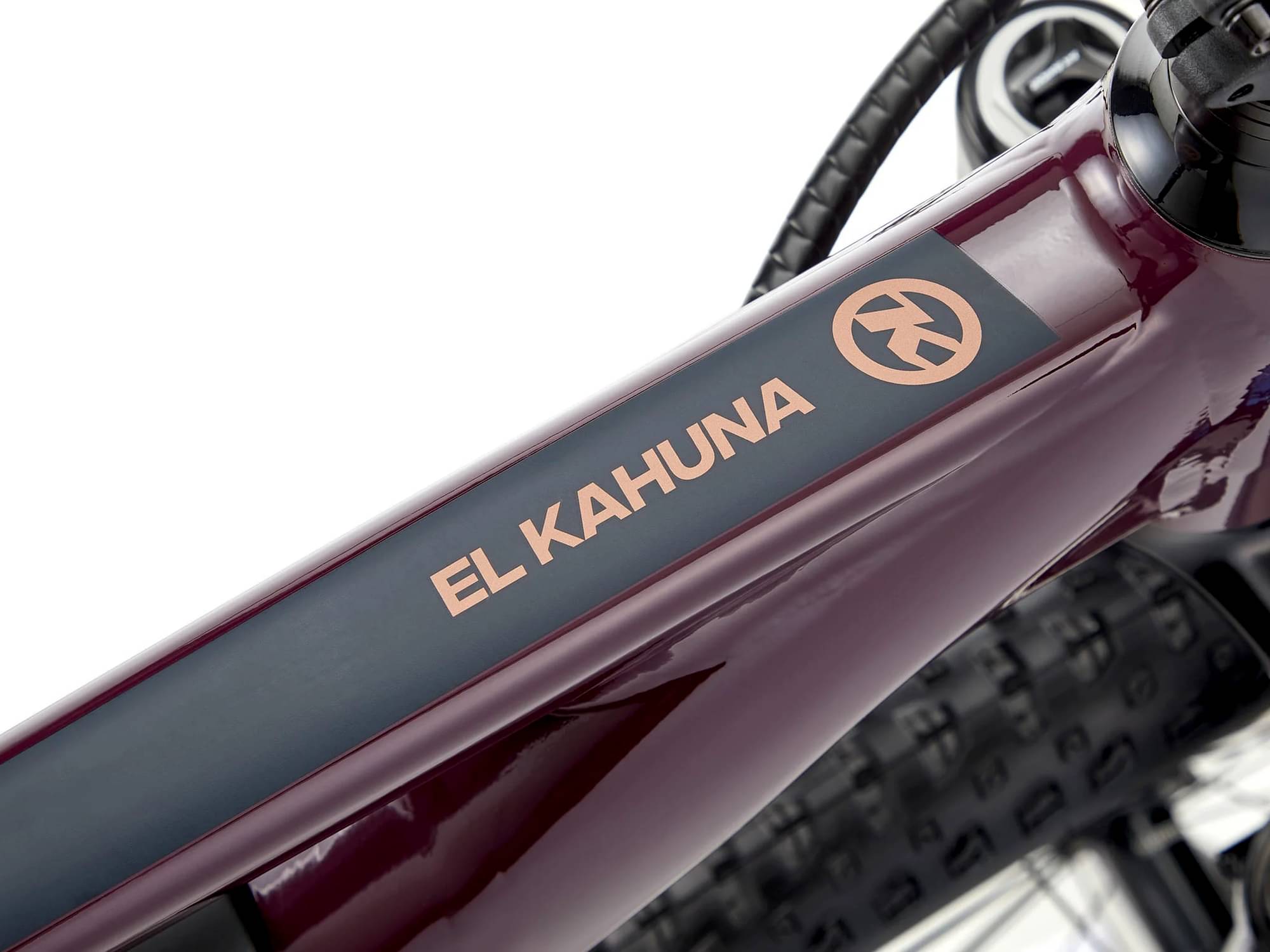

Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Suntour XCR34 Air 100mm Tapered 110 Spacing
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-46t 10spd

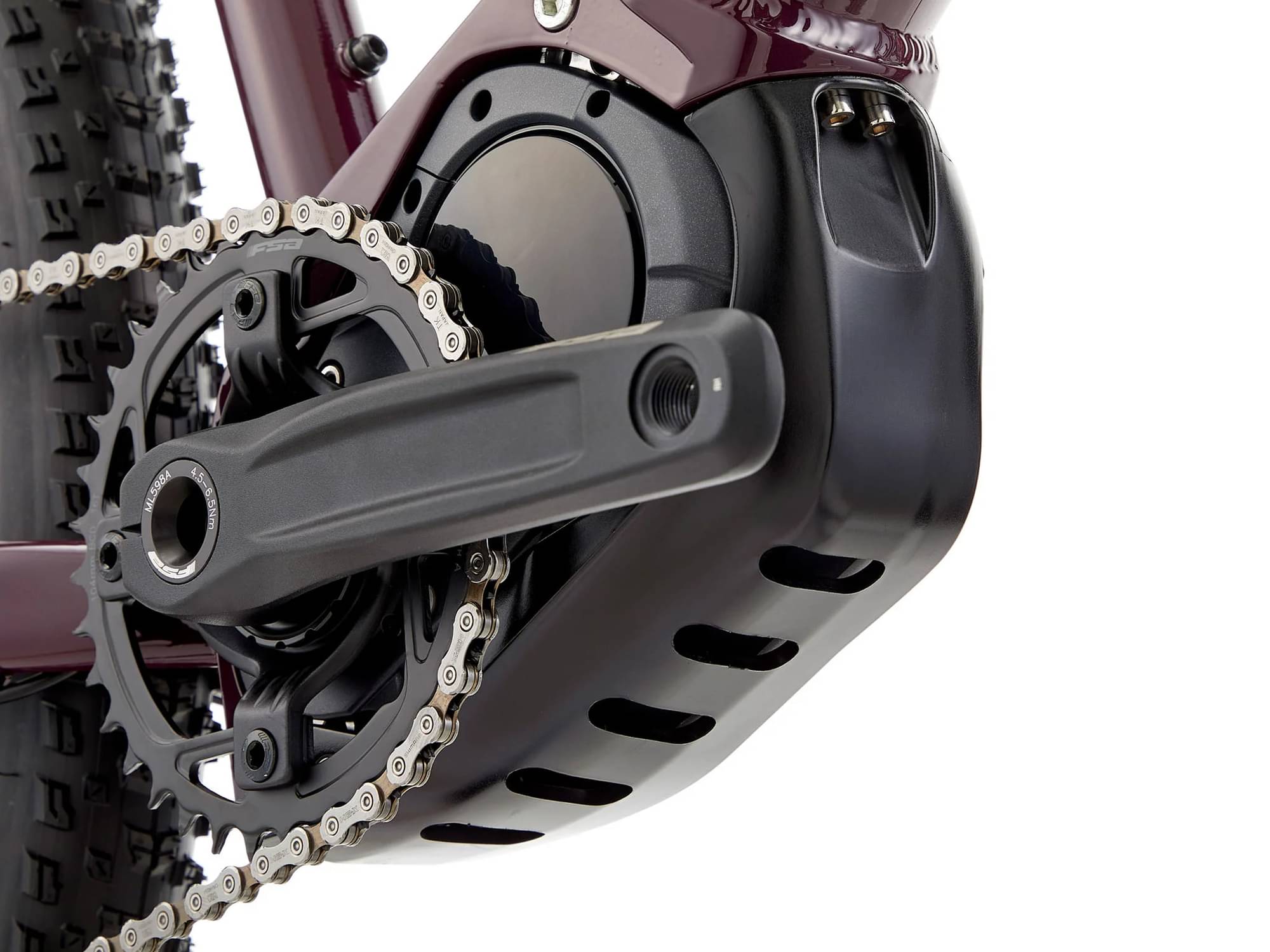

Crank
FSA E-Bike, 36t
Bottom Bracket
n/a
Chain
Shimano HG54
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano 110x15mm
Rear Hub
Shimano 135x10mm
Rims
WTB ST i27 TCS 2.0
Spokes
Stainless 14g
Tires
Front: WTB Trail Boss 29x2.25", Rear: WTB Trail Boss 29x2.25"

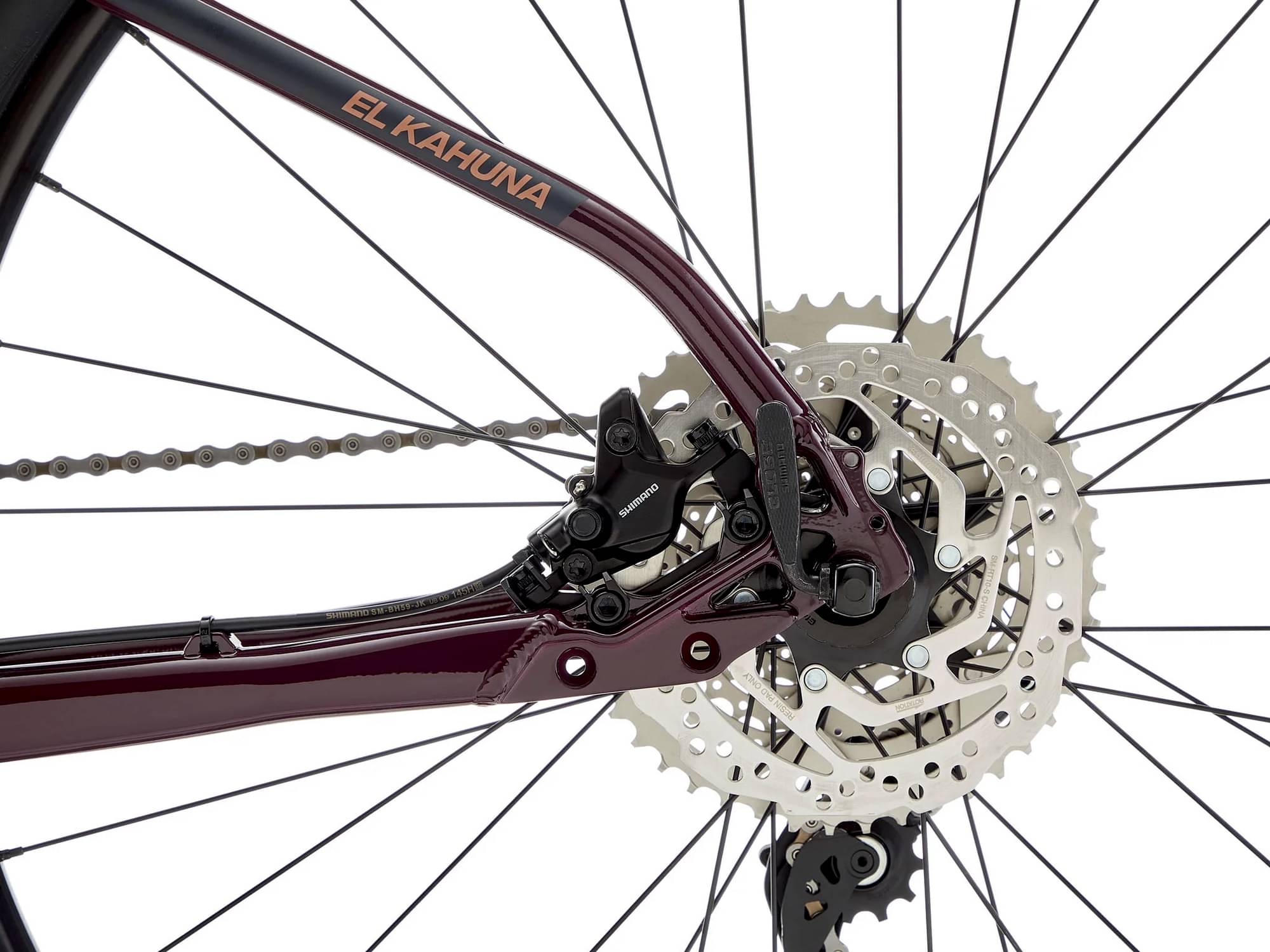

Brakes
Brakes
Shimano MT410
Brake Levers
Shimano MT401

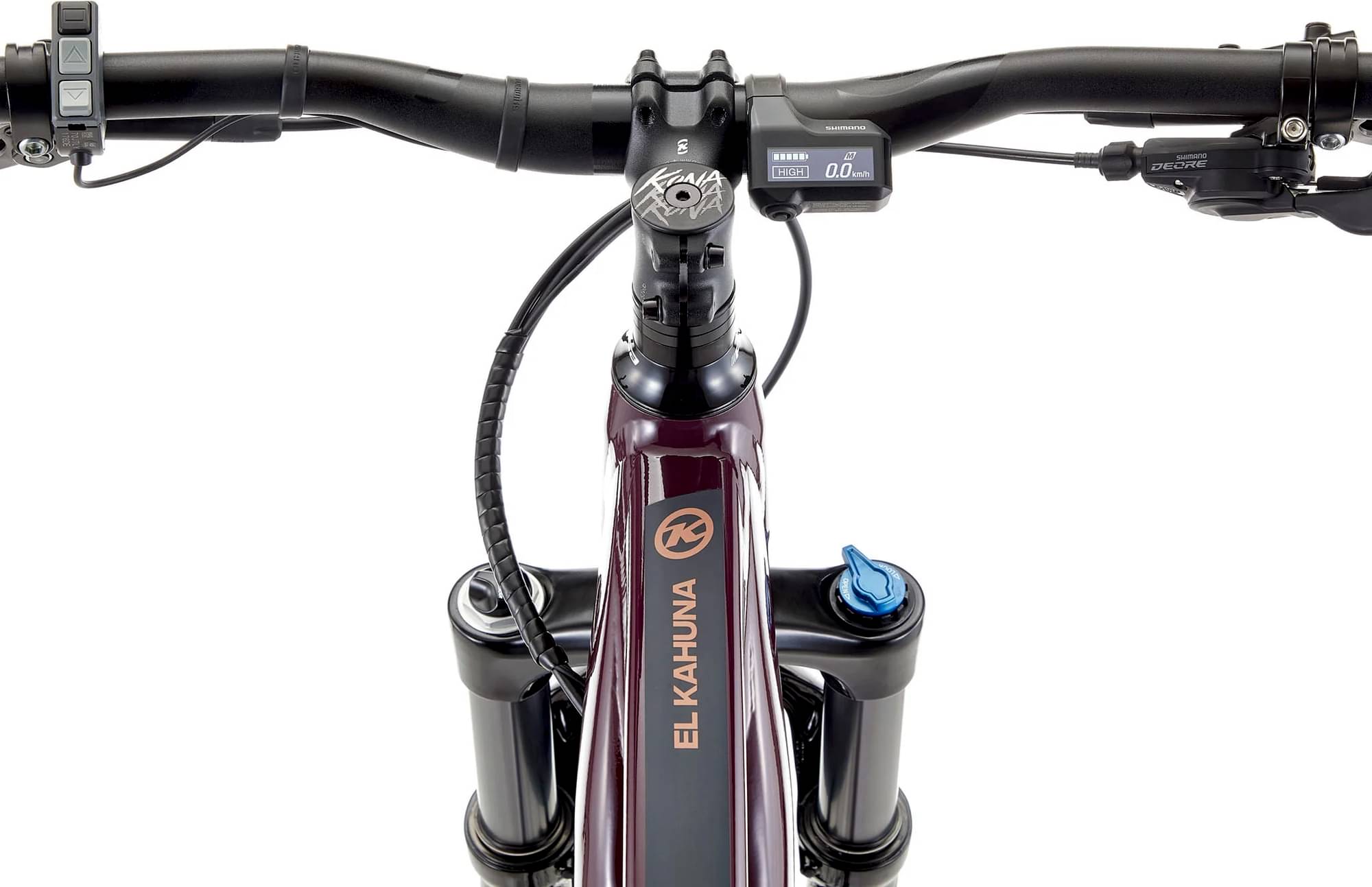

Cockpit
Stem
Kona XC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip
Headset
FSA No.57BP
Seat
Saddle
WTB Volt
Seatpost
Kona Thumb w/Offset 31.6mm
Motor & Battery

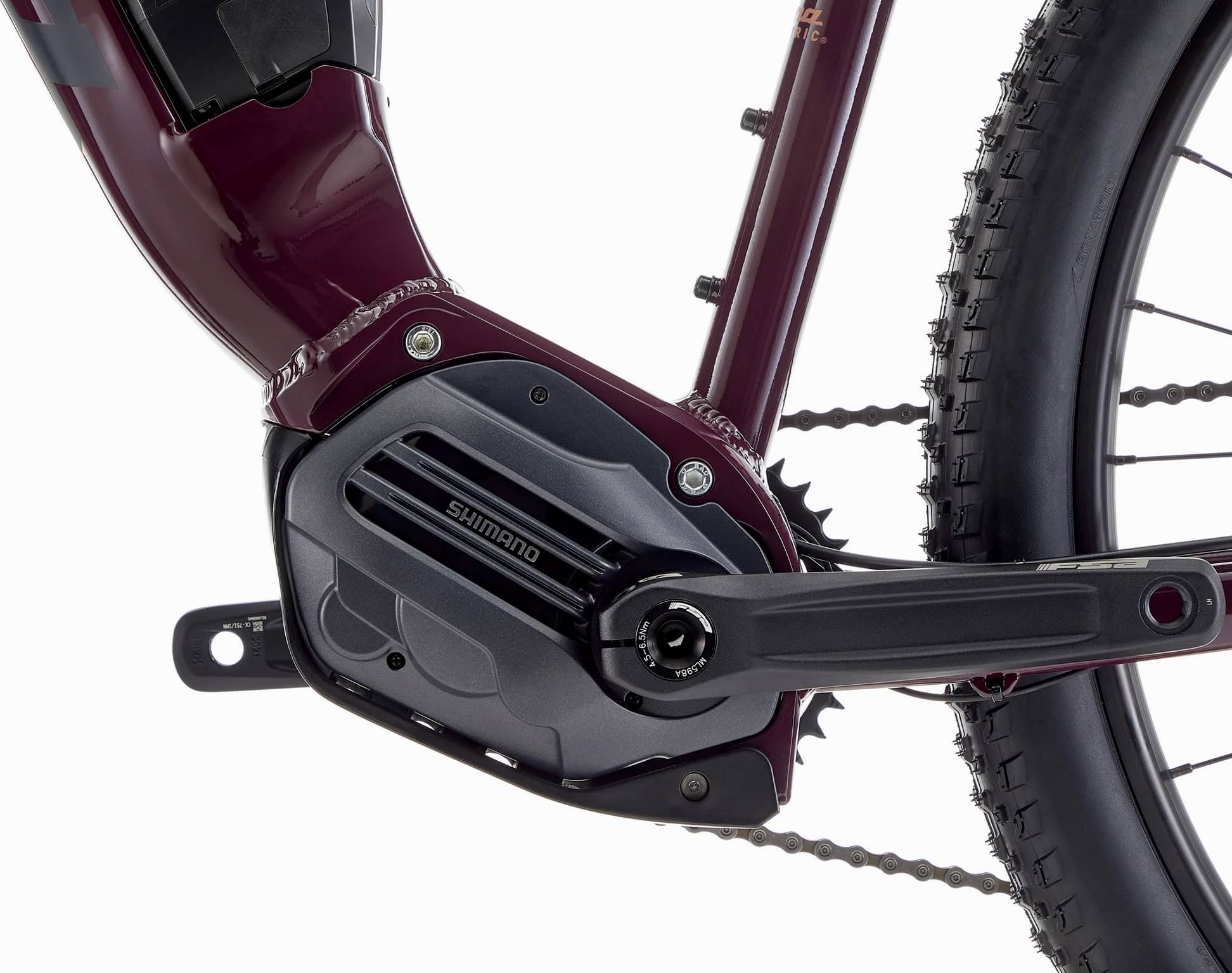

Motor
Shimano E6100 20MPH

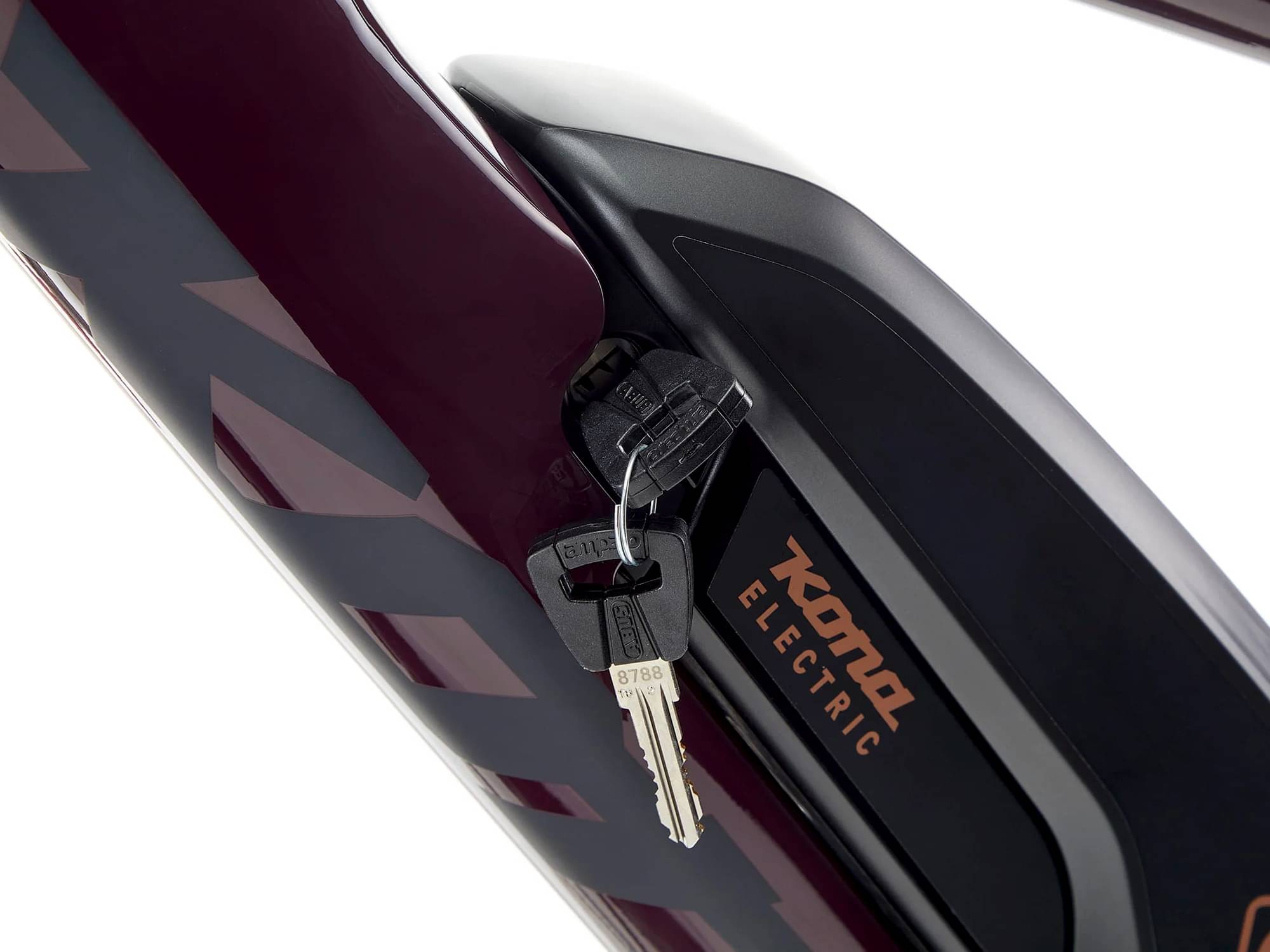

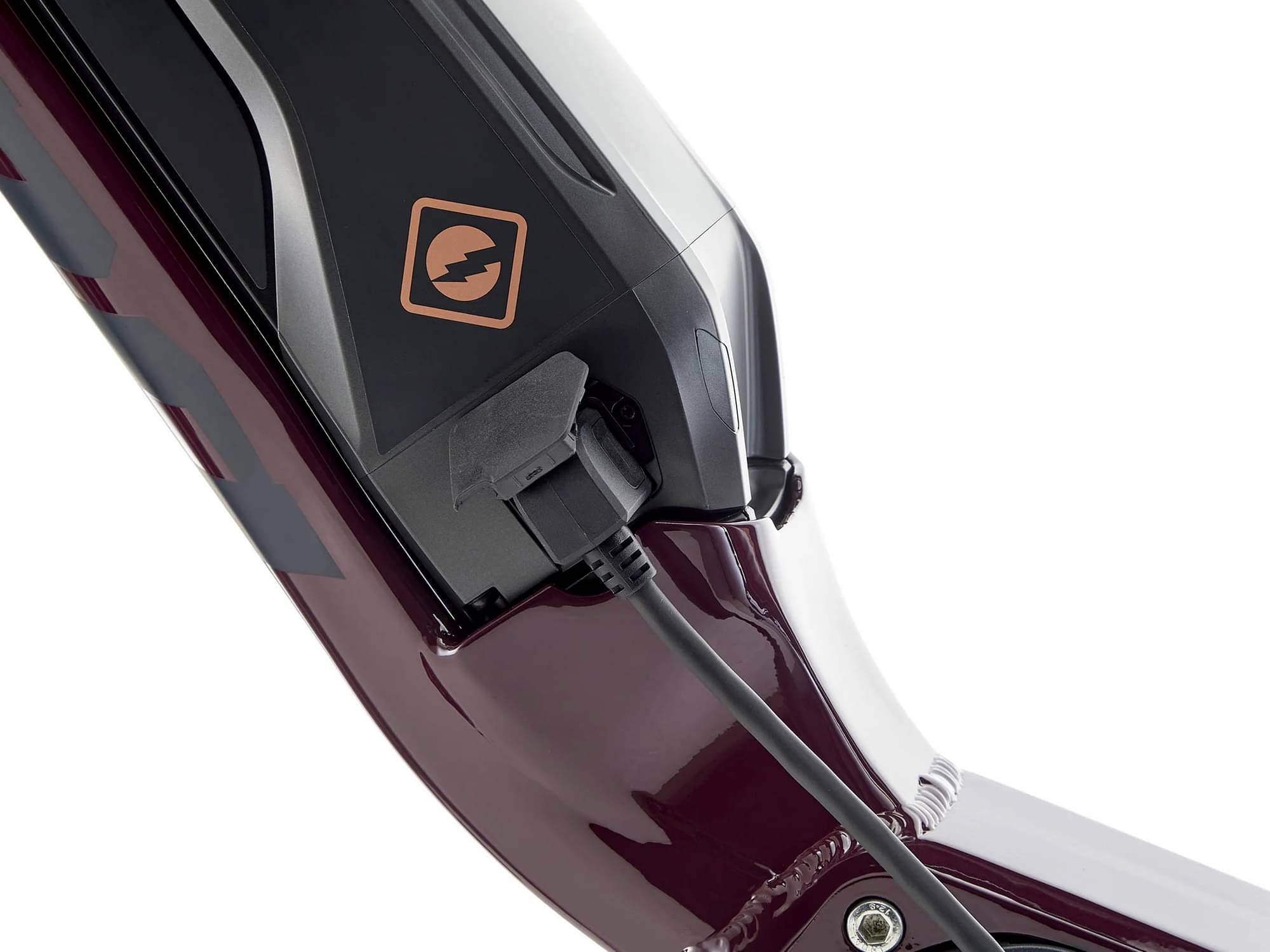

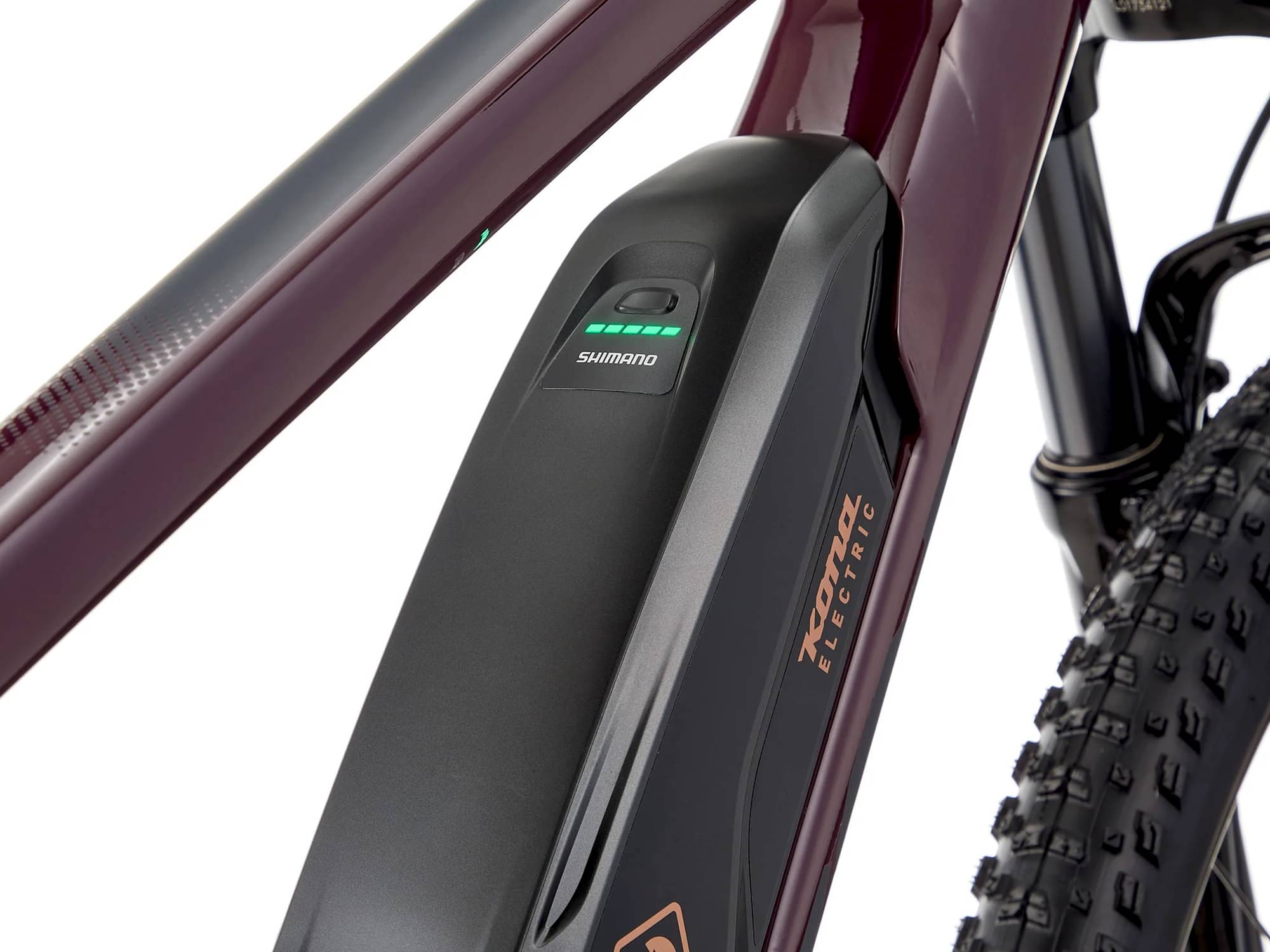

Battery
Shimano 504Wh
Charger
Shimano STEPS 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.45 mm | 1.38 mm | 1.31 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 676 mm | 701 mm | 728 mm | 761 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 623 mm | 627 mm | 632 mm | 637 mm |
| Reach | 408 mm | 432 mm | 457 mm | 488 mm |
| Top Tube Length | 585 mm | 611 mm | 637 mm | 669 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 469 mm | 469 mm | 469 mm | 469 mm |
| Wheelbase | 1138 mm | 1164 mm | 1191 mm | 1224 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 742 mm | 746 mm | 751 mm | 770 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
El Kahuna is a Kona E El Kahuna model. 5 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Kona El Kahuna 2023 has a starting price of 3099$. Kona El Kahuna SUV 2023 on the other hand is the most expensive at 3799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3099$. Comparing this to the average Crosscountry e-bike price, we see that the price is 26.34% higher.
El Kahuna components
Fork
The fork installed on this bike is the Suntour XCR Air model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the El Kahuna model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona El Kahuna is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
El Kahuna comes in 4 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
