Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 35 Silver
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano 630Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
RockShox 35 Silver R Coil 100mm Tapered 110 Spacing
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-46t 10spd
Crank
FSA E-Bike, 36t
Bottom Bracket
n/a
Chain
Shimano HG54
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano 110x15mm
Rear Hub
Shimano 135x10mm
Rims
WTB ST i27 TCS 2.0
Spokes
Stainless 14g
Tires
Front: Schwalbe G-One 29x2.25", Rear: Schwalbe G-One 29x2.25"

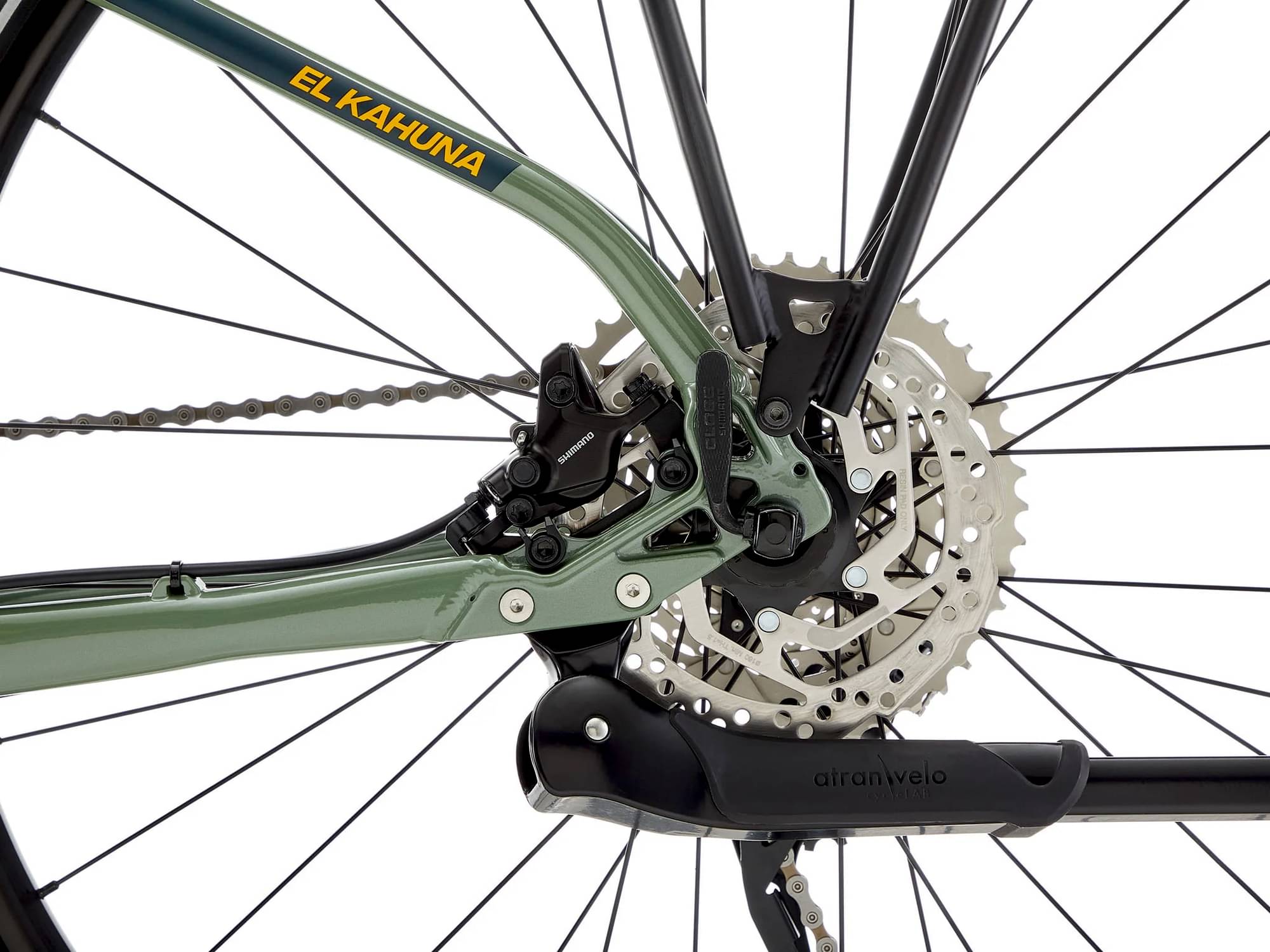

Brakes
Brakes
Shimano MT410
Brake Levers
Shimano MT4100

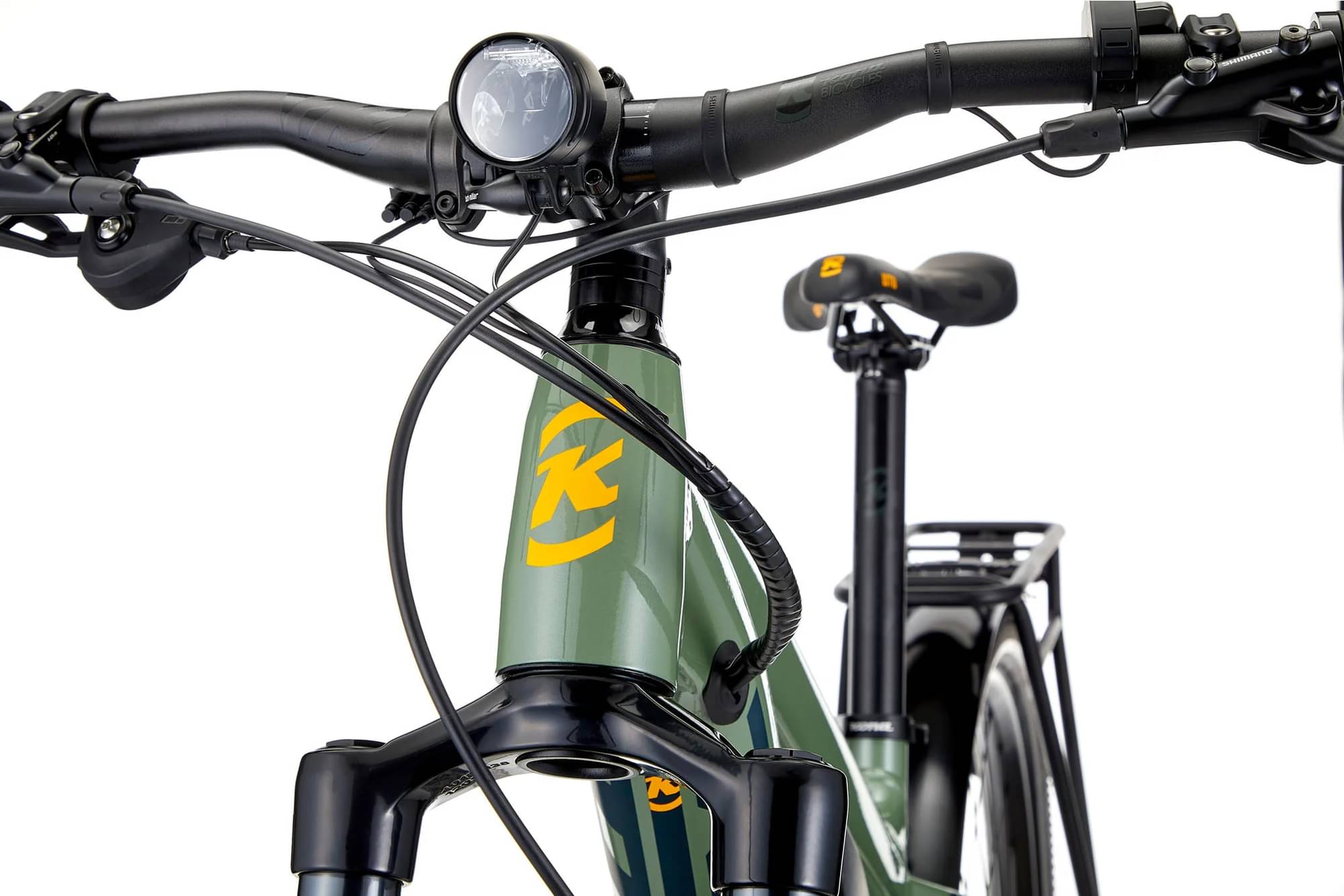

Cockpit
Stem
Kona XC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip
Headset
FSA No.57BP
Seat
Saddle
WTB Volt
Seatpost
Kona Thumb w/Offset 31.6mm
Motor & Battery

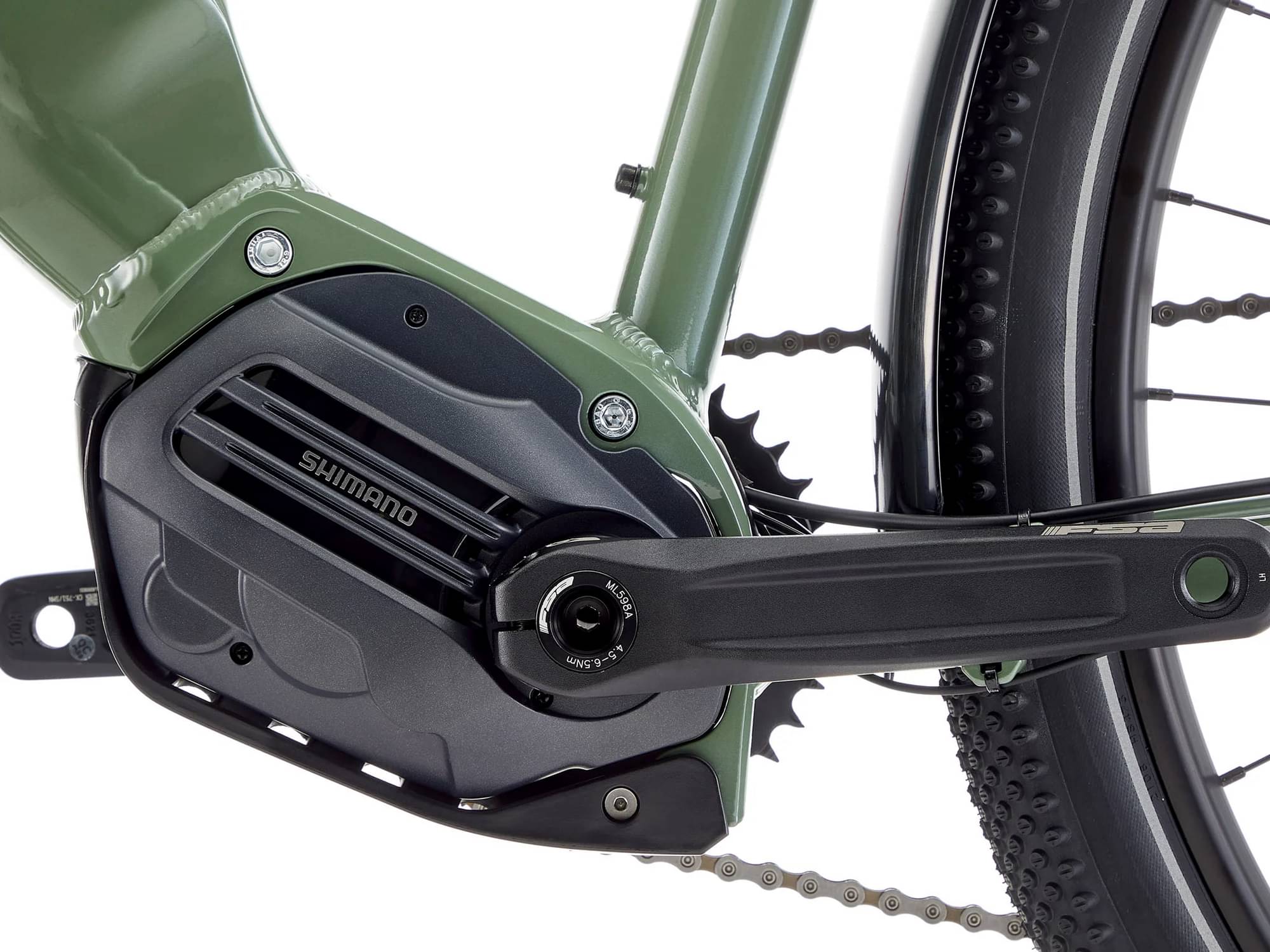

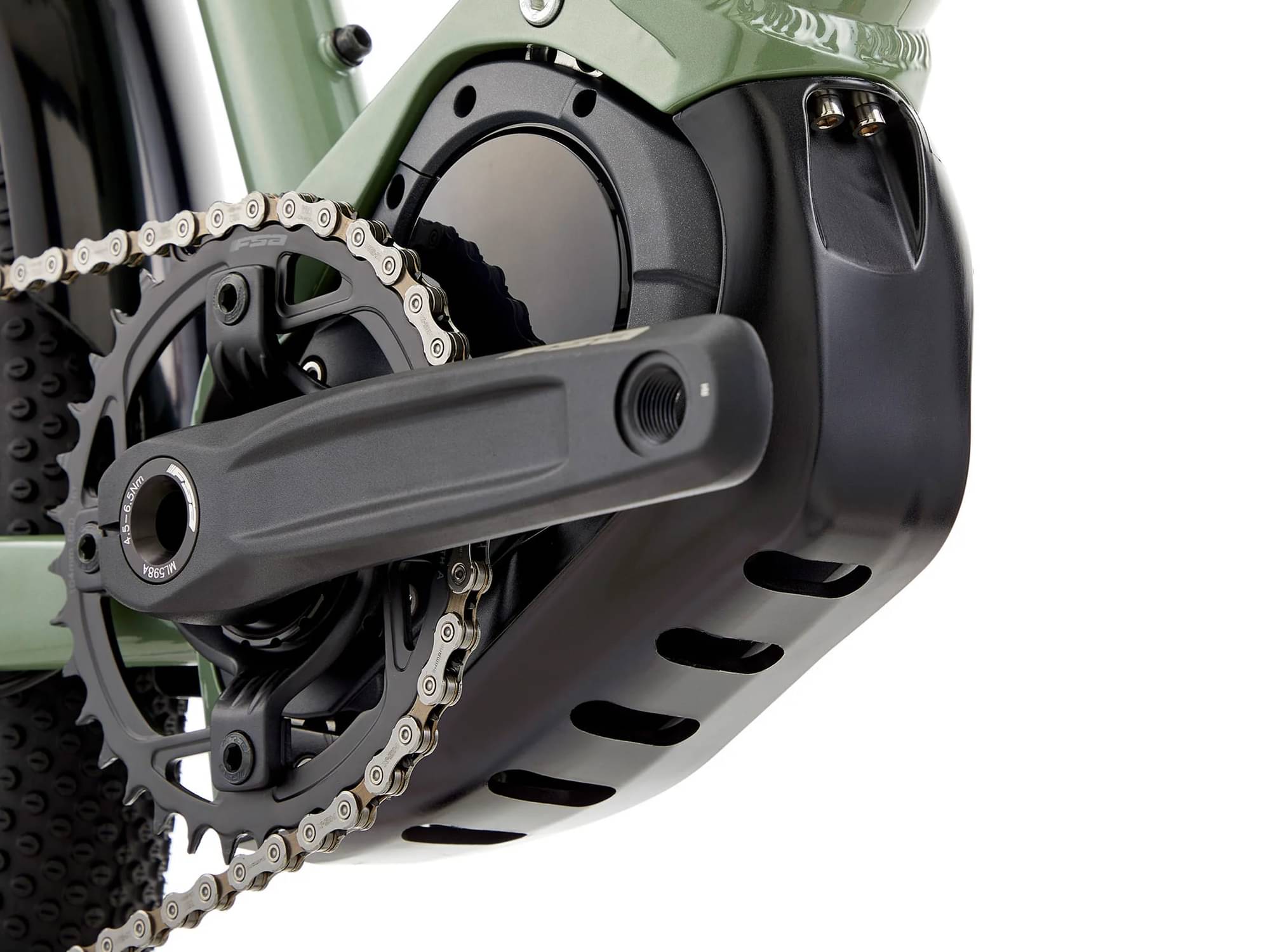

Motor
Shimano E6100 20MPH

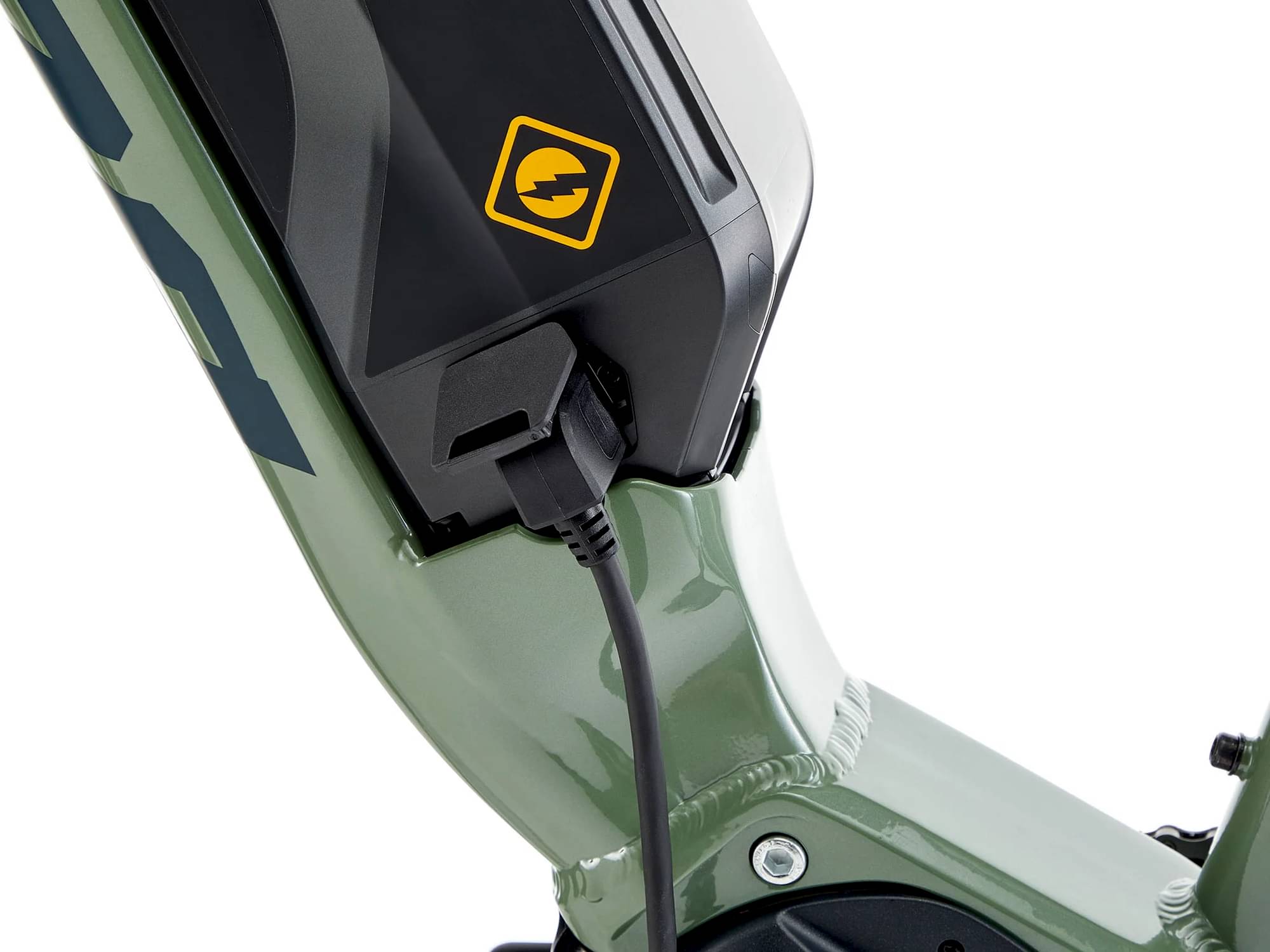

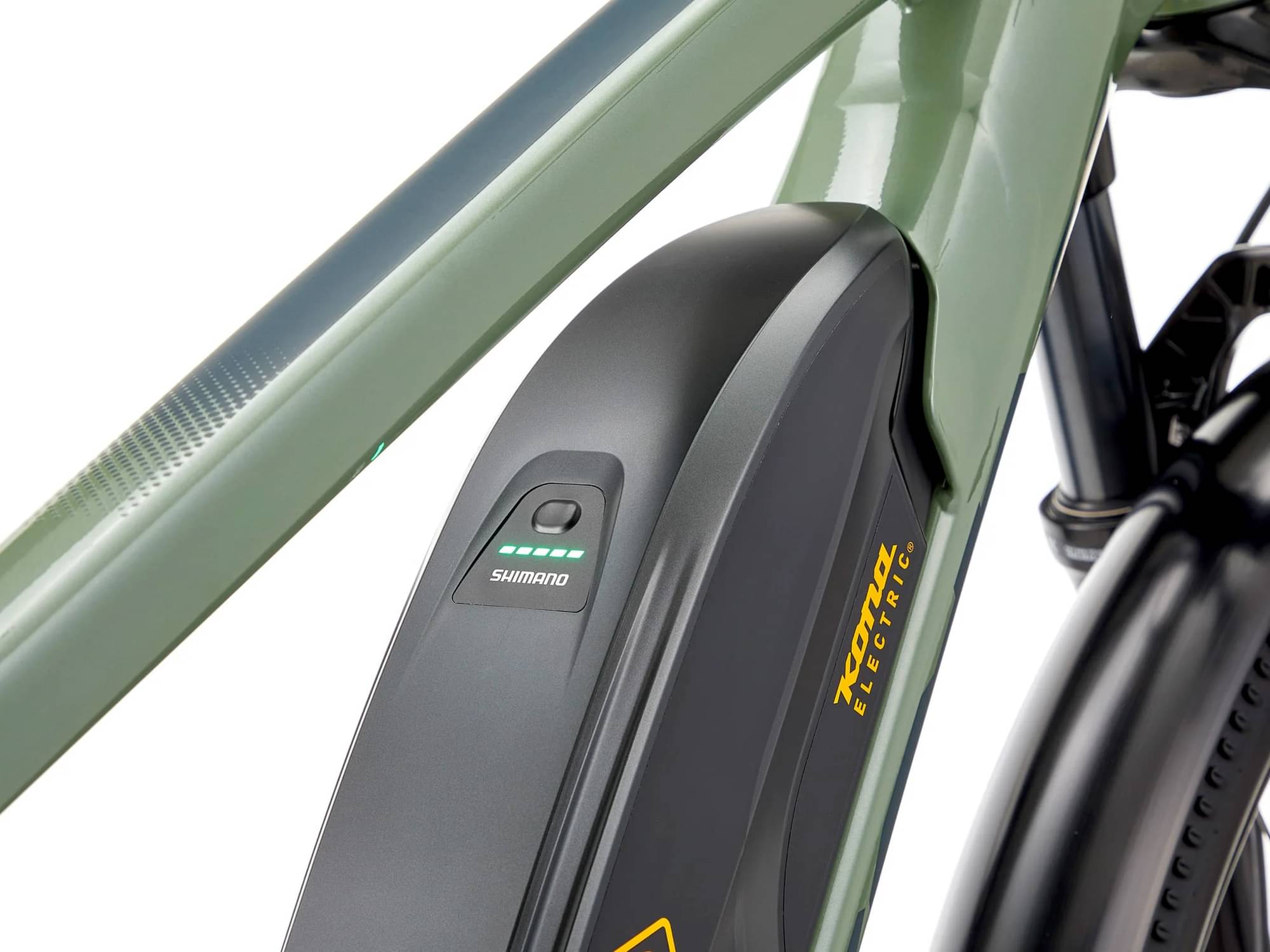

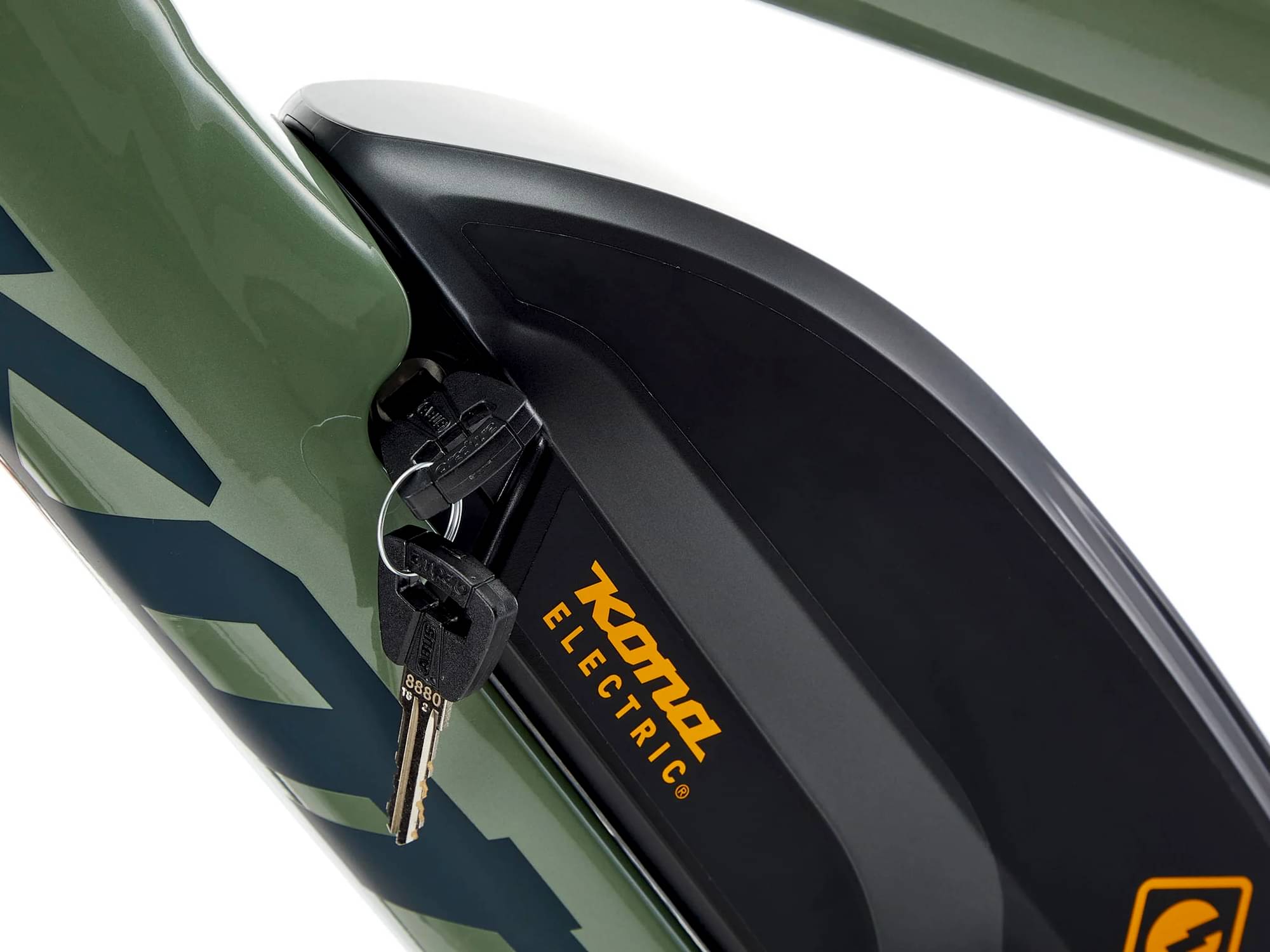

Battery
Shimano 630Wh
Charger
Shimano STEPS 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.45 mm | 1.38 mm | 1.31 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 676 mm | 701 mm | 728 mm | 761 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 623 mm | 627 mm | 632 mm | 637 mm |
| Reach | 408 mm | 432 mm | 457 mm | 488 mm |
| Top Tube Length | 585 mm | 611 mm | 637 mm | 669 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 469 mm | 469 mm | 469 mm | 469 mm |
| Wheelbase | 1138 mm | 1164 mm | 1191 mm | 1224 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 742 mm | 746 mm | 751 mm | 770 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
El Kahuna SUV is a Kona E El Kahuna model. There are 5 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Kona El Kahuna 2023 has a starting price of 3099$. Kona El Kahuna SUV 2023 on the other hand is the most expensive at 3799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Kona El Kahuna SUV price was 3799$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 54.87% higher.
Overview of components

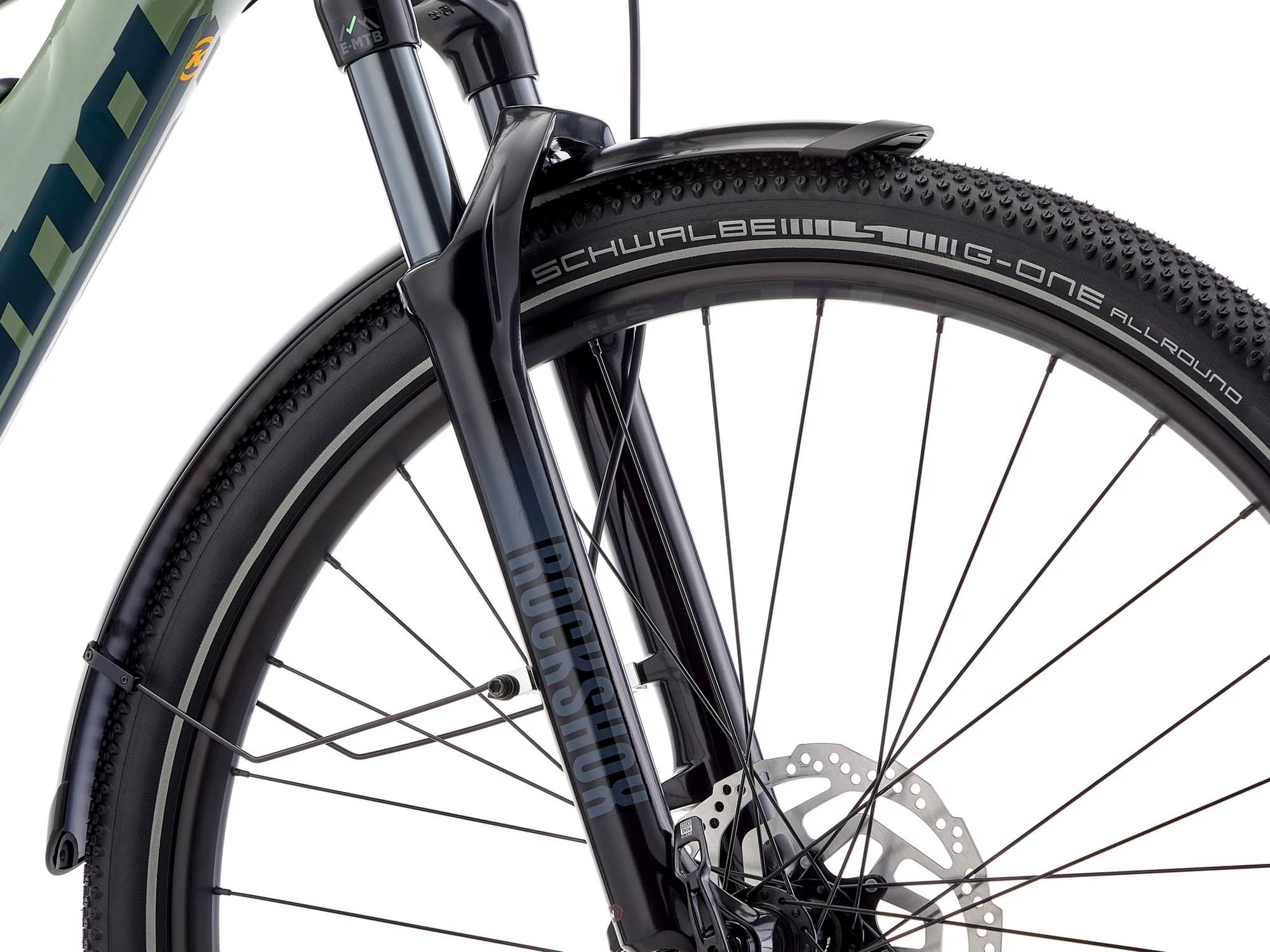

Fork

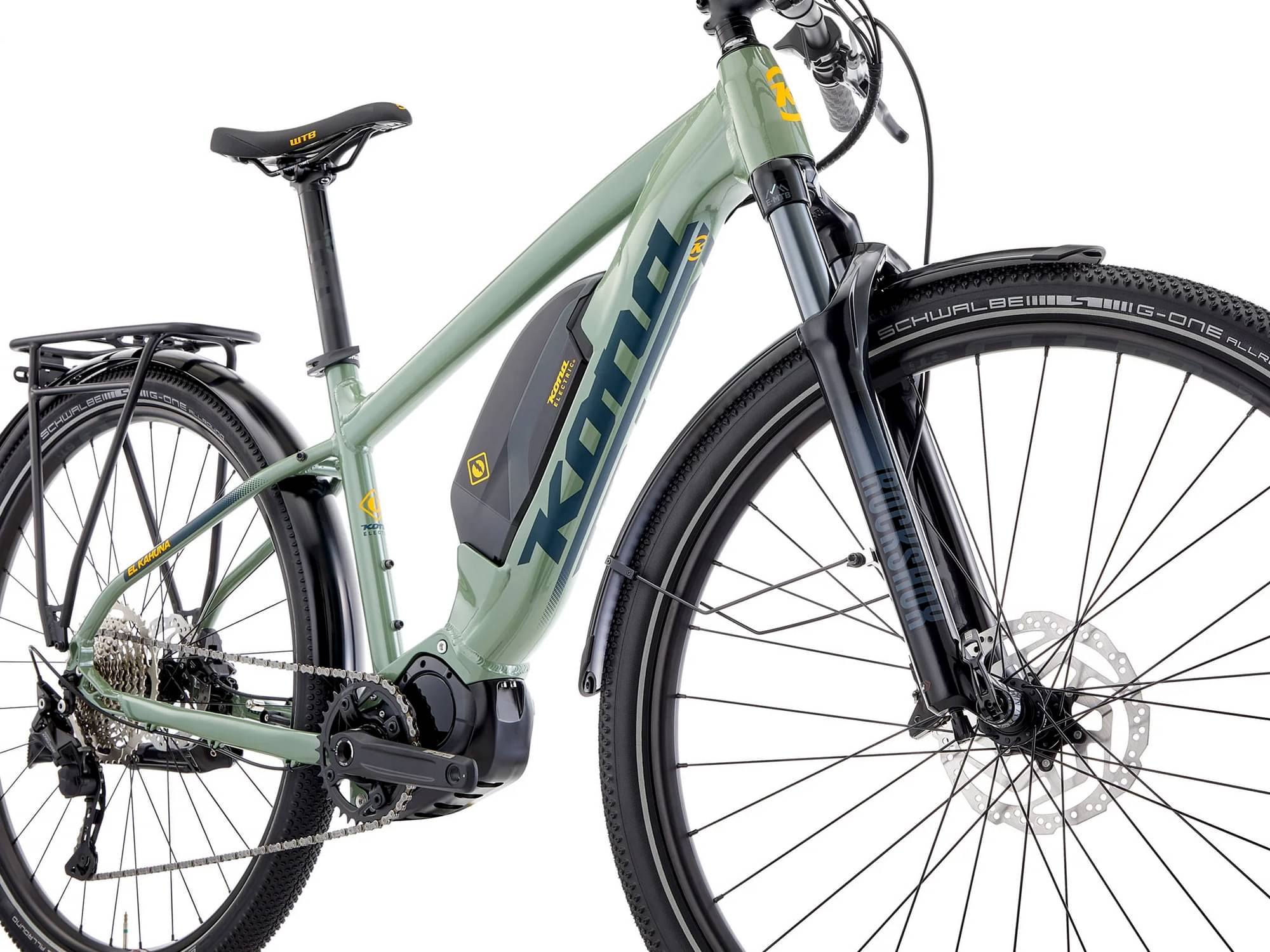

The El Kahuna SUV comes factory-installed with the RockShox 35 Silver fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the El Kahuna SUV model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The El Kahuna SUV comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
El Kahuna SUV comes in 4 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
