Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Float 32
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Carbon 100mm Travel
Suspension Fork
Fox 32 Float Peformance Remote 100mm Tapered 110mm Spacing
Rear Shock
Fox Float DPS Performance Remote
Drivetrain
Rear Derailleur
SRAM GX-Eagle
Front Derailleur
n/a
Shift Levers
SRAM GX-Eagle
Cassette
SRAM GX-Eagle 10-50t 12spd
Crank
SRAM Descendant 6K, 34t X-Sync
Bottom Bracket
SRAM GXP PF92
Chain
SRAM GX-Eagle
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 148x12mm
Rims
WTB KOM i25 TCS
Spokes
Stainless Black 15g
Tires
Maxxis Pace 29x2.1"
Brakes
Brakes
SRAM Level TL
Brake Levers
SRAM Level TL
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57E
Seat
Saddle
WTB Volt Comp (Comp 250 size S)
Seatpost
Kona XC/BC 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 326 mm | 326 mm | 326 mm | 326 mm |
| Front Center | 670 mm | 700 | 728 mm | 762 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 90 mm | 89 mm | 89 mm | 89 mm |
| Stack | 593 mm | 603 mm | 612 mm | 621 mm |
| Reach | 409 mm | 434 mm | 459 mm | 489 mm |
| Top Tube Length | 567 mm | 594 mm | 622 mm | 654 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1101 mm | 1130 mm | 1159 mm | 1192 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 739 mm | 739 mm | 749 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model

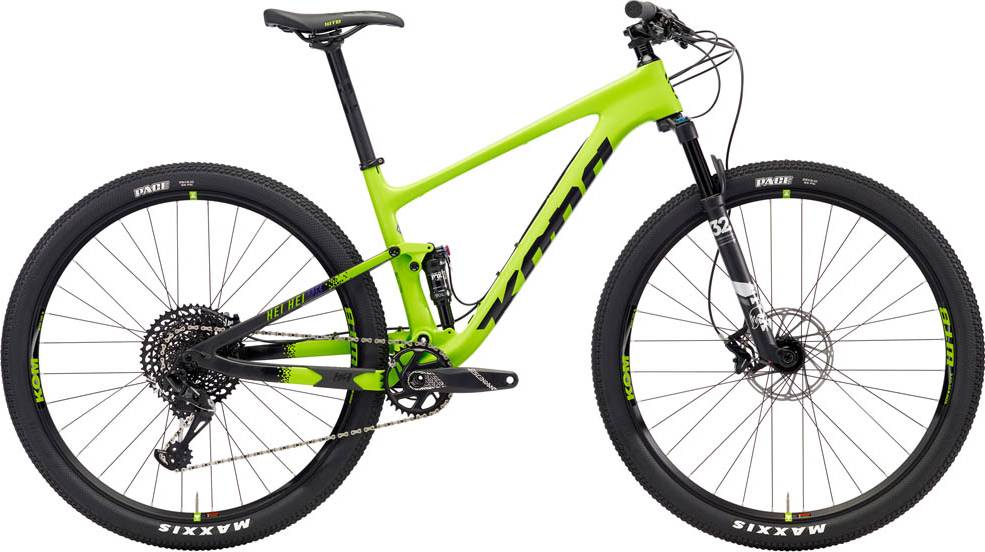

Hei Hei Race DL is a Kona Hei model. Kona released 58 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Kona Hei Hei AL 2018 is the most affordable bike of this model and has a price of 2599$. On the other hand, Kona Hei Hei Supreme 2018, is the most expensive and costs 7999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Kona released this model in 2018, its price was 4199$. If we compare this with the average Crosscountry bike cost we notice that the price is 120.42% more expensive.
Hei Hei Race DL components
Fork
Kona Hei Hei Race DL 2018 bike is equipped with the Fox Float 32 fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Kona Hei Hei Race DL bike has the Fox Float DPS Performance Remote model installed, and has a travel of 100mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Hei Hei Race DL model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona Hei Hei Race DL has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
