Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork RockShox
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Carbon 100mm Travel
Suspension Fork
RockShox RS-1 Solo Air w/ Xlock Full Sprint 120mm Tapered Carbon 110mm Spacing
Rear Shock
RockShox Monarch XX w/ Xlock Full Sprint
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Front Derailleur
n/a
Shift Levers
SRAM XX1 Eagle
Cassette
SRAM XX1 Eagle 10-50t 12spd
Crank
34t X-Sync
Bottom Bracket
SRAM PF92
Chain
SRAM XX1 Eagle
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
SRAM Predictive Steering 110x15mm
Rear Hub
Hope Pro4 148x12mm
Rims
WTB Ci31 TCS
Spokes
DT Super Comp Black
Tires
Maxxis Ardent EXO TR 29x2.25"
Brakes
Brakes
SRAM Guide RSC
Brake Levers
SRAM Guide RSC
Disk Rotors
SRAM Centerline 180mm
Cockpit
Stem
RaceFace Turbine 35
Handlebar
RaceFace Next 35
Grips
ODI Ruffian MX
Headset
FSA No.57B
Seat
Saddle
WTB SL8 Pro
Seatpost
KS Lev Integra w/Southpaw Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.35 mm | 1.28 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 677 mm | 705 mm | 734 mm | 767 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 108 mm | 107 mm |
| Stack | 599 mm | 609 mm | 619 mm | 628 mm |
| Reach | 409 mm | 434 mm | 459 mm | 489 mm |
| Top Tube Length | 569 mm | 597 mm | 625 mm | 658 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1108 mm | 1137 mm | 1165 mm | 1199 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 754 mm | 754 mm | 764 mm | 784 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |

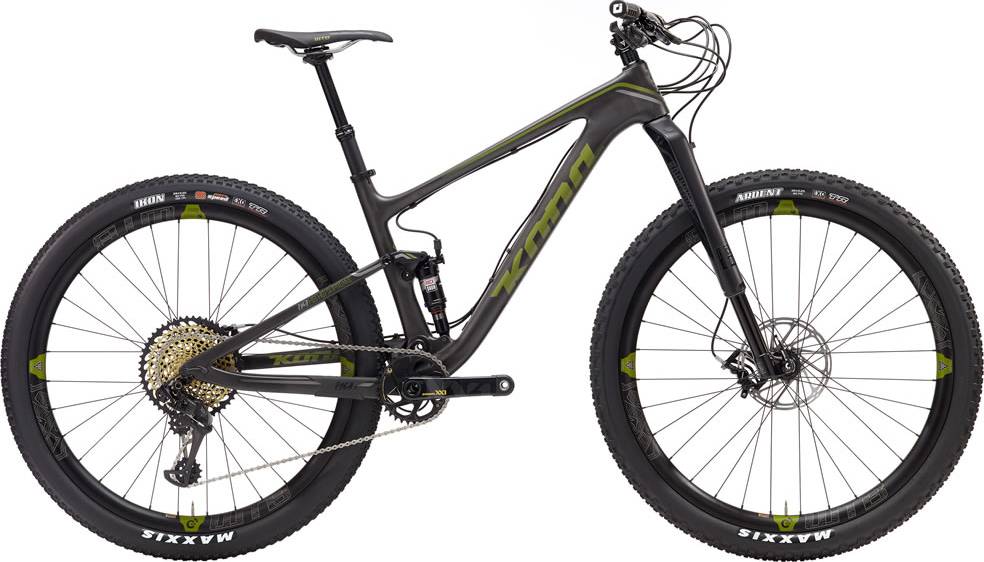

About this model
Hei Hei Supreme is part of the Kona Hei model. Kona released 58 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Kona Hei Hei 2017 is the cheapest bike model and costs 2499$. Kona Hei Hei Supreme 2017 is the most expensive one and costs 7999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7999$. Comparing this to the average Crosscountry bike price, we see that the price is 319.9% more expensive.
Hei Hei Supreme components
Fork
The RockShox is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Rear Shock
As for the rear shock, this bike has the RockShox Monarch XX w/ Xlock Full Sprint model, with a travel of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Hei Hei Supreme model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona Hei Hei Supreme is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Kona Hei Hei Supreme bike has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Hei Hei Supreme. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
