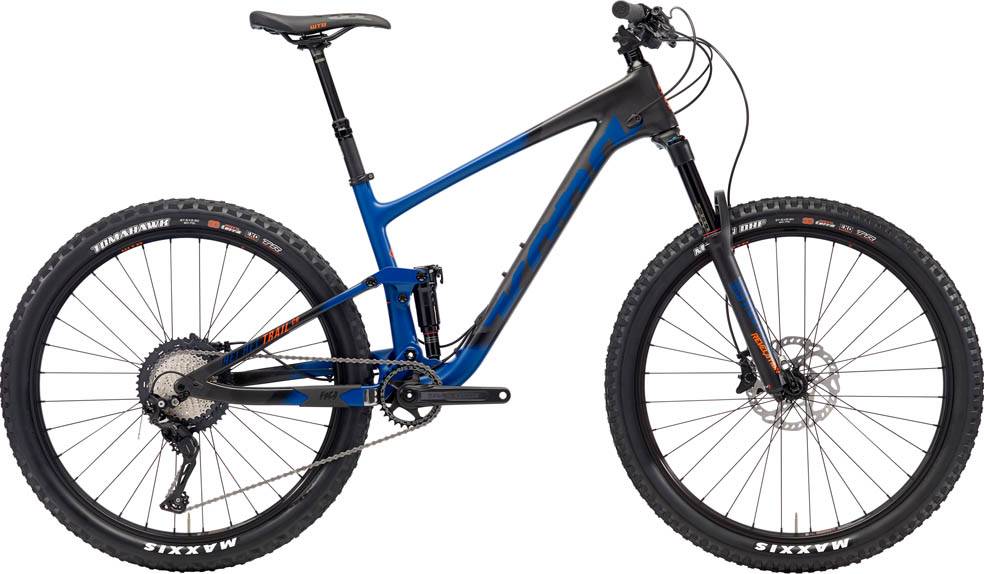

Kona Hei Hei Trail CR 27.5 2018
2018 Mountain
Estimate price |
4,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 154cm
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Carbon 140mm Travel
Suspension Fork
RockShox Revelation RC Solo Air 140mm Tapered 110mm Spacing
Rear Shock
RockShox Deluxe RL Trunnion
Drivetrain
Rear Derailleur
Shimano XT
Front Derailleur
n/a
Shift Levers
Shimano SLX
Cassette
Shimano SLX 11-46t 11spd
Crank
RaceFace Aeffect SL, 30t Narrow/Wide
Bottom Bracket
Shimano PF92
Chain
Shimano HG601
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano SLX 110x15mm
Rear Hub
Shimano SLX 148x12mm
Rims
WTB STP i29 TCS
Spokes
Stainless Black 15g
Tires
Maxxis Minion DHF EXO TR 3C 27.5x2.3"
Brakes
Brakes
Shimano SLX
Brake Levers
Shimano SLX
Disk Rotors
Shimano SLX 180mm
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57E
Seat
Saddle
WTB Volt Comp (Volt 250 Comp size S)
Seatpost
RockShox Reverb w/ Plunger Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.49 mm | 1.42 mm | 1.37 mm | 1.3 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 663 mm | 687 mm | 715 mm | 744 mm | 778 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 99 mm | 98 mm |
| Stack | 588 mm | 597 mm | 606 mm | 616 mm | 625 mm |
| Reach | 381 mm | 401 mm | 426 mm | 451 mm | 481 mm |
| Top Tube Length | 539 mm | 562 mm | 590 mm | 618 mm | 651 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 345 mm | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1083 mm | 1107 mm | 1136 mm | 1164 mm | 1198 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 692 mm | 713 mm | 752 mm | 755 mm | 776 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 154 cm | 170 cm | 182 cm | 195 cm | 195 cm |
Model Overview
Hei Hei Trail CR 27.5 completes the Kona Hei model. There are 58 bikes that carry this model name. You can easily view all of the Kona Hei bikes models from 2018, here.
Model range prices
Kona Hei Hei AL 2018 is the most economical model, with a starting price of 2599$. Kona Hei Hei Supreme 2018 on the other hand costs 7999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2018 for 4199$. Comparing the average cost of a Trail bike to this one, you will see that Hei Hei Trail CR 27.5 price is 52.03% higher.
Overview of components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the RockShox Deluxe RL Trunnion rear shock model, which has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Kona Hei Hei Trail CR 27.5 2018, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona Hei Hei Trail CR 27.5 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Hei Hei Trail CR 27.5 comes in 5 sizes, that range from 147 cm – 195 cm (4.82 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Kona model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
