Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Carbon Trail
Suspension Fork
Fox Float 34 Performance Air 120mm Tapered 110mm Spacing
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Front Derailleur
n/a
Shift Levers
Shimano SLX
Cassette
Shimano SLX 11-42t 11spd
Crank
32t Narrow/Wide
Bottom Bracket
Shimano PF92
Chain
KMC X11
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano SLX 110x15mm
Rear Hub
Shimano SLX 148x12mm
Rims
WTB STS i29 TCS
Spokes
Sandvik Stainless Black 14g
Tires
Maxxis Minion DHF EXO TR 3C 29x2.3"
Brakes
Brakes
Shimano SLX
Brake Levers
Shimano SLX
Disk Rotors
Shimano Deore 180mm (centerlock)
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
ODI Ruffian MX
Headset
FSA No.42
Seat
Saddle
WTB SL8
Seatpost
KS Lev Integra w/Southpaw Lever 34.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 709 mm | 736 mm | 763 mm | 772 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 635 mm | 640 mm | 644 mm | 649 mm |
| Reach | 429 mm | 454 mm | 479 mm | 489 mm |
| Top Tube Length | 598 mm | 624 mm | 651 mm | 661 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1120 mm | 1147 mm | 1174 mm | 1186 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 734 mm | 734 mm | 744 mm | 764 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
Model Overview

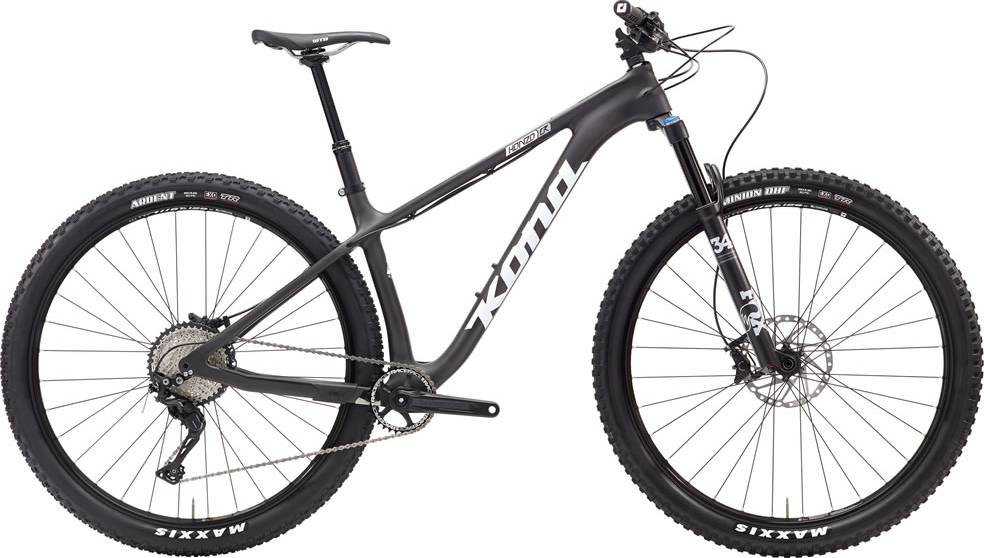

Honzo CR Trail is part of the Kona Honzo model. Kona launched 53 bikes of this model so far. You can easily view all of the Kona Honzo bikes models from 2017, here.
Model range prices
Kona Honzo AL 2017 is the most economical model, with a starting price of 1599$. Kona Honzo CR Trail DL 2017 on the other hand costs 4599$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2017 for 3599$. Comparing the average cost of a Trail bike to this one, you will see that Honzo CR Trail price is 30.3% higher.
Honzo CR Trail components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Honzo CR Trail model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Honzo CR Trail. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
