Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 134mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 154cm
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 134mm Travel
Suspension Fork
RockShox Recon RL Motion Control Solo Air 140mm Tapered 110mm Spacing
Rear Shock
RockShox Deluxe Select Trunnion
Drivetrain
Rear Derailleur
SRAM SX-Eagle
Front Derailleur
n/a
Shift Levers
SRAM SX-Eagle
Cassette
SRAM SX-Eagle 11-50t 12spd
Crank
SRAM SX-Eagle, 32t X-Sync Eagle
Bottom Bracket
SRAM DUB PF92
Chain
SRAM SX-Eagle
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano 110x15mm
Rear Hub
Shimano 148x12mm
Rims
WTB ST i30 TCS
Spokes
Stainless Black 14g
Tires
Maxxis Minion DHF EXO TR DUAL 27.5x2.5" WT
Brakes
Brakes
Shimano Hydraulic
Brake Levers
Shimano Hydraulic
Disk Rotors
Shimano RT10 (centerlock)
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57B
Seat
Saddle
Kona Trail
Seatpost
Trans-X Dropper Internal 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.35 mm | 1.3 mm | 1.23 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 706 mm | 735 mm | 765 mm | 794 mm | 834 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 107 mm | 108 mm | 107 mm | 108 mm | 108 mm |
| Stack | 579 mm | 589 mm | 599 mm | 609 mm | 620 mm |
| Reach | 394 mm | 419 mm | 444 mm | 469 mm | 504 mm |
| Top Tube Length | 531 mm | 561 mm | 590 mm | 619 mm | 658 mm |
| Seat Tube Angle | 76.8 ° | 76.6 ° | 76.5 ° | 76.3 ° | 76.2 ° |
| Seat Tube Length | 360 mm | 385 mm | 410 mm | 450 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 116 mm | 127 mm | 138 mm | 149 mm | 160 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1125 mm | 1154 mm | 1184 mm | 1213 mm | 1253 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 668 mm | 681 mm | 706 mm | 706 mm | 705 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 154 cm | 170 cm | 182 cm | 195 cm | 195 cm |
Model Overview

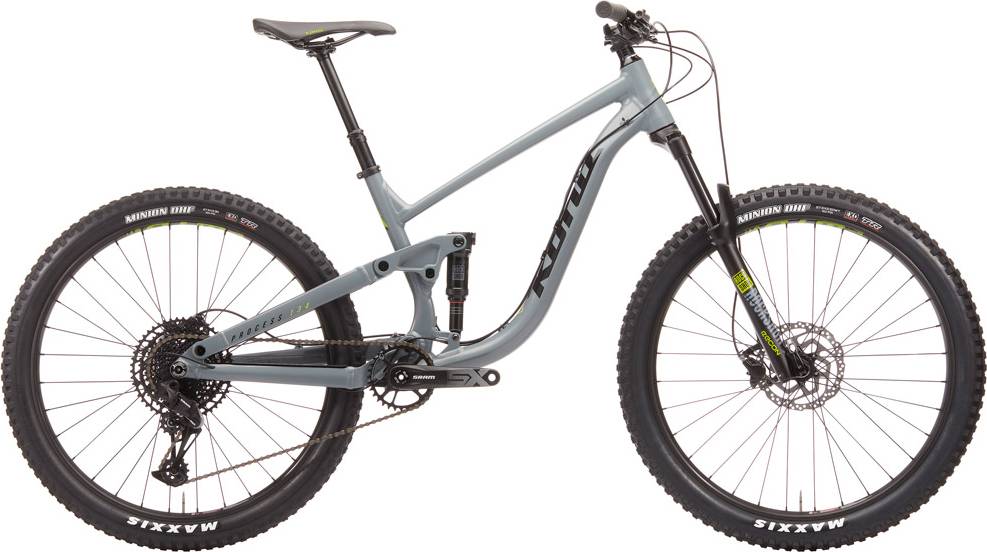

Process 134 27.5 belongs to the Kona Process 134 model. Kona released 38 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Kona Process 134 27.5 2020 is the most economical model, with a starting price of 2399$. Kona Process 134 CR/DL 29 2020 on the other hand costs 5999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Kona released this model in 2020, its price was 2399$. Comparing this to the average Trail bike price, we see that the price is 15.13% lower.
Process 134 27.5 components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Kona Process 134 27.5 bike has the RockShox Deluxe Select Trunnion model installed, and has a travel of 134mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Kona Process 134 27.5 2020, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Kona Process 134 27.5 bike has 5 sizes, in the range of 147 cm – 195 cm (4.82 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Process 134 27.5. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
