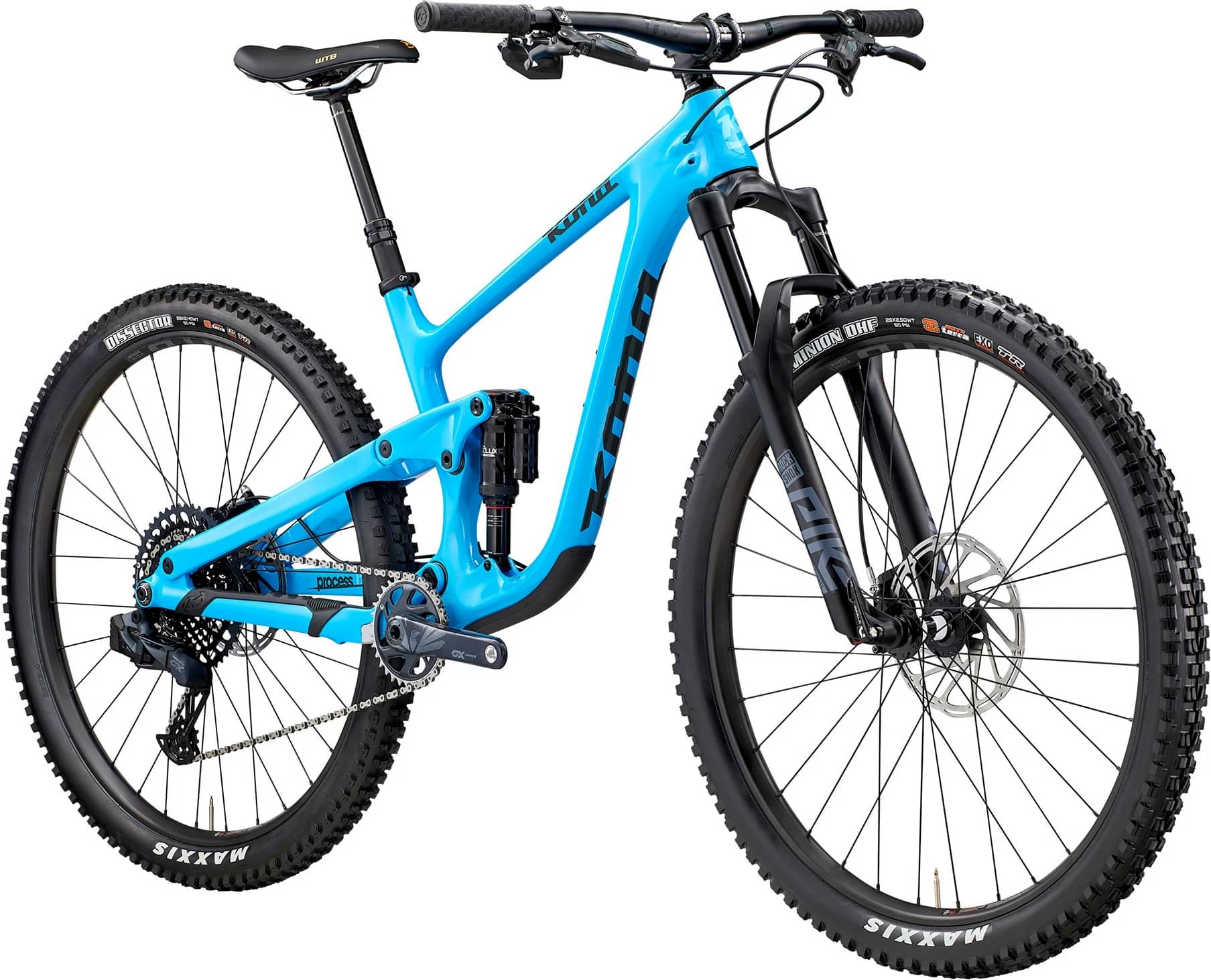

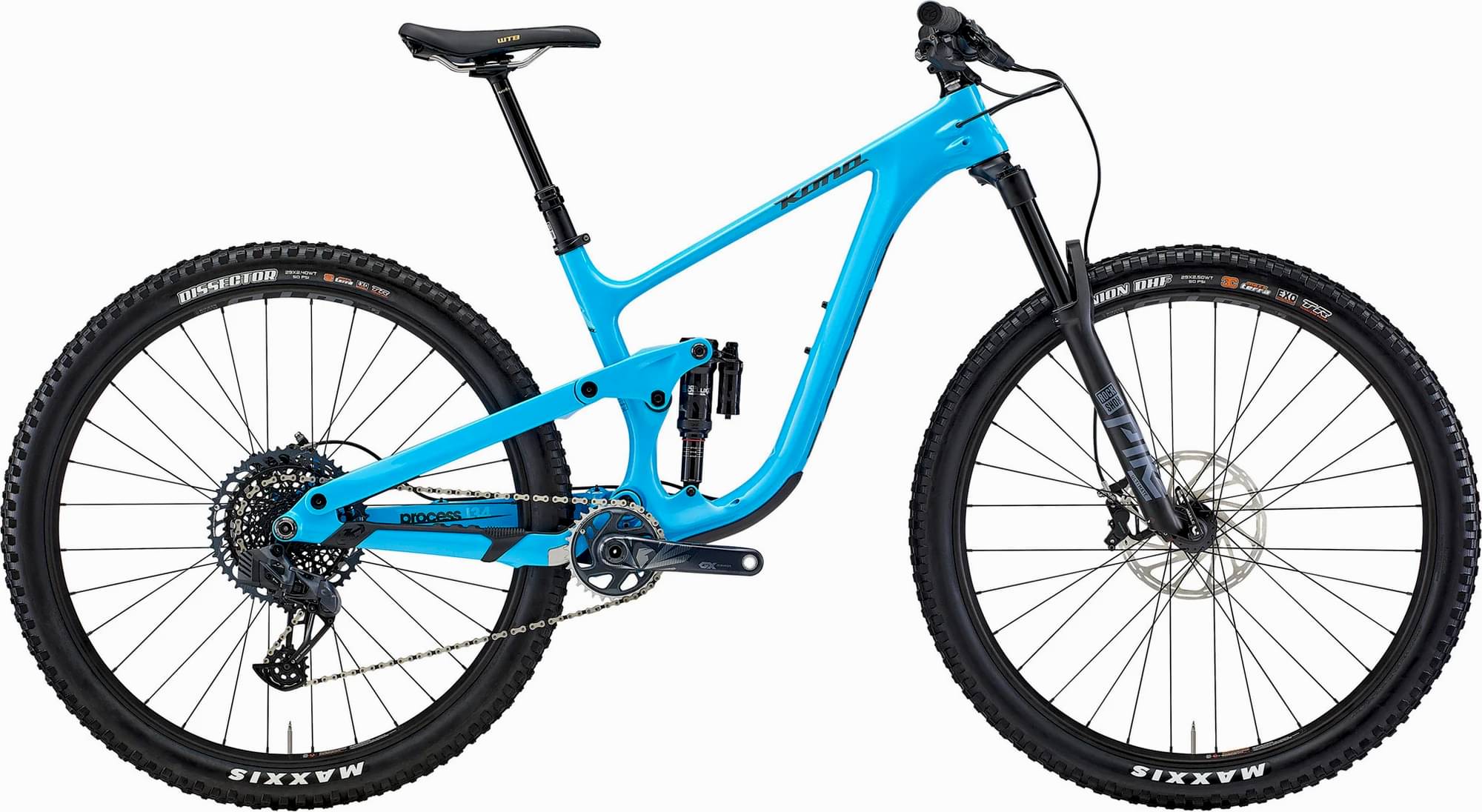

Kona Process 134 CR/DL 29 2023
2023 Mountain
Estimate price |
3,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

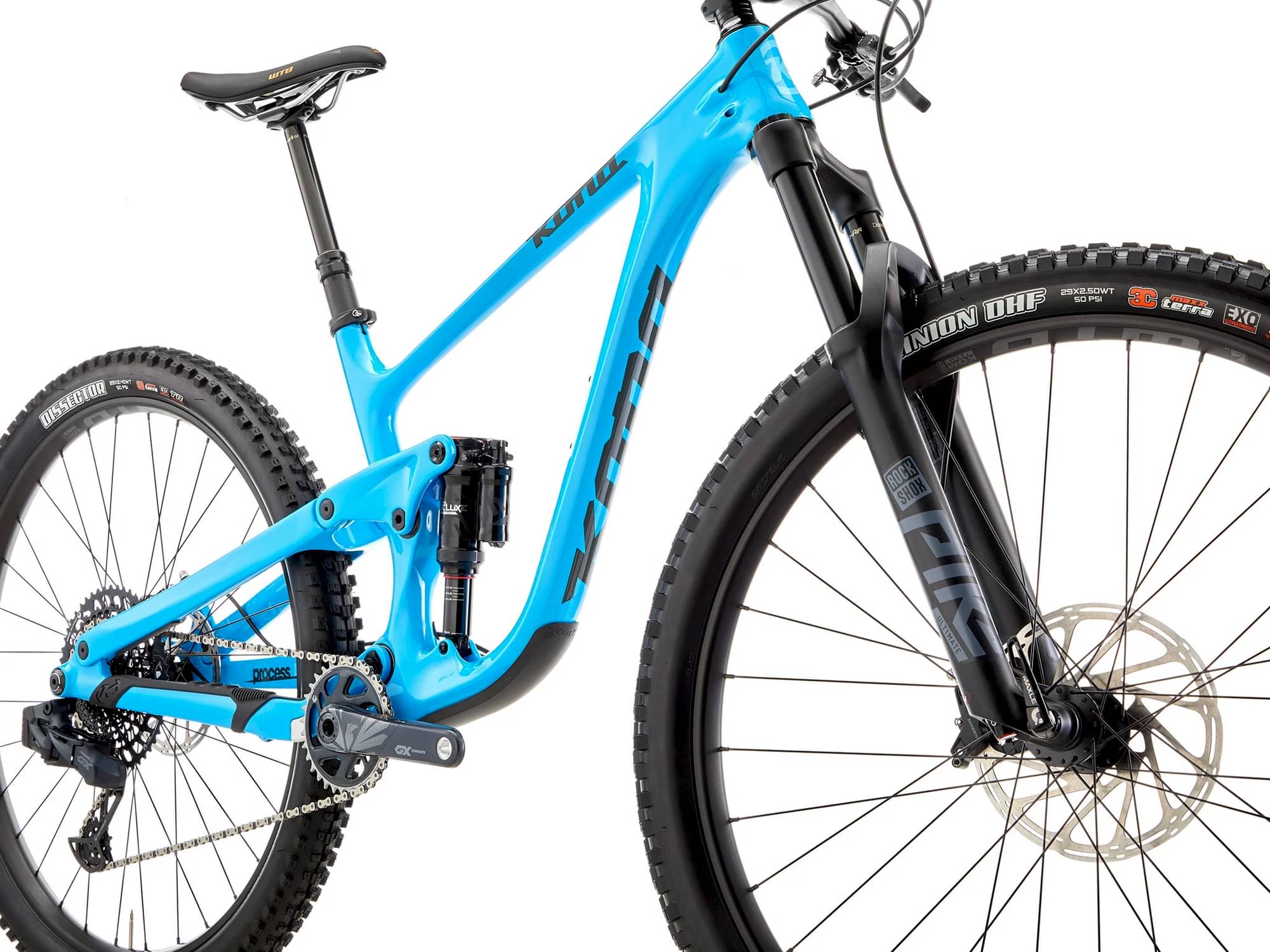

Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 134mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

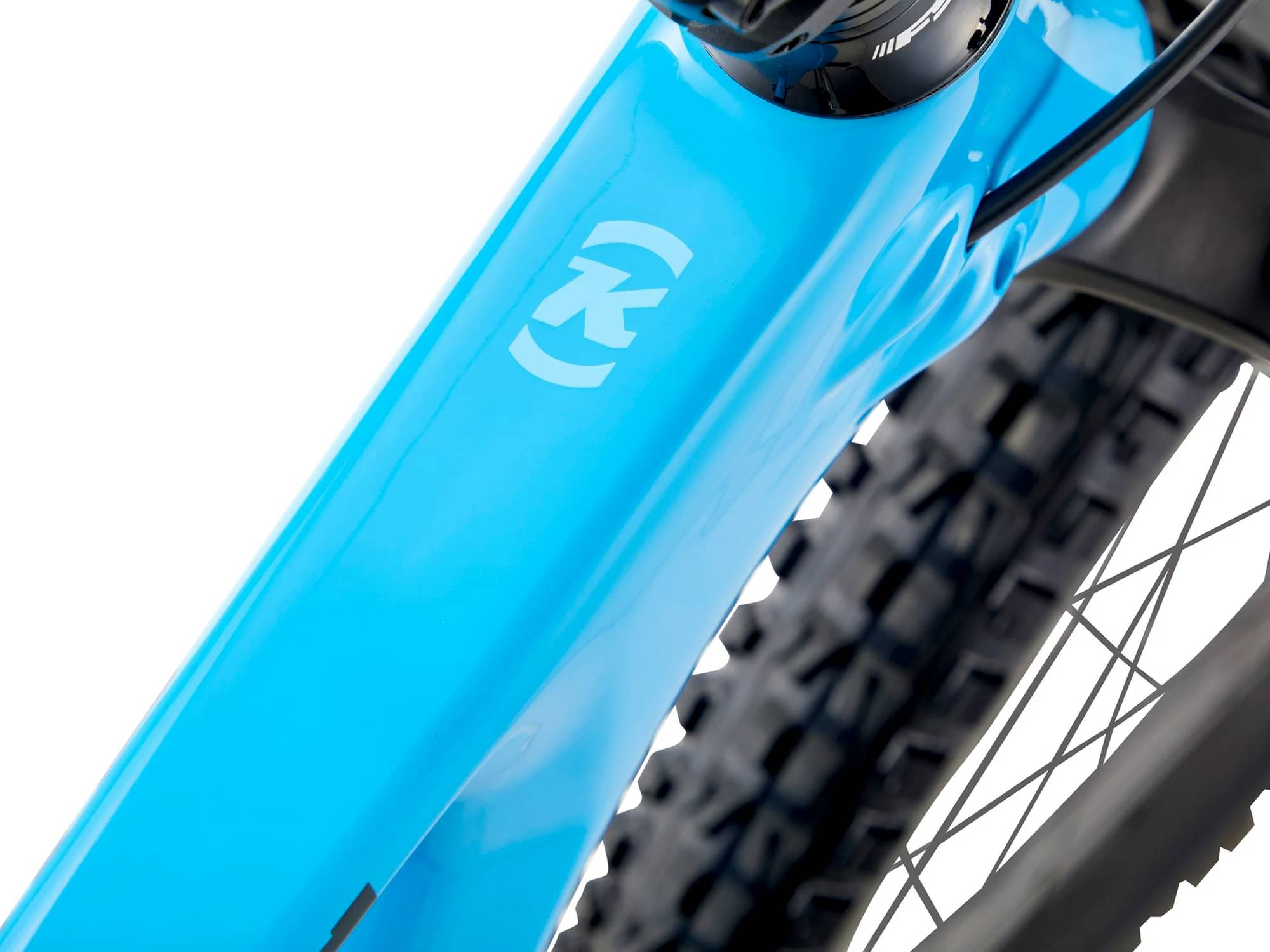

Kona Carbon 134mm Travel
Suspension Fork
RockShox Pike Ultimate RC2 Charger 2 DebonAir 140mm Tapered 110mm Spacing

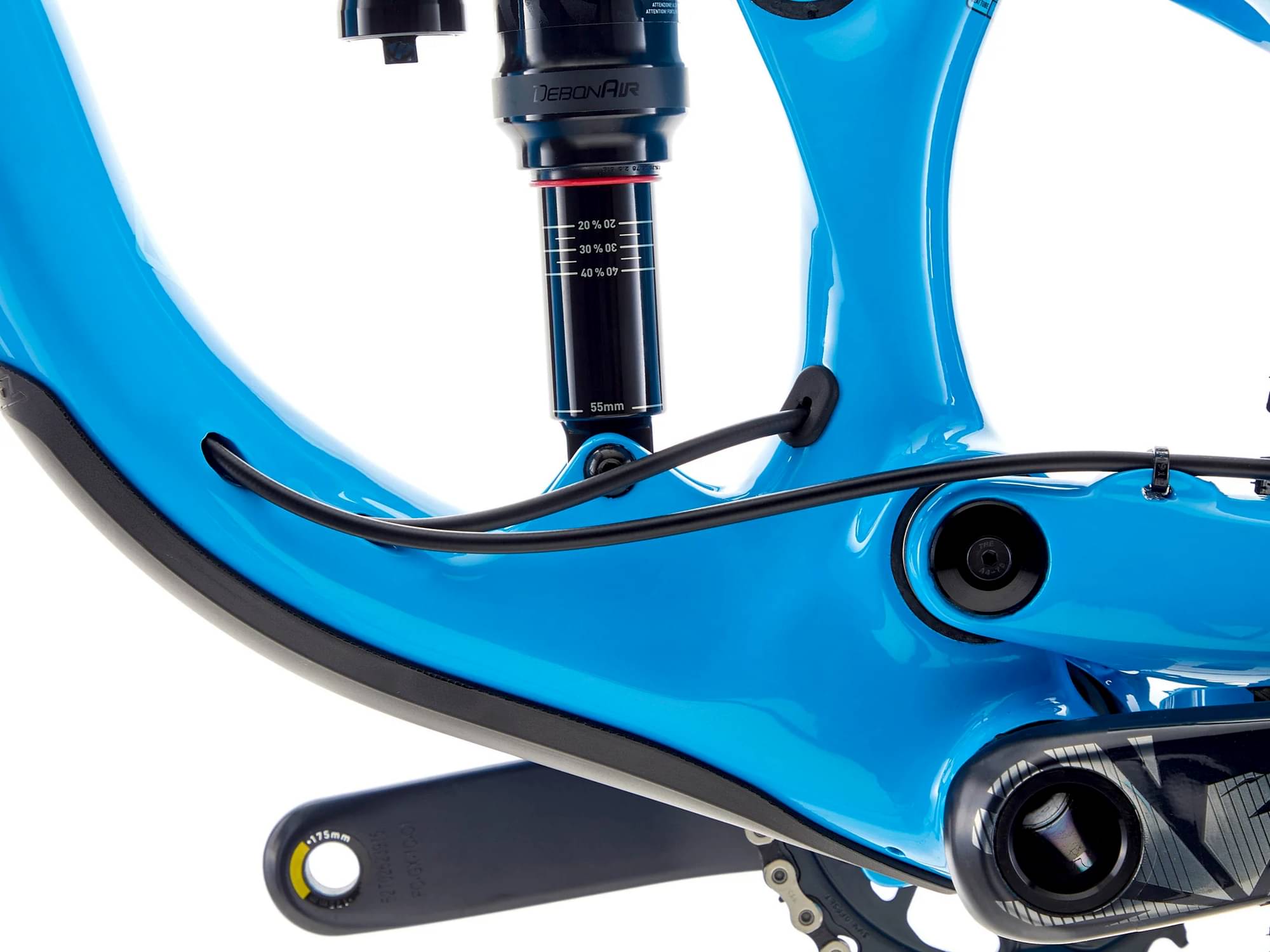

Rear Shock
RockShox Super Deluxe Ultimate Trunnion
Drivetrain

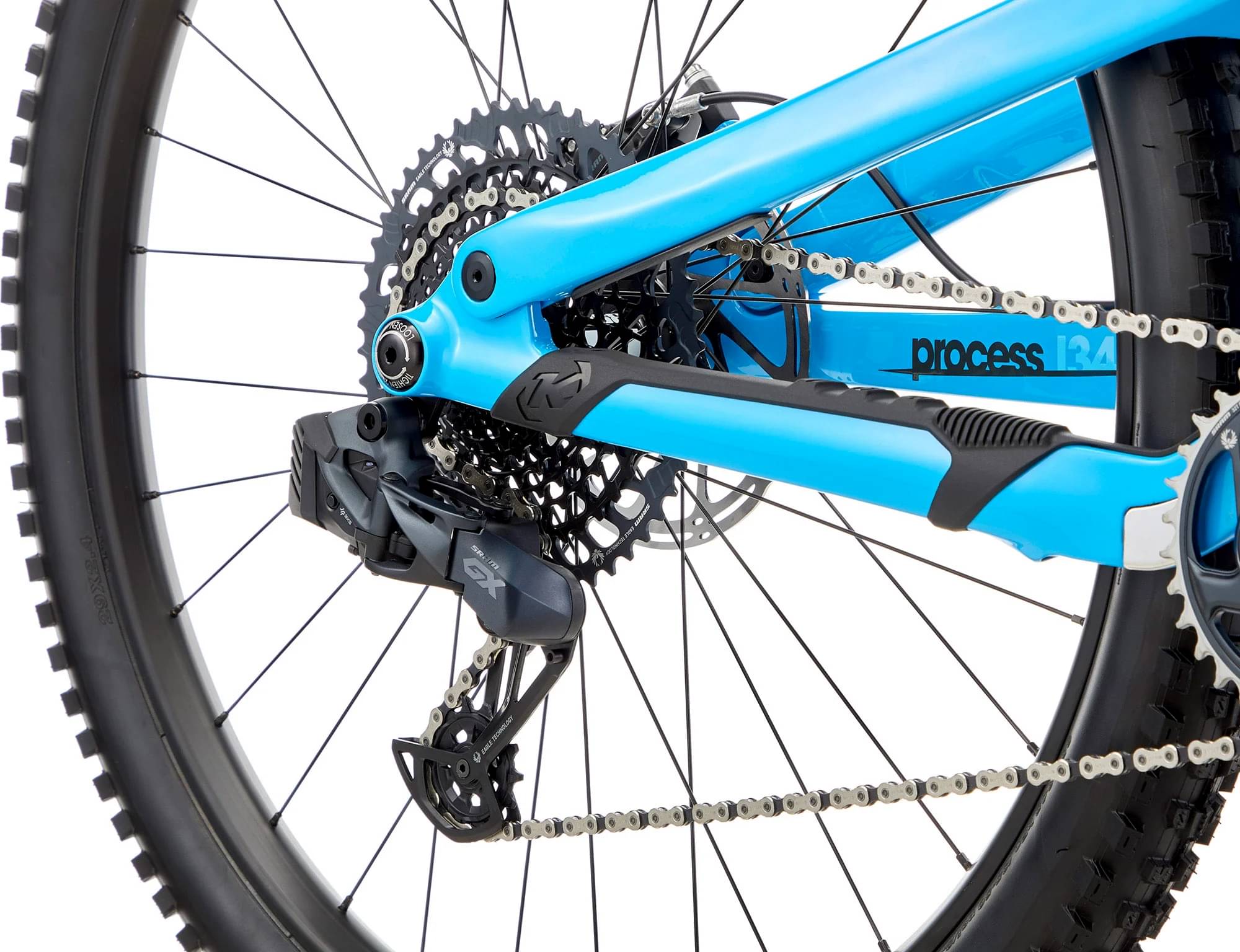

Rear Derailleur
SRAM GX AXS
Front Derailleur
n/a
Shift Levers
SRAM GX AXS

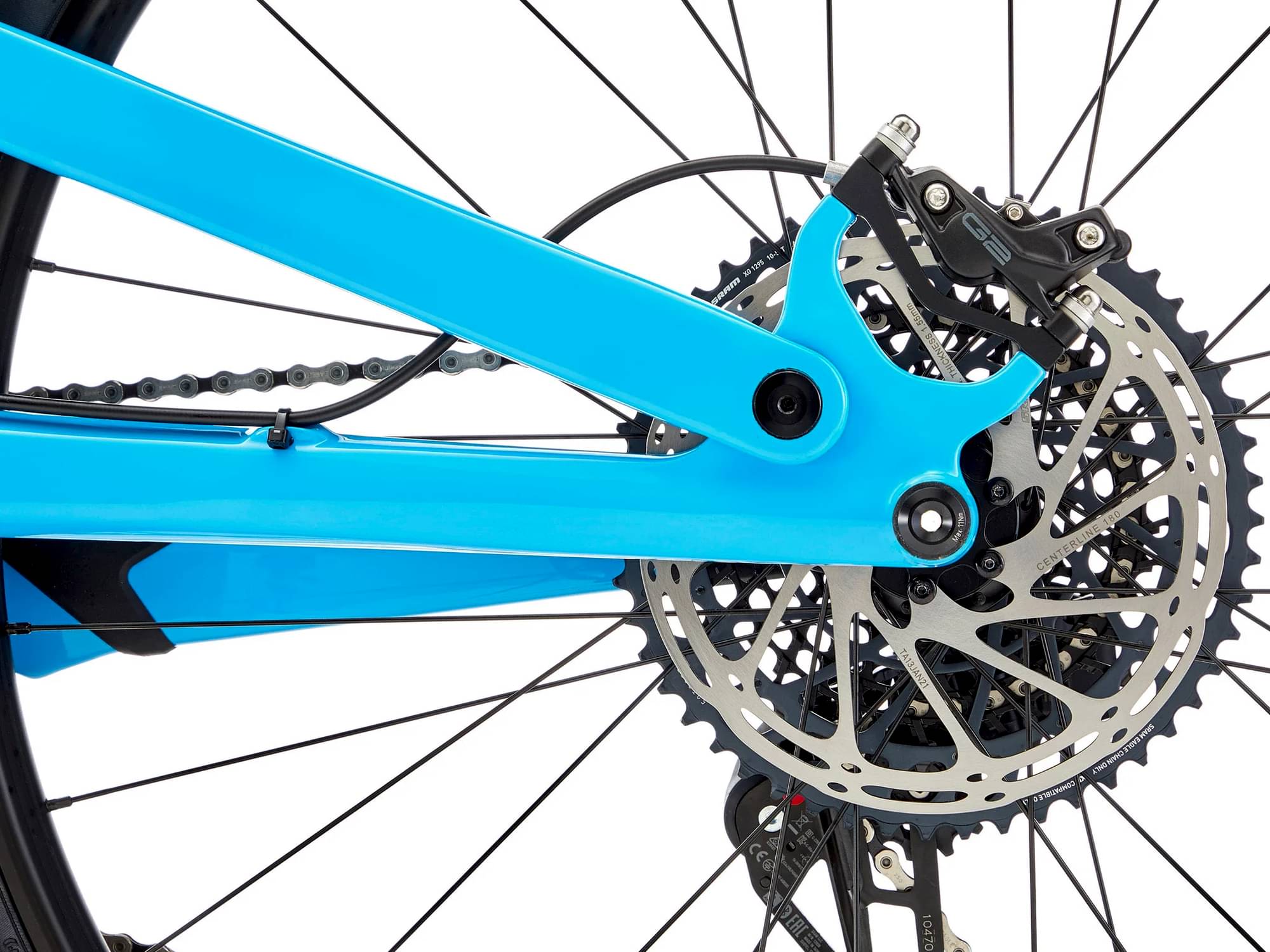

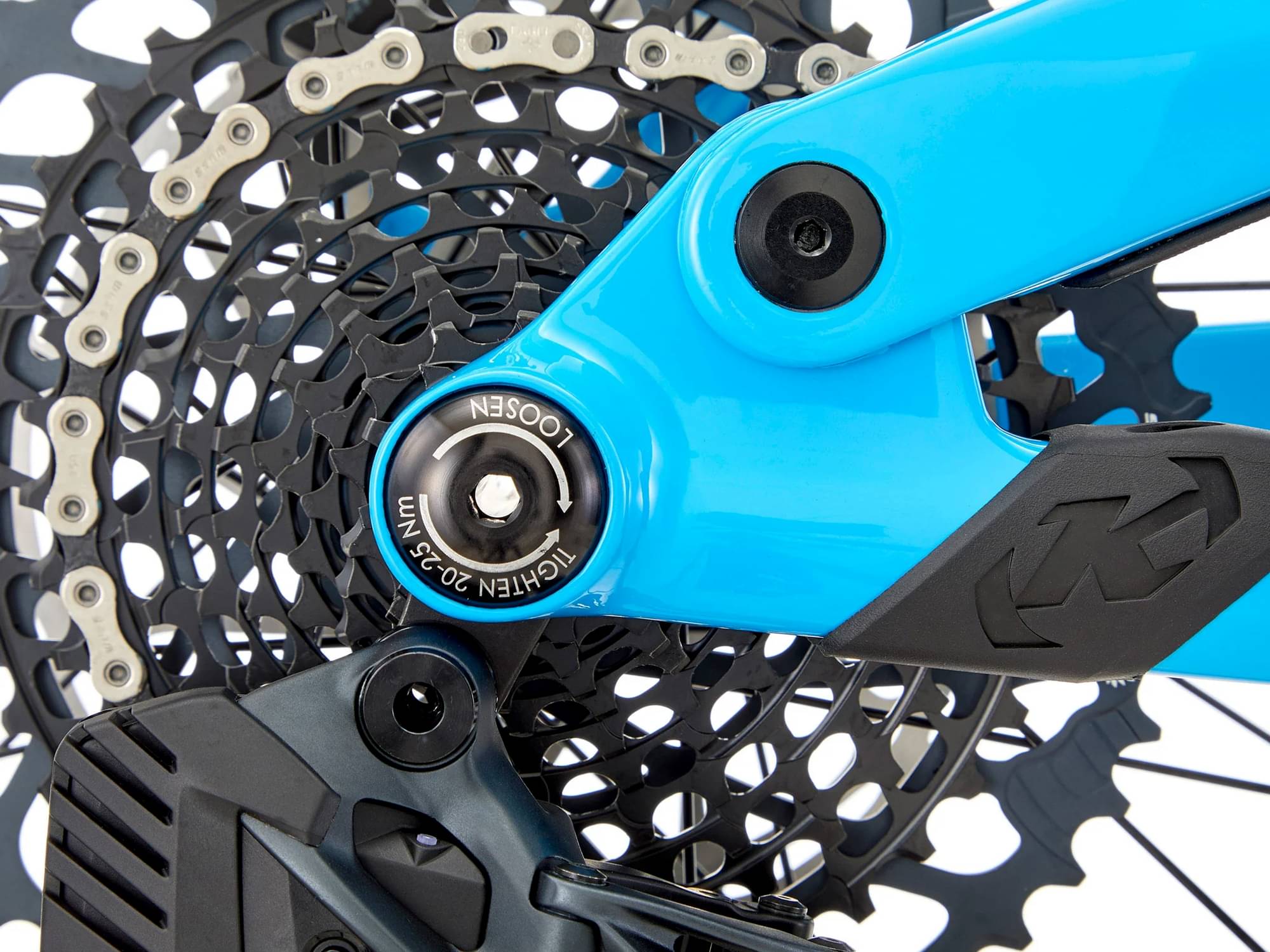

Cassette
SRAM X01-Eagle 10-52t 12spd

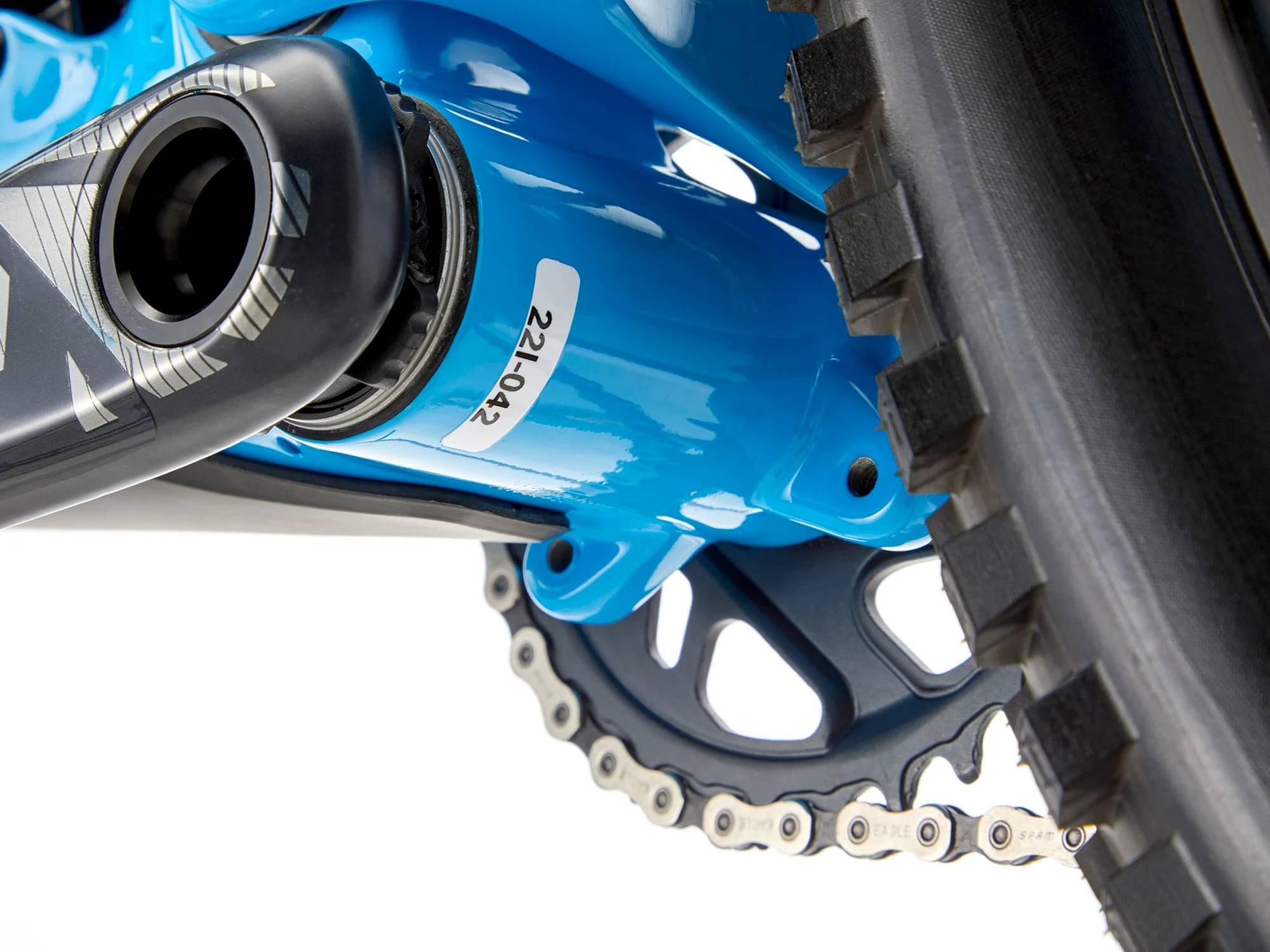

Crank
SRAM GX Carbon DUB, 32t X-Sync Eagle
Bottom Bracket
SRAM DUB PF92

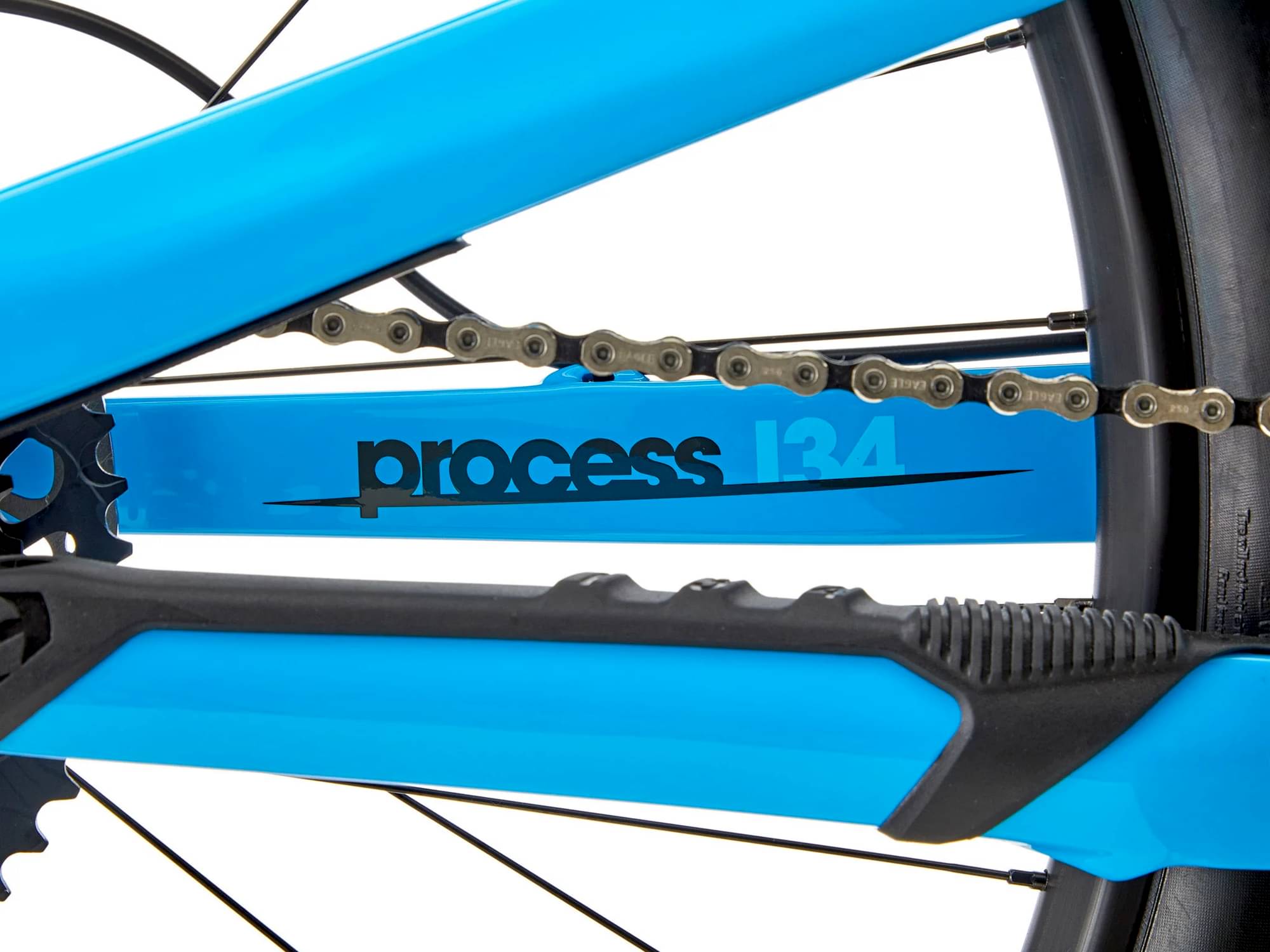

Chain
SRAM GX-Eagle
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
DT Swiss 350 110x15mm
Rear Hub
DT Swiss 350 148x12mm
Rims
WTB KOM Team i30 TCS
Spokes
Double Butted Spokes – 14/15/14g

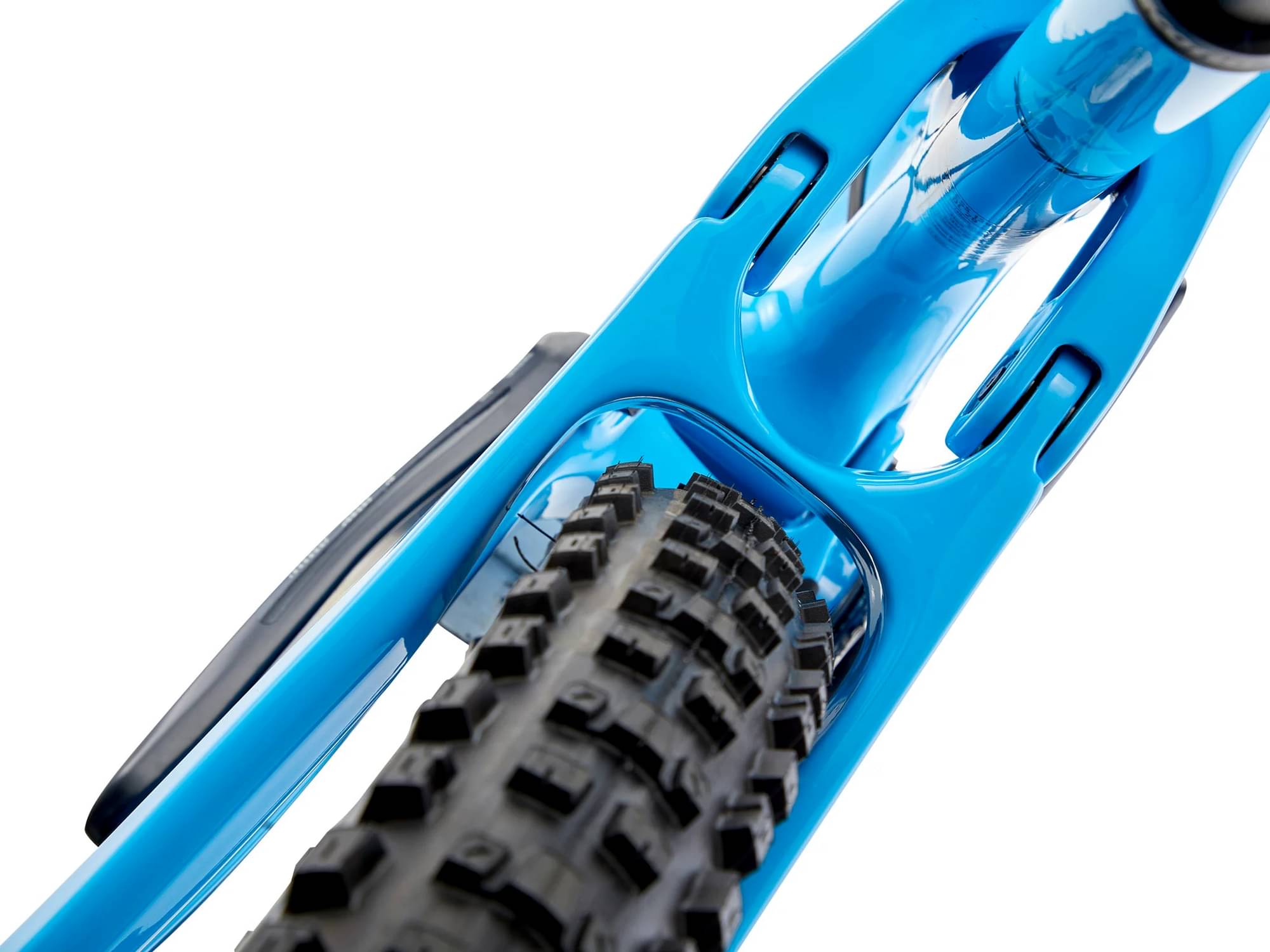

Tires
Front: Maxxis Minion DHF EXO TR 3C 29x2.5" WT, Rear: Maxxis Minion DHF EXO TR 3C 29x2.5" WT
Brakes
Brakes
SRAM G2 RSC
Brake Levers
SRAM G2 RSC

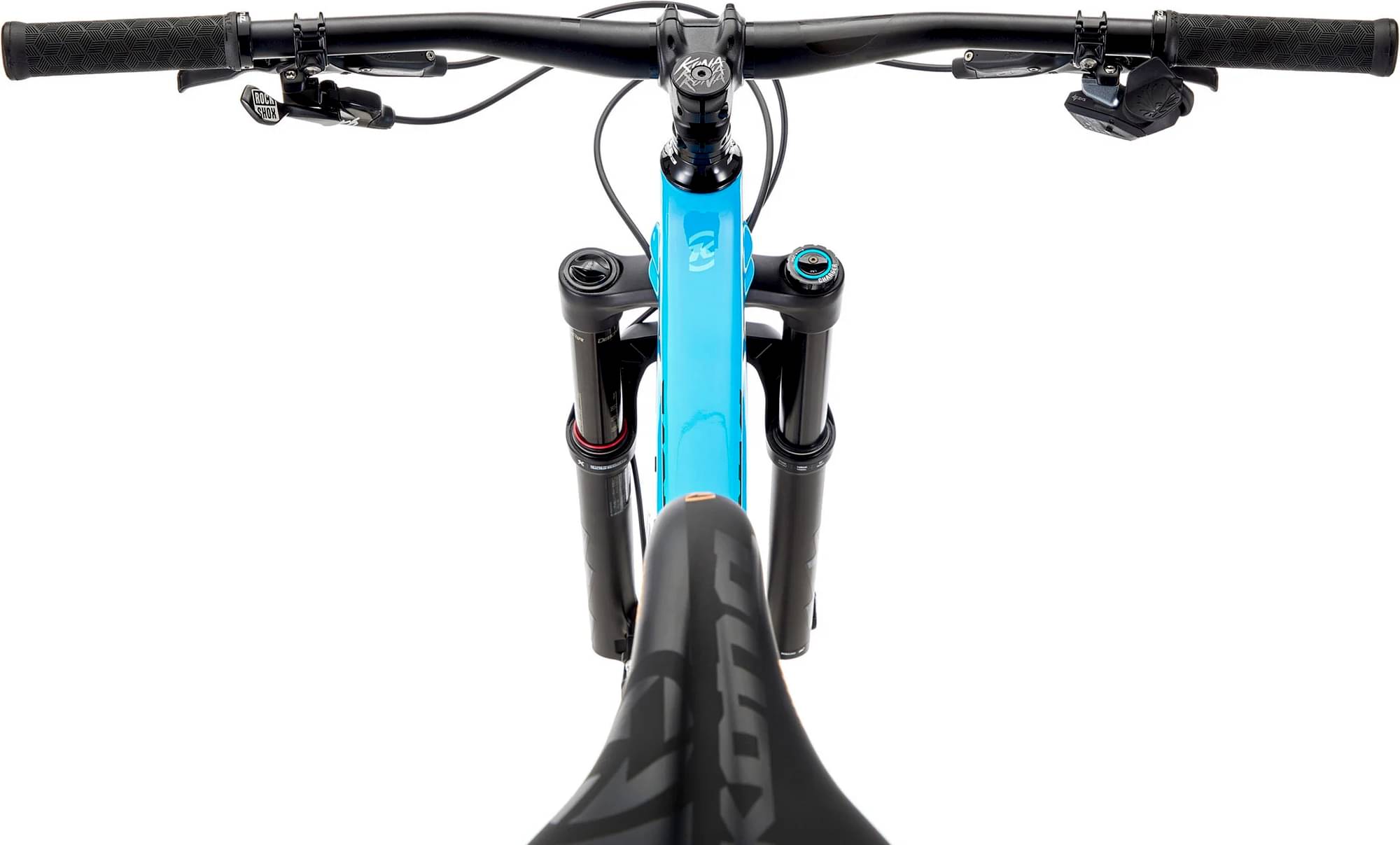

Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip

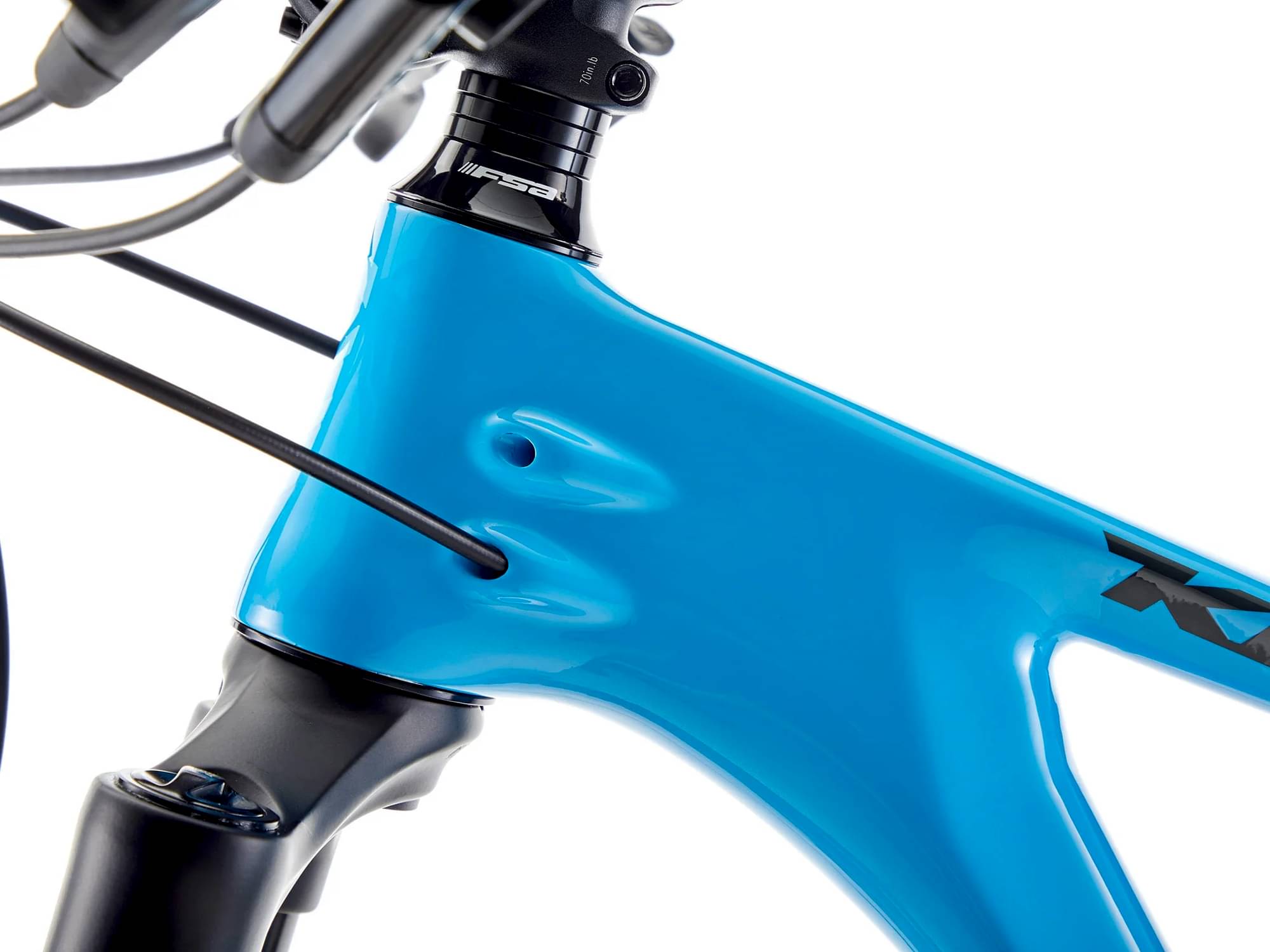

Headset
FSA Orbit 1.5 E ZS
Seat
Saddle
WTB Volt
Seatpost
Rock Shox Reverb w/1x Remote Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.34 mm | 1.29 mm | 1.22 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 734 mm | 761 mm | 791 mm | 830 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 603 mm | 607 mm | 617 mm | 627 mm |
| Reach | 427 mm | 452 mm | 477 mm | 512 mm |
| Top Tube Length | 571 mm | 598 mm | 627 mm | 666 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.3 ° | 76.2 ° |
| Seat Tube Length | 385 mm | 410 mm | 450 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 93 mm | 98 mm | 109 mm | 120 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1161 mm | 1188 mm | 1218 mm | 1257 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 717 mm | 727 mm | 727 mm | 727 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
Process 134 CR/DL 29 belongs to the Kona Process 134 model. Kona launched 38 bikes of this model so far. You can easily view all of the Kona Process 134 bikes models from 2023, here.
Model range prices
Kona Process 134 27.5 2023 is the most affordable bike of this model and has a price of 2599$. On the other hand, Kona Process 134 CR 29 2023, is the most expensive and costs 5199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Kona released this model in 2023, its price was 3999$. In conclusion, this bike price is 44.79% higher than the price of the average Trail bike.
Process 134 CR/DL 29 components
Fork
This bike has the RockShox Pike Ultimate fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock

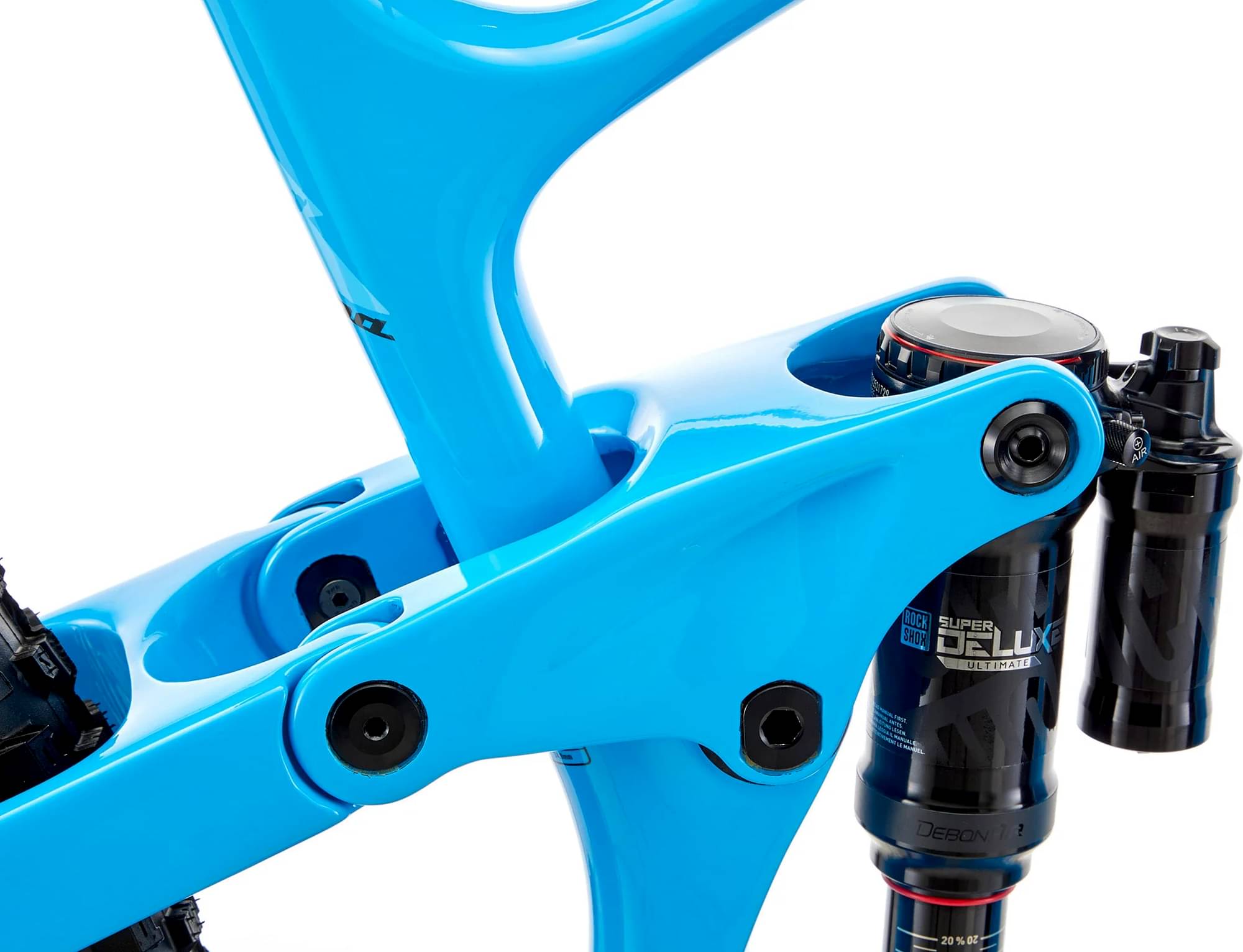

As for the rear shock, this bike has the RockShox Super Deluxe Ultimate Trunnion model, with a travel of 134mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Process 134 CR/DL 29 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Process 134 CR/DL 29 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post

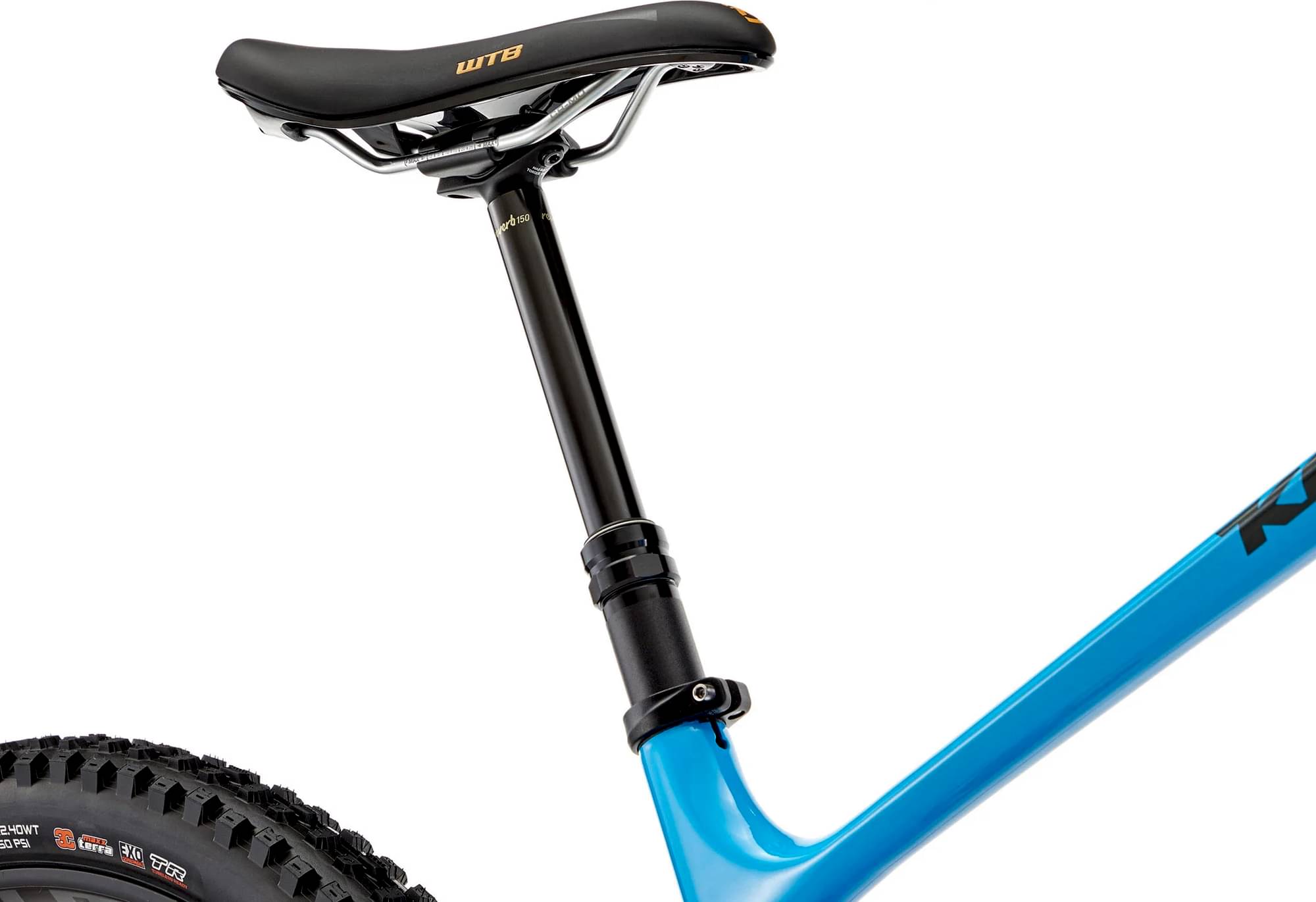

Kona Process 134 CR/DL 29 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
