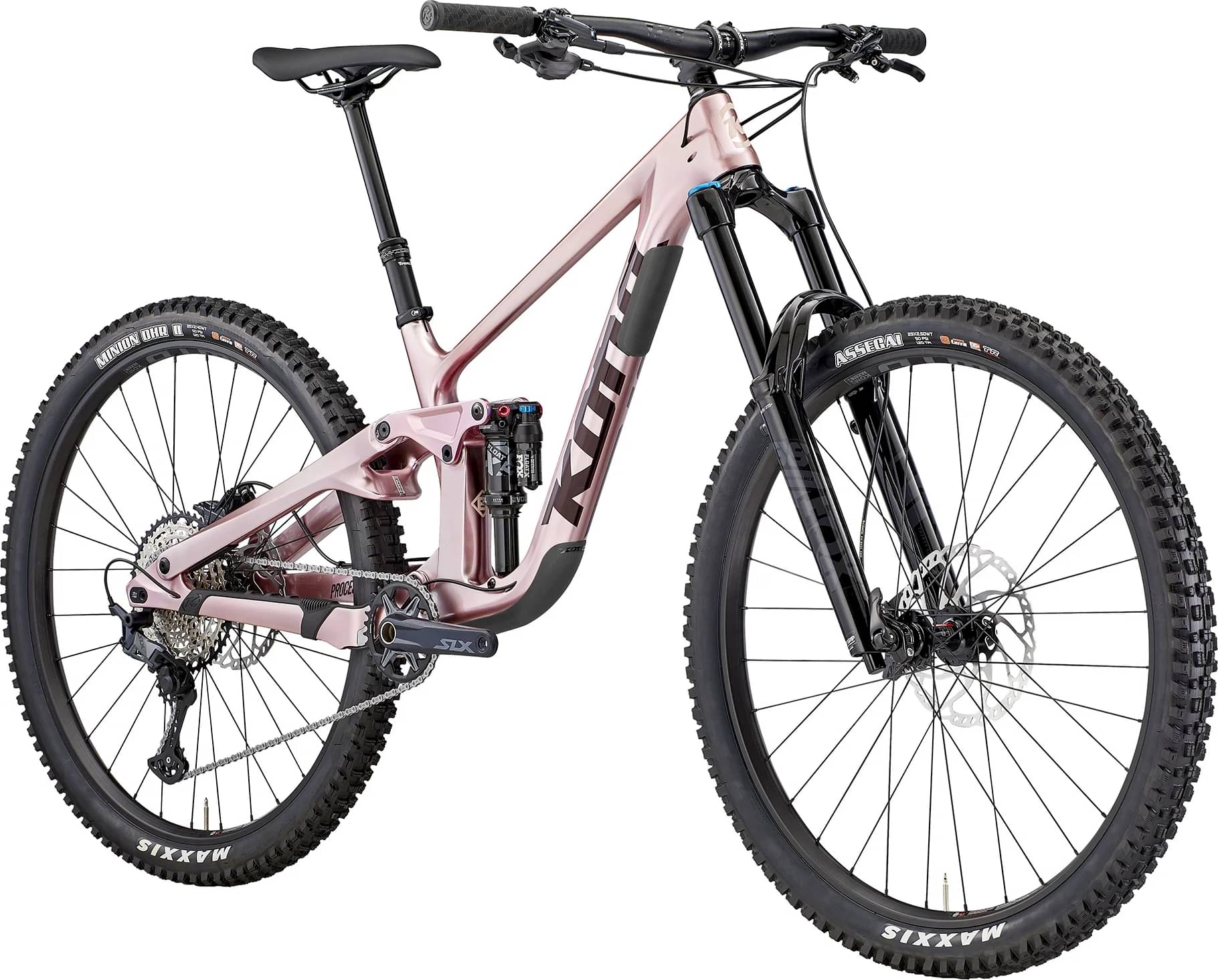

Bike details
Overview
Key information split into simple groups.

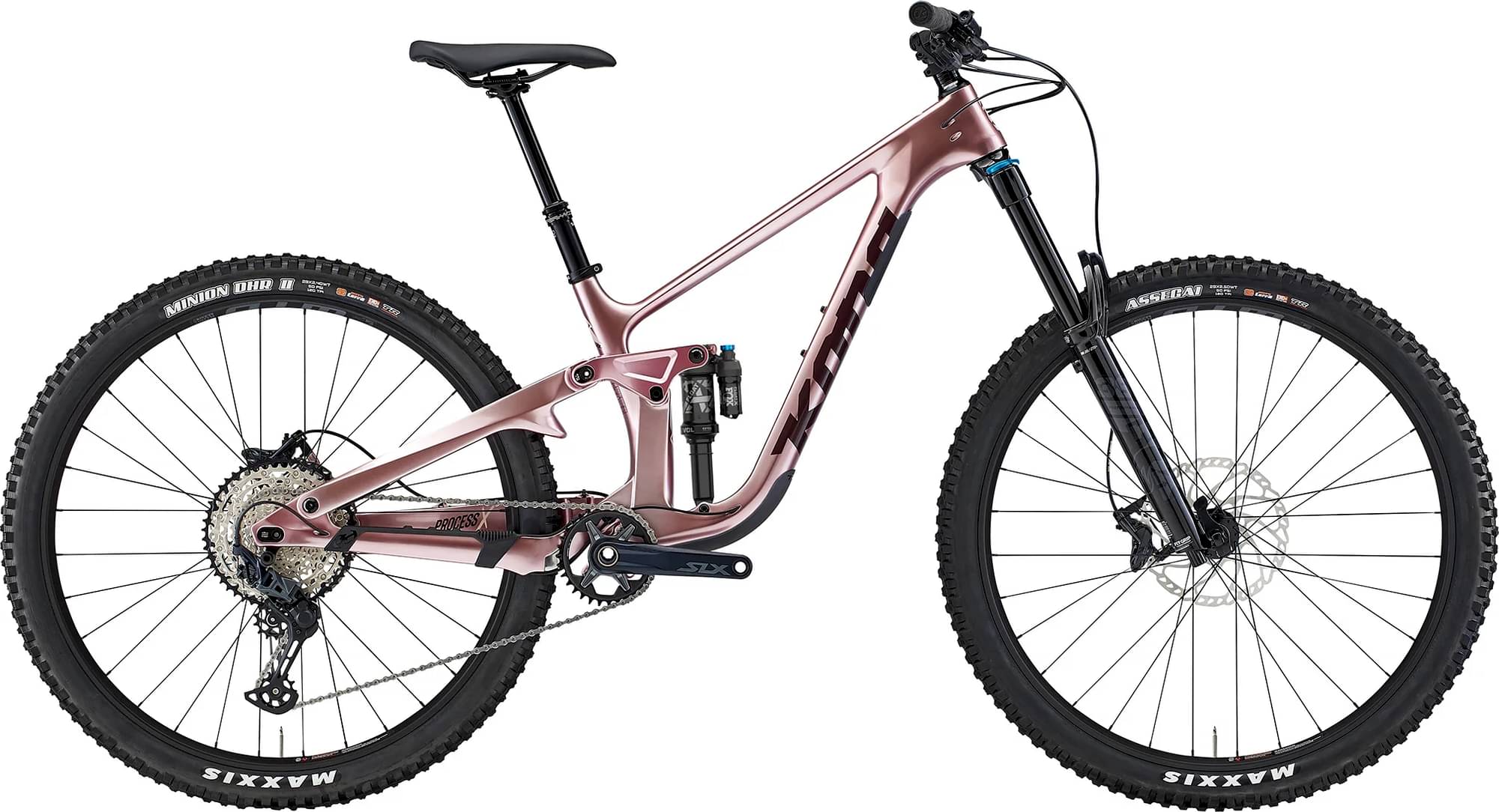

Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 162mm -
Fork Fox Performance Float 38
-
Groupset SLX, XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Carbon 162mm Travel
Suspension Fork
Fox 38 Performance Grip Damper 170mm
Rear Shock
Fox Float X Performance Elite Trunnion
Drivetrain
Rear Derailleur
Shimano SLX 12spd
Front Derailleur
n/a
Shift Levers
Shimano XT 12spd

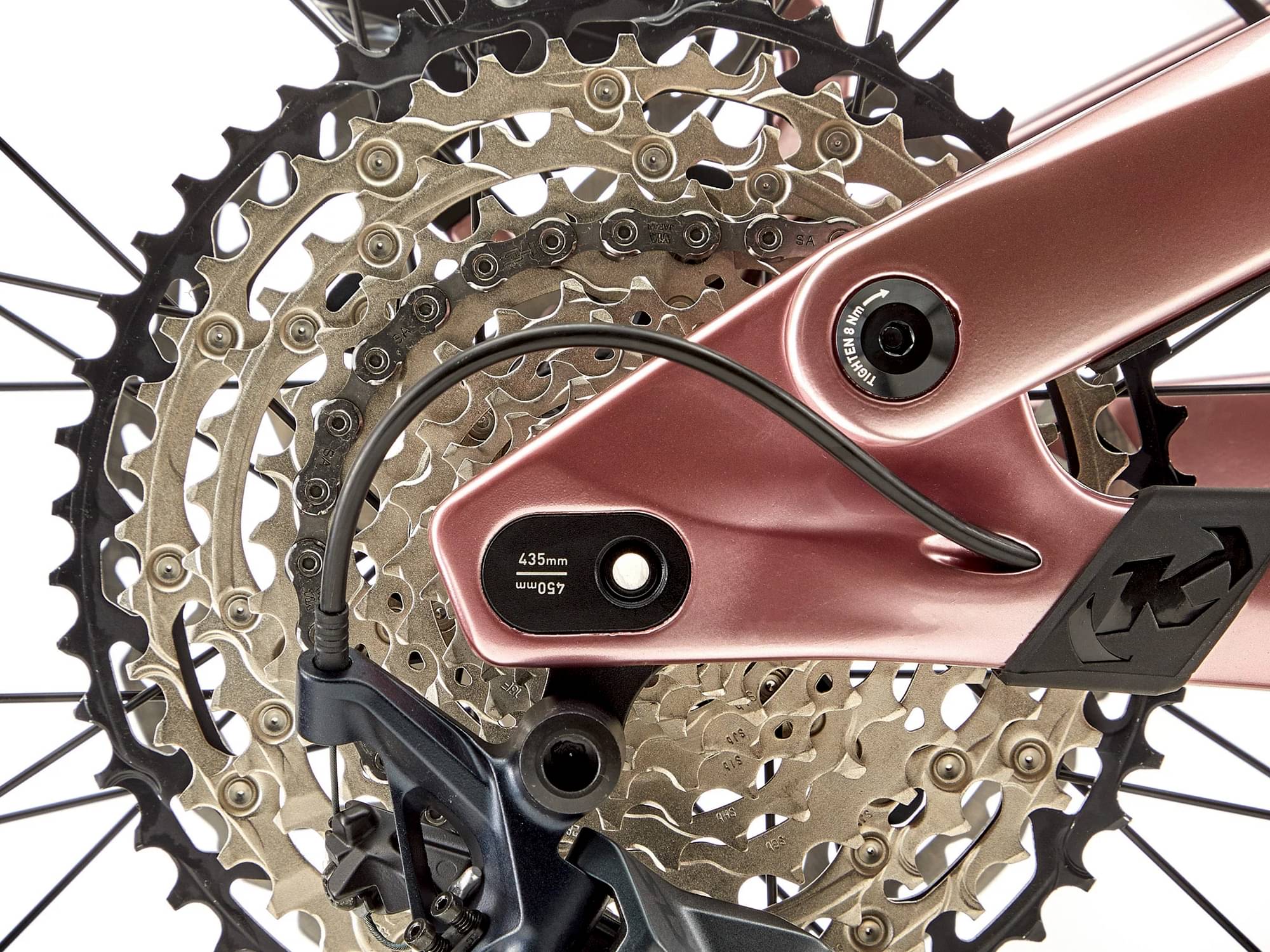

Cassette
Shimano SLX 10-51t 12spd

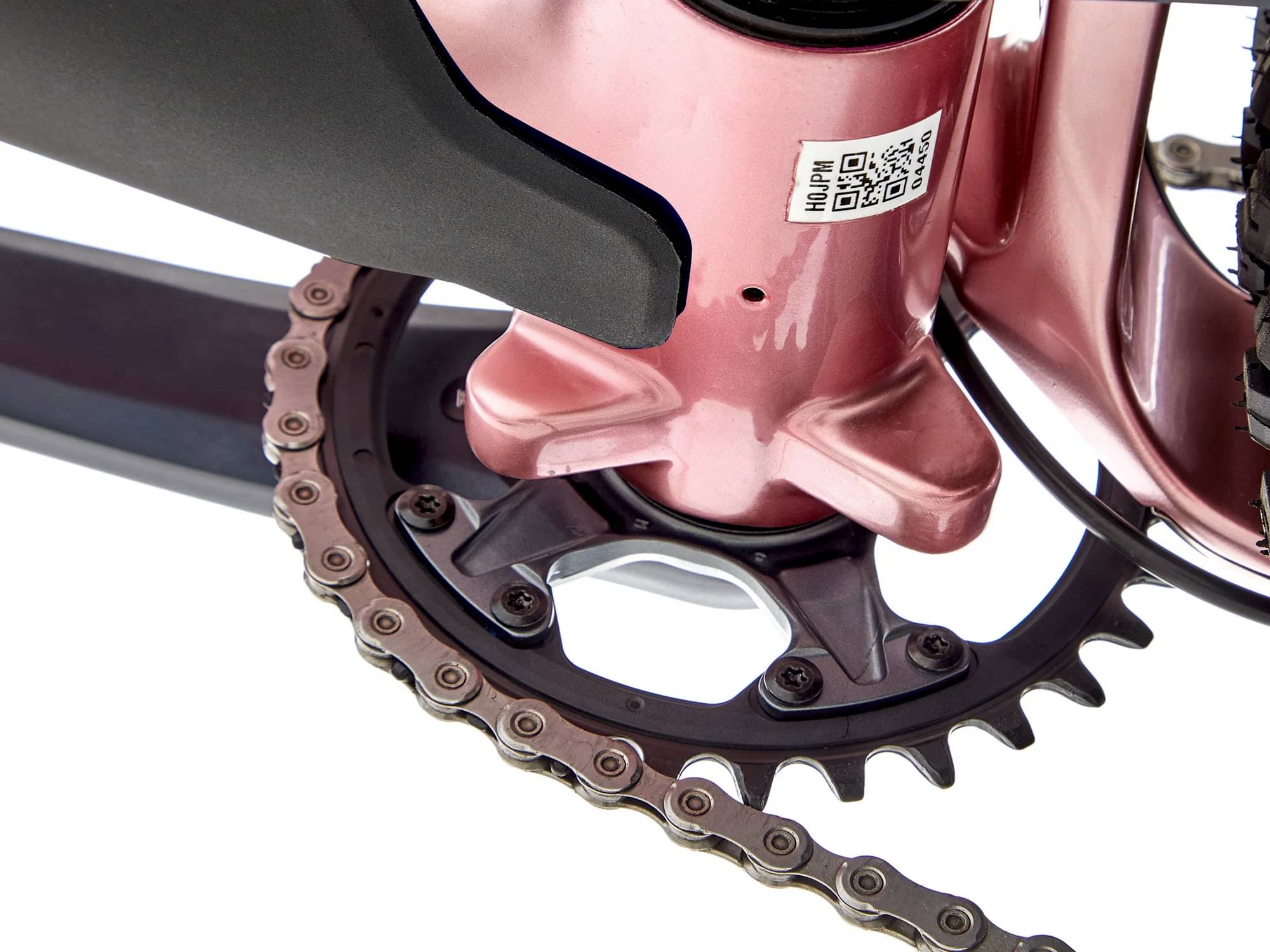

Crank
Shimano SLX, 32t
Bottom Bracket
Shimano PF92
Chain
Shimano Deore 12spd
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
DT Swiss 370 110x15mm
Rear Hub
DT Swiss 370 148x12mm
Rims
WTB KOM Trail i30 TCS
Spokes
Stainless Black 14g
Tires
Front: Maxxis Assegai EXO+ TR 3C 29x2.5" WT, Rear: Maxxis Assegai EXO+ TR 3C 29x2.5" WT
Brakes
Brakes
Shimano Deore
Brake Levers
Shimano Deore
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip

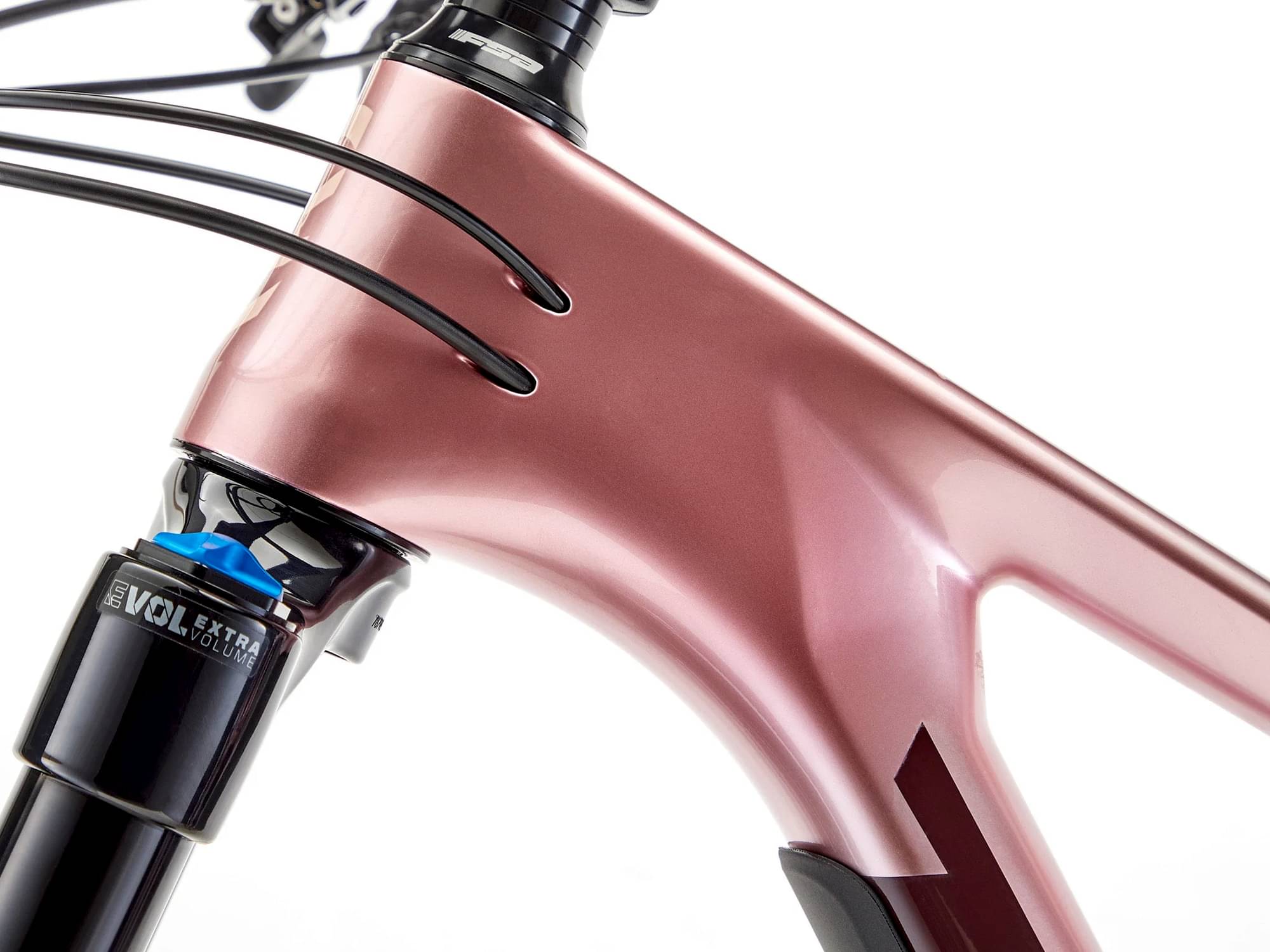

Headset
FSA Orbit 1.5 EP ZS
Seat
Saddle
WTB Volt
Seatpost
TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.32 mm | 1.28 mm | 1.21 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 779 mm | 804 mm | 834 mm | 874 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 145 mm | 140 mm | 140 mm | 140 mm |
| Stack | 612 mm | 612 mm | 622 mm | 632 mm |
| Reach | 437 mm | 462 mm | 487 mm | 522 mm |
| Top Tube Length | 566 mm | 591 mm | 620 mm | 659 mm |
| Seat Tube Angle | 78.2 ° | 78.2 ° | 78 ° | 77.9 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 450 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 94 mm | 94 mm | 105 mm | 116 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1210 mm | 1235 mm | 1265 mm | 1305 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 687 mm | 697 mm | 707 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
Model Overview
Process X CR is a Kona Process X model. 8 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Kona Process X CR 2023 is the cheapest bike model and costs 5499$. Kona Process X CR/DL 2023 is the most expensive one and costs 8199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 5499$. Comparing the average cost of an Enduro bike to this one, you will see that Process X CR price is 52.79% more expensive.
Process X CR components

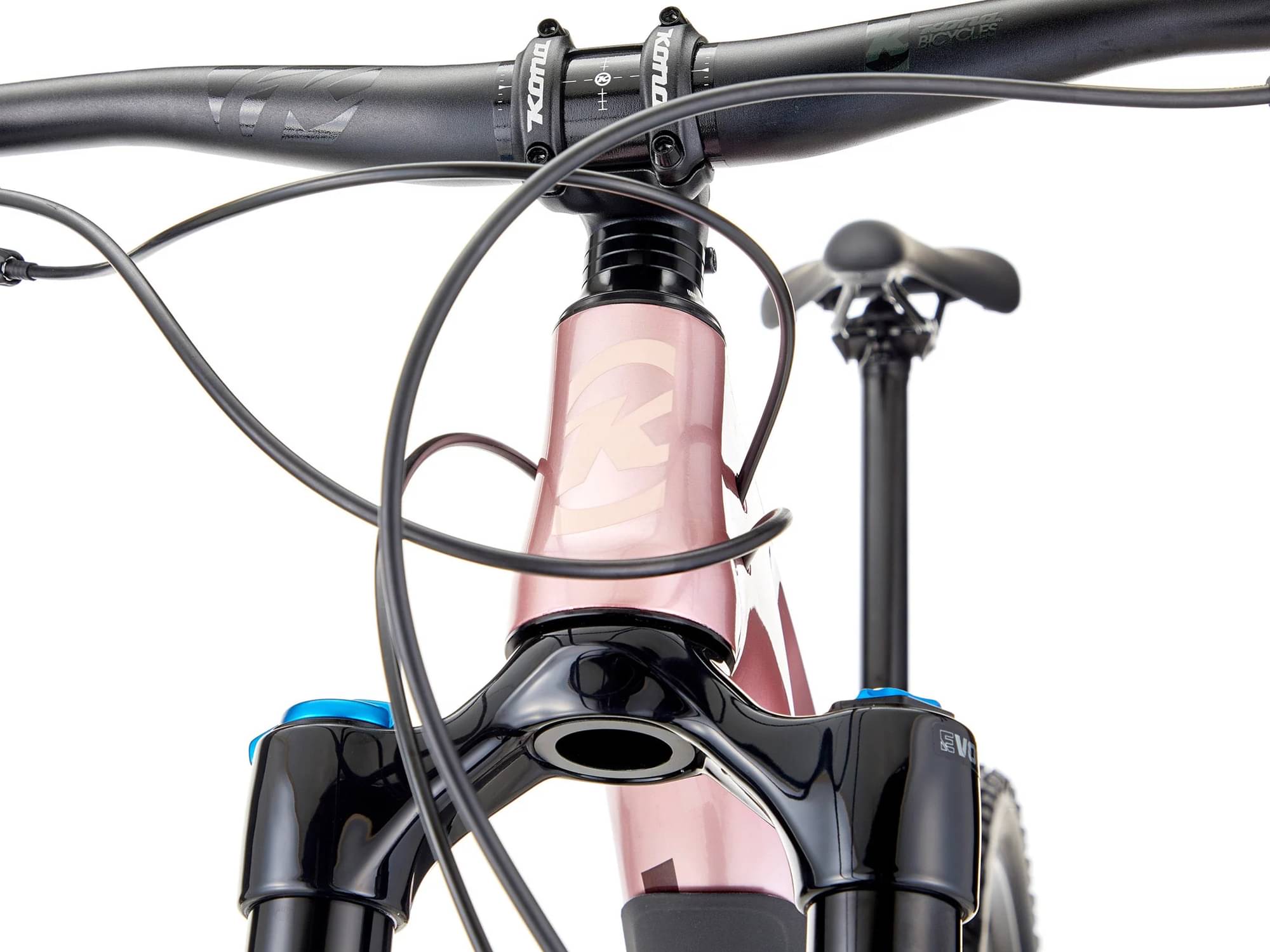

Fork
This bike has the Fox Performance Float 38 fork installed. The fork’s travel is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.

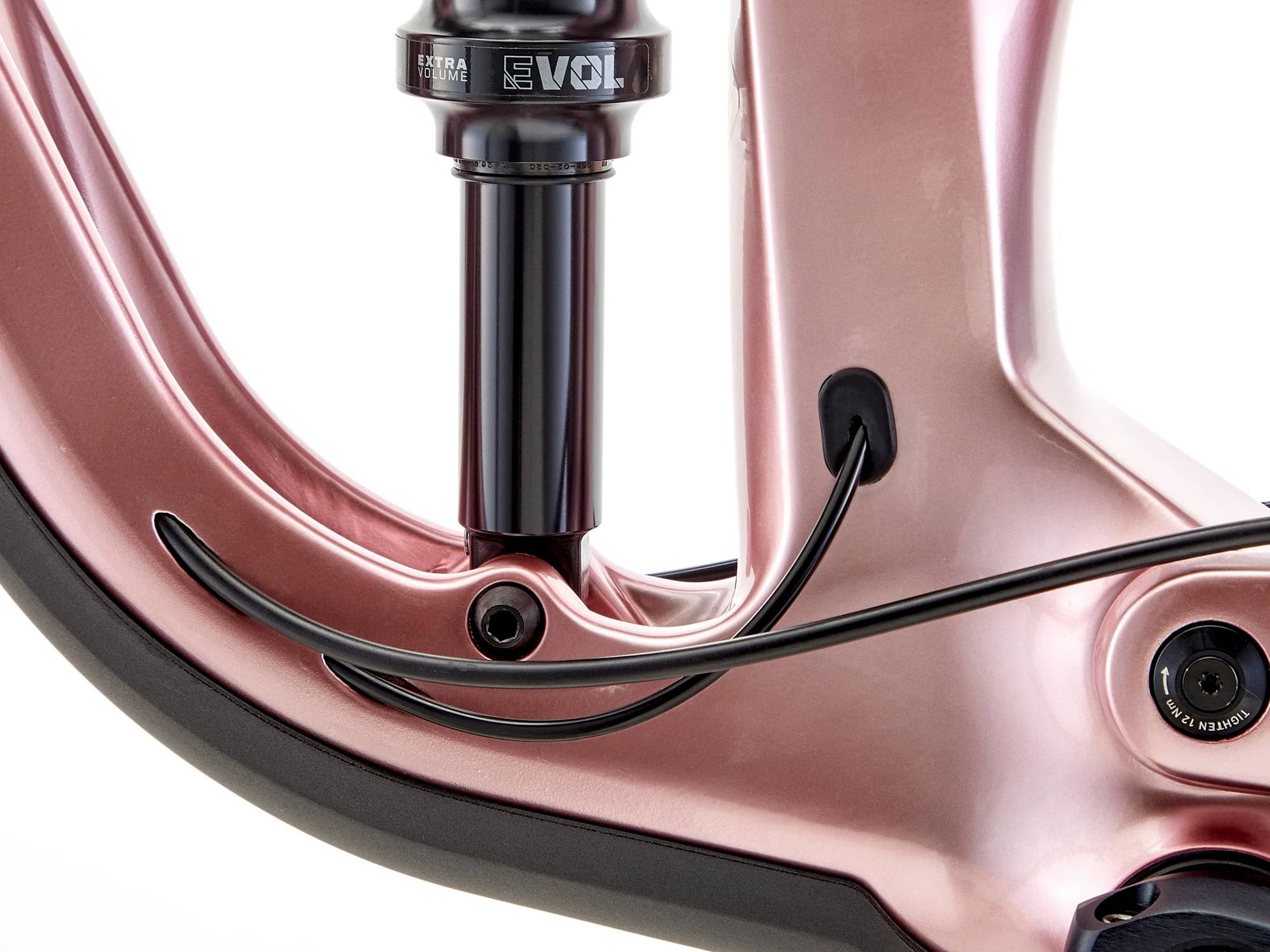

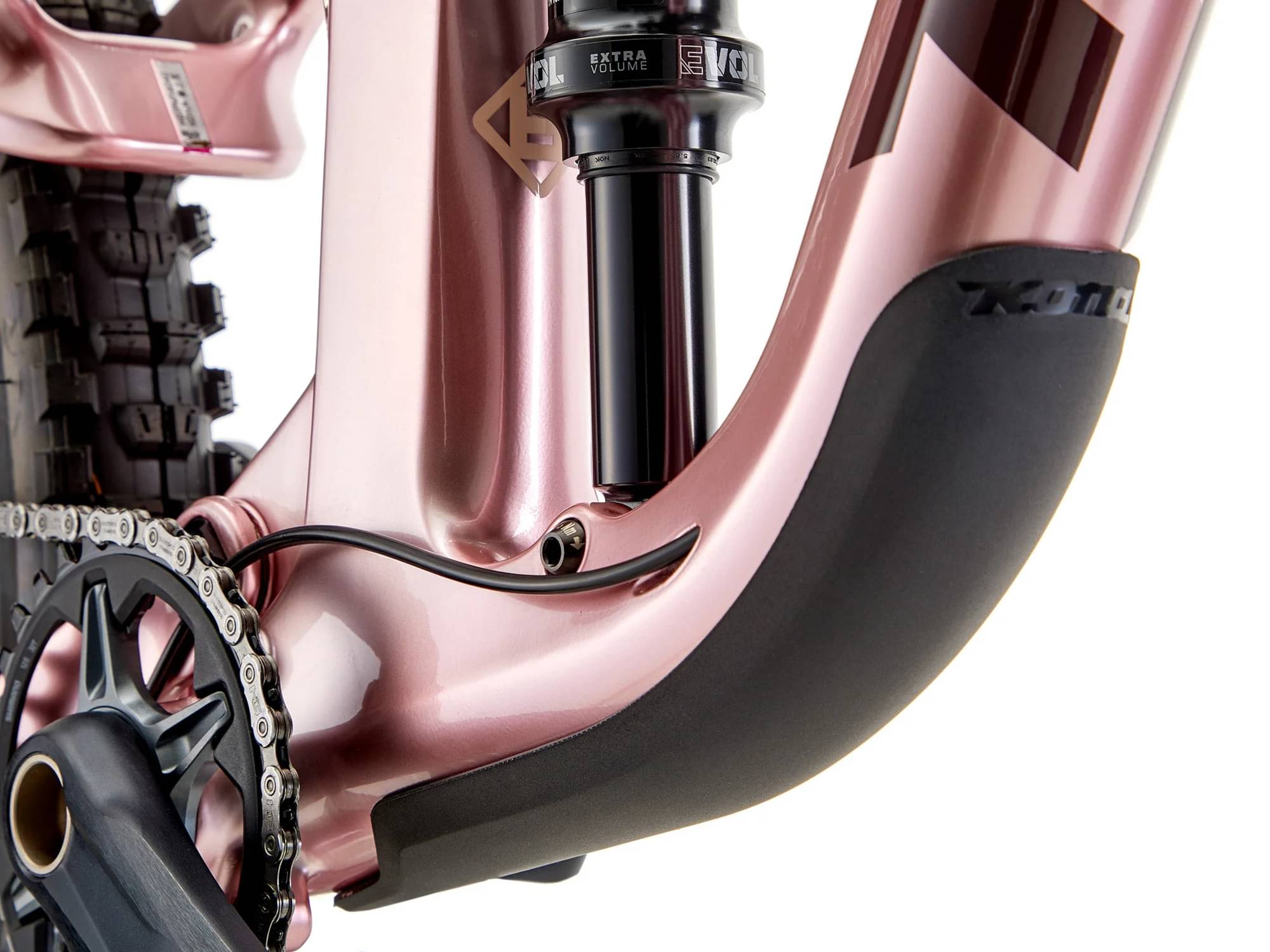

Rear Shock
From the factory, it comes with the Fox Float X Performance Elite Trunnion rear shock model, which has a travel of 162mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Process X CR 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.

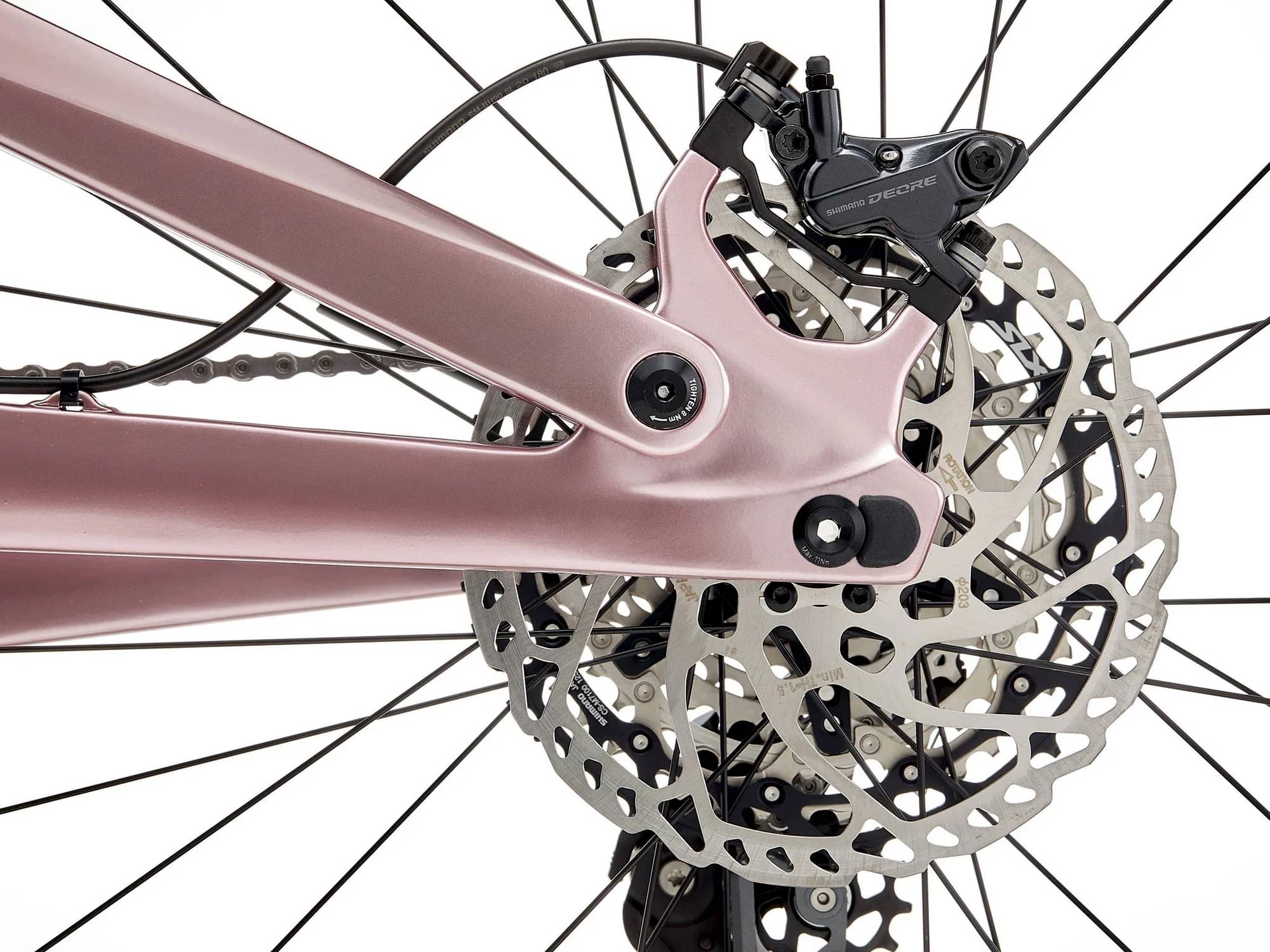

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Process X CR comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Kona model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
