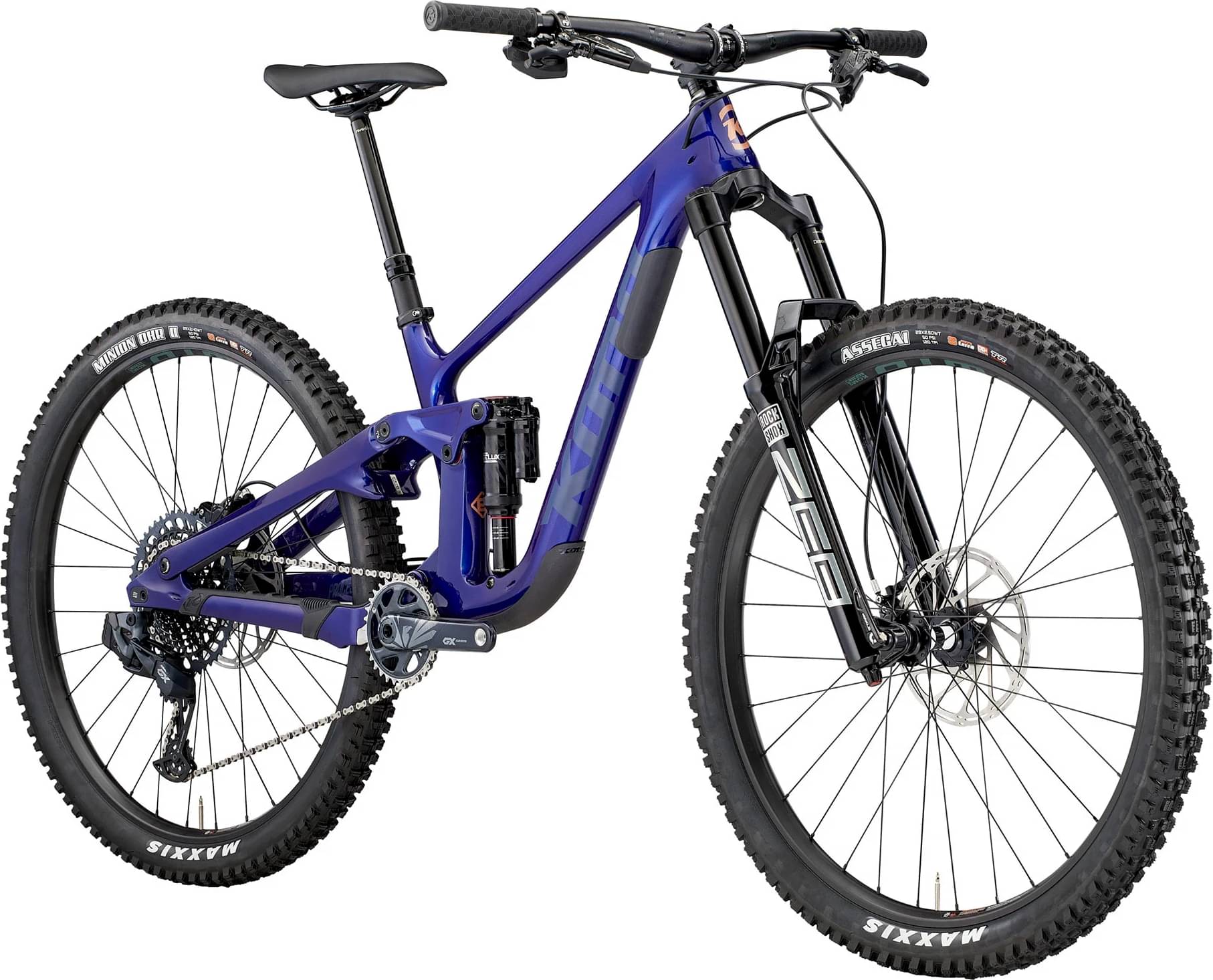

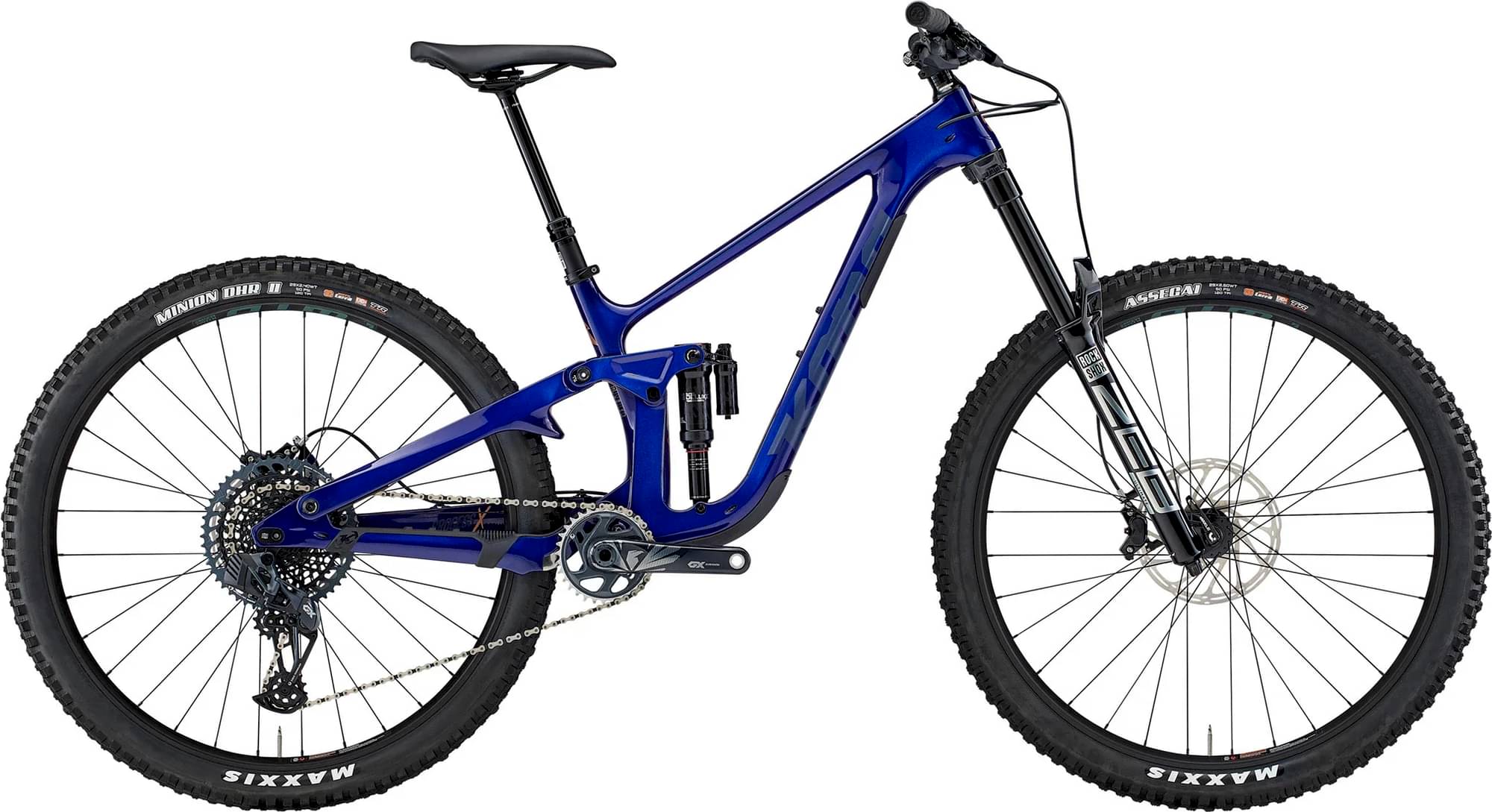

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 162mm -
Fork RockShox ZEB Ultimate
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Carbon 162mm Travel

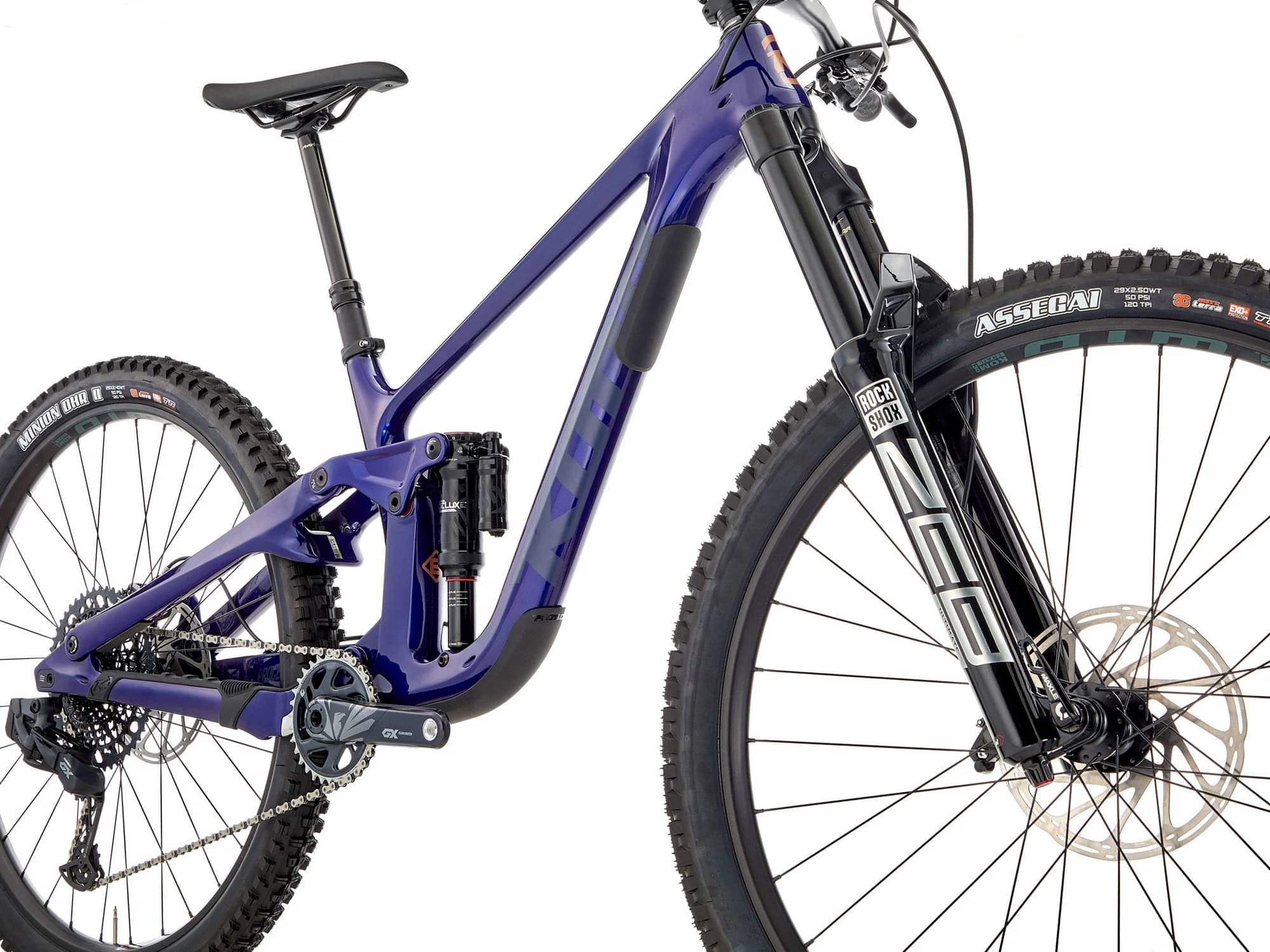

Suspension Fork
RockShox Zeb Ultimate RC2 Charger 2.1 DebonAir 170mm Tapered 110mm Spacing

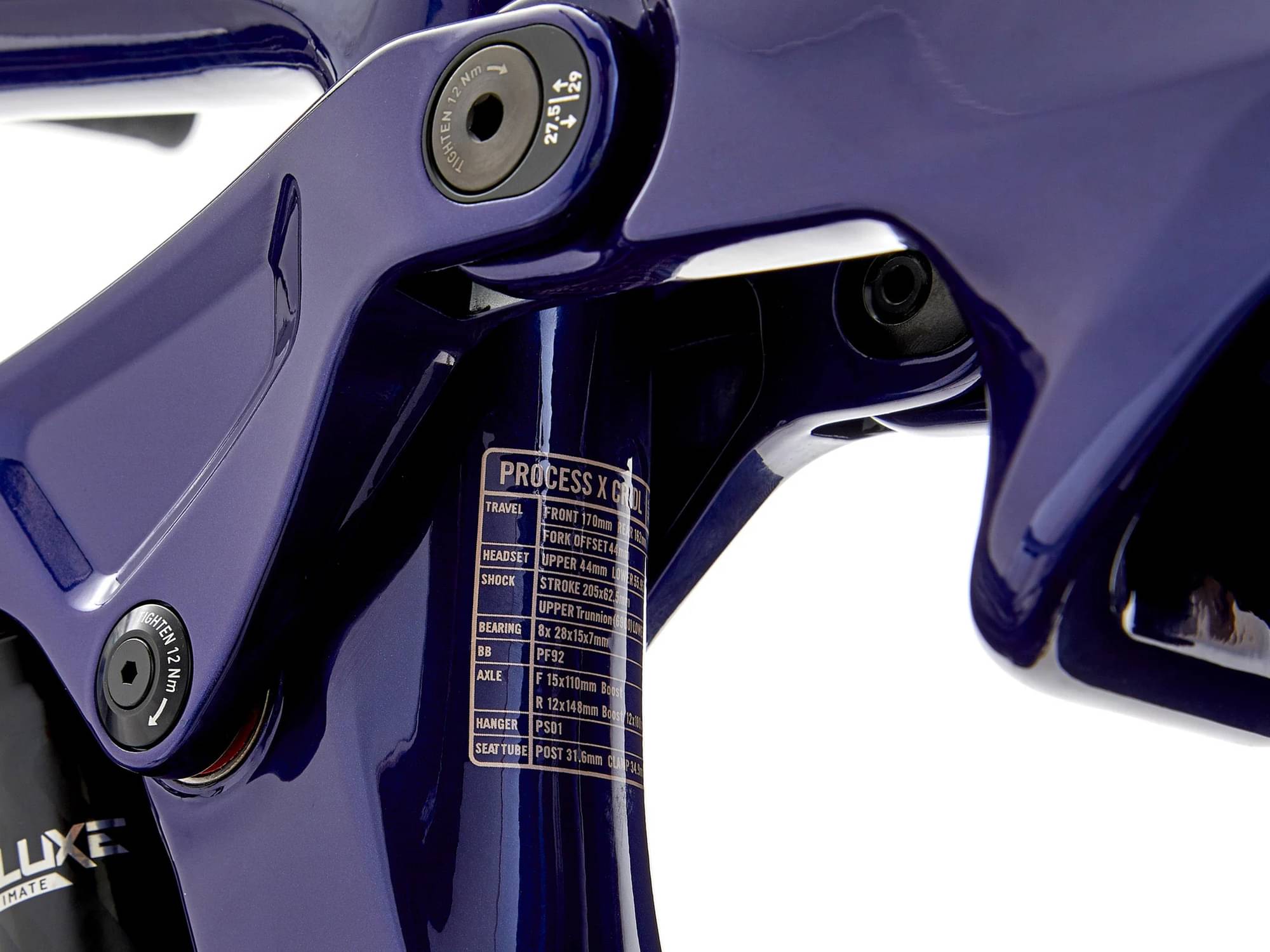

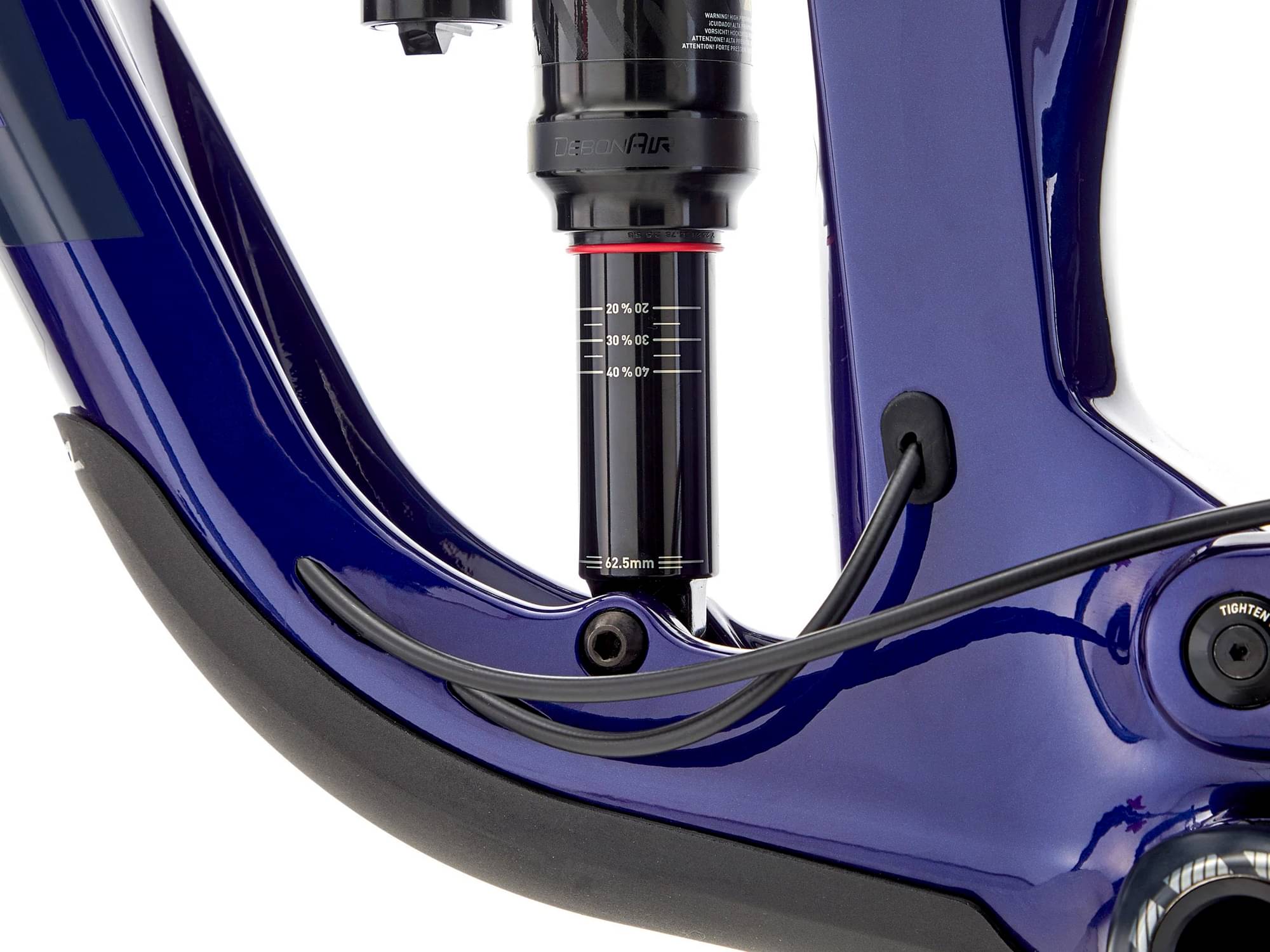

Rear Shock
RockShox Super Deluxe Ultimate Trunnion
Drivetrain

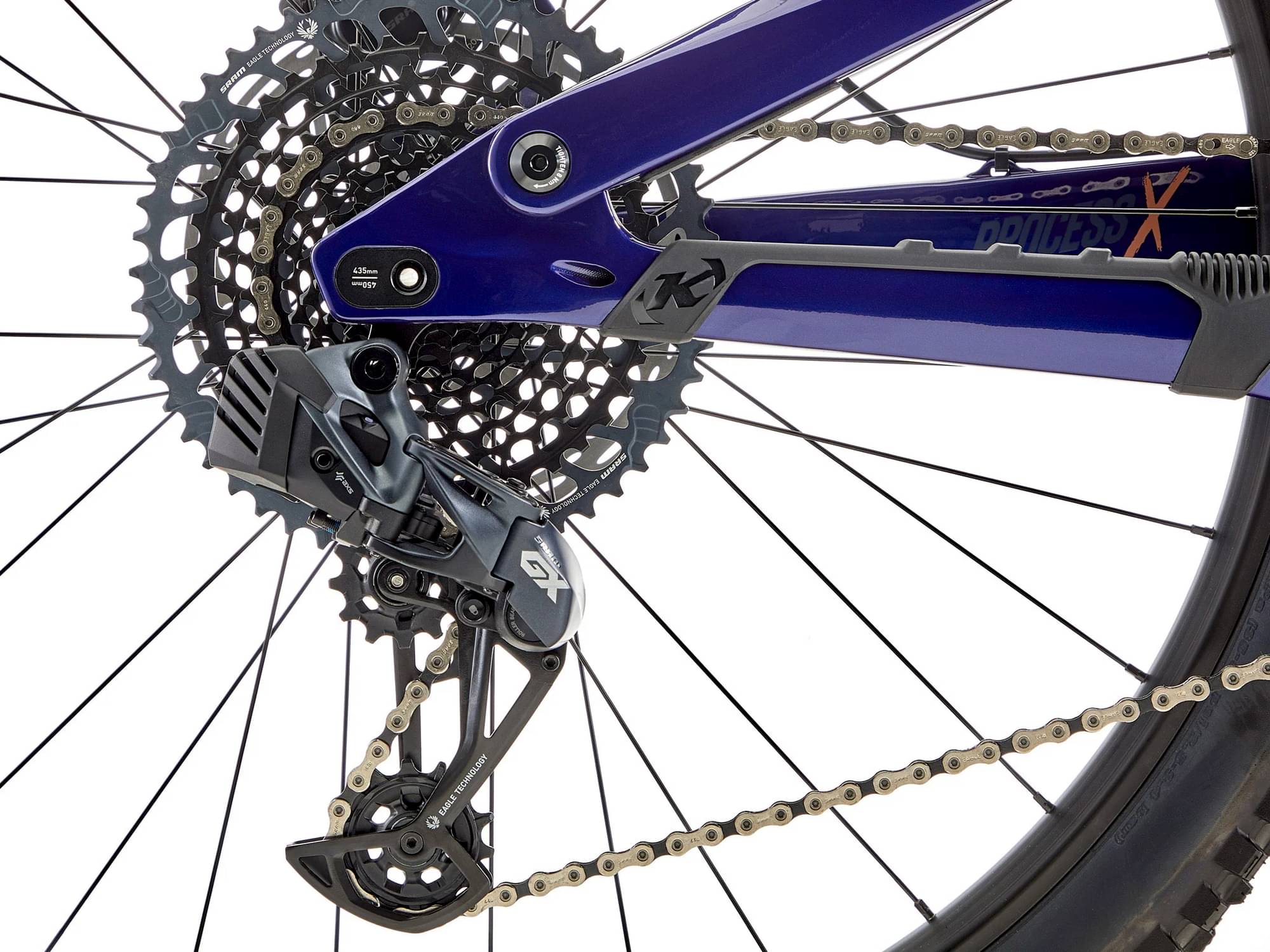

Rear Derailleur
SRAM GX AXS
Front Derailleur
n/a
Shift Levers
SRAM GX AXS
Cassette
SRAM X01-Eagle 10-52t 12spd

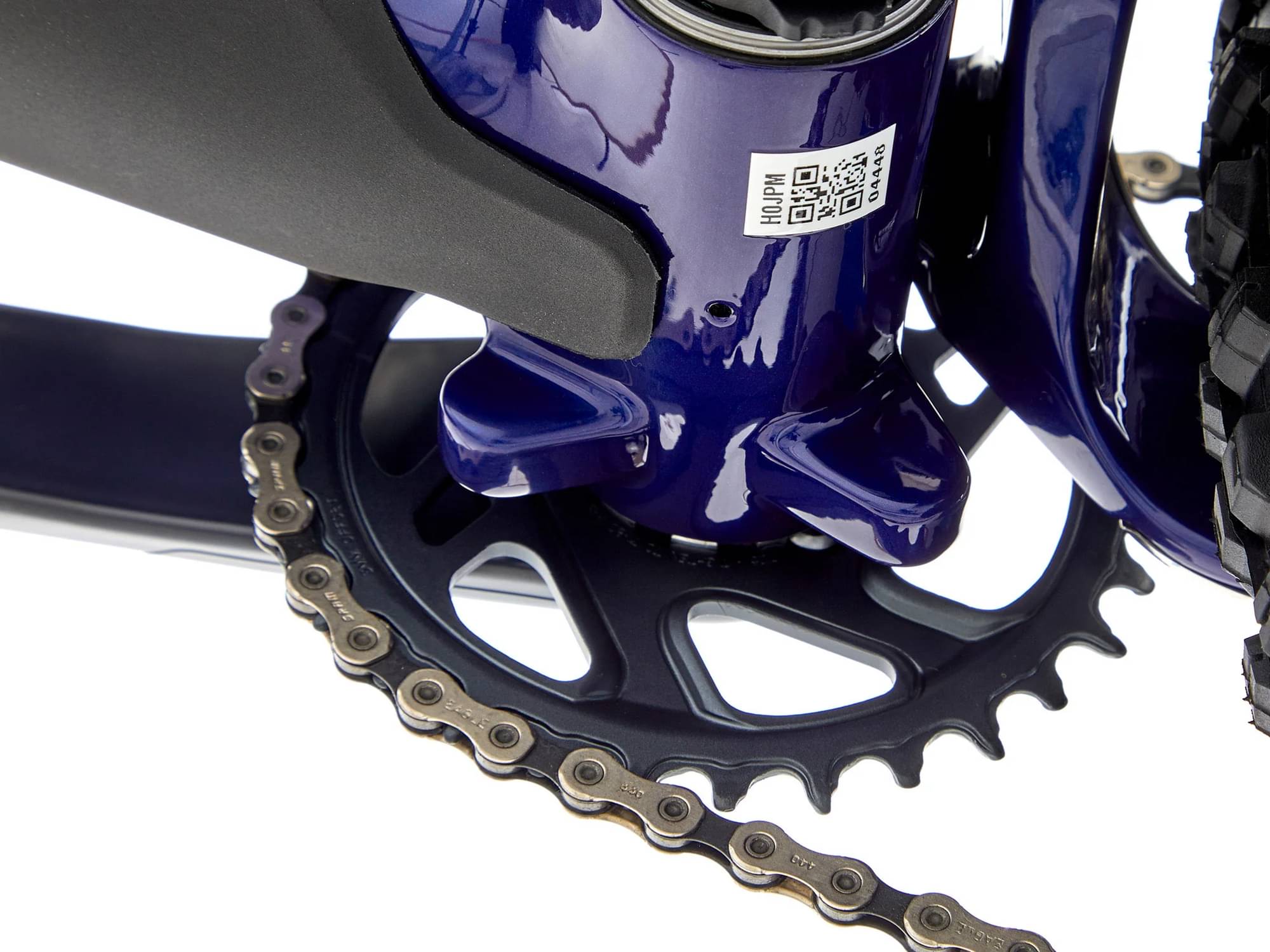

Crank
SRAM GX-Eagle Carbon DUB, 32t X-Sync Eagle
Bottom Bracket
SRAM DUB PF92
Chain
SRAM GX-Eagle
Chain Guide
n/a
Pedals
n/a
Wheels

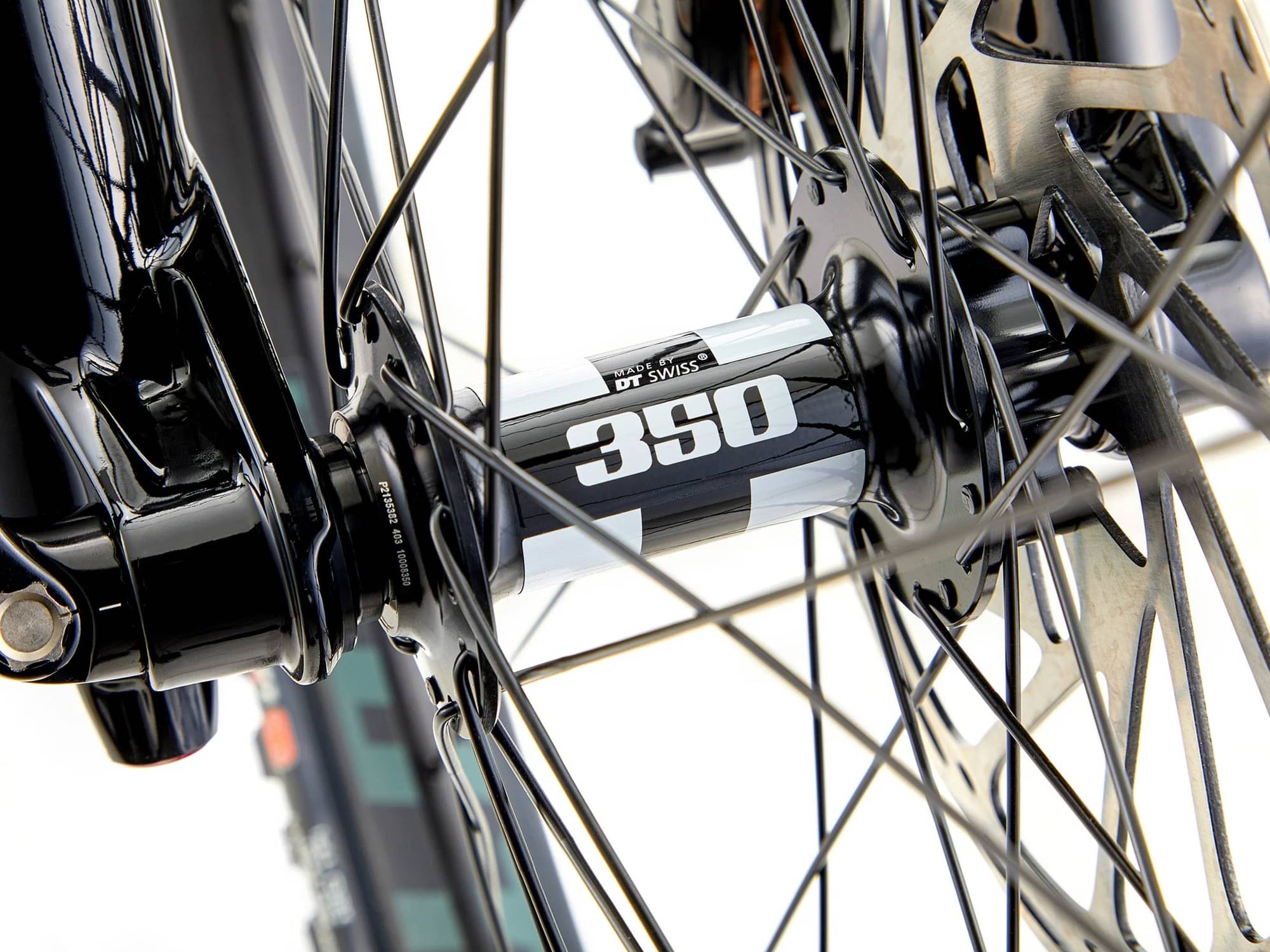

Front Hub
DT Swiss 350 110x15mm
Rear Hub
DT Swiss 350 148x12mm
Rims
WTB KOM Trail i30 TCS
Spokes
Double Butted Spokes – 14/15/14g
Tires
Front: Maxxis Assegai EXO+ TR 3C 29x2.5" WT, Rear: Maxxis Assegai EXO+ TR 3C 29x2.5" WT

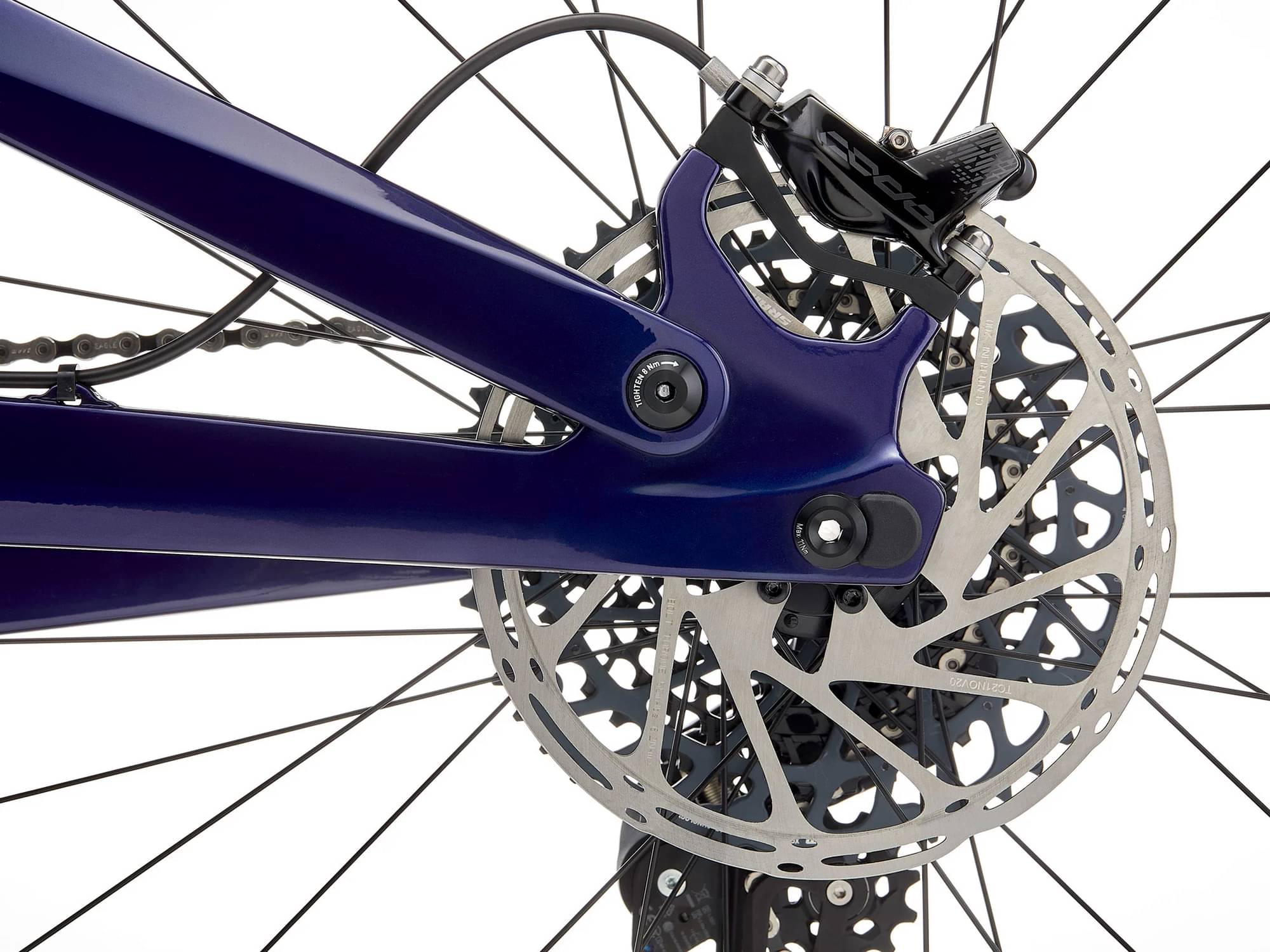

Brakes
Brakes
SRAM Code RSC
Brake Levers
SRAM Code RSC

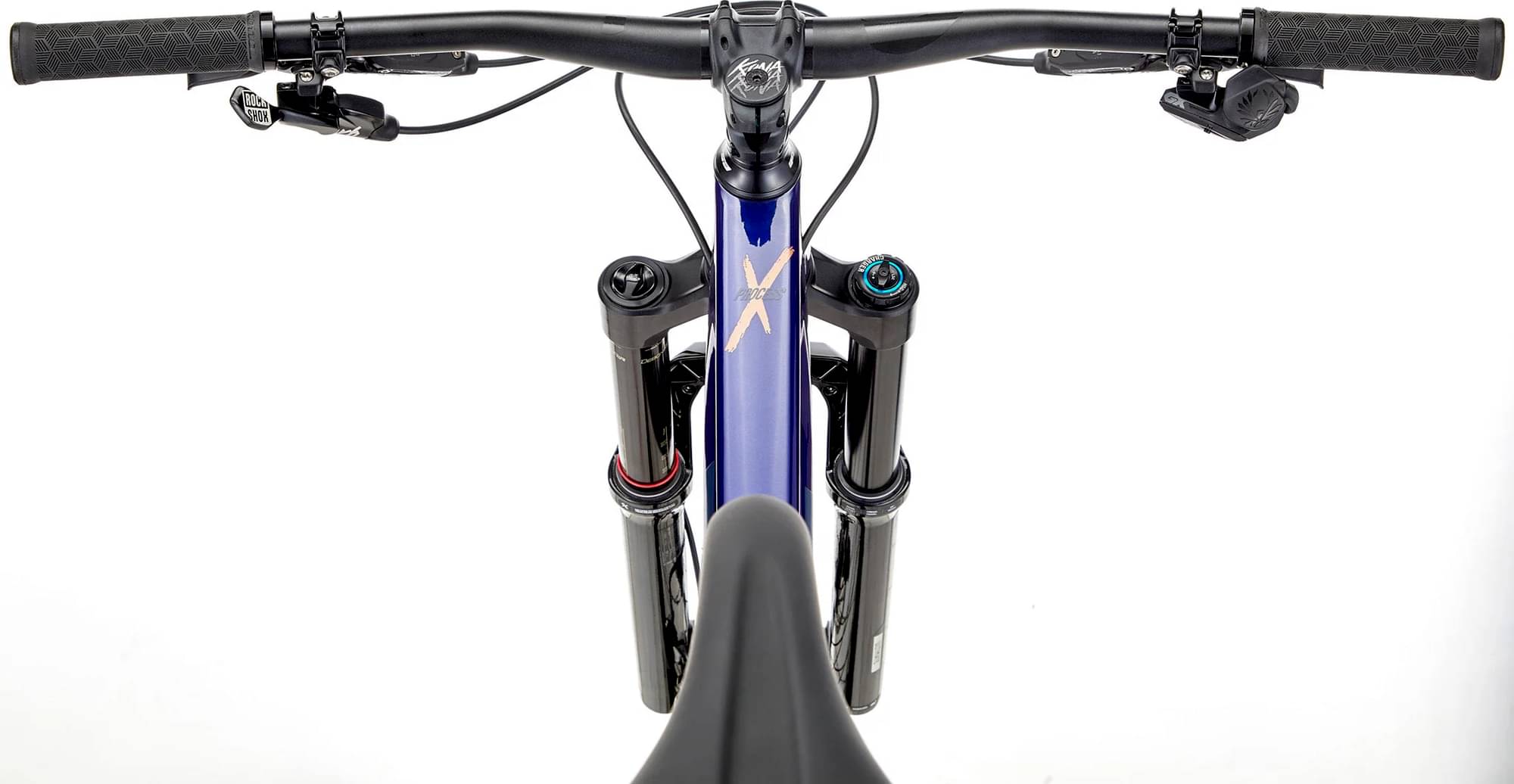

Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip

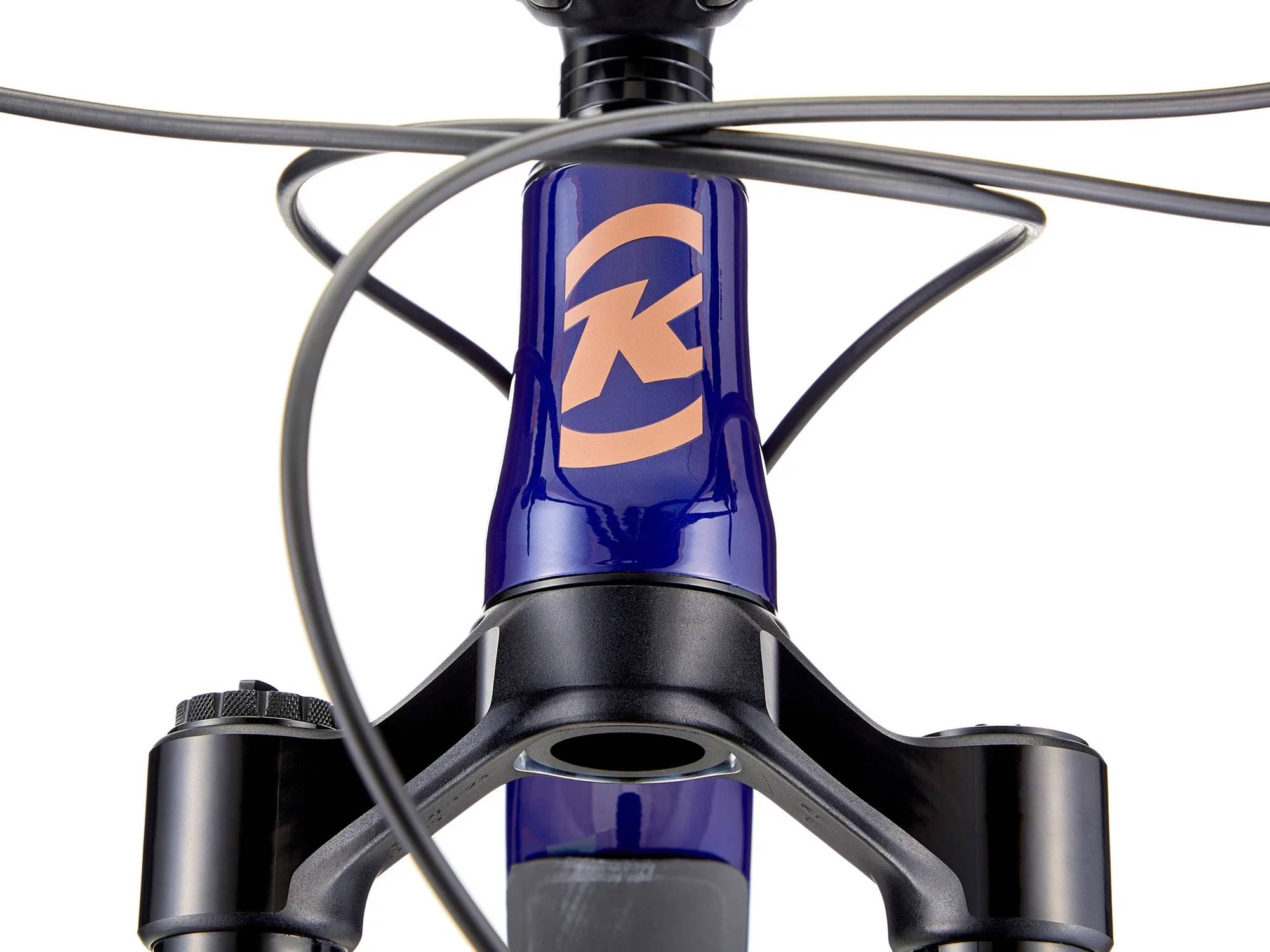

Headset
FSA Orbit 1.5 EP ZS
Seat
Saddle
WTB Volt

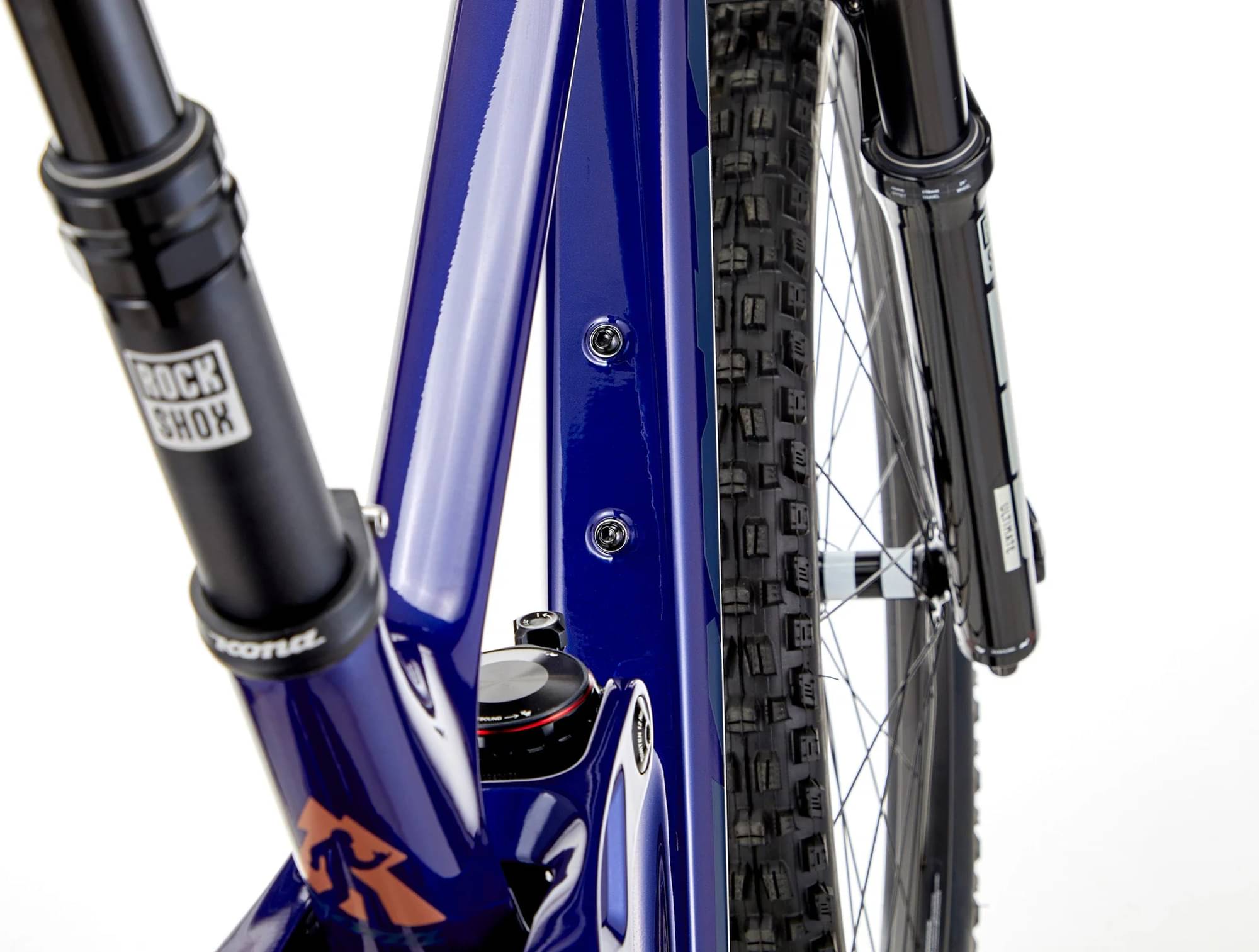

Seatpost
Rock Shox Reverb w/1x Remote Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.32 mm | 1.28 mm | 1.21 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 779 mm | 804 mm | 834 mm | 874 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 145 mm | 140 mm | 140 mm | 140 mm |
| Stack | 612 mm | 612 mm | 622 mm | 632 mm |
| Reach | 437 mm | 462 mm | 487 mm | 522 mm |
| Top Tube Length | 566 mm | 591 mm | 620 mm | 659 mm |
| Seat Tube Angle | 78.2 ° | 78.2 ° | 78 ° | 77.9 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 450 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 94 mm | 94 mm | 105 mm | 116 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1210 mm | 1235 mm | 1265 mm | 1305 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 687 mm | 697 mm | 707 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
Process X CR/DL belongs to the Kona Process X model. 8 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Kona Process X CR 2023 is the cheapest bike model and costs 5499$. Kona Process X CR/DL 2023 is the most expensive one and costs 8199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Kona Process X CR/DL price was 8199$. Comparing the average cost of an Enduro bike to this one, you will see that Process X CR/DL price is 127.81% more expensive.
Process X CR/DL components
Fork
The fork installed on this bike is the RockShox ZEB Ultimate model. The travel on this model is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Ultimate Trunnion, with a travel distance of 162mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Process X CR/DL are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona Process X CR/DL is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Process X CR/DL. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
