Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Gold RL
-
Groupset microSHIFT Advent X, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 160mm Travel
Suspension Fork
RockShox 35 Gold RL DebonAir 160mm Tapered 110 Spacing
Rear Shock
RockShox Deluxe Select + Trunnion
Drivetrain
Rear Derailleur
Microshift Advent X
Front Derailleur
n/a
Shift Levers
Microshift Advent X
Cassette
Microshift Advent X 11-48t 10spd
Crank
Shimano E8000, 34t
Bottom Bracket
n/a
Chain
KMX X10
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 157x12mm
Rims
WTB ST i30 TCS 2.0
Spokes
Stainless Black 14g
Tires
Maxxis Minion DHF EXO+ TR 3C 29x2.5" WT
Brakes
Brakes
SRAM Guide RE
Brake Levers
SRAM Guide RE
Disk Rotors
SRAM Centerline 200mm
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57E
Seat
Saddle
WTB Volt
Seatpost
TranzX Dropper Internal 31.6mm
Motor & Battery
Motor
Shimano E7000 20MPH
Battery
Shimano 504Wh
Remote
Shimano SC-E7000 Display
Charger
Shimano STEPS 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.36 mm | 1.28 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 761 mm | 788 mm | 818 mm | 857 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 126 mm | 127 mm | 127 mm | 127 mm |
| Stack | 622 mm | 627 mm | 637 mm | 646 mm |
| Reach | 419 mm | 444 mm | 469 mm | 504 mm |
| Top Tube Length | 584 mm | 611 mm | 640 mm | 679 mm |
| Seat Tube Angle | 75.1 ° | 75 ° | 74.9 ° | 74.8 ° |
| Seat Tube Length | 385 mm | 410 mm | 450 mm | 485 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1200 mm | 1227 mm | 1256 mm | 1296 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 754 mm | 769 mm | 767 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model

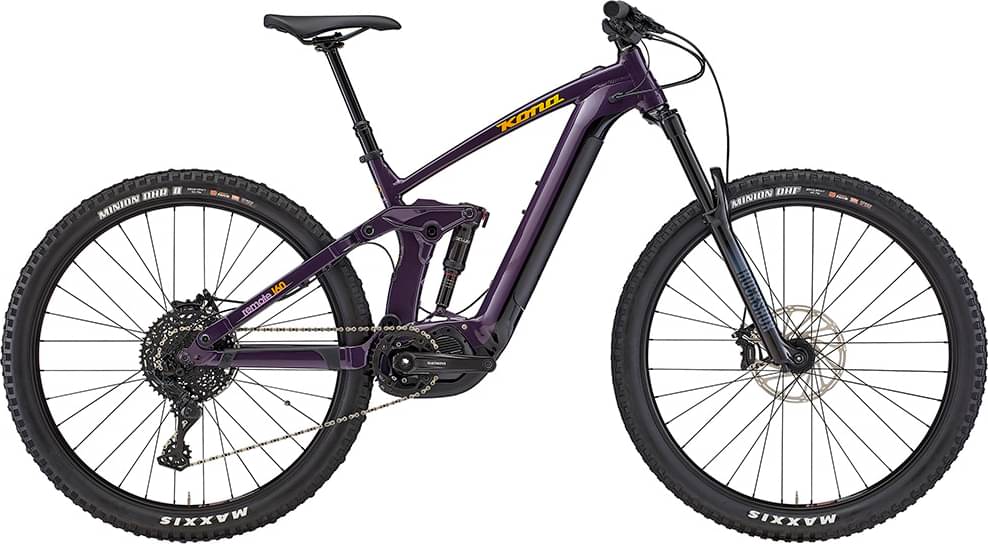

Remote 160 is a Kona E Remote model. There are 16 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Kona Remote 2022 is the most economical model, with a starting price of 4699$. Kona Remote 160 2022 on the other hand costs 6299$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 6299$. Comparing the average cost of an Enduro e-bike to this one, you will see that Remote 160 price is 31.64% higher.
Remote 160 components
Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select + Trunnion, with a travel distance of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Remote 160 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Remote 160 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
The Kona model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
