Bike details
Overview
Key information split into simple groups.

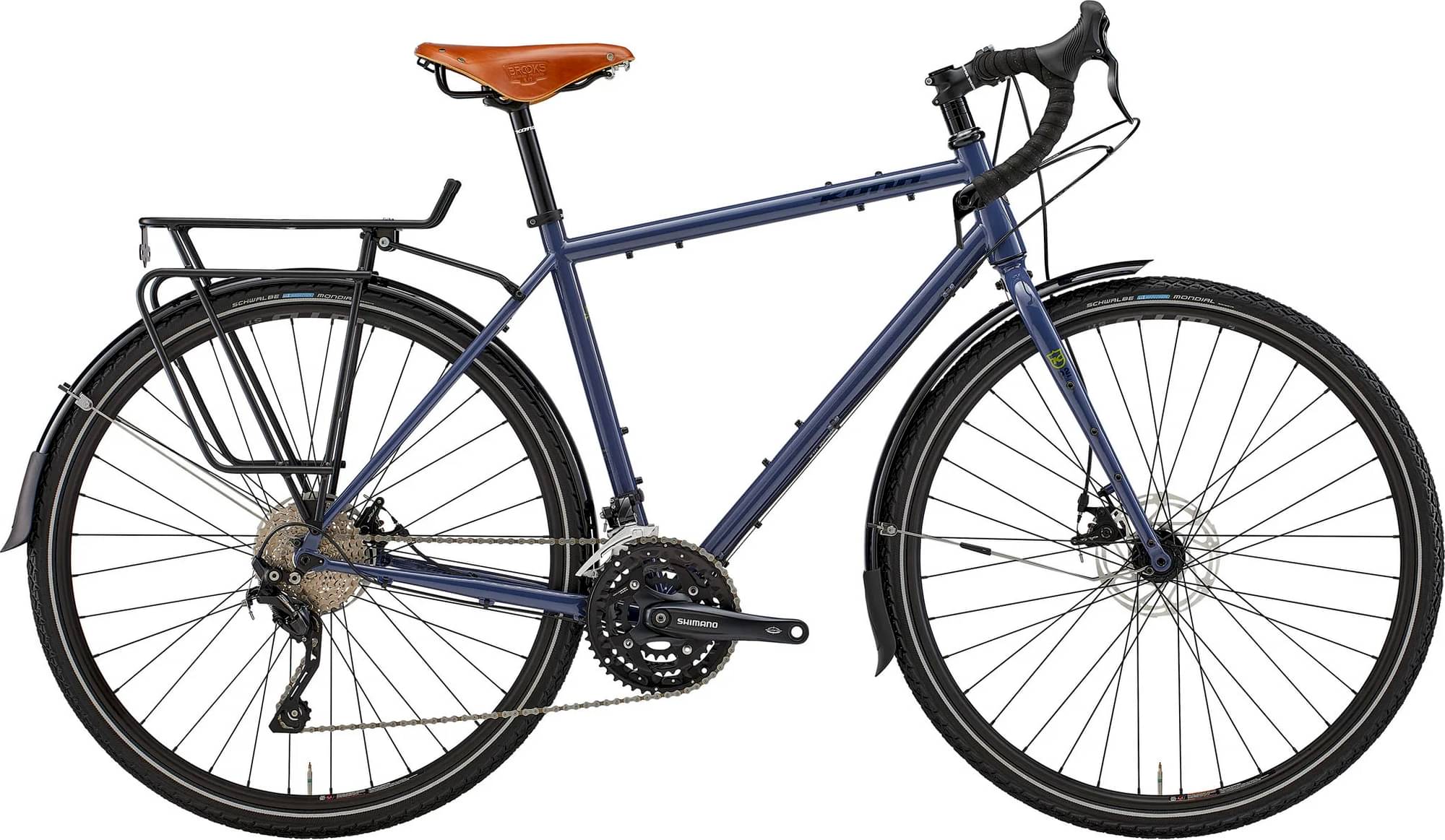

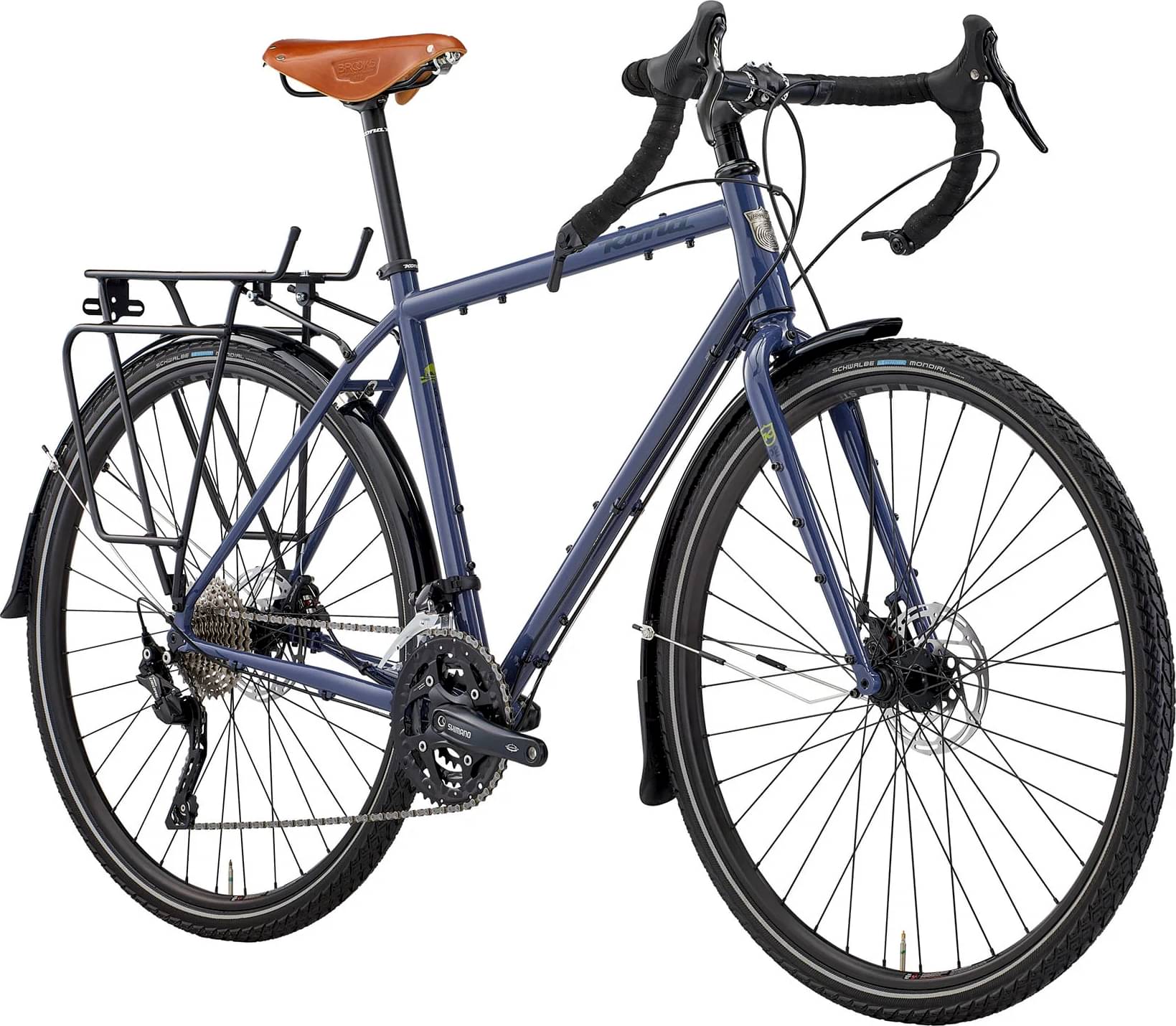

Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Deore, microSHIFT -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components

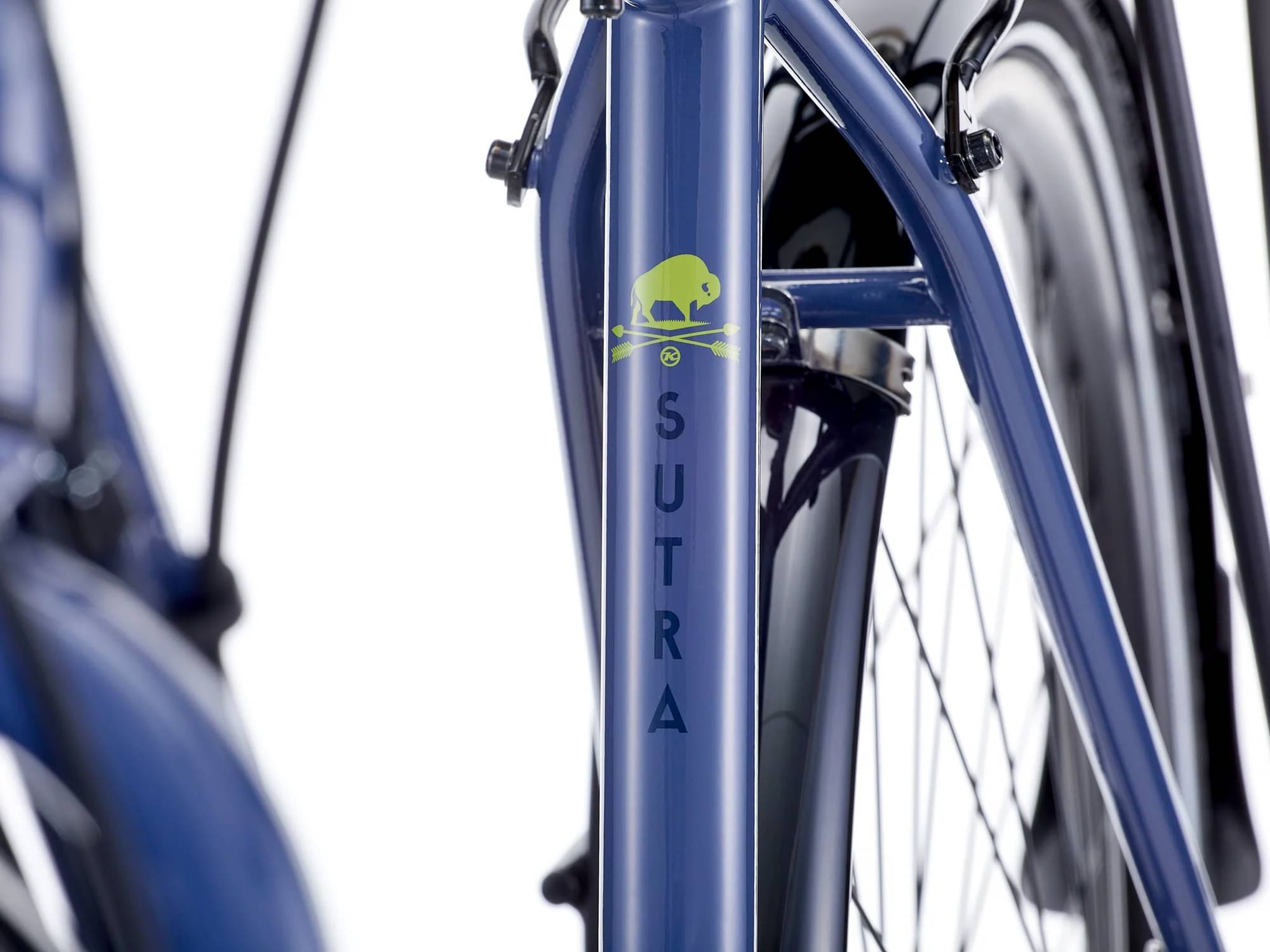

Frame

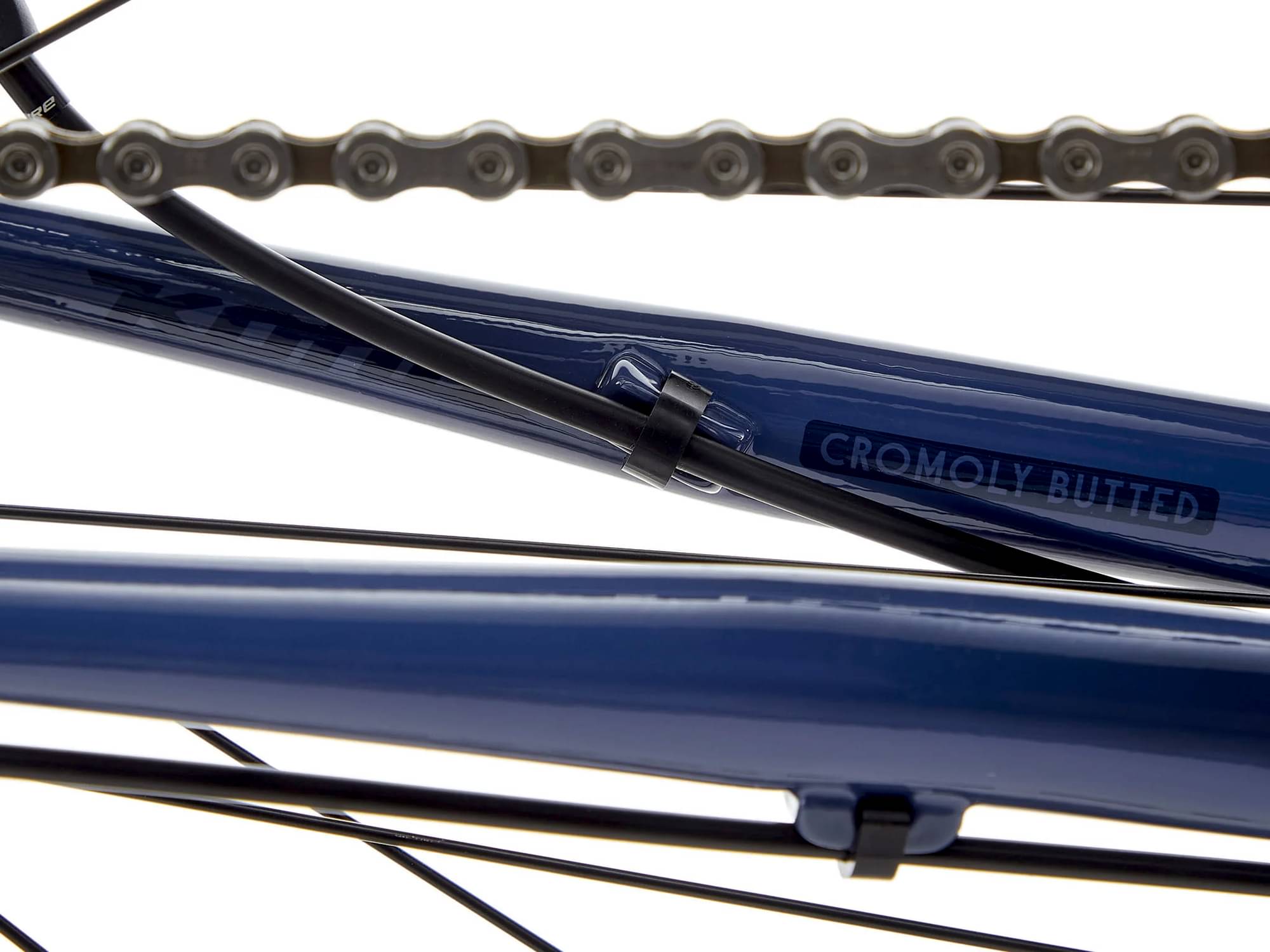

Frame
Kona Cromoly Butted
Suspension Fork
Kona Project Two Cromoly Disc Touring
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore SGS
Front Derailleur
Shimano Deore
Shift Levers
MicroShift
Cassette
Shimano Deore 11-36t 10spd
Crank
Shimano, 26/36/48t
Bottom Bracket
Shimano 68mm
Chain
Shimano Deore
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 100x12mm
Rear Hub
Formula 142x12mm
Rims
WTB ST i23 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Schwalbe Marathon Mondial 700x40c, Rear: Schwalbe Marathon Mondial 700x40c
Brakes
Brakes
TRP Spyre C Flat mount
Brake Levers
Tektro RRL-A

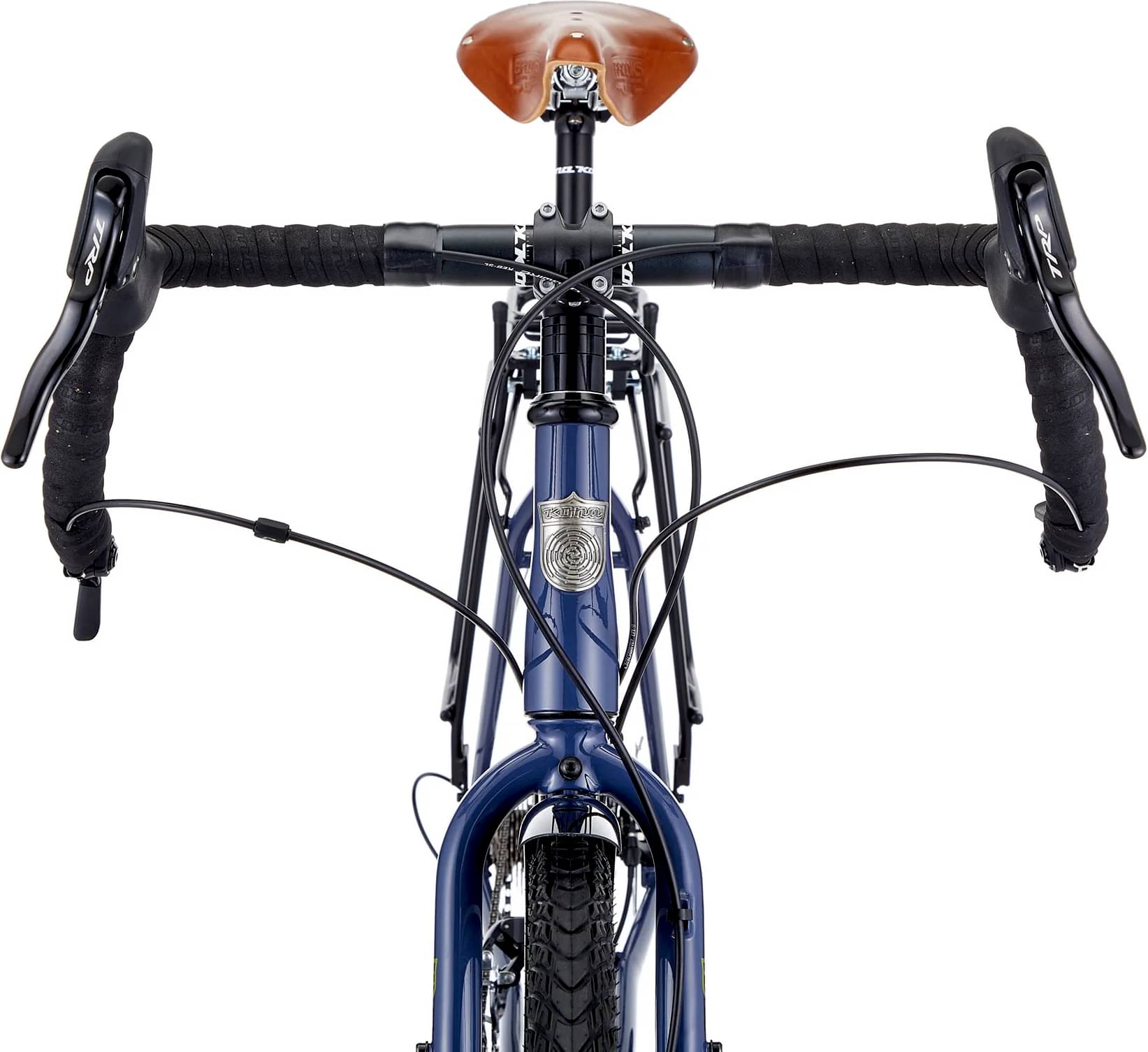

Cockpit

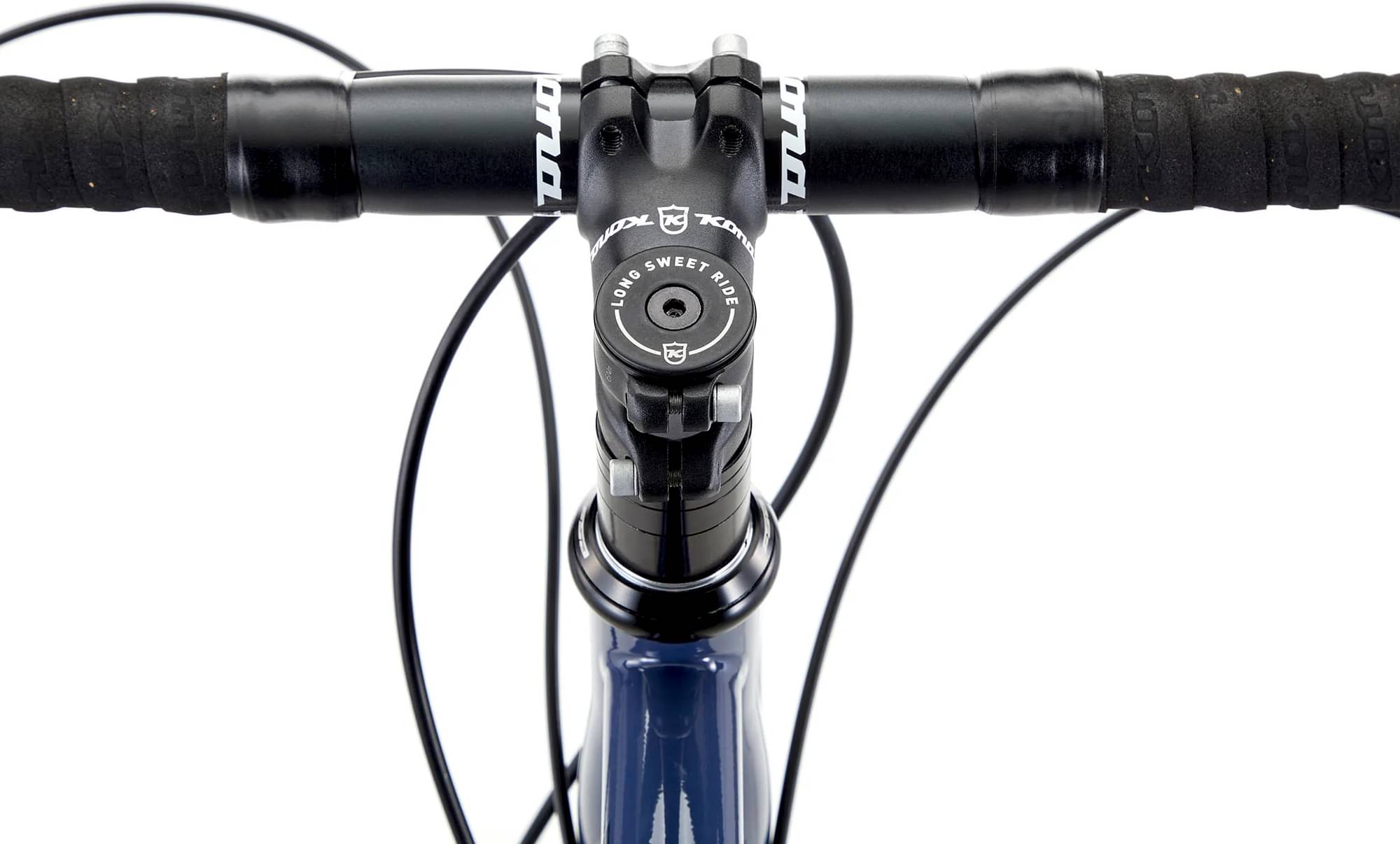

Stem
Kona Road
Handlebar
Kona Road
Grips
Kona Cork Tape

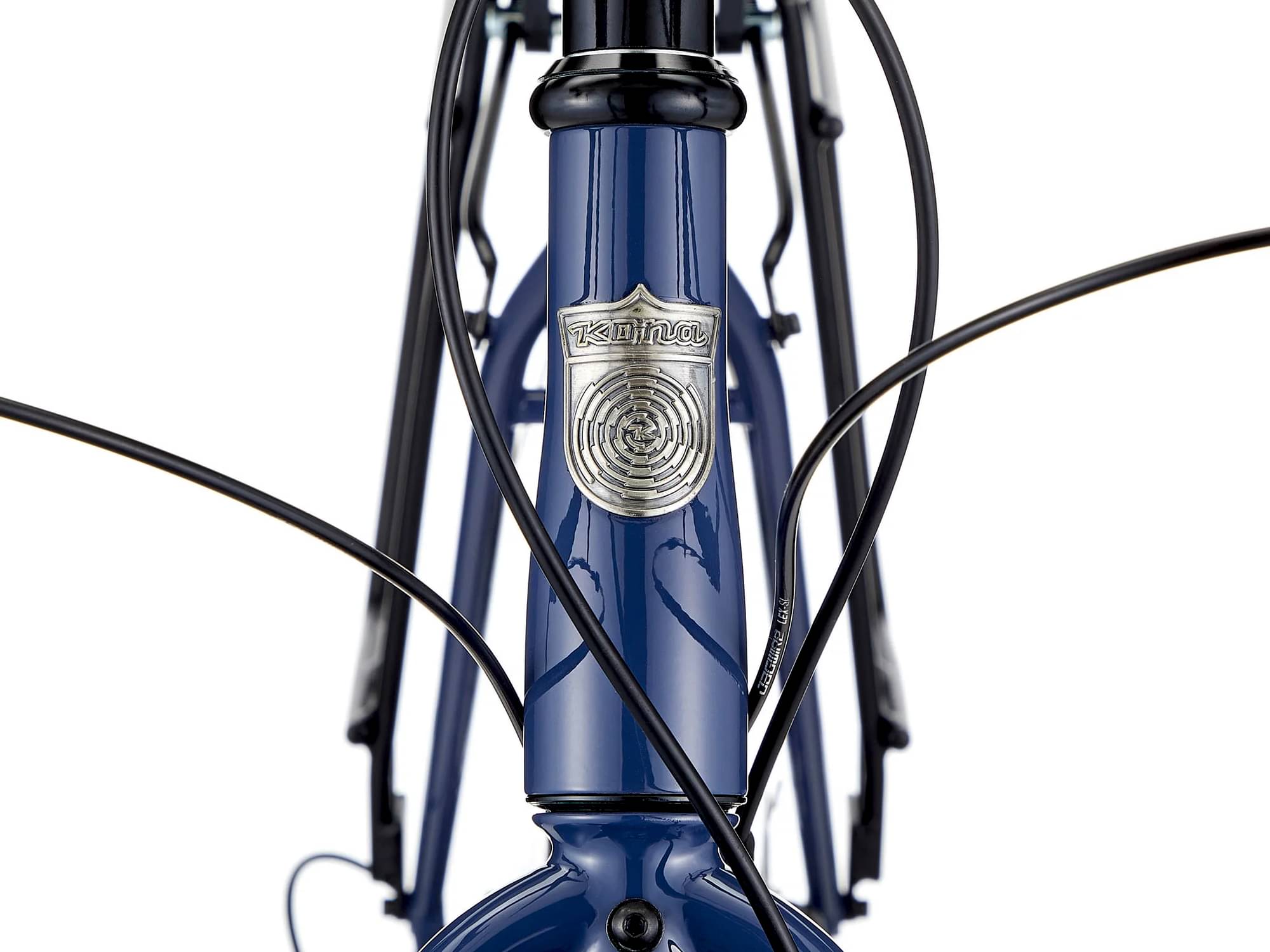

Headset
FSA No.1/No.10
Seat

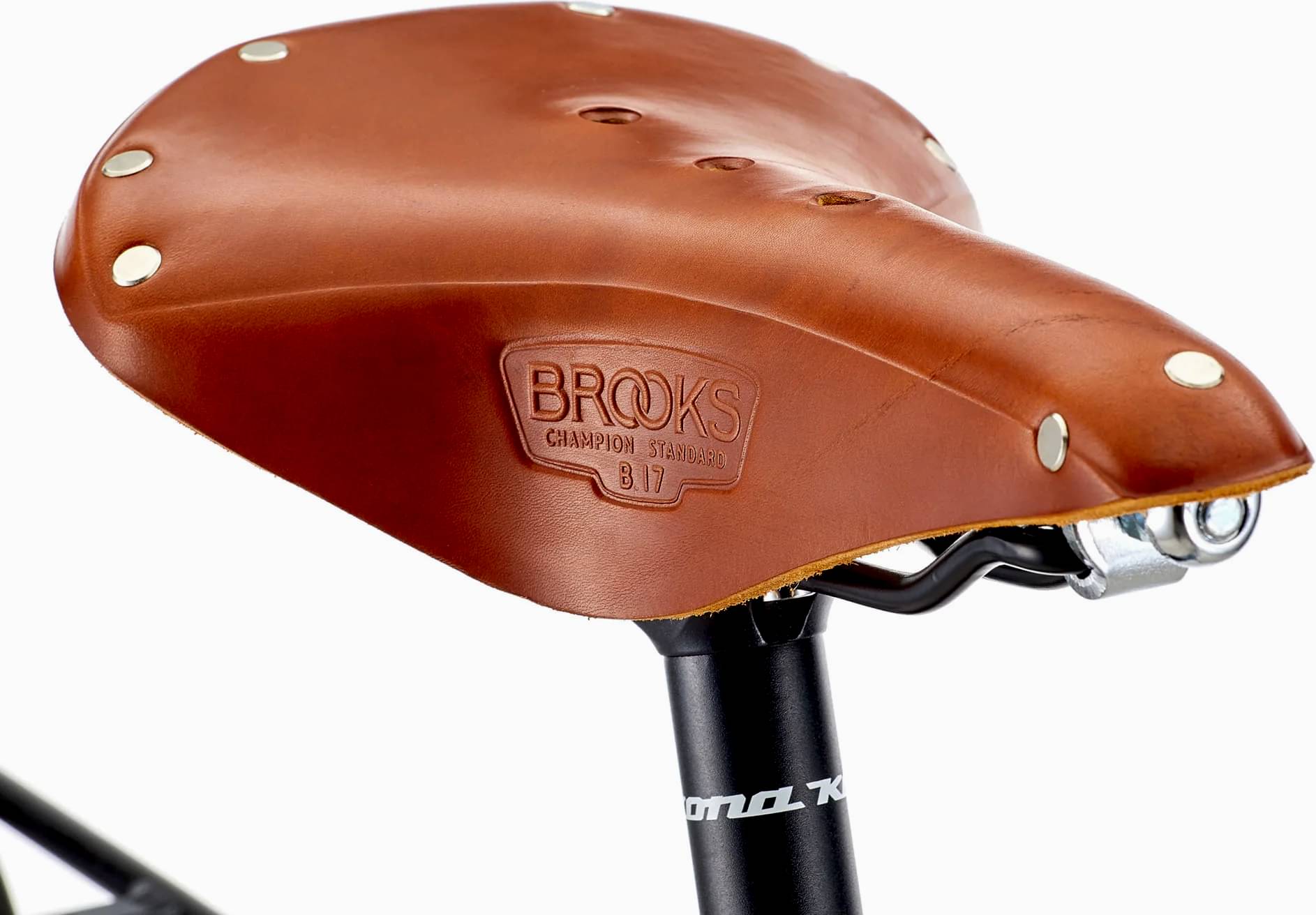

Saddle
Brooks B17 Leather
Seatpost
Kona Deluxe Thumb w/Offset 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.51 mm | 1.54 mm | 1.57 mm | 1.61 mm | 1.64 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 283 mm | 283 mm | 285 mm | 285 mm |
| Front Center | 602 mm | 613 mm | 626 mm | 638 mm | 651 mm | 662 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Stack | 546 mm | 565 mm | 586 mm | 605 mm | 627 mm | 646 mm |
| Reach | 370 mm | 375 mm | 380 mm | 385 mm | 390 mm | 395 mm |
| Top Tube Length | 518 mm | 533 mm | 550 mm | 566 mm | 583 mm | 600 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 105 mm | 125 mm | 150 mm | 170 mm | 195 mm | 215 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1031 mm | 1042 mm | 1056 mm | 1068 mm | 1081 mm | 1093 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 747 mm | 765 mm | 788 mm | 808 mm | 830 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Sutra SE belongs to the Kona Sutra model. Kona launched 26 bikes of this model so far. Take a sneak peek at all Kona Sutra bikes models from 2023, by clicking here.
Model range prices
Kona Sutra 2023 is the most affordable bike of this model and has a price of 2099$. On the other hand, Kona Sutra LTD 2023, is the most expensive and costs 2699$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Kona released this model in 2023, its price was 2199$. In conclusion, this bike price is 11.96% smaller than the price of the average Gravel bike.
Sutra SE components
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When leaving the production line, the Sutra SE model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.

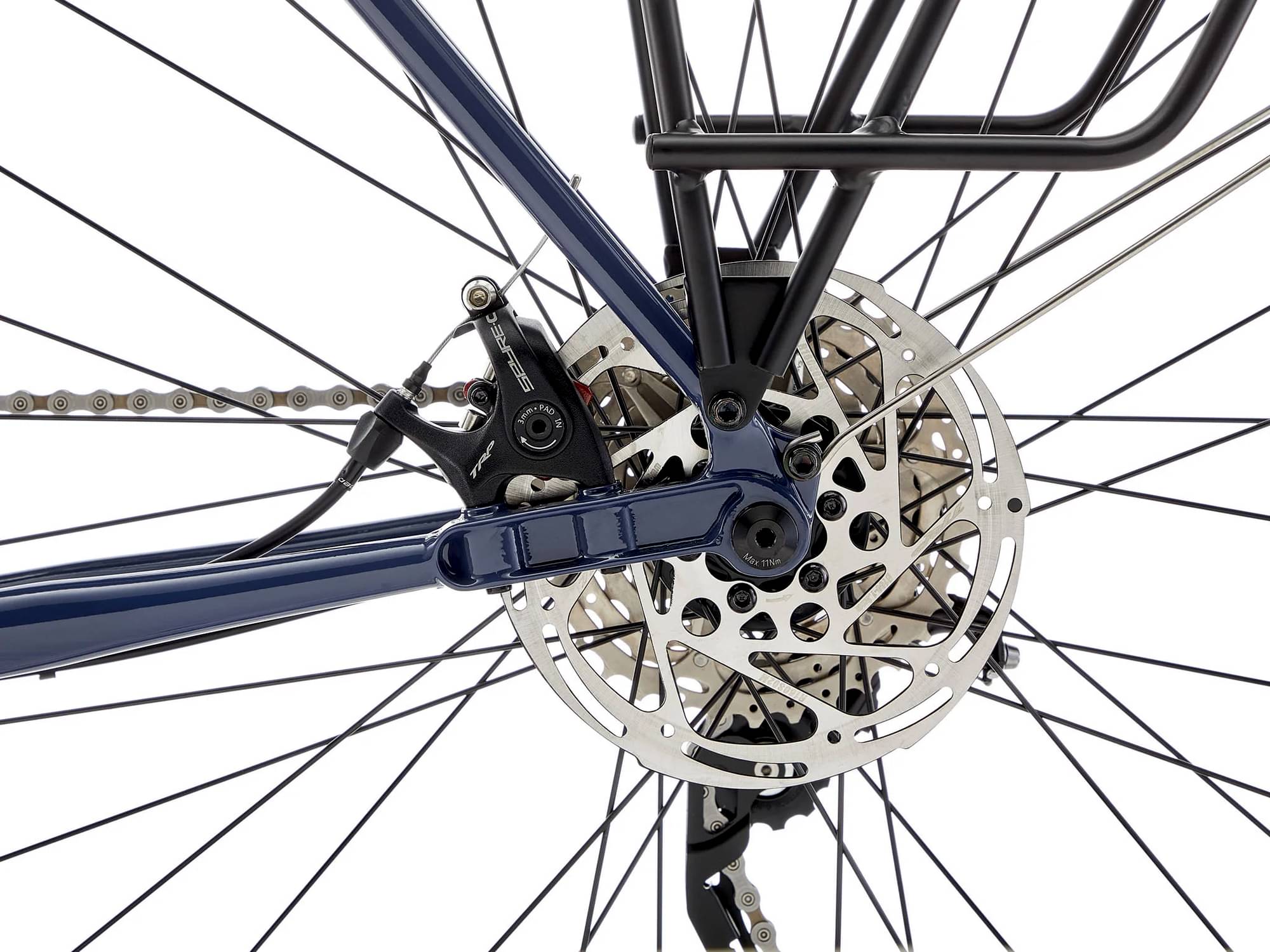

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Sutra SE comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
