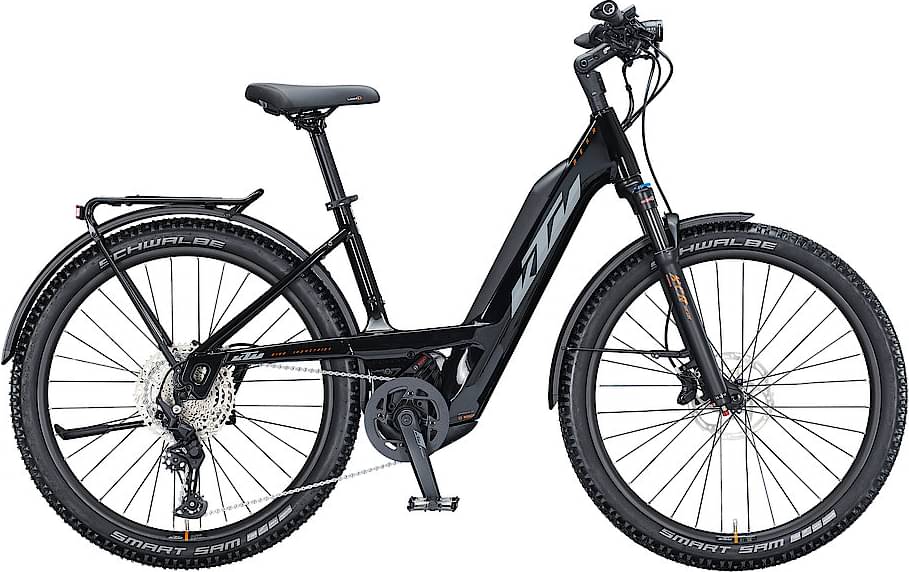

KTM MACINA AERA 271 LFC 2021
2021 E-bike
Estimate price |
4,710$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork SunTour XCR 34
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina PTS Offroad 27.5" Alloy6061; PT625Wh Bosch Gen.4 / T-1270
Suspension Fork
Suntour XCR 34 air 27.5" LOR 80mm 15x110 taper
Drivetrain
Shift Levers
Shimano Deore M5100-11 display
Cassette
Shimano Deore M5100-11 / 11-51
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Wheels
Rims
KTM Line - Shimano MT400B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
Brakes
Brakes
Tektro HD-M750 / E730 4-Piston
Disk Rotors
Tektro TR-45 2.3mm CL 180 / 180
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
KTM Comp rizer15 680mm
Headset
Ritchey Zero Logic Comp 1.1/8"-1.5"
Seat
Saddle
Selle Royal Lookin+
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.56 mm | 1.56 mm | 1.57 mm | 1.55 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 646 mm | 645 mm | 661 mm | 677 mm | 698 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 602 mm | 606 mm | 623 mm | 641 mm | 656 mm |
| Reach | 381 mm | 389 mm | 399 mm | 409 mm | 424 mm |
| Top Tube Length | 566 mm | 576 mm | 591 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 137 mm | 137 mm | 155 mm | 174 mm | 190 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1088 mm | 1087 mm | 1103 mm | 1119 mm | 1140 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 483 mm | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
MACINA AERA 271 LFC is a Ktm E Macina Aera model. KTM launched 16 e-bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
KTM MACINA AERA P272 2021 is the most affordable e-bike of this model and has a price of 3237$. On the other hand, KTM MACINA AERA 271 LFC 2021, is the most expensive and costs 4299$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 4299$. Comparing the average cost of a Crosscountry e-bike to this one, you will see that MACINA AERA 271 LFC price is 75.25% more expensive.
Average weight for Crosscountry e-bikes
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 27 kg (59.52 lbs), the MACINA AERA 271 LFC model is much heavier than average. To sum up, it’s 16.33% heavier than the average weight of Crosscountry e-bikes.
MACINA AERA 271 LFC components
Fork
KTM MACINA AERA 271 LFC 2021 e-bike is equipped with the SunTour XCR 34 fork, and has 80mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, KTM MACINA AERA 271 LFC 2021, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA AERA 271 LFC has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
