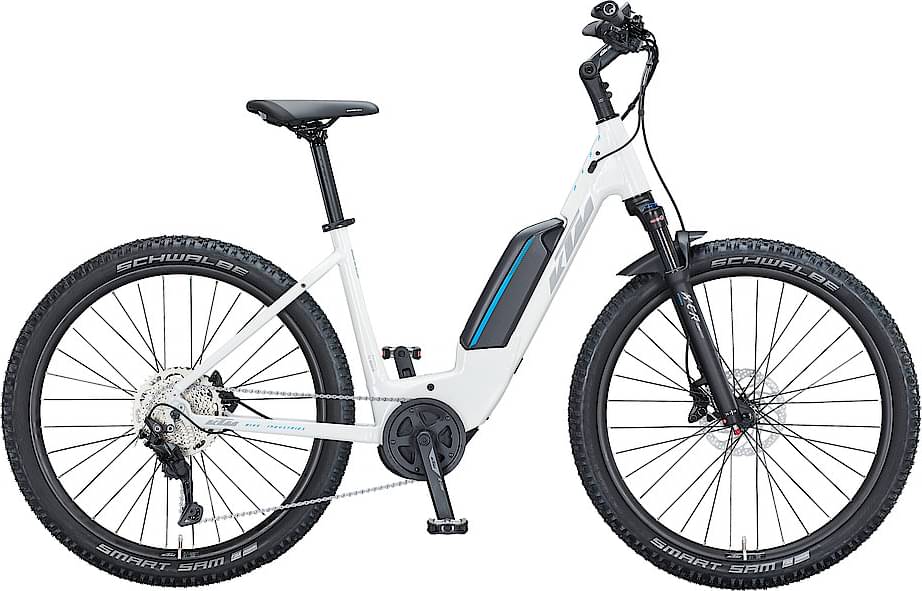

KTM MACINA AERA P272 2021
2021 E-bike
Estimate price |
3,547$
Weight | 22.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork SunTour XCR 34
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPACK 500Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Offroad 27.5" US Alloy6061; Si-PP500Wh Bosch Gen.3 / T-0280
Suspension Fork
Suntour XCR 34 coil 27.5" LOR 80mm 15x110 taper
Drivetrain
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-46
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Wheels
Rims
KTM Line - Shimano MT400B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Disk Rotors
Shimano RT30 CL 180 / 180
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
KTM Comp rizer15 680mm
Headset
Ritchey Zero Logic Comp 1.1/8"-1.5"
Seat
Saddle
Selle Royal Essenza
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerPACK 500Wh
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.67 mm | 1.68 mm | 1.66 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 638 mm | 640 mm | 650 | 669 mm |
| Rake | 40 mm | 46 mm | 46 mm | 46 mm |
| Trail | 94 mm | 80 mm | 80 mm | 80 mm |
| Stack | 625 mm | 627 mm | 640 mm | 656 mm |
| Reach | 369 mm | 375 mm | 381 mm | 394 mm |
| Top Tube Length | 576 mm | 586 mm | 601 mm | 622 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1121 mm | 1123 mm | 1133 mm | 1152 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
MACINA AERA P272 is a Ktm E Macina Aera model. There are 16 e-bikes that carry this model name. You can easily view all of the Ktm E Macina Aera e-bikes models from 2021, here.
Model range prices
KTM MACINA AERA P272 2021 is the most affordable e-bike of this model and has a price of 3237$. On the other hand, KTM MACINA AERA 271 LFC 2021, is the most expensive and costs 4299$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 3237$. Doing a quick comparison, we notice that MACINA AERA P272 price is 31.96% more expensive than the average cost of a Crosscountry e-bike.
Crosscountry e-bikes average weight
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 22.1 kg (48.72 lbs), KTM e-bike is a bit lighter than average. In conclusion, the average Crosscountry e-bike weighs 5.02% more than MACINA AERA P272.
Overview of components
Fork
The MACINA AERA P272 comes factory-installed with the SunTour XCR 34 fork. This has a travel range of 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the MACINA AERA P272 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA AERA P272 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
