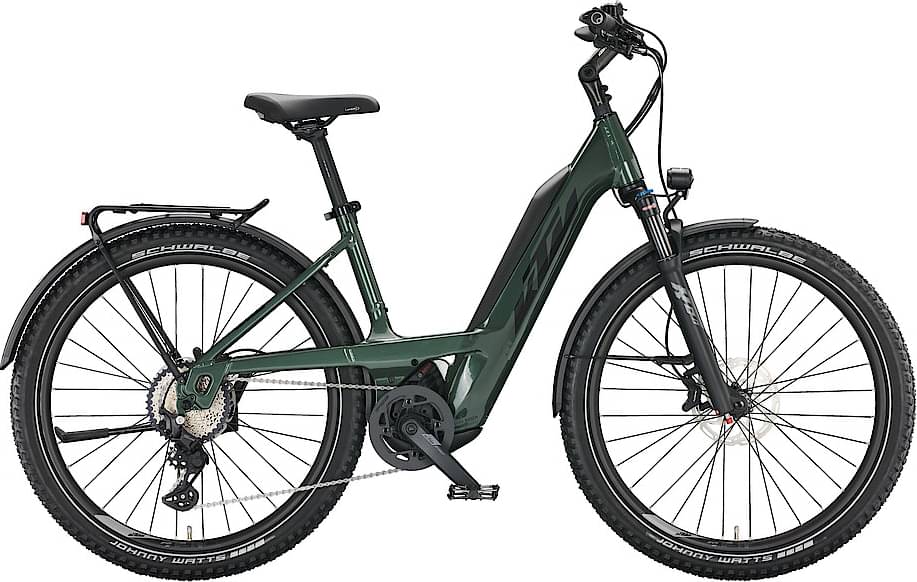

KTM MACINA AERA 671 LFC 2022
2022 E-bike
Estimate price |
5,045$
Weight | 27.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 80mm -
Fork Suntour XCR 34
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina PTS Offroad 27.5" Alloy6061; PT625Wh Bosch Gen.4 / T-1270
Suspension Fork
Suntour XCR 34 Air 27.5" LOR 80mm 15x110 taper
Rear Shock
SHOCK
Drivetrain
Rear Derailleur
Shimano Deore M5130-10 LG shadow+
Shift Levers
Shimano Deore M5130-10 LG display
Cassette
Shimano LG600-10 / 11-43
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
Brakes
Brakes
Tektro HD-M535 4-Piston
Disk Rotors
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 180
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
KTM Comp rizer15 680mm
Headset
Ritchey Zero Logic Comp 1.1/8"-1.5"
Seat
Saddle
Selle Royal Lookin+
Seatpost
KTM Team 30.9/300
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.56 mm | 1.56 mm | 1.57 mm | 1.55 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 646 mm | 645 mm | 661 mm | 677 mm | 698 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 602 mm | 606 mm | 623 mm | 641 mm | 656 mm |
| Reach | 381 mm | 389 mm | 399 mm | 409 mm | 424 mm |
| Top Tube Length | 566 mm | 576 mm | 591 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 137 mm | 137 mm | 155 mm | 174 mm | 190 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1088 mm | 1087 mm | 1103 mm | 1119 mm | 1140 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 479 mm | 479 mm | 479 mm | 479 mm | 479 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
MACINA AERA 671 LFC is a Ktm E Macina Aera model. 16 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the KTM MACINA AERA 571 LFC 2022 has a starting price of 3928$. KTM MACINA AERA 771 LFC 2022 on the other hand is the most expensive at 5626$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When KTM released this model in 2022, its price was 4671$. In conclusion, this e-bike price is 90.42% more expensive than the price of the average Crosscountry e-bike.
Average weight for Crosscountry e-bikes
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
KTM MACINA AERA 671 LFC it’s weighing 27.5 kg (60.63 lbs). At this weight, is much heavier than average. In other words, this model is 18.48% heavier than the average Crosscountry e-bike.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR 34 model. The travel on this model is 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on MACINA AERA 671 LFC are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
MACINA AERA 671 LFC comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
