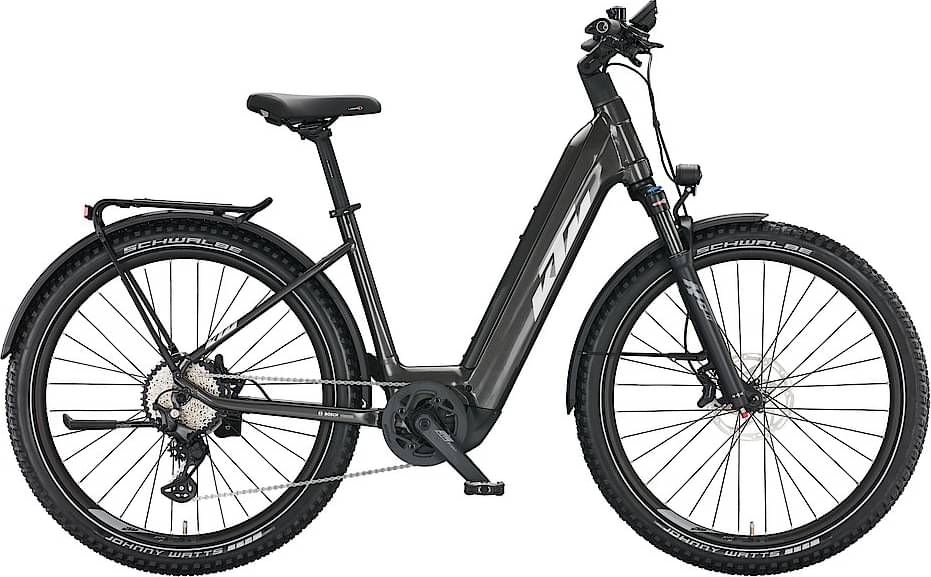

KTM MACINA AERA 772 LFC 2022
2022 E-bike
Estimate price |
5,160$
Weight | 27.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 80mm -
Fork Suntour XCR 34
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940
Suspension Fork
Suntour XCR 34 Air 27.5" LOR 80mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore M5130-10 LG shadow+
Shift Levers
Shimano Deore M5130-10 LG display
Cassette
Shimano LG600-10 / 11-43
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
Brakes
Brakes
Tektro HD-M535 4-Piston
Disk Rotors
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 180
Cockpit
Stem
KTM Line adjust. 0-60° internal
Handlebar
KTM Comp rizer15 680mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
KTM Team 30.9/300
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.74 mm | 1.72 mm | 1.73 mm | 1.73 mm | 1.66 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 299 mm | 299 mm |
| Front Center | 659 mm | 652 mm | 649 mm | 666 mm | 686 mm |
| Rake | 46 mm | 41 mm | 40 mm | 41 mm | 40 mm |
| Trail | 101 mm | 99 mm | 94 mm | 93 mm | 94 mm |
| Stack | 626 mm | 631 mm | 644 mm | 660 mm | 664 mm |
| Reach | 359 mm | 367 mm | 372 mm | 382 mm | 401 mm |
| Top Tube Length | 581 mm | 586 mm | 596 mm | 611 mm | 631 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 67 ° | 68 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 165 mm | 165 mm | 174 mm | 190 mm | 195 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1136 mm | 1129 mm | 1126 mm | 1143 mm | 1163 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
MACINA AERA 772 LFC belongs to the Ktm E Macina Aera model. KTM launched 16 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
KTM MACINA AERA 571 LFC 2022 is the most economical model, with a starting price of 3928$. KTM MACINA AERA 771 LFC 2022 on the other hand costs 5626$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4777$. Comparing this to the average Crosscountry e-bike price, we see that the price is 94.74% higher.
Crosscountry e-bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, MACINA AERA 772 LFC has a weight of 27.9 kg (61.51 lbs). In conclusion, the average Crosscountry e-bike weighs 20.21% less than MACINA AERA 772 LFC.
MACINA AERA 772 LFC components
Fork
The fork installed on this bike is the Suntour XCR 34 model. The travel on this model is 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The MACINA AERA 772 LFC 2022 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA AERA 772 LFC comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
