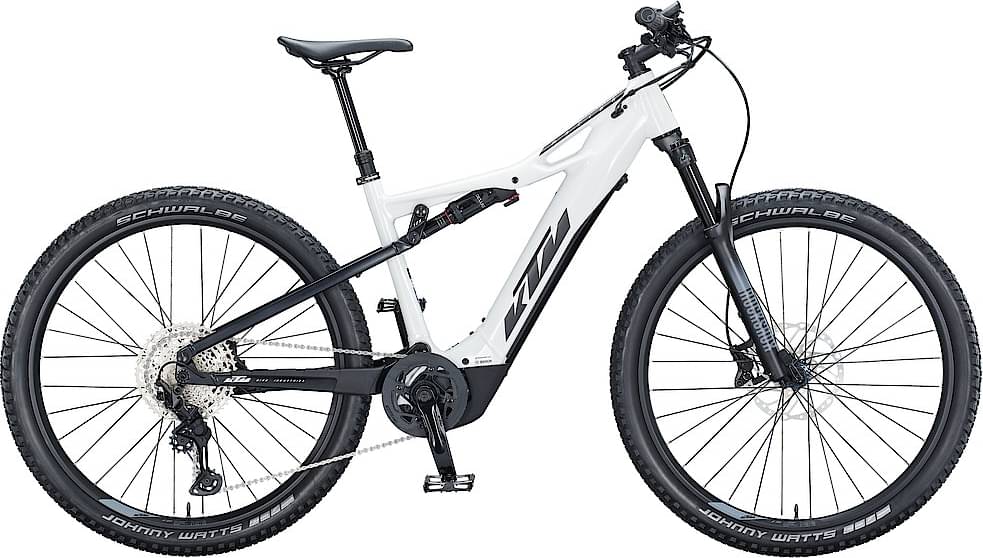

KTM MACINA CHACANA 292 2021
2021 E-bike
Estimate price |
5,447$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Chacana 29" Alloy6061 SLL-E 130mm; PT625 Bosch Gen.4 / M-0186
Suspension Fork
RockShox 35 gold RL 29" 130mm 15x110
Rear Shock
RockShox Deluxe Select+ 230x57.5
Drivetrain
Shift Levers
Shimano Deore M6100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM TEAM ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano Deore M6100-12
Wheels
Rims
KTM Line - Shimano SLX M7110B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Disk Rotors
Shimano RT64 CL 203 / 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 720mm
Headset
KTM Team eMTB 1.1/8"-1.5" angle limit
Seat
Saddle
Ergon SM10
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.42 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 718 mm | 738 mm | 769 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm |
| Stack | 625 mm | 630 mm | 641 mm |
| Reach | 406 mm | 425 mm | 452 mm |
| Top Tube Length | 581 mm | 601 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1187 mm | 1208 mm | 1239 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm |
| Standover Height | 781 mm | 784 mm | 787 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA CHACANA 292 completes the Ktm E Macina Chacana model. KTM launched 18 e-bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
KTM MACINA CHACANA 294 2021 is the most economical model, with a starting price of 3981$. KTM MACINA CHACANA 291 2021 on the other hand costs 5786$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When KTM released this model in 2021, its price was 5042$. Comparing the average cost of a Trail e-bike to this one, you will see that MACINA CHACANA 292 price is 49.84% higher.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 25.7 kg (56.66 lbs), KTM e-bike is a bit heavier than average. To sum up, it’s 8.44% heavier than the average weight of Trail e-bikes.
Overview of components
Fork
The MACINA CHACANA 292 comes factory-installed with the RockShox 35 Gold RL fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Deluxe Select+ 230×57.5 model, with a travel of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The MACINA CHACANA 292 2021 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA CHACANA 292 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
KTM MACINA CHACANA 292 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
