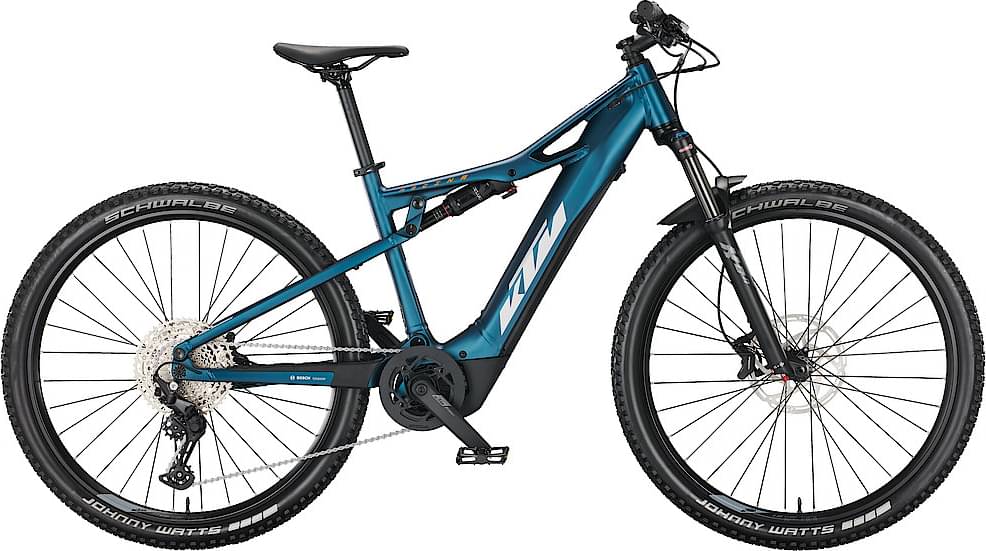

KTM MACINA CHACANA 691 LTD 2022
2022 E-bike
Estimate price |
5,348$
Weight | 25.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 130mm -
Travel Rear 125mm -
Fork Suntour XCR 34
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Chacana 29" Alloy6061 SLL-E 125mm; PT625 Bosch Gen.4 / M-0186
Suspension Fork
Suntour XCR 34 Air 29" LOR 130mm 15x110 taper
Rear Shock
RockShox Deluxe Select+ 230x57.5
Drivetrain
Rear Derailleur
Shimano Deore M5100-11 SGS shadow+
Shift Levers
Shimano Deore M5100-11
Cassette
Shimano Deore M5100-11 / 11-51
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
Brakes
Brakes
Tektro HD-M535 4-Piston
Disk Rotors
Tektro TR-45 2.3mm CL 203 / TR-45 2.3mm CL 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 720mm
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch PURION LCD Display
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.42 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 718 mm | 738 mm | 769 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm |
| Stack | 625 mm | 630 mm | 641 mm |
| Reach | 406 mm | 425 mm | 452 mm |
| Top Tube Length | 581 mm | 601 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1187 mm | 1208 mm | 1239 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm |
| Standover Height | 781 mm | 784 mm | 787 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA CHACANA 691 LTD completes the Ktm E Macina Chacana model. KTM released 18 e-bikes variations of this model so far. Take a sneak peek at all Ktm E Macina Chacana e-bikes models from 2022, by clicking here.
Model range prices
KTM MACINA CHACANA 591 LTD 2022 is the cheapest e-bike model and costs 4671$. KTM MACINA CHACANA 791 2022 is the most expensive one and costs 6476$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 4989$. Comparing the average cost of a Trail e-bike to this one, you will see that MACINA CHACANA 691 LTD price is 48.26% more expensive.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, MACINA CHACANA 691 LTD has a weight of 25.6 kg (56.44 lbs). To sum up, it’s 8.02% heavier than the average weight of Trail e-bikes.
MACINA CHACANA 691 LTD components
Fork
The Suntour XCR 34 is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the RockShox Deluxe Select+ 230×57.5 rear shock model, which has a travel of 125mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on MACINA CHACANA 691 LTD are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA CHACANA 691 LTD comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
MACINA CHACANA 691 LTD comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
