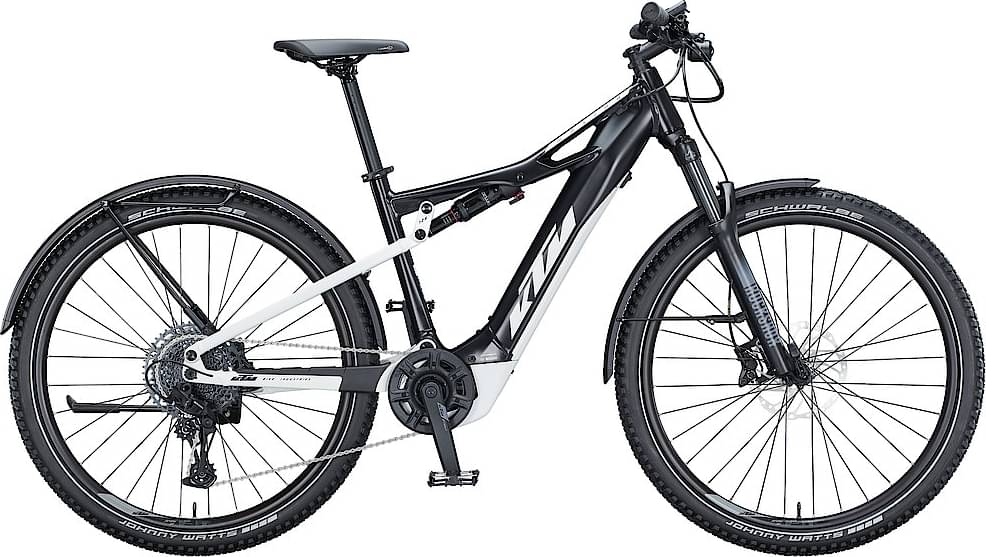

KTM MACINA CHACANA LFC 2021
2021 E-bike
Estimate price |
5,292$
Weight | 28.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Chacana 29" Alloy6061 SLL-E 130mm; PT625 Bosch Gen.4 / M-0186
Suspension Fork
RockShox 35 silver TK 29" 130mm 15x110
Rear Shock
RockShox Deluxe Select+ 230x57.5
Drivetrain
Shift Levers
SRAM SX Eagle eClick 12
Cassette
SRAM SX Eagle PG-1210 / 11-50
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
SRAM NX Eagle 12s
Wheels
Rims
KTM Line - Shimano MT400B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Disk Rotors
Shimano RT64 CL 203 / 180
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 720mm
Headset
KTM Team eMTB 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin Athletic
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.42 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 718 mm | 738 mm | 769 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm |
| Stack | 625 mm | 630 mm | 641 mm |
| Reach | 406 mm | 425 mm | 452 mm |
| Top Tube Length | 581 mm | 601 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1187 mm | 1208 mm | 1239 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm |
| Standover Height | 781 mm | 784 mm | 787 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA CHACANA LFC is a Ktm E Macina Chacana model. 18 e-bikes variations carry this model name so far. You can easily view all of the Ktm E Macina Chacana e-bikes models from 2021, here.
Model range prices
The most economical model, the KTM MACINA CHACANA 294 2021 has a starting price of 3981$. KTM MACINA CHACANA 291 2021 on the other hand is the most expensive at 5786$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2021 and its price was 4830$. Comparing the average cost of a Trail e-bike to this one, you will see that MACINA CHACANA LFC price is 43.54% higher.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
KTM MACINA CHACANA LFC it’s weighing 28.1 kg (61.95 lbs). At this weight, is much heavier than average. In other words, this model is 18.57% heavier than the average Trail e-bike.
MACINA CHACANA LFC components
Fork
The MACINA CHACANA LFC comes factory-installed with the RockShox 35 Silver fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Deluxe Select+ 230×57.5 model, with a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on MACINA CHACANA LFC are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA CHACANA LFC has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
MACINA CHACANA LFC comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
