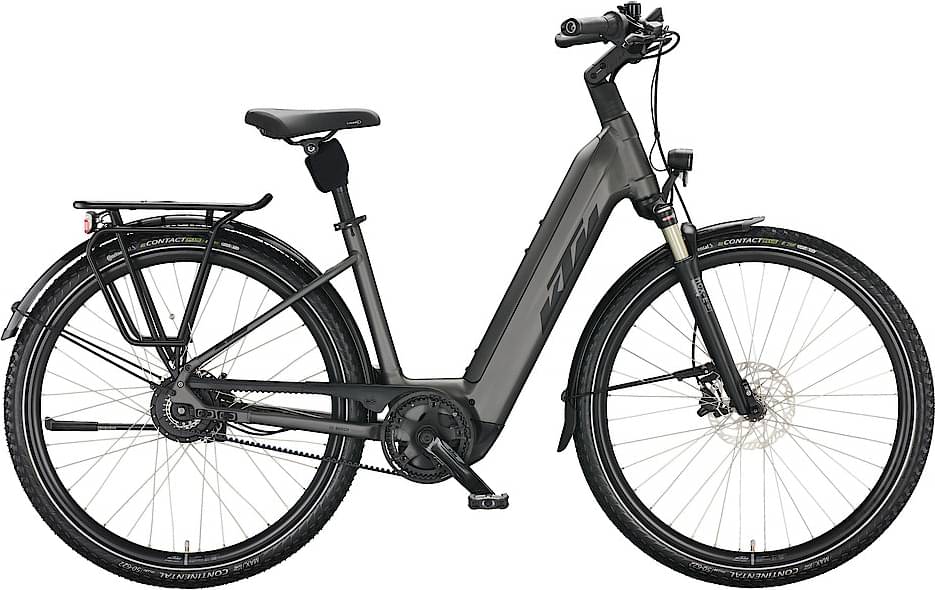

KTM MACINA CITY 710 belt 2022
2022 E-bike
Estimate price |
6,078$
Weight | 28.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina City Alloy6061 belt; PT750Wh Bosch Gen.4 / T-2970
Suspension Fork
Suntour NCX-E Air LO 63mm 15QLC
Drivetrain
Shift Levers
Enviolo Controller Twist Display Pro
Cassette
Gates rear-sprocket 24T
Crank
KTM TEAM ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Gates drive-belt 125T CDX
Chain Guide
SKS Chainblade
Wheels
Rims
KTM Line - Shimano Deore M6010 CL 36H 100-15TA / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black
Brakes
Brakes
Magura CT Disc (3-F) 2-Piston
Disk Rotors
Magura MDR-C 6B 180 / MDR-C 6B 160
Cockpit
Stem
KTM Line adjust. 0-60° internal
Handlebar
KTM Line Noirette Plus 660mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
Suntour SP17-NCX suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.55 mm | 1.56 mm |
| Front Center | 632 mm | 645 mm | 656 mm | 672 mm |
| Rake | 25 mm | 37 mm | 37 mm | 36 mm |
| Trail | 107 mm | 88 mm | 88 mm | 89 mm |
| Stack | 583 mm | 603 mm | 620 mm | 638 mm |
| Reach | 391 mm | 395 mm | 400 mm | 410 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 479 mm | 479 mm | 479 mm | 479 mm |
| Wheelbase | 1104 mm | 1117 mm | 1128 mm | 1144 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 788 mm | 811 mm | 843 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA CITY 710 belt belongs to the Ktm E Macina City model. 20 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
KTM MACINA CITY A510 RT 2022 is the cheapest e-bike model and costs 3928$. KTM MACINA CITY 710 belt 2022 is the most expensive one and costs 5626$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When KTM released this model in 2022, its price was 5626$. If we compare this with the average Commuter e-bike cost we notice that the price is 119% more expensive.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 28.8 kg (63.49 lbs), KTM e-bike is considerably heavier than average. In conclusion, the average Commuter e-bike weighs 14.29% less than MACINA CITY 710 belt.
MACINA CITY 710 belt components
Fork
KTM MACINA CITY 710 belt 2022 e-bike is equipped with the Suntour NCX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the MACINA CITY 710 belt model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA CITY 710 belt has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
