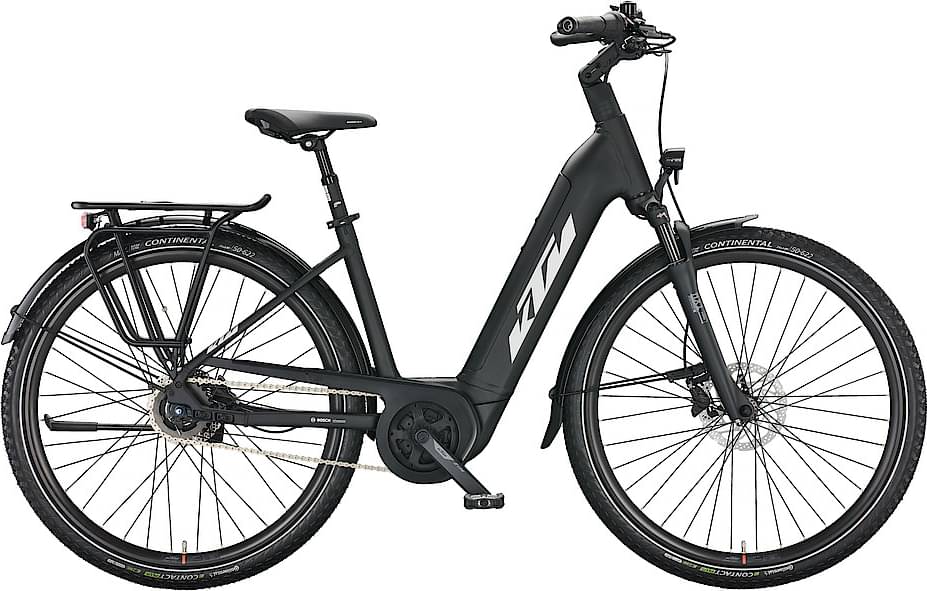

KTM MACINA CITY A510 RT 2022
2022 E-bike
Estimate price |
4,243$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina City US Alloy6061; PT625Wh Bosch Gen.3 / T-1180
Suspension Fork
Suntour NX1 coil LO 63mm
Drivetrain
Shift Levers
Shimano Nexus 5 Revoshifter
Cassette
ESJOT 30T
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC Z1eHX
Chain Guide
KTM type 6 for Bosch Gen.4
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 36H 100-5QR / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / RTC60 5bolt 160
Cockpit
Stem
KTM Line adjust. 0-60° internal
Handlebar
KTM Line Noirette Plus 660mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Essenza+
Seatpost
KTM Line Elegance suspension 30.9/300
Motor & Battery
Motor
Bosch ACTIVE PLUS Gen.3 - 25km/h / 50Nm
Battery
Bosch PowerTUBE 500Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.64 mm | 1.66 mm | 1.65 mm |
| Front Center | 630 mm | 634 mm | 644 mm | 660 mm |
| Rake | 36 mm | 42 mm | 41 mm | 41 mm |
| Trail | 95 mm | 82 mm | 83 mm | 83 mm |
| Stack | 618 mm | 620 mm | 634 mm | 649 mm |
| Reach | 368 mm | 377 mm | 383 mm | 393 mm |
| Top Tube Length | 576 mm | 586 mm | 596 mm | 611 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1093 mm | 1097 mm | 1107 mm | 1123 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
MACINA CITY A510 RT belongs to the Ktm E Macina City model. KTM released 20 e-bikes variations of this model so far. You can easily view all of the Ktm E Macina City e-bikes models from 2022, here.
Model range prices
KTM MACINA CITY A510 RT 2022 is the cheapest e-bike model and costs 3928$. KTM MACINA CITY 710 belt 2022 is the most expensive one and costs 5626$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3928$. In conclusion, this e-bike price is 52.9% more expensive than the price of the average Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 27.6 kg (60.85 lbs), KTM e-bike is a bit heavier than average. In conclusion, the average Commuter e-bike weighs 9.52% less than MACINA CITY A510 RT.
Overview of components
Fork
KTM MACINA CITY A510 RT 2022 e-bike is equipped with the Suntour fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on MACINA CITY A510 RT are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA CITY A510 RT has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
KTM MACINA CITY A510 RT e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
